Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

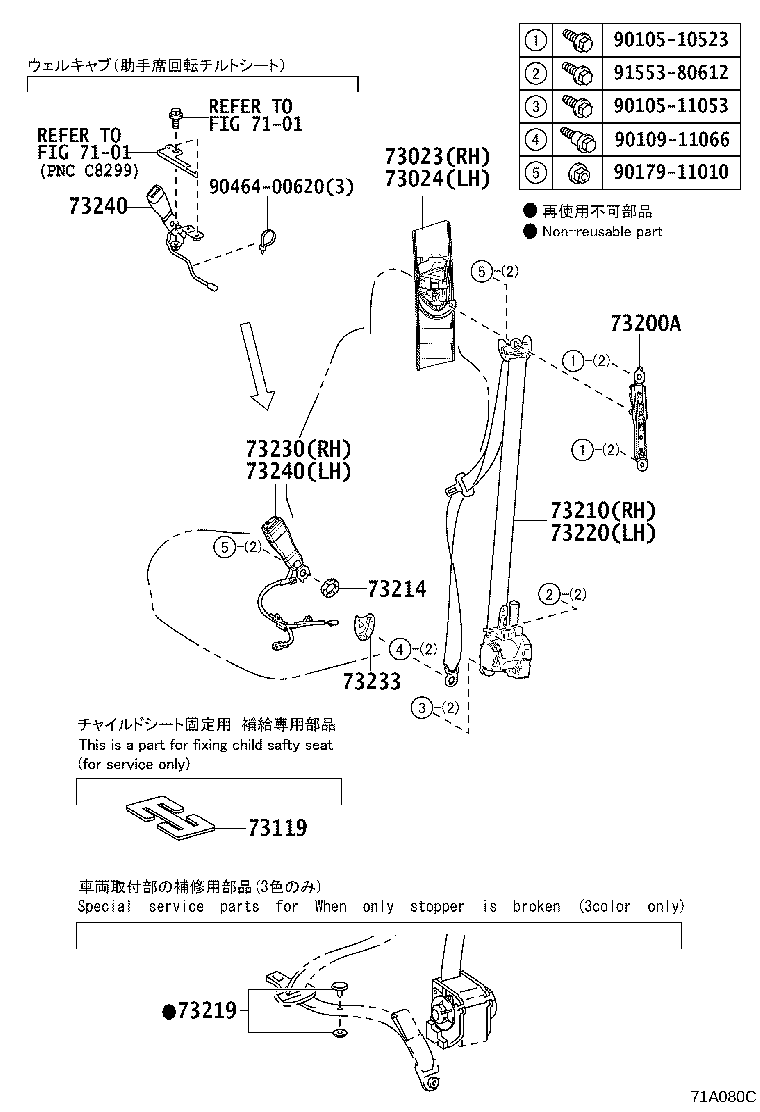

Exploded illustration 71A080C 73119 — PLATE, SEAT BELT WEBBING CLIP (2 parts) 73219 — STOPPER, TONGUE PLATE (6 parts) 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (2 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (10 parts) 73210 — BELT ASSY, FRONT SEAT OUTER, RH (10 parts) 73024 — PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH (5 parts) 73023 — PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH (5 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (12 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (14 parts) 73233 — COVER, LAP BELT OUTER ANCHOR (5 parts) 73214 — PLATE, FRONT SEAT BELT ANCHOR (14 parts) 9010510523 — not listed in this catalogue 9010511053 — not listed in this catalogue 9017911010 — not listed in this catalogue 9155380612 — not listed in this catalogue 9010911066 — not listed in this catalogue 9046400620 — not listed in this catalogue 73240 — BELT ASSY, FRONT SEAT INNER, LH (12 parts) 7101 — not listed in this catalogue 7101 — not listed in this catalogue
71A080C · 12 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
85 parts on this figure
Part number Description Fitment Price
73023 — Plate Sub-assy, Front Shoulder Belt Anchor, RH
73023-58010-C0 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2015-11 → 2016-10 ended
ZVW5# CBU ¥1,710
73023-58010-C1 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2016-10 → 2018-12 ended
ZVW51 E ¥1,550
73023-58010-C1 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥1,550
73023-58010-C1 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥1,550
73023-58010-C1 note Plate Sub-assy, Front Shoulder Belt Anchor, RH
2018-12 → —
ZVW5# CBU ¥1,550
73024 — Plate Sub-assy, Front Shoulder Belt Anchor, LH
73024-58010-C0 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2015-11 → 2016-10 ended
ZVW5# CBU ¥1,710
73024-58010-C1 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2016-10 → 2018-12 ended
ZVW51 E ¥1,550
73024-58010-C1 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥1,550
73024-58010-C1 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥1,550
73024-58010-C1 note Plate Sub-assy, Front Shoulder Belt Anchor, LH
2018-12 → —
ZVW5# CBU ¥1,550
73119 — Plate, Seat Belt Webbing Clip
73119-22010 Plate, Seat Belt Webbing Clip
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,110
73119-22010 Plate, Seat Belt Webbing Clip
2018-12 → —
ZVW5# CBU ¥1,110
73200A — Adjuster Assy, Front Shoulder Belt Anchor
73200-12070 Adjuster Assy, Front Shoulder Belt Anchor
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,200
73200-12070 Adjuster Assy, Front Shoulder Belt Anchor
2018-12 → —
ZVW5# CBU ¥3,200
73210 — Belt Assy, Front Seat Outer, RH
73210-47280-C2 note Belt Assy, Front Seat Outer, RH
2015-11 → 2016-10 ended
ZVW5# (A,PREM,S) CBU ¥37,800
73210-47280-C2 note Belt Assy, Front Seat Outer, RH
2015-11 → 2016-10 ended
ZVW51 E ¥37,800
73210-47281-C2 note Belt Assy, Front Seat Outer, RH
2016-11 → 2017-08 ended
ZVW51 E ¥31,500
73210-47281-C2 note Belt Assy, Front Seat Outer, RH
2016-11 → 2017-08 ended
ZVW5# (A,S) CBU ¥31,500
73210-47281-C2 note Belt Assy, Front Seat Outer, RH
2016-11 → 2017-08 ended
ZVW51,55 PREM ¥31,500
73210-47281-C7 note Belt Assy, Front Seat Outer, RH
2017-08 → 2018-12 ended
ZVW51 E ¥26,200
73210-47281-C7 note Belt Assy, Front Seat Outer, RH
2017-08 → 2018-12 ended
ZVW5# (A,S) CBU ¥26,200
73210-47281-C7 note Belt Assy, Front Seat Outer, RH
2017-08 → 2018-12 ended
ZVW51,55 PREM ¥26,200
73210-47281-C7 note Belt Assy, Front Seat Outer, RH
2018-12 → 2022-07 ended
ZVW5# CBU ¥26,200
73210-47282-C7 note Belt Assy, Front Seat Outer, RH
2022-08 → —
ZVW5# CBU ¥23,800
73214 — Plate, Front Seat Belt Anchor
73214-75010 note Plate, Front Seat Belt Anchor
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥170
73214-75010 Plate, Front Seat Belt Anchor
2015-11 → 2018-12 ended
ZVW5# CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2018-12 → —
ZVW5# S CBU ¥170
73214-75010 Plate, Front Seat Belt Anchor
2018-12 → —
ZVW5# CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2018-12 → —
ZVW5# S CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2018-12 → —
ZVW5# A CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2018-12 → —
ZVW5# A CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2018-12 → —
ZVW5# A CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2018-12 → —
ZVW5# S CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2018-12 → —
ZVW5# A CBU ¥170
73214-75010 note Plate, Front Seat Belt Anchor
2018-12 → —
ZVW5# S CBU ¥170
73219 — Stopper, Tongue Plate
73219-33010 note Stopper, Tongue Plate
2015-11 → 2018-12 ended
ZVW5# CBU ¥100
73219-33020 note Stopper, Tongue Plate
2015-11 → 2018-12 ended
ZVW5# CBU ¥100
73219-33030 note Stopper, Tongue Plate
2015-11 → 2018-12 ended
ZVW5# CBU ¥100
73219-33010 note Stopper, Tongue Plate
2018-12 → —
ZVW5# CBU ¥100
73219-33020 note Stopper, Tongue Plate
2018-12 → —
ZVW5# CBU ¥100
73219-33030 note Stopper, Tongue Plate
2018-12 → —
ZVW5# CBU ¥100
73220 — Belt Assy, Front Seat Outer, LH
73220-47220-C2 note Belt Assy, Front Seat Outer, LH
2015-11 → 2016-10 ended
ZVW5# (A,PREM,S) CBU ¥37,800
73220-47220-C2 note Belt Assy, Front Seat Outer, LH
2015-11 → 2016-10 ended
ZVW51 E ¥37,800
73220-47221-C2 note Belt Assy, Front Seat Outer, LH
2016-11 → 2017-08 ended
ZVW51 E ¥31,500
73220-47221-C2 note Belt Assy, Front Seat Outer, LH
2016-11 → 2017-08 ended
ZVW5# (A,S) CBU ¥31,500
73220-47221-C2 note Belt Assy, Front Seat Outer, LH
2016-11 → 2017-08 ended
ZVW51,55 PREM ¥31,500
73220-47221-C7 note Belt Assy, Front Seat Outer, LH
2017-08 → 2018-12 ended
ZVW51 E ¥26,200
73220-47221-C7 note Belt Assy, Front Seat Outer, LH
2017-08 → 2018-12 ended
ZVW5# (A,S) CBU ¥26,200
73220-47221-C7 note Belt Assy, Front Seat Outer, LH
2017-08 → 2018-12 ended
ZVW51,55 PREM ¥26,200
73220-47221-C7 note Belt Assy, Front Seat Outer, LH
2018-12 → 2022-07 ended
ZVW5# CBU ¥26,200
73220-47222-C7 note Belt Assy, Front Seat Outer, LH
2022-08 → —
ZVW5# CBU ¥23,800
73230 — Belt Assy, Front Seat Inner, RH
73230-33870-C0 note Belt Assy, Front Seat Inner, RH
2018-01 → 2018-12 ended
ZVW51,55 PREM ¥4,170
73230-33880-C0 note Belt Assy, Front Seat Inner, RH
2018-01 → 2018-12 ended
ZVW5# (A,S) CBU ¥4,170
73230-33880-C0 note Belt Assy, Front Seat Inner, RH
2018-01 → 2018-12 ended
ZVW5# (A,S) CBU ¥4,170
73230-47450-C0 note Belt Assy, Front Seat Inner, RH
2015-11 → 2017-12 ended
ZVW5# (A,S) CBU ¥5,500
73230-47450-C0 note Belt Assy, Front Seat Inner, RH
2015-11 → 2017-12 ended
ZVW5# (A,S) CBU ¥5,500
73230-47460-C0 note Belt Assy, Front Seat Inner, RH
2015-11 → 2017-12 ended
ZVW51,55 PREM ¥5,500
73230-47470-C0 note Belt Assy, Front Seat Inner, RH
2015-11 → 2017-12 ended
ZVW51 E ¥5,500
73230-47550-C1 note Belt Assy, Front Seat Inner, RH
2018-01 → 2018-12 ended
ZVW51 E ¥4,590
73230-33870-C0 note Belt Assy, Front Seat Inner, RH
2018-12 → —
ZVW5# A CBU ¥4,170
73230-33870-C0 note Belt Assy, Front Seat Inner, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥4,170
73230-33870-C0 note Belt Assy, Front Seat Inner, RH
2018-12 → 2022-12 ended
ZVW5# A CBU ¥4,170
73230-33880-C0 note Belt Assy, Front Seat Inner, RH
2018-12 → —
ZVW5# S CBU ¥4,170
73230-33880-C0 note Belt Assy, Front Seat Inner, RH
2018-12 → 2022-12 ended
ZVW5# S CBU ¥4,170
73230-47550-C1 note Belt Assy, Front Seat Inner, RH
2018-12 → —
ZVW51 E ¥4,590
73233 — Cover, Lap Belt Outer Anchor
73233-60020-C0 note Cover, Lap Belt Outer Anchor
2015-11 → 2016-10 ended
ZVW5# CBU ¥500
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2016-10 → 2018-12 ended
ZVW51 E ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2018-12 → —
ZVW5# CBU ¥370
73240 — Belt Assy, Front Seat Inner, LH
73230-33890-C0 note Belt Assy, Front Seat Inner, LH
2018-01 → 2018-12 ended
ZVW5# (A,S) CBU ¥4,170
73230-33890-C0 note Belt Assy, Front Seat Inner, LH
2018-01 → 2018-12 ended
ZVW51,55 PREM ¥4,170
73230-33890-C0 note Belt Assy, Front Seat Inner, LH
2018-01 → 2018-12 ended
ZVW5# (A,S) CBU ¥4,170
73230-33890-C0 note Belt Assy, Front Seat Inner, LH
2018-01 → 2018-12 ended
ZVW51 E ¥4,170
73230-47490-C0 note Belt Assy, Front Seat Inner, LH
2015-11 → 2017-12 ended
ZVW5# (A,E,S) CBU ¥5,500
73230-47490-C0 note Belt Assy, Front Seat Inner, LH
2015-11 → 2017-12 ended
ZVW5# (A,S) CBU ¥5,500
73230-47490-C0 note Belt Assy, Front Seat Inner, LH
2015-11 → 2017-12 ended
ZVW51,55 PREM ¥5,500
73230-D1470 note Belt Assy, Front Seat Inner, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥4,170
73230-33890-C0 note Belt Assy, Front Seat Inner, LH
2018-12 → 2022-12 ended
ZVW5# (A,S) CBU ¥4,170
73230-33890-C0 note Belt Assy, Front Seat Inner, LH
2018-12 → —
ZVW5# CBU ¥4,170
73230-33890-C0 note Belt Assy, Front Seat Inner, LH
2018-12 → —
ZVW5# A CBU ¥4,170
73230-D1470 note Belt Assy, Front Seat Inner, LH
2018-12 → —
ZVW5# CBU ¥4,170
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
