Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

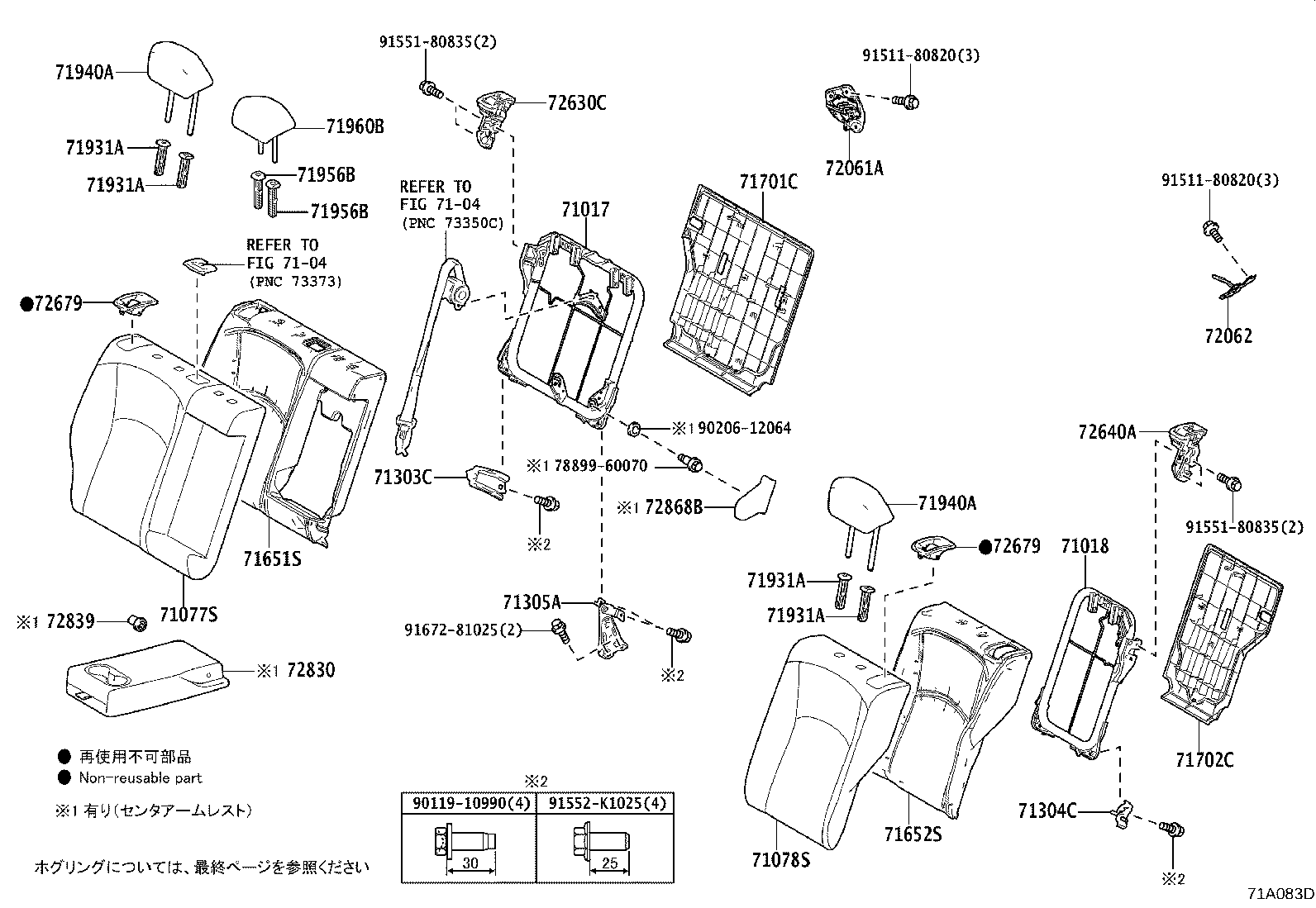

Exploded illustration 71A083D 72061A — BASE SUB-ASSY, REAR SEATBACK LOCK, RH (2 parts) 71303C — HINGE SUB-ASSY, REAR SEATBACK, RH (2 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (4 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (40 parts) 72830 — ARMREST ASSY, REAR SEAT, CENTER (29 parts) 72839 — SHIM, REAR SEAT ARMREST HINGE (3 parts) 71931A — SUPPORT, REAR SEAT HEADREST (30 parts) 71956B — SUPPORT, REAR SEAT HEADREST (30 parts) 71956B — SUPPORT, REAR SEAT HEADREST (30 parts) 71931A — SUPPORT, REAR SEAT HEADREST (30 parts) 71940A — HEADREST ASSY, REAR SEAT (20 parts) 71931A — SUPPORT, REAR SEAT HEADREST (30 parts) 71931A — SUPPORT, REAR SEAT HEADREST (30 parts) 71940A — HEADREST ASSY, REAR SEAT (20 parts) 72630C — LOCK ASSY, REAR SEATBACK, RH (5 parts) 72868B — COVER, CENTER ARMREST HINGE (8 parts) 72679 — BEZEL, REAR SEATBACK LOCK CONTROL (5 parts) 72679 — BEZEL, REAR SEATBACK LOCK CONTROL (5 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (19 parts) 71701C — BOARD SUB-ASSY, REAR SEATBACK, RH (2 parts) 9155180835 — not listed in this catalogue 9155180835 — not listed in this catalogue 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (5 parts) 71305A — HINGE SUB-ASSY, REAR SEATBACK, CENTER (2 parts) 71304C — HINGE SUB-ASSY, REAR SEATBACK, LH (2 parts) 72062 — BASE SUB-ASSY, REAR SEATBACK LOCK, LH (2 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (2 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (36 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 71702C — BOARD SUB-ASSY, REAR SEATBACK, LH (2 parts) 72640A — LOCK ASSY, REAR SEATBACK, LH (5 parts) 7889960070 — not listed in this catalogue 9020612064 — not listed in this catalogue 91552K1025 — not listed in this catalogue 9011910990 — not listed in this catalogue 9151180820 — not listed in this catalogue 9151180820 — not listed in this catalogue 9167281025 — not listed in this catalogue
71A083D · 29 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
257 parts on this figure
Part number Description Fitment Price
71017 — Frame Sub-assy, Rear Seatback, RH
71017-47150 Frame Sub-assy, Rear Seatback, RH
2015-11 → 2018-12 ended
ZVW51 E ¥18,500
71017-47160 Frame Sub-assy, Rear Seatback, RH
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥19,300
71017-47150 Frame Sub-assy, Rear Seatback, RH
2018-12 → —
ZVW51 E ¥18,500
71017-47160 Frame Sub-assy, Rear Seatback, RH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥19,300
71018 — Frame Sub-assy, Rear Seatback, LH
71018-47100 Frame Sub-assy, Rear Seatback, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥11,100
71018-47100 Frame Sub-assy, Rear Seatback, LH
2018-12 → —
ZVW5# CBU ¥11,100
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-47510-C6 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW51 E ¥29,000
71077-47580-B6 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥33,300
71077-47580-C6 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥33,300
71077-47600-20 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-11 → 2018-09 ended
ZVW51,55 PREM ¥53,100
71077-47600-21 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-11 → 2018-09 ended
ZVW51,55 PREM ¥53,100
71077-47600-22 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-09 → 2018-12 ended
ZVW51,55 PREM ¥53,100
71077-47600-23 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-09 → 2018-12 ended
ZVW51,55 PREM ¥53,100
71077-47600-P0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-11 → 2018-09 ended
ZVW51,55 PREM ¥53,100
71077-47600-P1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-11 → 2018-09 ended
ZVW51,55 PREM ¥53,100
71077-47600-P2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-09 → 2018-12 ended
ZVW51,55 PREM ¥53,100
71077-47600-P3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-09 → 2018-12 ended
ZVW51,55 PREM ¥53,100
71077-47620-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥31,700
71077-47620-C4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥31,700
71077-47780-A2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥53,100
71077-47800-B6 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW51 S CBU ¥24,100
71077-47800-C6 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥24,100
71077-47810-C3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-05 ended
ZVW51 E ¥24,100
71077-47811-C3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2021-06 → —
ZVW51 E ¥24,100
71077-47830-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# A CBU ¥26,400
71077-47830-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥26,400
71077-47830-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥26,400
71077-47830-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥26,400
71077-47830-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥26,400
71077-47830-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥26,400
71077-47830-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥26,400
71077-47830-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → —
ZVW5# A CBU ¥26,400
71077-47830-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥26,400
71077-47830-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥26,400
71077-47830-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥26,400
71077-47830-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥26,400
71077-47830-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥26,400
71077-47830-C9 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥26,400
71077-47850-24 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → —
ZVW5# PREM ¥44,200
71077-47850-25 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → —
ZVW5# PREM ¥44,200
71077-47850-B6 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# PREM ¥44,200
71077-47850-B7 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# PREM ¥44,200
71077-47A00-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥27,700
71077-47A00-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2021-06 → —
ZVW5# (A,S) CBU ¥27,700
71077-47A00-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥27,700
71077-47A00-C3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2021-06 → —
ZVW5# (A,S) CBU ¥27,700
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-47320-C6 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW51 E ¥21,200
71078-47370-B5 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥24,600
71078-47370-C5 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥24,600
71078-47390-B6 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥38,900
71078-47390-B7 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥38,900
71078-47390-C7 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥38,900
71078-47390-C8 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥38,900
71078-47410-B3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥23,300
71078-47410-C3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥23,300
71078-47510-A2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥38,900
71078-47530-C5 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-05 ended
ZVW51 E ¥17,600
71078-47531-C5 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2021-06 → —
ZVW51 E ¥17,600
71078-47550-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,400
71078-47550-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,400
71078-47550-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,400
71078-47550-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,400
71078-47550-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,400
71078-47550-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,400
71078-47550-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# A CBU ¥19,400
71078-47550-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# A CBU ¥19,400
71078-47550-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥19,400
71078-47550-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥19,400
71078-47550-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥19,400
71078-47550-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥19,400
71078-47550-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥19,400
71078-47550-C9 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥19,400
71078-47560-23 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# PREM ¥32,400
71078-47560-24 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# PREM ¥32,400
71078-47560-B5 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# PREM ¥32,400
71078-47560-B6 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# PREM ¥32,400
71078-47570-B3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW51 S CBU ¥17,600
71078-47570-C3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥17,600
71078-47610-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥20,500
71078-47610-C2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2021-06 → —
ZVW5# (A,S) CBU ¥20,500
71078-47610-C2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥20,500
71078-47610-C3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2021-06 → —
ZVW5# (A,S) CBU ¥20,500
71303C — Hinge Sub-assy, Rear Seatback, RH
71303-47030 Hinge Sub-assy, Rear Seatback, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,060
71303-47030 Hinge Sub-assy, Rear Seatback, RH
2018-12 → —
ZVW5# CBU ¥1,060
71304C — Hinge Sub-assy, Rear Seatback, LH
71304-47030 Hinge Sub-assy, Rear Seatback, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,060
71304-47030 Hinge Sub-assy, Rear Seatback, LH
2018-12 → —
ZVW5# CBU ¥1,060
71305A — Hinge Sub-assy, Rear Seatback, Center
71305-47040 Hinge Sub-assy, Rear Seatback, Center
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,050
71305-47040 Hinge Sub-assy, Rear Seatback, Center
2018-12 → —
ZVW5# CBU ¥3,050
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-47160 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW51 E ¥11,200
71651-47190 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥8,000
71651-47160 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-05 ended
ZVW51 E ¥11,200
71651-47161 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2021-06 → —
ZVW51 E ¥11,200
71651-47190 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥8,000
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71652-47110 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# CBU ¥6,600
71652-47110 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# CBU ¥6,600
71701C — Board Sub-assy, Rear Seatback, RH
71701-47020 Board Sub-assy, Rear Seatback, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥8,400
71701-47020 Board Sub-assy, Rear Seatback, RH
2018-12 → —
ZVW5# CBU ¥8,400
71702C — Board Sub-assy, Rear Seatback, LH
71702-47020 Board Sub-assy, Rear Seatback, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥6,800
71702-47020 Board Sub-assy, Rear Seatback, LH
2018-12 → —
ZVW5# CBU ¥6,800
71931A — Support, Rear Seat Headrest
71930-47050-B0 note Support, Rear Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-B0 note Support, Rear Seat Headrest
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥770
71930-47050-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW51 E ¥770
71930-47050-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW51 E ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥770
71931-47030-B0 note Support, Rear Seat Headrest
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥470
71931-47030-B0 note Support, Rear Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥470
71931-47030-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW51 E ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW51 E ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥470
71930-47050-B0 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥770
71930-47050-B0 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2018-12 → —
ZVW51 E ¥770
71931-47030-B0 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥470
71931-47030-B0 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2018-12 → —
ZVW51 E ¥470
71940A — Headrest Assy, Rear Seat
71940-47490-B1 note Headrest Assy, Rear Seat
2015-11 → 2018-12 ended
ZVW51 E ¥22,900
71940-47510-B0 note Headrest Assy, Rear Seat
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71940-47540-C3 note Headrest Assy, Rear Seat
2015-11 → 2017-11 ended
ZVW51,55 PREM ¥31,100
71940-47540-C3 note Headrest Assy, Rear Seat
2015-11 → 2017-11 ended
ZVW5# (A,S) CBU ¥31,100
71940-47640-A1 note Headrest Assy, Rear Seat
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥31,100
71940-47650-C0 note Headrest Assy, Rear Seat
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥19,000
71940-47650-C0 note Headrest Assy, Rear Seat
2017-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥19,000
71940-47510-C3 note Headrest Assy, Rear Seat
2018-12 → —
ZVW5# A CBU ¥19,000
71940-47510-C3 note Headrest Assy, Rear Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71940-47510-C3 note Headrest Assy, Rear Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71940-47510-C3 note Headrest Assy, Rear Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71940-47510-C3 note Headrest Assy, Rear Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71940-47510-C3 note Headrest Assy, Rear Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71940-47510-C3 note Headrest Assy, Rear Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71940-47650-C0 note Headrest Assy, Rear Seat
2018-12 → 2019-08 ended
ZVW5# (A,S) CBU ¥19,000
71940-47650-C0 note Headrest Assy, Rear Seat
2018-12 → 2019-08 ended
ZVW5# PREM ¥19,000
71940-47650-C1 note Headrest Assy, Rear Seat
2019-08 → —
ZVW5# PREM ¥19,000
71940-47650-C1 note Headrest Assy, Rear Seat
2019-08 → —
ZVW5# (A,S) CBU ¥19,000
71940-47670-C0 note Headrest Assy, Rear Seat
2018-12 → —
ZVW51 E ¥19,000
71940-47670-C0 note Headrest Assy, Rear Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71956B — Support, Rear Seat Headrest
71930-47050-B0 note Support, Rear Seat Headrest
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥770
71930-47050-B0 note Support, Rear Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥770
71930-47050-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW51 E ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW51 E ¥770
71931-47030-B0 note Support, Rear Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-B0 note Support, Rear Seat Headrest
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥470
71931-47030-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW51 E ¥470
71931-47030-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥470
71931-47030-C0 note Support, Rear Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW51 E ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥470
71930-47050-B0 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥770
71930-47050-B0 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2018-12 → —
ZVW51 E ¥770
71930-47050-C5 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥770
71931-47030-B0 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥470
71931-47030-B0 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2018-12 → —
ZVW51 E ¥470
71931-47030-C4 note Support, Rear Seat Headrest
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥470
71960B — Headrest Assy, Rear Seat, Center
71960-47180-A1 note Headrest Assy, Rear Seat, Center
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥25,000
71960-47280-B1 note Headrest Assy, Rear Seat, Center
2015-11 → 2018-12 ended
ZVW51 E ¥18,400
71960-47290-B4 note Headrest Assy, Rear Seat, Center
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥18,400
71960-47310-C3 note Headrest Assy, Rear Seat, Center
2015-11 → 2017-11 ended
ZVW5# (A,S) CBU ¥25,000
71960-47310-C3 note Headrest Assy, Rear Seat, Center
2015-11 → 2017-11 ended
ZVW51,55 PREM ¥25,000
71960-47340-C0 note Headrest Assy, Rear Seat, Center
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥18,400
71960-47340-C0 note Headrest Assy, Rear Seat, Center
2017-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥18,400
71960-47290-C5 note Headrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥15,300
71960-47290-C5 note Headrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥15,300
71960-47290-C5 note Headrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥15,300
71960-47290-C5 note Headrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥15,300
71960-47290-C5 note Headrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥15,300
71960-47290-C5 note Headrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥15,300
71960-47290-C5 note Headrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# A CBU ¥15,300
71960-47340-C0 note Headrest Assy, Rear Seat, Center
2018-12 → 2019-08 ended
ZVW5# PREM ¥18,400
71960-47340-C2 note Headrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# (A,S) CBU ¥15,300
71960-47340-C2 note Headrest Assy, Rear Seat, Center
2019-08 → —
ZVW5# PREM ¥15,300
71960-47350-C1 note Headrest Assy, Rear Seat, Center
2018-12 → —
ZVW51 E ¥15,300
71960-47350-C1 note Headrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥15,300
72061A — Base Sub-assy, Rear Seatback Lock, RH
72061-47010 Base Sub-assy, Rear Seatback Lock, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,030
72061-47010 Base Sub-assy, Rear Seatback Lock, RH
2018-12 → —
ZVW5# CBU ¥3,030
72062 — Base Sub-assy, Rear Seatback Lock, LH
72062-47010 Base Sub-assy, Rear Seatback Lock, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,730
72062-47010 Base Sub-assy, Rear Seatback Lock, LH
2018-12 → —
ZVW5# CBU ¥2,730
72630C — Lock Assy, Rear Seatback, RH
72630-47050-A1 note Lock Assy, Rear Seatback, RH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥3,210
72630-47050-C0 note Lock Assy, Rear Seatback, RH
2015-11 → 2016-10 ended
ZVW5# CBU ¥3,860
72630-47050-C2 note Lock Assy, Rear Seatback, RH
2016-10 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥2,420
72630-47050-C2 note Lock Assy, Rear Seatback, RH
2016-10 → 2018-12 ended
ZVW51 E ¥2,420
72630-47050-C2 note Lock Assy, Rear Seatback, RH
2018-12 → —
ZVW5# CBU ¥2,420
72640A — Lock Assy, Rear Seatback, LH
72640-47050-A1 note Lock Assy, Rear Seatback, LH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥3,210
72640-47050-C0 note Lock Assy, Rear Seatback, LH
2015-11 → 2016-10 ended
ZVW5# CBU ¥3,860
72640-47050-C2 note Lock Assy, Rear Seatback, LH
2016-10 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥2,420
72640-47050-C2 note Lock Assy, Rear Seatback, LH
2016-10 → 2018-12 ended
ZVW51 E ¥2,420
72640-47050-C2 note Lock Assy, Rear Seatback, LH
2018-12 → —
ZVW5# CBU ¥2,420
72679 — Bezel, Rear Seatback Lock Control
72667-47010-A1 note Bezel, Rear Seatback Lock Control
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥910
72667-47010-C0 note Bezel, Rear Seatback Lock Control
2015-11 → 2016-09 ended
ZVW5# CBU ¥1,100
72667-47010-C1 note Bezel, Rear Seatback Lock Control
2016-10 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥680
72667-47010-C1 note Bezel, Rear Seatback Lock Control
2016-10 → 2018-12 ended
ZVW51 E ¥680
72667-47010-C1 note Bezel, Rear Seatback Lock Control
2018-12 → —
ZVW5# CBU ¥680
72830 — Armrest Assy, Rear Seat, Center
72830-47180-A0 note Armrest Assy, Rear Seat, Center
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥48,400
72830-47260-B3 note Armrest Assy, Rear Seat, Center
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,700
72830-47260-C5 note Armrest Assy, Rear Seat, Center
2015-11 → 2018-05 ended
ZVW5# (A,S) CBU ¥22,700
72830-47260-C7 note Armrest Assy, Rear Seat, Center
2018-05 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,700
72830-47280-B2 note Armrest Assy, Rear Seat, Center
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥38,900
72830-47280-C4 note Armrest Assy, Rear Seat, Center
2015-11 → 2018-04 ended
ZVW5# (A,S) CBU ¥38,900
72830-47280-C6 note Armrest Assy, Rear Seat, Center
2018-05 → 2018-12 ended
ZVW5# (A,S) CBU ¥38,900
72830-47290-B1 note Armrest Assy, Rear Seat, Center
2015-11 → 2018-09 ended
ZVW51,55 PREM ¥48,400
72830-47290-C3 note Armrest Assy, Rear Seat, Center
2015-11 → 2018-09 ended
ZVW51,55 PREM ¥48,400
72830-47260-B5 note Armrest Assy, Rear Seat, Center
2018-12 → 2021-06 ended
ZVW5# A CBU ¥18,900
72830-47260-B5 note Armrest Assy, Rear Seat, Center
2018-12 → 2021-06 ended
ZVW5# S CBU ¥18,900
72830-47260-B5 note Armrest Assy, Rear Seat, Center
2018-12 → 2021-06 ended
ZVW5# S CBU ¥18,900
72830-47260-B5 note Armrest Assy, Rear Seat, Center
2018-12 → 2021-06 ended
ZVW5# S CBU ¥18,900
72830-47260-B5 note Armrest Assy, Rear Seat, Center
2018-12 → 2021-06 ended
ZVW5# S CBU ¥18,900
72830-47260-B5 note Armrest Assy, Rear Seat, Center
2018-12 → 2021-06 ended
ZVW5# S CBU ¥18,900
72830-47260-B5 note Armrest Assy, Rear Seat, Center
2018-12 → 2021-06 ended
ZVW5# S CBU ¥18,900
72830-47260-C8 note Armrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥18,900
72830-47260-C8 note Armrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥18,900
72830-47260-C8 note Armrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥18,900
72830-47260-C8 note Armrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥18,900
72830-47260-C8 note Armrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥18,900
72830-47260-C8 note Armrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# A CBU ¥18,900
72830-47260-C8 note Armrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥18,900
72830-47280-B4 note Armrest Assy, Rear Seat, Center
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥32,400
72830-47280-B4 note Armrest Assy, Rear Seat, Center
2018-12 → 2021-06 ended
ZVW5# PREM ¥32,400
72830-47280-C9 note Armrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# PREM ¥32,400
72830-47280-C9 note Armrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# (A,S) CBU ¥32,400
72830-47310-B3 note Armrest Assy, Rear Seat, Center
2018-12 → 2021-06 ended
ZVW5# S CBU ¥18,900
72830-47310-C4 note Armrest Assy, Rear Seat, Center
2018-12 → —
ZVW5# S CBU ¥18,900
72839 — Shim, Rear Seat Armrest Hinge
72839-22010 Shim, Rear Seat Armrest Hinge
2018-09 → 2018-12 ended
ZVW51,55 PREM ¥160
72839-22010 Shim, Rear Seat Armrest Hinge
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥160
72839-22010 Shim, Rear Seat Armrest Hinge
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥160
72868B — Cover, Center Armrest Hinge
72868-47050-A0 note Cover, Center Armrest Hinge
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥780
72868-47050-B0 note Cover, Center Armrest Hinge
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥650
72868-47050-C0 note Cover, Center Armrest Hinge
2015-11 → 2018-05 ended
ZVW5# (A,S) CBU ¥780
72868-47050-C0 note Cover, Center Armrest Hinge
2015-11 → 2018-09 ended
ZVW51,55 PREM ¥780
72868-47050-C1 note Cover, Center Armrest Hinge
2018-05 → 2018-12 ended
ZVW5# (A,S) CBU ¥650
72868-47050-C1 note Cover, Center Armrest Hinge
2018-09 → 2018-12 ended
ZVW51,55 PREM ¥650
72868-47050-B0 note Cover, Center Armrest Hinge
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU ¥650
72868-47050-C1 note Cover, Center Armrest Hinge
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥650
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
