Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

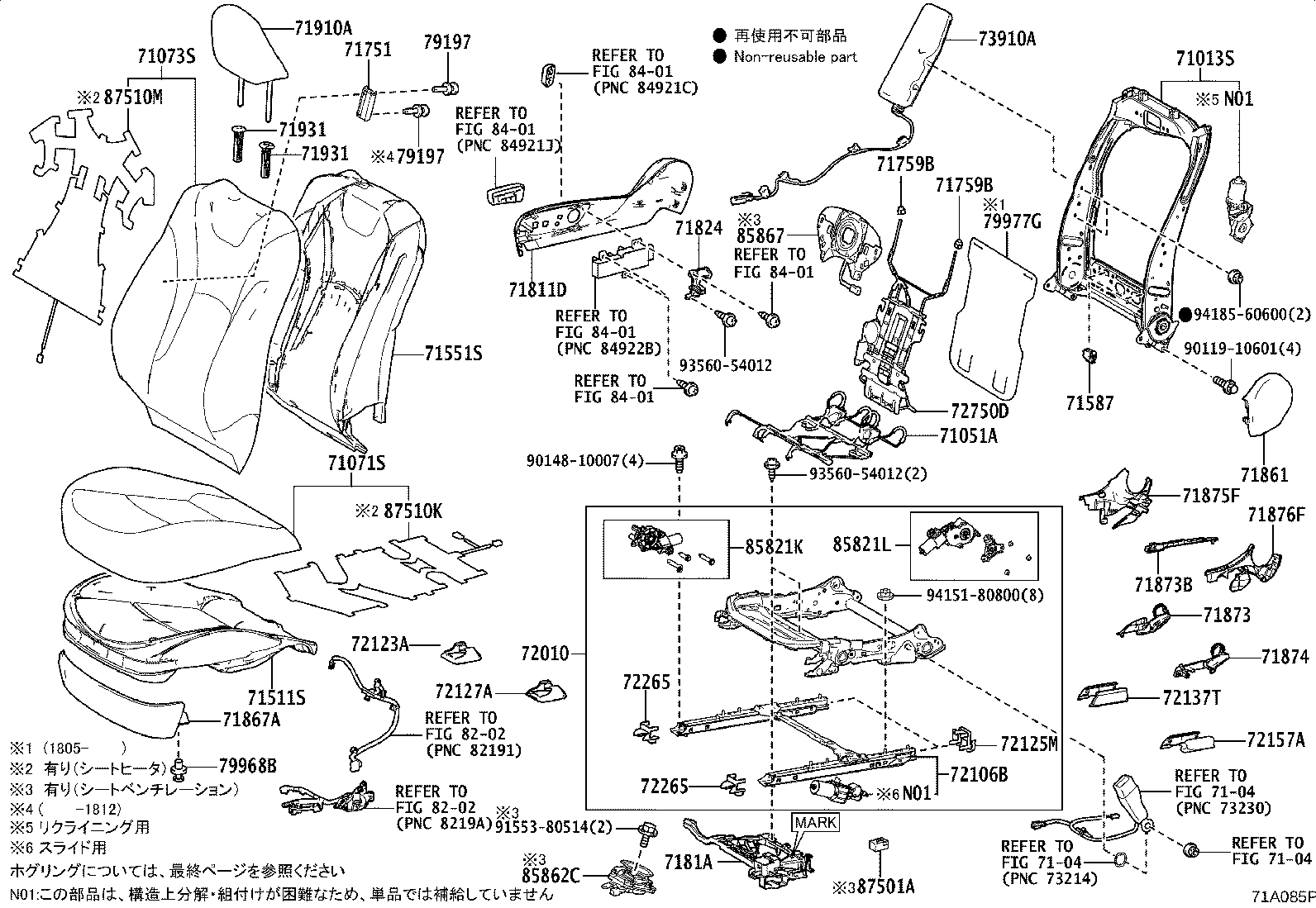

Exploded illustration 71A085P 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 9011910601 — not listed in this catalogue 9418560600 — not listed in this catalogue 9356054012 — not listed in this catalogue 9356054012 — not listed in this catalogue 9014810007 — not listed in this catalogue 71013S — FRAME SUB-ASSY, FRONT SEATBACK, RH (8 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (49 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (39 parts) 87510K — HEATER ASSY, FRONT SEAT CUSHION, RH (5 parts) 87510M — HEATER ASSY, FRONT SEATBACK, RH (4 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (2 parts) 79968B — CLIP (2 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (4 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (4 parts) 72125M — COVER, SEAT TRACK, UPPER NO.3 (6 parts) 85821L — MOTOR ASSY, POWER SEAT LIFTER, RH (4 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (3 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (5 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (8 parts) 71759B — HOOK, FRONT SEATBACK (9 parts) 71759B — HOOK, FRONT SEATBACK (9 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (9 parts) 7181A — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH (5 parts) 87501A — CONTROL SUB-ASSY, SEAT HEATER, RH (1 parts) 85862C — BLOWER, SEAT CUSHION CLIMATE CONTROL, RH (1 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (7 parts) 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (3 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71873B — SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 (2 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (2 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (7 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (7 parts) 71910A — HEADREST ASSY, FRONT SEAT (71 parts) 71751 — HANGER, SEAT COVER (14 parts) 79197 — HOOK, SEATBACK COVER (19 parts) 79197 — HOOK, SEATBACK COVER (19 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (106 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (106 parts) 72010 — ADJUSTER ASSY, FRONT SEAT, RH (9 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (2 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (2 parts) 72137T — COVER, SEAT TRACK BRACKET, OUTER REAR RH (2 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (2 parts) 72750D — ADJUSTER ASSY, LUMBAR SUPPORT, RH (4 parts) 71824 — BRACKET, FRONT SEAT SIDE, NO.1 RH (2 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (2 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 79977G — FELT, FRONT SEATBACK, RH (2 parts) 7104 — not listed in this catalogue 85867 — BLOWER, SEATBACK CLIMATE CONTROL, RH (1 parts) 9155380514 — not listed in this catalogue 72106B — RAIL SUB-ASSY, SEAT TRACK, UPPER RH (9 parts) 9415180800 — not listed in this catalogue 85821K — MOTOR ASSY, POWER SEAT TILT, RH (4 parts)
71A085P · 45 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
445 parts on this figure
Part number Description Fitment Price
71013S — Frame Sub-assy, Front Seatback, RH
71013-47130 Frame Sub-assy, Front Seatback, RH
2015-11 → 2017-05 ended
ZVW5# (A,E,S) CBU ¥17,200
71013-47140 Frame Sub-assy, Front Seatback, RH
2015-11 → 2017-05 ended
ZVW51,55 PREM ¥40,000
71013-47150 Frame Sub-assy, Front Seatback, RH
2017-05 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥17,100
71013-47160 Frame Sub-assy, Front Seatback, RH
2017-05 → 2018-12 ended
ZVW51,55 PREM ¥40,000
71013-47160 note Frame Sub-assy, Front Seatback, RH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥40,000
71013-47150 Frame Sub-assy, Front Seatback, RH
2018-12 → —
ZVW5# (E,S) CBU ¥17,100
71013-47160 Frame Sub-assy, Front Seatback, RH
2018-12 → 2019-08 ended
ZVW5# (A,PREM) CBU ¥40,000
71013-47161 Frame Sub-assy, Front Seatback, RH
2019-09 → —
ZVW5# (A,PREM) CBU ¥33,300
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥4,110
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2018-12 → —
ZVW5# CBU ¥4,110
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-47820-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW51 E ¥21,200
71071-47A00-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥40,500
71071-47A00-C2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥40,500
71071-47A40-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2016-03 ended
ZVW51,55 PREM ¥68,100
71071-47A40-B4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2016-03 ended
ZVW51,55 PREM ¥68,100
71071-47A40-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2016-03 ended
ZVW51,55 PREM ¥68,100
71071-47A40-C5 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2016-03 ended
ZVW51,55 PREM ¥68,100
71071-47A41-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-04 → 2018-12 ended
ZVW51,55 PREM ¥56,700
71071-47A41-B4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-04 → 2018-12 ended
ZVW51,55 PREM ¥56,700
71071-47A41-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-04 → 2018-12 ended
ZVW51,55 PREM ¥56,700
71071-47A41-C5 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2016-04 → 2018-12 ended
ZVW51,55 PREM ¥56,700
71071-47A60-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥25,000
71071-47A60-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥25,000
71071-47C20-A1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥56,700
71071-47A80-C7 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW51 E ¥17,600
71071-47C30-20 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# PREM ¥47,200
71071-47C30-B9 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# PREM ¥47,200
71071-47C30-C9 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# PREM ¥47,200
71071-47C30-P0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# PREM ¥47,200
71071-47C40-B7 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥17,600
71071-47C40-C5 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥17,600
71071-47C50-B4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# A CBU ¥20,800
71071-47C50-C2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# A CBU ¥20,800
71071-47C60-B3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# A CBU ¥33,700
71071-47C60-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2021-06 → —
ZVW5# A CBU ¥33,700
71071-47C60-C3 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# A CBU ¥33,700
71071-47C60-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2021-06 → —
ZVW5# A CBU ¥33,700
71071-47D50-B6 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥20,800
71071-47D50-B6 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥20,800
71071-47D50-B6 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥20,800
71071-47D50-B6 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥20,800
71071-47D50-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥20,800
71071-47D50-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥20,800
71071-47D50-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥20,800
71071-47D50-C4 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥20,800
71071-47E40-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥33,700
71071-47E40-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥33,700
71071-47E40-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2021-06 → —
ZVW5# S CBU ¥33,700
71071-47E40-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2021-06 → —
ZVW5# S CBU ¥33,700
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-47660-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW51 E ¥30,900
71073-47760-22 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2018-12 ended
ZVW55 PREM ¥69,700
71073-47760-23 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2018-12 ended
ZVW55 PREM ¥69,700
71073-47760-B9 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2017-11 ended
ZVW51 PREM ¥69,700
71073-47760-B9 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2018-05 ended
ZVW55 PREM ¥69,700
71073-47760-C8 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2017-11 ended
ZVW51 PREM ¥69,700
71073-47760-C8 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2018-05 ended
ZVW55 PREM ¥69,700
71073-47760-C9 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2017-11 ended
ZVW51 PREM ¥69,700
71073-47760-C9 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2018-05 ended
ZVW55 PREM ¥69,700
71073-47760-P0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2018-05 ended
ZVW55 PREM ¥69,700
71073-47760-P0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2017-11 ended
ZVW51 PREM ¥69,700
71073-47760-P3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2018-12 ended
ZVW55 PREM ¥69,700
71073-47760-P4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-05 → 2018-12 ended
ZVW55 PREM ¥69,700
71073-47880-B4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥35,700
71073-47880-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥35,700
71073-47A00-B6 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2017-07 ended
ZVW5# (A,S) CBU ¥51,900
71073-47A00-B8 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2017-11 ended
ZVW51 A CBU ¥51,900
71073-47A00-B8 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
ZVW50,55 (A,S) CBU ¥51,900
71073-47A00-C6 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2017-07 ended
ZVW5# (A,S) CBU ¥51,900
71073-47A00-C8 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2018-12 ended
ZVW50,55 (A,S) CBU ¥51,900
71073-47A00-C8 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-08 → 2017-11 ended
ZVW51 A CBU ¥51,900
71073-47B10-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-11 → 2018-12 ended
ZVW51 A CBU ¥51,900
71073-47B10-C1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-11 → 2018-12 ended
ZVW51 A CBU ¥51,900
71073-47B20-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-11 → 2018-12 ended
ZVW51 PREM ¥69,700
71073-47B20-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-11 → 2018-12 ended
ZVW51 PREM ¥69,700
71073-47B20-C2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-11 → 2018-12 ended
ZVW51 PREM ¥69,700
71073-47B20-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-11 → 2018-12 ended
ZVW51 PREM ¥69,700
71073-47B50-A1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥69,700
71073-47B90-21 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# PREM ¥58,000
71073-47B90-22 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# PREM ¥58,000
71073-47B90-P1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# PREM ¥58,000
71073-47B90-P2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# PREM ¥58,000
71073-47C40-C4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW51 E ¥25,700
71073-47C60-B5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥25,700
71073-47C60-C5 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥25,700
71073-47D10-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# A CBU ¥29,700
71073-47D10-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥29,700
71073-47D10-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥29,700
71073-47D10-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥29,700
71073-47D10-B3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# S CBU ¥29,700
71073-47D10-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥29,700
71073-47D10-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥29,700
71073-47D10-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥29,700
71073-47D10-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# A CBU ¥29,700
71073-47D10-C3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# S CBU ¥29,700
71073-47D90-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥43,200
71073-47D90-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2021-06 → —
ZVW5# (A,S) CBU ¥43,200
71073-47D90-C1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥43,200
71073-47D90-C1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2021-06 → —
ZVW5# (A,S) CBU ¥43,200
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-47180 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥9,100
71511-47250 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥9,100
71511-47180 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# A CBU ¥9,100
71511-47190 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# PREM ¥10,000
71511-47250 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# (E,S) CBU ¥9,100
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-47250 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# CBU ¥9,100
71551-47250 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# (A,E,S) CBU ¥9,100
71551-47310 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# PREM ¥11,100
71587 — Protector, Front Seatback Edge
71587-47010 note Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥200
71587-47010 note Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥200
71587-47010 note Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥200
71587-47010 note Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥200
71587-47010 note Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
71587-47010 Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
71587-47010 Protector, Front Seatback Edge
2018-12 → —
ZVW5# CBU ¥200
71587-47010 note Protector, Front Seatback Edge
2018-12 → —
ZVW5# CBU ¥200
71751 — Hanger, Seat Cover
71751-47050 note Hanger, Seat Cover
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥530
71751-47050 Hanger, Seat Cover
2015-11 → 2018-12 ended
ZVW5# CBU ¥530
71751-47050 note Hanger, Seat Cover
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥530
71751-47050 note Hanger, Seat Cover
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥530
71751-47050 note Hanger, Seat Cover
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥530
71751-47050 note Hanger, Seat Cover
2018-12 → —
ZVW5# S CBU ¥530
71751-47050 note Hanger, Seat Cover
2018-12 → —
ZVW5# A CBU ¥530
71751-47050 note Hanger, Seat Cover
2018-12 → —
ZVW5# S CBU ¥530
71751-47050 note Hanger, Seat Cover
2018-12 → —
ZVW5# A CBU ¥530
71751-47050 note Hanger, Seat Cover
2018-12 → —
ZVW5# S CBU ¥530
71751-47050 note Hanger, Seat Cover
2018-12 → —
ZVW5# A CBU ¥530
71751-47050 note Hanger, Seat Cover
2018-12 → —
ZVW5# A CBU ¥530
71751-47050 note Hanger, Seat Cover
2018-12 → —
ZVW5# S CBU ¥530
71751-47050 Hanger, Seat Cover
2018-12 → —
ZVW5# CBU ¥530
71759B — Hook, Front Seatback
71759-50040 note Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥130
71759-50040 Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# CBU ¥130
71759-50040 note Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# CBU ¥130
71759-50040 note Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥130
71759-50040 note Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥130
71759-50040 note Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥130
71759-50040 note Hook, Front Seatback
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥130
71759-50040 note Hook, Front Seatback
2018-12 → —
ZVW5# CBU ¥130
71759-52050 Hook, Front Seatback
2018-12 → —
ZVW5# CBU ¥130
71811D — Shield, Front Seat Cushion, RH
71811-47140-C0 note Shield, Front Seat Cushion, RH
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥3,700
71811-47140-C1 note Shield, Front Seat Cushion, RH
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥2,330
71811-47150-C0 note Shield, Front Seat Cushion, RH
2015-11 → 2016-10 ended
ZVW51 E ¥3,890
71811-47150-C1 note Shield, Front Seat Cushion, RH
2016-10 → 2018-12 ended
ZVW51 E ¥2,460
71811-47160-C0 note Shield, Front Seat Cushion, RH
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥4,100
71811-47160-C1 note Shield, Front Seat Cushion, RH
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥2,830
71811-47140-C1 note Shield, Front Seat Cushion, RH
2018-12 → —
ZVW5# S CBU ¥2,330
71811-47150-C1 note Shield, Front Seat Cushion, RH
2018-12 → —
ZVW51 E ¥2,460
71811-47160-C1 note Shield, Front Seat Cushion, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥2,830
7181A — Holder, Front Seat Cushion Wire Harness, RH
7181A-33010 note Holder, Front Seat Cushion Wire Harness, RH
2017-03 → 2018-12 ended
ZVW51,55 PREM ¥3,040
7181A-47010 Holder, Front Seat Cushion Wire Harness, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥1,220
7181A-47020 note Holder, Front Seat Cushion Wire Harness, RH
2015-11 → 2017-03 ended
ZVW51,55 PREM ¥2,910
7181A-33010 Holder, Front Seat Cushion Wire Harness, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥3,040
7181A-47010 Holder, Front Seat Cushion Wire Harness, RH
2018-12 → —
ZVW5# (E,S) CBU ¥1,220
71824 — Bracket, Front Seat Side, NO.1 RH
72713-47010 Bracket, Front Seat Side, NO.1 RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥450
72713-47010 Bracket, Front Seat Side, NO.1 RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥450
71861 — Shield, Front Seat Cushion, Inner RH
71861-47070-C0 note Shield, Front Seat Cushion, Inner RH
2015-11 → 2016-10 ended
ZVW5# (A,PREM,S) CBU ¥1,760
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥1,090
71861-47080-C0 note Shield, Front Seat Cushion, Inner RH
2015-11 → 2016-10 ended
ZVW51 E ¥1,760
71861-47080-C1 note Shield, Front Seat Cushion, Inner RH
2016-10 → 2018-12 ended
ZVW51 E ¥1,090
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥1,090
71861-47080-C1 note Shield, Front Seat Cushion, Inner RH
2018-12 → —
ZVW51 E ¥1,090
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-47010-C0 note Shield, Front Seat Cushion, Inner NO.1 RH
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥2,800
71867-47010-C1 note Shield, Front Seat Cushion, Inner NO.1 RH
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥1,750
71867-47010-C1 note Shield, Front Seat Cushion, Inner NO.1 RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥1,750
71873 — Shield, Front Seat Cushion, Lower RH
71873-47070 Shield, Front Seat Cushion, Lower RH
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥740
71873-47070 Shield, Front Seat Cushion, Lower RH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥740
71873B — Shield, Front Seat Cushion, Lower RH, NO.1
71873-47090 Shield, Front Seat Cushion, Lower RH, NO.1
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥570
71873-47090 Shield, Front Seat Cushion, Lower RH, NO.1
2018-12 → —
ZVW5# (A,PREM) CBU ¥570
71874 — Shield, Front Seat Cushion, Lower LH
71873-47080 Shield, Front Seat Cushion, Lower LH
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥920
71873-47080 Shield, Front Seat Cushion, Lower LH
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥920
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-47040-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2015-11 → 2016-10 ended
ZVW5# (A,PREM,S) CBU ¥1,860
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥1,170
71875-47060-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2015-11 → 2016-10 ended
ZVW51 E ¥1,860
71875-47060-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2016-10 → 2018-12 ended
ZVW51 E ¥1,170
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥1,170
71875-47060-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2018-12 → —
ZVW51 E ¥1,170
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71875-47070-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2015-11 → 2016-10 ended
ZVW5# (A,PREM,S) CBU ¥1,760
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥1,090
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥1,090
71875-47080-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2015-11 → 2016-10 ended
ZVW51 E ¥1,860
71875-47080-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2016-10 → 2018-12 ended
ZVW51 E ¥1,170
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥1,090
71875-47080-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2018-12 → —
ZVW51 E ¥1,170
71910A — Headrest Assy, Front Seat
71910-47350-C2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW51 E ¥27,500
71910-47360-B2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47360-B2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47360-B2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47360-B2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47360-B2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47360-C2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47360-C2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47360-C2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47360-C2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47360-C2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47380-B3 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47380-C3 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥27,500
71910-47390-B2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥37,400
71910-47390-B3 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥37,400
71910-47390-C2 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥37,400
71910-47390-C3 note Headrest Assy, Front Seat
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥37,400
71910-47520-C0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW51 E ¥22,900
71910-47530-B0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47530-B0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47530-B0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47530-B0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47530-B0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47530-C0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47530-C0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47530-C0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47530-C0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47530-C0 note Headrest Assy, Front Seat
2016-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47540-21 note Headrest Assy, Front Seat
2018-09 → 2018-12 ended
ZVW51 PREM ¥19,000
71910-47540-B0 note Headrest Assy, Front Seat
2016-11 → 2018-09 ended
ZVW5# (A,S) CBU ¥22,900
71910-47540-B3 note Headrest Assy, Front Seat
2018-09 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47540-C0 note Headrest Assy, Front Seat
2016-11 → 2018-09 ended
ZVW5# (A,S) CBU ¥22,900
71910-47540-C1 note Headrest Assy, Front Seat
2018-09 → 2018-12 ended
ZVW5# (A,S) CBU ¥22,900
71910-47550-B0 note Headrest Assy, Front Seat
2016-11 → 2018-09 ended
ZVW51,55 PREM ¥31,100
71910-47550-B1 note Headrest Assy, Front Seat
2016-11 → 2018-09 ended
ZVW51,55 PREM ¥31,100
71910-47550-C0 note Headrest Assy, Front Seat
2016-11 → 2018-08 ended
ZVW51,55 PREM ¥31,100
71910-47550-C1 note Headrest Assy, Front Seat
2016-11 → 2018-09 ended
ZVW51,55 PREM ¥31,100
71910-47570-A1 note Headrest Assy, Front Seat
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥31,100
71910-D1B80 note Headrest Assy, Front Seat
2015-11 → 2018-12 ended
ZVW5# CBU ¥18,700
71910-47530-B5 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,000
71910-47530-B5 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,000
71910-47530-B5 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# A CBU ¥19,000
71910-47530-B5 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,000
71910-47530-B5 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# A CBU ¥19,000
71910-47530-B5 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,000
71910-47530-B5 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# A CBU ¥19,000
71910-47530-B5 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,000
71910-47530-B5 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# A CBU ¥19,000
71910-47530-B5 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# A CBU ¥19,000
71910-47530-C8 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# A CBU ¥19,000
71910-47530-C8 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71910-47530-C8 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# A CBU ¥19,000
71910-47530-C8 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71910-47530-C8 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# A CBU ¥19,000
71910-47530-C8 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# A CBU ¥19,000
71910-47530-C8 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71910-47530-C8 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71910-47530-C8 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# A CBU ¥19,000
71910-47530-C8 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71910-47540-21 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# PREM ¥19,000
71910-47540-21 note Headrest Assy, Front Seat
2021-06 → —
ZVW5# (A,S) CBU ¥19,000
71910-47540-22 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# PREM ¥19,000
71910-47540-22 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥19,000
71910-47540-22 note Headrest Assy, Front Seat
2021-06 → —
ZVW5# (A,S) CBU ¥19,000
71910-47540-B6 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# PREM ¥19,000
71910-47540-B7 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥19,000
71910-47540-B7 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# PREM ¥19,000
71910-47590-20 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# S CBU ¥19,000
71910-47590-B6 note Headrest Assy, Front Seat
2018-12 → 2021-06 ended
ZVW5# S CBU ¥19,000
71910-47600-C4 note Headrest Assy, Front Seat
2018-12 → —
ZVW51 E ¥19,000
71910-D1B80 note Headrest Assy, Front Seat
2018-12 → —
ZVW5# CBU ¥18,700
71931 — Support, Front Seat Headrest
71930-47050-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥770
71930-47050-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥770
71930-47050-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW51 E ¥770
71930-47050-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW51 E ¥770
71930-47050-C5 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥770
71930-47050-C5 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥770
71931-47030-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥470
71931-47030-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW51 E ¥470
71931-47030-C0 note Support, Front Seat Headrest
2015-11 → 2016-10 ended
ZVW51,55 PREM ¥470
71931-47030-C4 note Support, Front Seat Headrest
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥470
71931-47030-C4 note Support, Front Seat Headrest
2015-11 → 2018-12 ended
ZVW5# CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW51 E ¥470
71931-47030-C4 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥470
71930-47050-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥770
71930-47050-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥770
71930-47050-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-06 → —
ZVW5# A CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-06 → —
ZVW5# S CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-06 → —
ZVW5# A CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-06 → —
ZVW5# S CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-06 → —
ZVW5# A CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-06 → —
ZVW5# S CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-06 → —
ZVW5# S CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → —
ZVW51 E ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → —
ZVW5# CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2021-06 → —
ZVW5# A CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥770
71930-47050-C5 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥770
71931-47030-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥470
71931-47030-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥470
71931-47030-B0 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# PREM ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-06 → —
ZVW5# S CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-06 → —
ZVW5# A CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-06 → —
ZVW5# S CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-06 → —
ZVW5# A CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-06 → —
ZVW5# S CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-06 → —
ZVW5# A CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-06 → —
ZVW5# A CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-06 → —
ZVW5# S CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → —
ZVW5# CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → —
ZVW51 E ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# (A,S) CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# A CBU ¥470
71931-47030-C4 note Support, Front Seat Headrest
2018-12 → 2021-06 ended
ZVW5# S CBU ¥470
72010 — Adjuster Assy, Front Seat, RH
72010-33640 note Adjuster Assy, Front Seat, RH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥68,000
72010-33640 note Adjuster Assy, Front Seat, RH
2017-03 → 2018-12 ended
ZVW51,55 PREM ¥68,000
72010-47360 Adjuster Assy, Front Seat, RH
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥31,700
72010-47380 Adjuster Assy, Front Seat, RH
2015-11 → 2018-11 ended
ZVW51 E ¥21,100
72010-47400 note Adjuster Assy, Front Seat, RH
2015-11 → 2017-03 ended
ZVW51,55 PREM ¥89,800
72010-33640 Adjuster Assy, Front Seat, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥68,000
72010-47360 Adjuster Assy, Front Seat, RH
2018-12 → 2019-05 ended
ZVW5# S CBU ¥31,700
72010-47361 Adjuster Assy, Front Seat, RH
2019-06 → —
ZVW5# S CBU ¥23,900
72010-47381 Adjuster Assy, Front Seat, RH
2018-12 → —
ZVW51 E ¥19,200
72106B — Rail Sub-assy, Seat Track, Upper RH
72106-33070 Rail Sub-assy, Seat Track, Upper RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥29,300
72106-33070 note Rail Sub-assy, Seat Track, Upper RH
2015-11 → 2018-12 ended
ZVW51 A CBU ¥29,300
72106-33070 note Rail Sub-assy, Seat Track, Upper RH
2015-11 → 2018-12 ended
ZVW51 A CBU ¥29,300
72106-33070 note Rail Sub-assy, Seat Track, Upper RH
2015-11 → 2018-12 ended
ZVW51 A CBU ¥29,300
72106-33070 note Rail Sub-assy, Seat Track, Upper RH
2015-11 → 2018-12 ended
ZVW51 A CBU ¥29,300
72106-33070 note Rail Sub-assy, Seat Track, Upper RH
2015-11 → 2018-12 ended
ZVW50,55 (A,S) CBU ¥29,300
72106-33070 Rail Sub-assy, Seat Track, Upper RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥29,300
72106-33070 note Rail Sub-assy, Seat Track, Upper RH
2018-12 → 2022-12 ended
ZVW5# A CBU ¥29,300
72106-33070 note Rail Sub-assy, Seat Track, Upper RH
2018-12 → 2022-12 ended
ZVW5# A CBU ¥29,300
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-47060 Cover, Seat Track Bracket, Outer Front RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥320
72123-47060 Cover, Seat Track Bracket, Outer Front RH
2018-12 → —
ZVW5# CBU ¥320
72125M — Cover, Seat Track, Upper NO.3
72125-47010 note Cover, Seat Track, Upper NO.3
2015-11 → 2018-03 ended
ZVW5# (A,E,S) CBU ¥450
72125-47010 Cover, Seat Track, Upper NO.3
2018-03 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥450
72125-47020 note Cover, Seat Track, Upper NO.3
2015-11 → 2018-03 ended
ZVW5# (A,E,S) CBU ¥160
72125-47020 Cover, Seat Track, Upper NO.3
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥160
72125-47010 Cover, Seat Track, Upper NO.3
2018-12 → —
ZVW5# (E,S) CBU ¥450
72125-47020 Cover, Seat Track, Upper NO.3
2018-12 → —
ZVW5# (A,PREM) CBU ¥160
72127A — Cover, Seat Track Bracket, Inner Front RH
72123-47060 Cover, Seat Track Bracket, Inner Front RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥320
72123-47060 Cover, Seat Track Bracket, Inner Front RH
2018-12 → —
ZVW5# CBU ¥320
72137T — Cover, Seat Track Bracket, Outer Rear RH
72137-47060 Cover, Seat Track Bracket, Outer Rear RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥430
72137-47060 Cover, Seat Track Bracket, Outer Rear RH
2018-12 → —
ZVW5# CBU ¥430
72157A — Cover, Seat Track Bracket, Inner RH
72157-47080 Cover, Seat Track Bracket, Inner RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥460
72157-47080 Cover, Seat Track Bracket, Inner RH
2018-12 → —
ZVW5# CBU ¥460
72265 — Cover, Seat Track Upper Rail, RH
72265-47010 Cover, Seat Track Upper Rail, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥160
72265-47020 Cover, Seat Track Upper Rail, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥160
72265-47010 Cover, Seat Track Upper Rail, RH
2018-12 → —
ZVW5# (E,S) CBU ¥160
72265-47020 Cover, Seat Track Upper Rail, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥160
72750D — Adjuster Assy, Lumbar Support, RH
72750-11020 Adjuster Assy, Lumbar Support, RH
2018-05 → 2018-12 ended
ZVW51,55 PREM ¥22,400
72750-47020 Adjuster Assy, Lumbar Support, RH
2015-11 → 2018-04 ended
ZVW51,55 PREM ¥26,900
72750-33140 Adjuster Assy, Lumbar Support, RH
2018-12 → —
ZVW5# A CBU ¥20,300
72750-33150 Adjuster Assy, Lumbar Support, RH
2018-12 → —
ZVW5# PREM ¥20,300
73910A — Airbag Assy, Front Seat, RH
73910-47080 Airbag Assy, Front Seat, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥22,100
73910-47080 Airbag Assy, Front Seat, RH
2018-12 → —
ZVW5# CBU ¥22,100
79197 — Hook, Seatback Cover
79197-47010 note Hook, Seatback Cover
2018-05 → 2018-12 ended
ZVW5# (A,S) CBU ¥70
79197-47010 Hook, Seatback Cover
2018-05 → 2018-12 ended
ZVW5# CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-05 → 2018-12 ended
ZVW5# (A,S) CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-05 → 2018-12 ended
ZVW5# (A,S) CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-05 → 2018-12 ended
ZVW5# (A,S) CBU ¥70
79197-47010 Hook, Seatback Cover
2015-11 → 2018-05 ended
ZVW5# CBU ¥70
79197-47010 note Hook, Seatback Cover
2015-11 → 2018-05 ended
ZVW5# (A,S) CBU ¥70
79197-47010 note Hook, Seatback Cover
2015-11 → 2018-05 ended
ZVW5# (A,S) CBU ¥70
79197-47010 note Hook, Seatback Cover
2015-11 → 2018-05 ended
ZVW5# (A,S) CBU ¥70
79197-47010 note Hook, Seatback Cover
2015-11 → 2018-05 ended
ZVW5# (A,S) CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-12 → —
ZVW5# S CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-12 → —
ZVW5# A CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-12 → —
ZVW5# S CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-12 → —
ZVW5# A CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-12 → —
ZVW5# S CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-12 → —
ZVW5# A CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-12 → —
ZVW5# A CBU ¥70
79197-47010 note Hook, Seatback Cover
2018-12 → —
ZVW5# S CBU ¥70
79197-47010 Hook, Seatback Cover
2018-12 → —
ZVW5# CBU ¥70
79968B — Clip
90467-07215 Clip
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥80
90467-07215 Clip
2018-12 → —
ZVW5# (A,PREM) CBU ¥80
79977G — Felt, Front Seatback, RH
79977-33030 Felt, Front Seatback, RH
2018-05 → 2018-12 ended
ZVW51,55 PREM ¥1,080
79977-33030 Felt, Front Seatback, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥1,080
85821K — Motor Assy, Power Seat Tilt, RH
85801-47020 Motor Assy, Power Seat Tilt, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥13,600
85801-47050 note Motor Assy, Power Seat Tilt, RH
2018-12 → 2022-12 ended
ZVW5# A CBU ¥13,600
85801-47050 note Motor Assy, Power Seat Tilt, RH
2018-12 → 2022-12 ended
ZVW5# A CBU ¥13,600
85801-47050 Motor Assy, Power Seat Tilt, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥13,600
85821L — Motor Assy, Power Seat Lifter, RH
85801-47010 Motor Assy, Power Seat Lifter, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥13,600
85801-47010 note Motor Assy, Power Seat Lifter, RH
2018-12 → 2022-12 ended
ZVW5# A CBU ¥13,600
85801-47010 note Motor Assy, Power Seat Lifter, RH
2018-12 → 2022-12 ended
ZVW5# A CBU ¥13,600
85801-47010 Motor Assy, Power Seat Lifter, RH
2018-12 → —
ZVW5# (A,PREM) CBU ¥13,600
85862C — Blower, Seat Cushion Climate Control, RH
85801-42040 Blower, Seat Cushion Climate Control, RH
2018-12 → —
ZVW5# PREM ¥15,700
85867 — Blower, Seatback Climate Control, RH
85867-30040 Blower, Seatback Climate Control, RH
2018-12 → —
ZVW5# PREM ¥8,900
87501A — Control Sub-assy, Seat Heater, RH
87501-33010 Control Sub-assy, Seat Heater, RH
2018-12 → —
ZVW5# PREM ¥4,330
87510K — Heater Assy, Front Seat Cushion, RH
87510-47170 Heater Assy, Front Seat Cushion, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥11,900
87510-47180 note Heater Assy, Front Seat Cushion, RH
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥11,900
87510-47170 note Heater Assy, Front Seat Cushion, RH
2018-12 → —
ZVW5# A CBU ¥11,900
87510-47180 note Heater Assy, Front Seat Cushion, RH
2018-12 → —
ZVW5# S CBU ¥11,900
87510-47220 Heater Assy, Front Seat Cushion, RH
2018-12 → —
ZVW5# PREM ¥8,200
87510M — Heater Assy, Front Seatback, RH
87530-47040 Heater Assy, Front Seatback, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥11,900
87530-47040 note Heater Assy, Front Seatback, RH
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥11,900
87530-47040 note Heater Assy, Front Seatback, RH
2018-12 → —
ZVW5# (A,S) CBU ¥11,900
87530-47060 Heater Assy, Front Seatback, RH
2018-12 → —
ZVW5# PREM ¥8,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
