Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

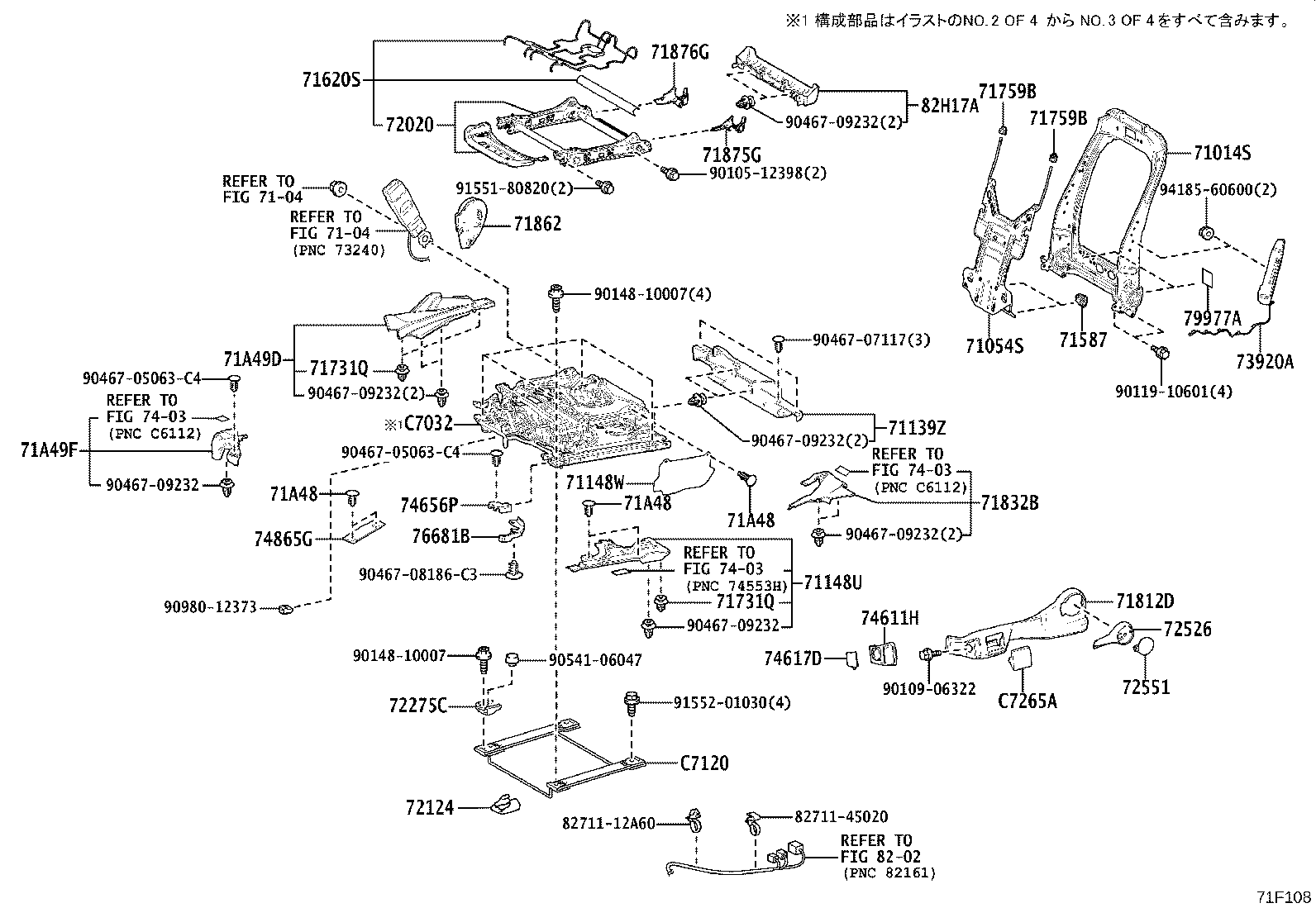

Exploded illustration 71F108 8202 — not listed in this catalogue 9014810007 — not listed in this catalogue 9155201030 — not listed in this catalogue 8271145020 — not listed in this catalogue 8271112A60 — not listed in this catalogue 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (6 parts) 71054S — SPRING SUB-ASSY, FRONT SEATBACK, LH (5 parts) 71A48 — CLIP, FRONT SEAT LEG COVER, LH (2 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (8 parts) 79977A — FELT, SEATBACK (2 parts) 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (2 parts) 71759B — HOOK, FRONT SEATBACK (9 parts) 71759B — HOOK, FRONT SEATBACK (9 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (7 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (7 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (7 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (7 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (6 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (2 parts) 72551 — COVER, RECLINING HINGE, NO.1 (2 parts) C7032 — SWIVEL SUB-ASSY, FRONT SEAT, LH (2 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (4 parts) 74611H — GRIP, ASSIST (2 parts) 74617D — PLUG, ASSIST GRIP (2 parts) 82H17A — PROTECTOR, WIRING HARNESS, LH (2 parts) C7265A — HANDLE, SEAT TURN LOCK, LH (2 parts) 9010512398 — not listed in this catalogue 9010906322 — not listed in this catalogue 9011910601 — not listed in this catalogue 9046707117 — not listed in this catalogue 9046709232 — not listed in this catalogue 9046709232 — not listed in this catalogue 9155180820 — not listed in this catalogue 9418560600 — not listed in this catalogue 71139Z — COVER, FRONT SEAT LEG, LH (2 parts) 7403 — not listed in this catalogue 71832B — COVER, FRONT SEAT HINGE, LH (2 parts) 9046709232 — not listed in this catalogue 71A48 — CLIP, FRONT SEAT LEG COVER, LH (2 parts) 71148W — COVER, FRONT SEAT LEG, OUTER NO.2(FOR LH SEAT) (2 parts) 71148U — COVER, FRONT SEAT LEG, OUTER NO.1(FOR LH SEAT) (2 parts) 71731Q — FASTENER, SEAT COVER, LH (2 parts) 9046709232 — not listed in this catalogue 7403 — not listed in this catalogue 9046708186C3 — not listed in this catalogue 74656P — COVER, HAND RAIL BAR, LH (2 parts) 76681B — COVER, OUTSIDE MOULDING END, NO.1 LH (2 parts) 9046705063C4 — not listed in this catalogue 74865G — COVER, CENTER PROTECTOR, LH (2 parts) 71A48 — CLIP, FRONT SEAT LEG COVER, LH (2 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (4 parts) C7120 — LEG, WELCAB SEAT, NO.1 (2 parts) 72275C — STOPPER, FRONT SEAT TRACK SLIDE (2 parts) 7403 — not listed in this catalogue 71A49F — COVER, FRONT SEAT LEG, INNER NO.2(FOR LH SEAT) (2 parts) 9046709232 — not listed in this catalogue 9046709232 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9046705063C4 — not listed in this catalogue 71731Q — FASTENER, SEAT COVER, LH (2 parts) 71A49D — COVER, FRONT SEAT LEG, INNER NO.1(FOR LH SEAT) (2 parts) 9054106047 — not listed in this catalogue 9014810007 — not listed in this catalogue 9098012373 — not listed in this catalogue
71F108 · 37 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
114 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-47130 Frame Sub-assy, Front Seatback, LH
2015-11 → 2017-05 ended
ZVW5# CBU ¥17,200
71014-47150 note Frame Sub-assy, Front Seatback, LH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥17,100
71014-47150 Frame Sub-assy, Front Seatback, LH
2017-05 → 2018-12 ended
ZVW5# CBU ¥17,100
71014-K0071 note Frame Sub-assy, Front Seatback, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥14,800
71014-47150 Frame Sub-assy, Front Seatback, LH
2018-12 → —
ZVW5# CBU ¥17,100
71014-K0071 note Frame Sub-assy, Front Seatback, LH
2018-12 → —
ZVW5# CBU ¥14,800
71054S — Spring Sub-assy, Front Seatback, LH
71053-47050 Spring Sub-assy, Front Seatback, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥5,200
71053-47050 Spring Sub-assy, Front Seatback, LH
2018-12 → —
ZVW5# (A,E,S) CBU ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, LH
2018-12 → —
ZVW5# CBU ¥5,200
72760-30200 Spring Sub-assy, Front Seatback, LH
2018-12 → —
ZVW5# PREM ¥35,600
71139Z — Cover, Front Seat Leg, LH
71139-52050-C0 note Cover, Front Seat Leg, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,860
71139-52050-C0 note Cover, Front Seat Leg, LH
2018-12 → —
ZVW5# CBU ¥1,860
71148U — Cover, Front Seat Leg, Outer NO.1(FOR LH SEAT)
71148-52070-C0 note Cover, Front Seat Leg, Outer NO.1(FOR LH SEAT)
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,360
71148-52070-C0 note Cover, Front Seat Leg, Outer NO.1(FOR LH SEAT)
2018-12 → —
ZVW5# CBU ¥2,360
71148W — Cover, Front Seat Leg, Outer NO.2(FOR LH SEAT)
71148-52090 note Cover, Front Seat Leg, Outer NO.2(FOR LH SEAT)
2015-11 → 2018-12 ended
ZVW5# CBU ¥620
71148-52090 note Cover, Front Seat Leg, Outer NO.2(FOR LH SEAT)
2018-12 → —
ZVW5# CBU ¥620
71587 — Protector, Front Seatback Edge
71587-47010 note Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥200
71587-47010 Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
71587-47010 note Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
71587-47010 note Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥200
71587-47010 note Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥200
71587-47010 note Protector, Front Seatback Edge
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥200
71587-47010 note Protector, Front Seatback Edge
2018-12 → —
ZVW5# CBU ¥200
71587-47010 Protector, Front Seatback Edge
2018-12 → —
ZVW5# CBU ¥200
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71610-52380 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-11 → 2018-12 ended
ZVW5# CBU ¥12,400
71610-52380 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-12 → —
ZVW5# CBU ¥12,400
71731Q — Fastener, Seat Cover, LH
71731-52010 note Fastener, Seat Cover, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
71731-52010 note Fastener, Seat Cover, LH
2018-12 → —
ZVW5# CBU ¥200
71759B — Hook, Front Seatback
71759-50040 note Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥130
71759-50040 Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# CBU ¥130
71759-50040 note Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# CBU ¥130
71759-50040 note Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥130
71759-50040 note Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥130
71759-50040 note Hook, Front Seatback
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥130
71759-50040 note Hook, Front Seatback
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥130
71759-50040 note Hook, Front Seatback
2018-12 → —
ZVW5# CBU ¥130
71759-52050 Hook, Front Seatback
2018-12 → —
ZVW5# CBU ¥130
71812D — Shield, Front Seat Cushion, LH
71812-47140-C0 note Shield, Front Seat Cushion, LH
2015-11 → 2016-10 ended
ZVW5# CBU ¥3,890
71812-47140-C1 note Shield, Front Seat Cushion, LH
2016-10 → 2018-12 ended
ZVW51 E ¥2,460
71812-47140-C1 note Shield, Front Seat Cushion, LH
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥2,460
71812-47140-C1 note Shield, Front Seat Cushion, LH
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥2,460
71812-52500-C0 note Shield, Front Seat Cushion, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,830
71812-47140-C1 note Shield, Front Seat Cushion, LH
2018-12 → —
ZVW5# CBU ¥2,460
71812-52500-C0 note Shield, Front Seat Cushion, LH
2018-12 → —
ZVW5# CBU ¥2,830
71832B — Cover, Front Seat Hinge, LH
71831-52040-C0 note Cover, Front Seat Hinge, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,620
71831-52040-C0 note Cover, Front Seat Hinge, LH
2018-12 → —
ZVW5# CBU ¥1,620
71862 — Shield, Front Seat Cushion, Inner LH
71862-47100-C0 note Shield, Front Seat Cushion, Inner LH
2015-11 → 2016-10 ended
ZVW5# CBU ¥1,760
71862-47100-C1 note Shield, Front Seat Cushion, Inner LH
2016-10 → 2018-12 ended
ZVW51 E ¥1,090
71862-47100-C1 note Shield, Front Seat Cushion, Inner LH
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥1,090
71862-47100-C1 note Shield, Front Seat Cushion, Inner LH
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥1,090
71862-52260-C0 note Shield, Front Seat Cushion, Inner LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,540
71862-47100-C1 note Shield, Front Seat Cushion, Inner LH
2018-12 → —
ZVW5# CBU ¥1,090
71862-52260-C0 note Shield, Front Seat Cushion, Inner LH
2018-12 → —
ZVW5# CBU ¥1,540
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875-52500-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,090
71876-47090-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2015-11 → 2016-10 ended
ZVW5# CBU ¥1,860
71876-47090-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥1,170
71876-47090-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥1,170
71876-47090-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2016-10 → 2018-12 ended
ZVW51 E ¥1,170
71875-52500-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2018-12 → —
ZVW5# CBU ¥1,090
71876-47090-C1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2018-12 → —
ZVW5# CBU ¥1,170
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-47070-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2015-11 → 2016-10 ended
ZVW5# CBU ¥1,860
71876-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2016-10 → 2018-12 ended
ZVW51 E ¥1,170
71876-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2016-10 → 2018-12 ended
ZVW5# (A,S) CBU ¥1,170
71876-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2016-10 → 2018-12 ended
ZVW51,55 PREM ¥1,170
71876-52430-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,090
71876-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2018-12 → —
ZVW5# CBU ¥1,170
71876-52430-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2018-12 → —
ZVW5# CBU ¥1,090
71A48 — Clip, Front Seat Leg Cover, LH
90467-05161-C9 note Clip, Front Seat Leg Cover, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥60
90467-05161-C9 note Clip, Front Seat Leg Cover, LH
2018-12 → —
ZVW5# CBU ¥60
71A49D — Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
71149-52060-C0 note Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,240
71149-52060-C0 note Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
2018-12 → —
ZVW5# CBU ¥2,240
71A49F — Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT)
71149-52080-C0 note Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT)
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,600
71149-52080-C0 note Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT)
2018-12 → —
ZVW5# CBU ¥1,600
72020 — Adjuster Assy, Front Seat, LH
72010-52C30 note Adjuster Assy, Front Seat, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥10,200
72020-47380 Adjuster Assy, Front Seat, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥21,100
72010-52C30 note Adjuster Assy, Front Seat, LH
2018-12 → —
ZVW5# CBU ¥10,200
72020-47380 Adjuster Assy, Front Seat, LH
2018-12 → 2020-07 ended
ZVW5# PREM ¥21,100
72020-47381 Adjuster Assy, Front Seat, LH
2018-12 → —
ZVW5# (A,E,S) CBU ¥19,200
72020-47381 Adjuster Assy, Front Seat, LH
2020-07 → —
ZVW5# PREM ¥19,200
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-47060 Cover, Seat Track Bracket, Outer Front LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥320
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥370
72123-47060 Cover, Seat Track Bracket, Outer Front LH
2018-12 → —
ZVW5# CBU ¥320
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front LH
2018-12 → —
ZVW5# CBU ¥370
72275C — Stopper, Front Seat Track Slide
71302-D1010 note Stopper, Front Seat Track Slide
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,070
71302-D1010 note Stopper, Front Seat Track Slide
2018-12 → —
ZVW5# CBU ¥1,070
72526 — Handle, Reclining Adjuster Release, LH
72526-52090-C0 note Handle, Reclining Adjuster Release, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,300
72526-52090-C0 note Handle, Reclining Adjuster Release, LH
2018-12 → —
ZVW5# CBU ¥1,300
72551 — Cover, Reclining Hinge, NO.1
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2018-12 → —
ZVW5# CBU ¥590
73920A — Airbag Assy, Front Seat, LH
73920-47110 Airbag Assy, Front Seat, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥22,100
73920-52280 note Airbag Assy, Front Seat, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥20,000
73920-47110 Airbag Assy, Front Seat, LH
2018-12 → —
ZVW5# CBU ¥22,100
73920-52280 note Airbag Assy, Front Seat, LH
2018-12 → —
ZVW5# CBU ¥20,000
74611H — Grip, Assist
C7145-52010-C0 note Grip, Assist
2015-11 → 2018-12 ended
ZVW5# CBU ¥960
C7145-52010-C0 note Grip, Assist
2018-12 → —
ZVW5# CBU ¥960
74617D — Plug, Assist Grip
74617-52020-C0 note Plug, Assist Grip
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
74617-52020-C0 note Plug, Assist Grip
2018-12 → —
ZVW5# CBU ¥200
74656P — Cover, Hand Rail Bar, LH
74656-52020-C0 note Cover, Hand Rail Bar, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥500
74656-52020-C0 note Cover, Hand Rail Bar, LH
2018-12 → —
ZVW5# CBU ¥500
74865G — Cover, Center Protector, LH
74865-52020-C0 note Cover, Center Protector, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥500
74865-52020-C0 note Cover, Center Protector, LH
2018-12 → —
ZVW5# CBU ¥500
76681B — Cover, Outside Moulding End, NO.1 LH
76681-52020 note Cover, Outside Moulding End, NO.1 LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥370
76681-52020 note Cover, Outside Moulding End, NO.1 LH
2018-12 → —
ZVW5# CBU ¥370
79977A — Felt, Seatback
79977-52240 note Felt, Seatback
2015-11 → 2018-12 ended
ZVW5# CBU ¥540
79977-52240 note Felt, Seatback
2018-12 → —
ZVW5# CBU ¥540
82H17A — Protector, Wiring Harness, LH
82817-52Q00-C0 note Protector, Wiring Harness, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,600
82817-52Q00-C0 note Protector, Wiring Harness, LH
2018-12 → —
ZVW5# CBU ¥1,600
C7032 — Swivel Sub-assy, Front Seat, LH
C7032-52010 note Swivel Sub-assy, Front Seat, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥98,000
C7032-52010 note Swivel Sub-assy, Front Seat, LH
2018-12 → —
ZVW5# CBU ¥98,000
C7120 — Leg, Welcab Seat, NO.1
C7120-D1C60 note Leg, Welcab Seat, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥18,100
C7120-D1C60 note Leg, Welcab Seat, NO.1
2018-12 → —
ZVW5# CBU ¥18,100
C7265A — Handle, Seat Turn Lock, LH
C7265-52010-C0 note Handle, Seat Turn Lock, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥600
C7265-52010-C0 note Handle, Seat Turn Lock, LH
2018-12 → —
ZVW5# CBU ¥600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
