Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

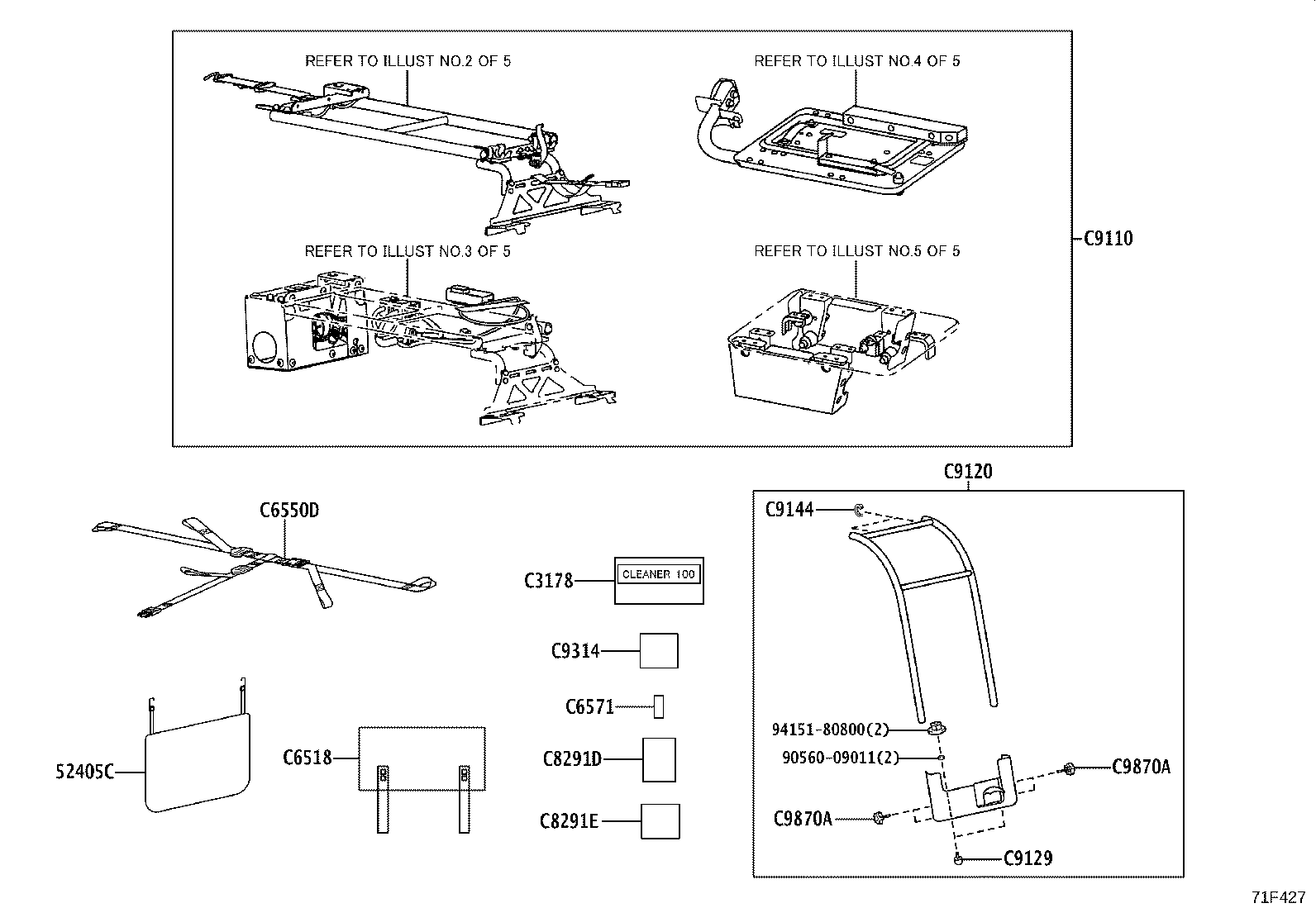

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52405C — Guard Sub-assy, Rear Bumper | ||||
| 52405-D1120 note |
Guard Sub-assy, Rear Bumper
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥6,500 | |
| 52405-D1120 note |
Guard Sub-assy, Rear Bumper
2018-12 → —
|
ZVW5# CBU | ¥6,500 | |
| C3178 — Sheet, Header Panel | ||||
| C3178-52040 note |
Sheet, Header Panel
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥200 | |
| C3178-52040 note |
Sheet, Header Panel
2018-12 → —
|
ZVW5# CBU | ¥200 | |
| C6518 — Belt, Package Holder, NO.2 | ||||
| C6518-66010 note |
Belt, Package Holder, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,070 | |
| C6518-66010 note |
Belt, Package Holder, NO.2
2018-12 → —
|
ZVW5# CBU | ¥2,070 | |
| C6550D — Belt Assy, Wheel Chair Set, NO.1 | ||||
| C6550-66040 note |
Belt Assy, Wheel Chair Set, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | — | |
| C6550-66040 note |
Belt Assy, Wheel Chair Set, NO.1
2018-12 → —
|
ZVW5# CBU | — | |
| C6571 — Hook, Wheel Chair Belt | ||||
| C6571-52050 note |
Hook, Wheel Chair Belt
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥80 | |
| C6571-52050 note |
Hook, Wheel Chair Belt
2018-12 → —
|
ZVW5# CBU | ¥80 | |
| C8291D — Protector, Tecs Wiring Harness, NO.1 | ||||
| C8291-52010 note |
Protector, Tecs Wiring Harness, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥160 | |
| C8291-52010 note |
Protector, Tecs Wiring Harness, NO.1
2018-12 → —
|
ZVW5# CBU | ¥160 | |
| C8291E — Protector, Tecs Wiring Harness, NO.2 | ||||
| C8293-66010 note |
Protector, Tecs Wiring Harness, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | — | |
| C8293-66010 note |
Protector, Tecs Wiring Harness, NO.2
2018-12 → —
|
ZVW5# CBU | — | |
| C9110 — Rail Assy, Power Lift Arm Guide, RH | ||||
| C9110-66060 note |
Rail Assy, Power Lift Arm Guide, RH
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥129,000 | |
| C9110-66060 note |
Rail Assy, Power Lift Arm Guide, RH
2018-12 → —
|
ZVW5# CBU | ¥129,000 | |
| C9120 — Rail Assy, Power Lift Arm Guide, LH | ||||
| C9120-66040 note |
Rail Assy, Power Lift Arm Guide, LH
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥46,500 | |
| C9120-66040 note |
Rail Assy, Power Lift Arm Guide, LH
2018-12 → —
|
ZVW5# CBU | ¥46,500 | |
| C9129 — Stopper, Power Lift Arm Guide | ||||
| C9129-52010 note |
Stopper, Power Lift Arm Guide
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥490 | |
| C9129-52010 note |
Stopper, Power Lift Arm Guide
2018-12 → —
|
ZVW5# CBU | ¥490 | |
| C9144 — Reinforce, Power Lift Beam | ||||
| C9144-52060 note |
Reinforce, Power Lift Beam
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥130 | |
| C9144-52060 note |
Reinforce, Power Lift Beam
2018-12 → —
|
ZVW5# CBU | ¥130 | |
| C9314 — Holder, Power Lift Platform, LH | ||||
| C9314-52011 note |
Holder, Power Lift Platform, LH
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥370 | |
| C9314-52011 note |
Holder, Power Lift Platform, LH
2018-12 → —
|
ZVW5# CBU | ¥370 | |
| C9870A — Handle Assy, Crane, NO.2 | ||||
| C9870-52020 note |
Handle Assy, Crane, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥530 | |
| C9870-52020 note |
Handle Assy, Crane, NO.2
2018-12 → —
|
ZVW5# CBU | ¥530 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
