Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

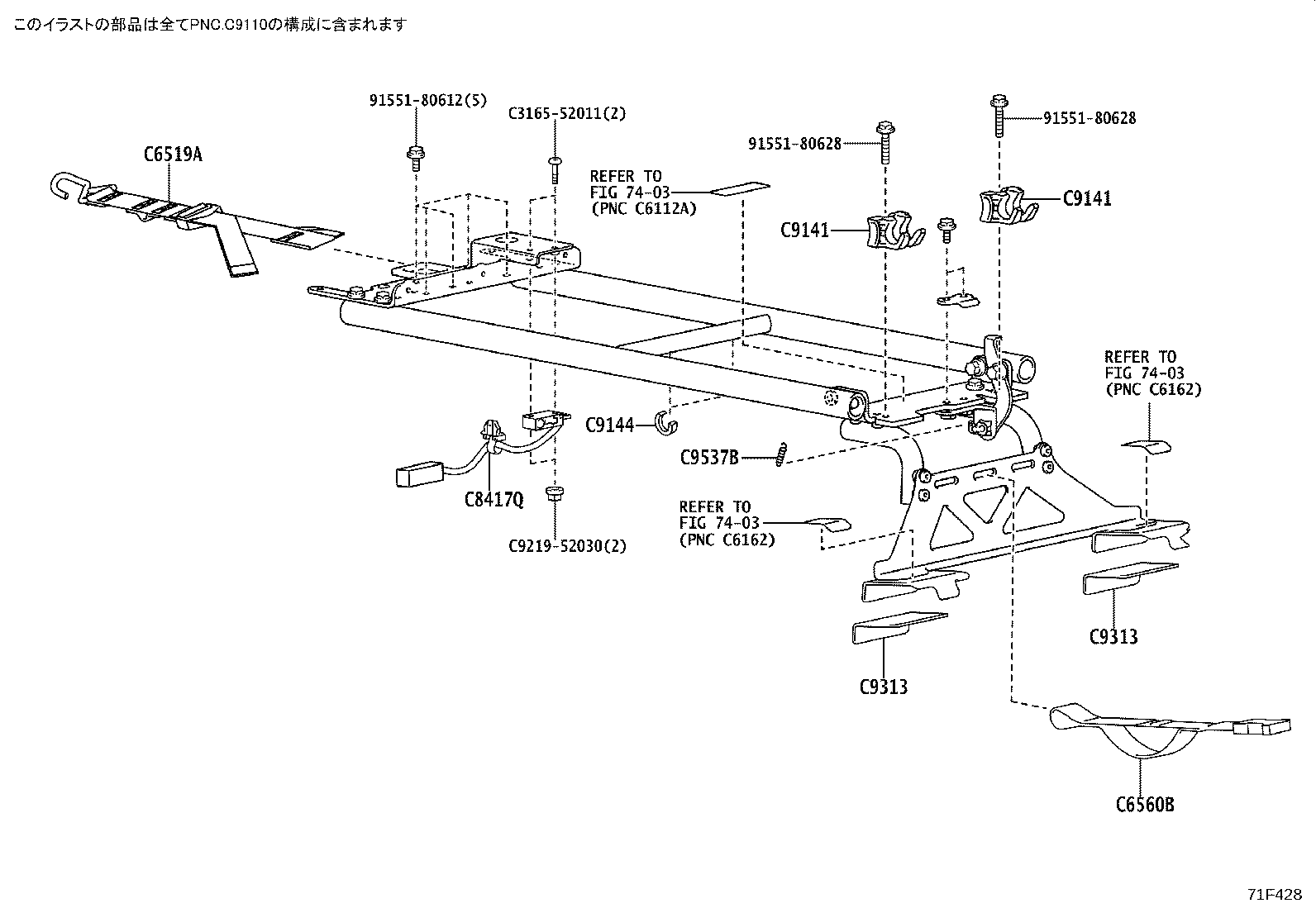

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| C6519A — Belt, Lashing | ||||
| C6519-66030 note |
Belt, Lashing
2015-11 → 2018-12
ended
|
ZVW5# CBU | — | |
| C6519-66030 note |
Belt, Lashing
2018-12 → —
|
ZVW5# CBU | — | |
| C6560B — Belt Assy, Wheel Chair Set, NO.2 | ||||
| C6560-52111 note |
Belt Assy, Wheel Chair Set, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥780 | |
| C6560-52111 note |
Belt Assy, Wheel Chair Set, NO.2
2018-12 → —
|
ZVW5# CBU | ¥780 | |
| C8417Q — Switch, Limit | ||||
| C8417-52011 note |
Switch, Limit
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥6,800 | |
| C8417-52011 note |
Switch, Limit
2018-12 → —
|
ZVW5# CBU | ¥6,800 | |
| C9141 — Reinforce, Power Lift | ||||
| C9141-52011 note |
Reinforce, Power Lift
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥730 | |
| C9141-52011 note |
Reinforce, Power Lift
2018-12 → —
|
ZVW5# CBU | ¥730 | |
| C9144 — Reinforce, Power Lift Beam | ||||
| C9144-52060 note |
Reinforce, Power Lift Beam
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥130 | |
| C9144-52060 note |
Reinforce, Power Lift Beam
2018-12 → —
|
ZVW5# CBU | ¥130 | |
| C9313 — Holder, Power Lift Platform, RH | ||||
| C9313-66010 note |
Holder, Power Lift Platform, RH
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥200 | |
| C9313-66010 note |
Holder, Power Lift Platform, RH
2018-12 → —
|
ZVW5# CBU | ¥200 | |
| C9537B — Spring, Power Lift Return | ||||
| C9537-52020 note |
Spring, Power Lift Return
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥80 | |
| C9537-52020 note |
Spring, Power Lift Return
2018-12 → —
|
ZVW5# CBU | ¥80 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
