Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

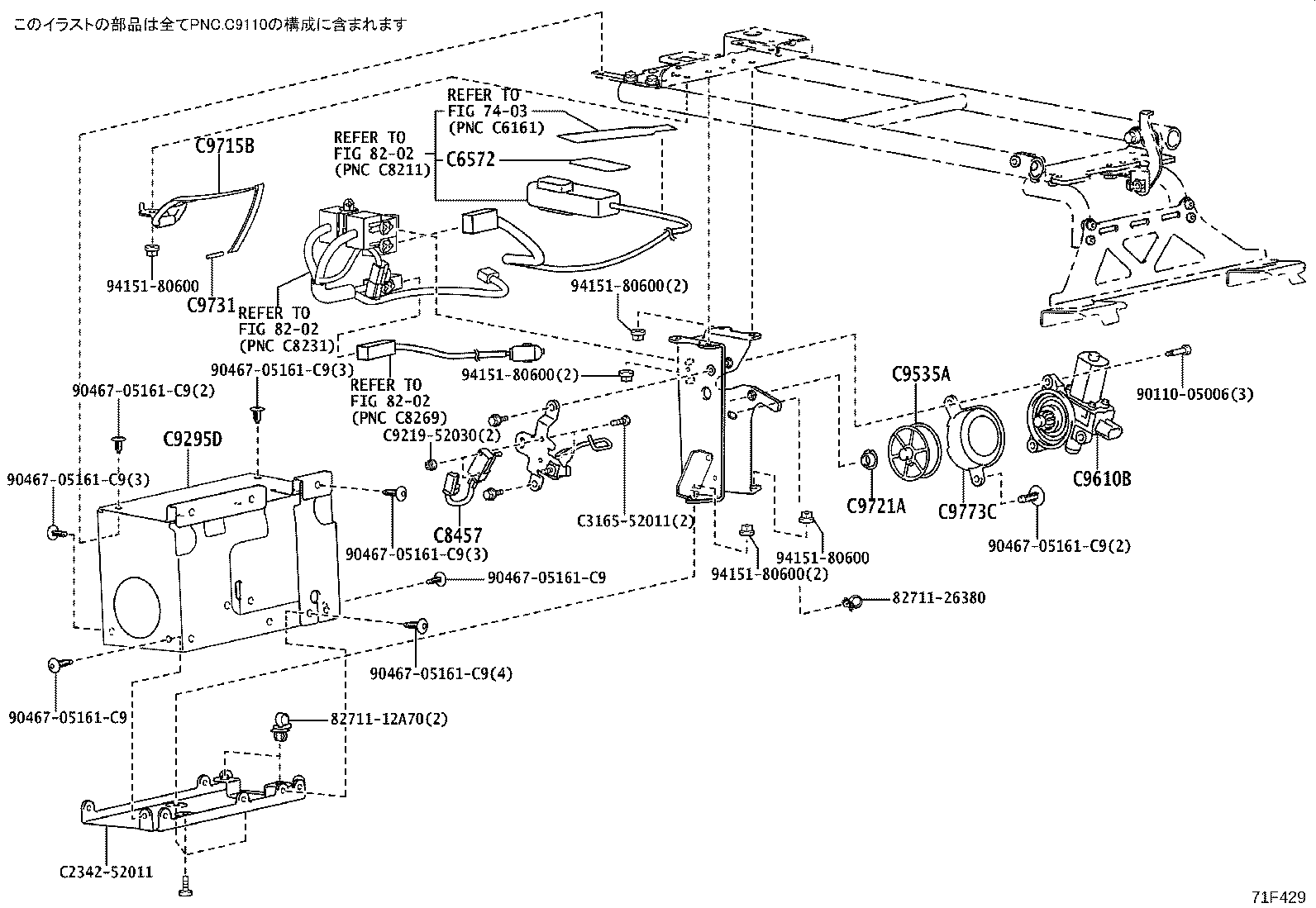

Exploded illustration 71F429 8202 — not listed in this catalogue 8202 — not listed in this catalogue 7403 — not listed in this catalogue 8202 — not listed in this catalogue C8457 — SWITCH, LIMIT, NO.2 (2 parts) C9295D — COVER, POWER LIFT WIRE, NO.1 (2 parts) C9731 — PIN, WINCH ROLLER, NO.1 (2 parts) C6572 — HOOK, WHEEL CHAIR BELT, NO.2 (2 parts) C9715B — BELT, WINCH (2 parts) C9535A — PULLEY, POWER LIFT (2 parts) C9721A — BEARING, NO.2 WINCH, NO.1 (2 parts) C9610B — MOTOR ASSY, POWER LIFT (2 parts) C9773C — COVER, WINCH BELT (2 parts) 9011005006 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue C316552011 — not listed in this catalogue 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue C921952030 — not listed in this catalogue 9415180600 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 8271112A70 — not listed in this catalogue C234252011 — not listed in this catalogue 8271126380 — not listed in this catalogue
71F429 · 9 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
C6572 — Hook, Wheel Chair Belt, NO.2
C6572-52030 note Hook, Wheel Chair Belt, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
C6572-52030 note Hook, Wheel Chair Belt, NO.2
2018-12 → —
ZVW5# CBU ¥80
C8457 — Switch, Limit, NO.2
C8457-52011 note Switch, Limit, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥6,800
C8457-52011 note Switch, Limit, NO.2
2018-12 → —
ZVW5# CBU ¥6,800
C9295D — Cover, Power Lift Wire, NO.1
C9295-66040 note Cover, Power Lift Wire, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU —
C9295-66040 note Cover, Power Lift Wire, NO.1
2018-12 → —
ZVW5# CBU —
C9535A — Pulley, Power Lift
C9535-52030 note Pulley, Power Lift
2015-11 → 2018-12 ended
ZVW5# CBU ¥7,800
C9535-52030 note Pulley, Power Lift
2018-12 → —
ZVW5# CBU ¥7,800
C9610B — Motor Assy, Power Lift
C9610-52010 note Motor Assy, Power Lift
2015-11 → 2018-12 ended
ZVW5# CBU ¥11,600
C9610-52010 note Motor Assy, Power Lift
2018-12 → —
ZVW5# CBU ¥11,600
C9715B — Belt, Winch
C9715-66030 note Belt, Winch
2015-11 → 2018-12 ended
ZVW5# CBU ¥8,100
C9715-66030 note Belt, Winch
2018-12 → —
ZVW5# CBU ¥8,100
C9721A — Bearing, NO.2 Winch, NO.1
C9721-52020 note Bearing, NO.2 Winch, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥670
C9721-52020 note Bearing, NO.2 Winch, NO.1
2018-12 → —
ZVW5# CBU ¥670
C9731 — Pin, Winch Roller, NO.1
C9731-52040 note Pin, Winch Roller, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥70
C9731-52040 note Pin, Winch Roller, NO.1
2018-12 → —
ZVW5# CBU ¥70
C9773C — Cover, Winch Belt
C9773-52030 note Cover, Winch Belt
2015-11 → 2018-12 ended
ZVW5# CBU ¥300
C9773-52030 note Cover, Winch Belt
2018-12 → —
ZVW5# CBU ¥300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
