Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

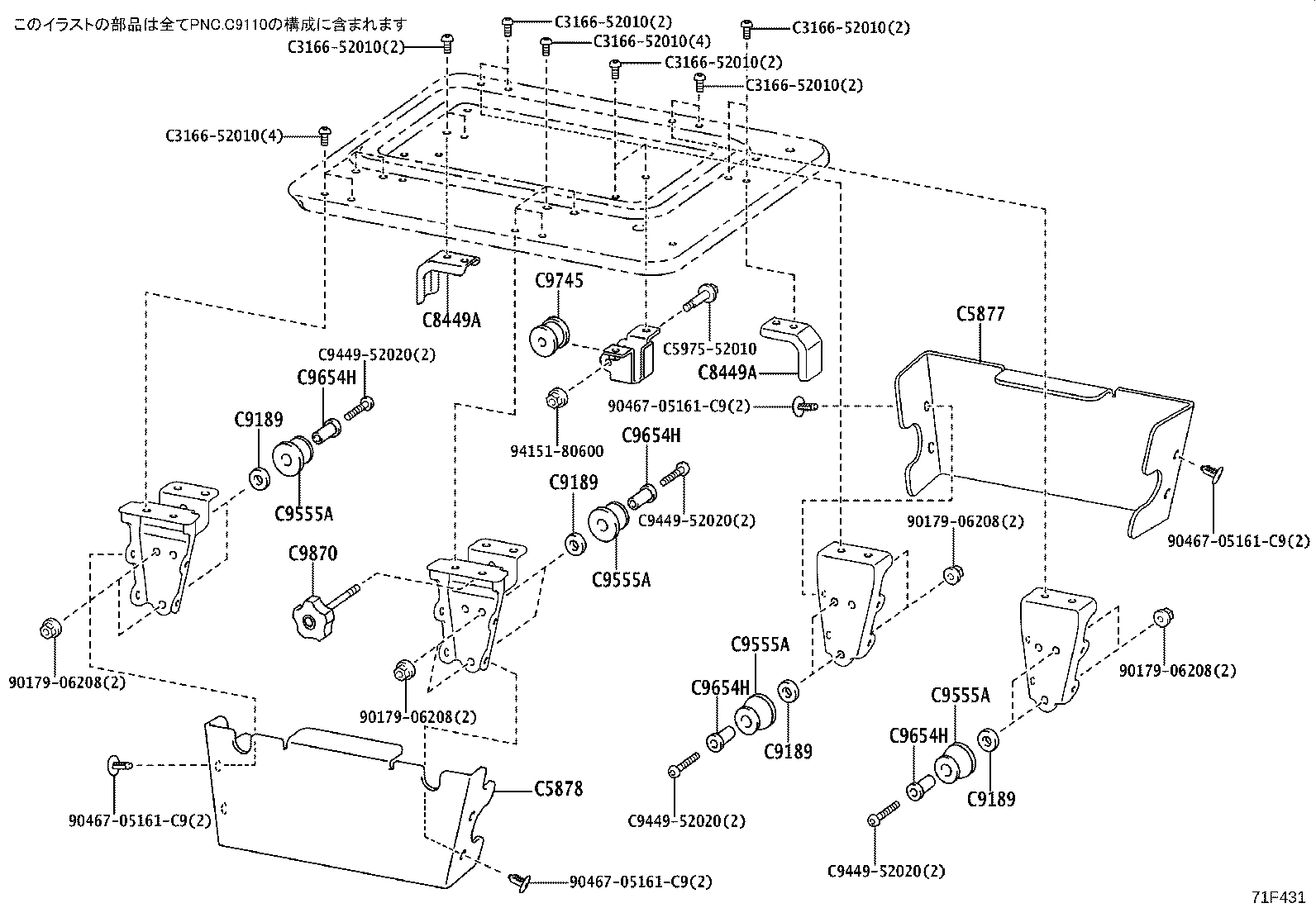

Exploded illustration 71F431 C9189 — SPACER, POWER LIFT RETAINER BASE (2 parts) C9189 — SPACER, POWER LIFT RETAINER BASE (2 parts) C9555A — ROLLER, POWER LIFT (2 parts) C9555A — ROLLER, POWER LIFT (2 parts) C9555A — ROLLER, POWER LIFT (2 parts) C9555A — ROLLER, POWER LIFT (2 parts) C8449A — DOG, LIMIT SWITCH (2 parts) C8449A — DOG, LIMIT SWITCH (2 parts) C9745 — ROLLER, WINCH, NO.1 (2 parts) C9654H — COLLAR, POWER LIFT CYLINDER (2 parts) C9654H — COLLAR, POWER LIFT CYLINDER (2 parts) C9654H — COLLAR, POWER LIFT CYLINDER (2 parts) C9654H — COLLAR, POWER LIFT CYLINDER (2 parts) C5877 — GUARD, SHADE PANEL, NO.1 (2 parts) C5878 — GUARD, SHADE PANEL, NO.2 (2 parts) C9189 — SPACER, POWER LIFT RETAINER BASE (2 parts) C9189 — SPACER, POWER LIFT RETAINER BASE (2 parts) 9017906208 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9415180600 — not listed in this catalogue C597552010 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9017906208 — not listed in this catalogue 9017906208 — not listed in this catalogue C944952020 — not listed in this catalogue C944952020 — not listed in this catalogue C944952020 — not listed in this catalogue C944952020 — not listed in this catalogue 9017906208 — not listed in this catalogue C316652010 — not listed in this catalogue C316652010 — not listed in this catalogue C316652010 — not listed in this catalogue C316652010 — not listed in this catalogue C316652010 — not listed in this catalogue C316652010 — not listed in this catalogue C316652010 — not listed in this catalogue C9870 — HANDLE ASSY, CRANE, NO.1 (2 parts)
71F431 · 18 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
C5877 — Guard, Shade Panel, NO.1
C5877-52010 note Guard, Shade Panel, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥600
C5877-52010 note Guard, Shade Panel, NO.1
2018-12 → —
ZVW5# CBU ¥600
C5878 — Guard, Shade Panel, NO.2
C5878-52010 note Guard, Shade Panel, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥590
C5878-52010 note Guard, Shade Panel, NO.2
2018-12 → —
ZVW5# CBU ¥590
C8449A — Dog, Limit Switch
C8449-52041 note Dog, Limit Switch
2015-11 → 2018-12 ended
ZVW5# CBU ¥380
C8449-52041 note Dog, Limit Switch
2018-12 → —
ZVW5# CBU ¥380
C9189 — Spacer, Power Lift Retainer Base
C9189-52040 note Spacer, Power Lift Retainer Base
2015-11 → 2018-12 ended
ZVW5# CBU ¥90
C9189-52040 note Spacer, Power Lift Retainer Base
2018-12 → —
ZVW5# CBU ¥90
C9555A — Roller, Power Lift
C9555-52020 note Roller, Power Lift
2015-11 → 2018-12 ended
ZVW5# CBU ¥480
C9555-52020 note Roller, Power Lift
2018-12 → —
ZVW5# CBU ¥480
C9654H — Collar, Power Lift Cylinder
C9654-52061 note Collar, Power Lift Cylinder
2015-11 → 2018-12 ended
ZVW5# CBU ¥160
C9654-52061 note Collar, Power Lift Cylinder
2018-12 → —
ZVW5# CBU ¥160
C9745 — Roller, Winch, NO.1
C9745-52010 note Roller, Winch, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥430
C9745-52010 note Roller, Winch, NO.1
2018-12 → —
ZVW5# CBU ¥430
C9870 — Handle Assy, Crane, NO.1
C9870-52010 note Handle Assy, Crane, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥590
C9870-52010 note Handle Assy, Crane, NO.1
2018-12 → —
ZVW5# CBU ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
