Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

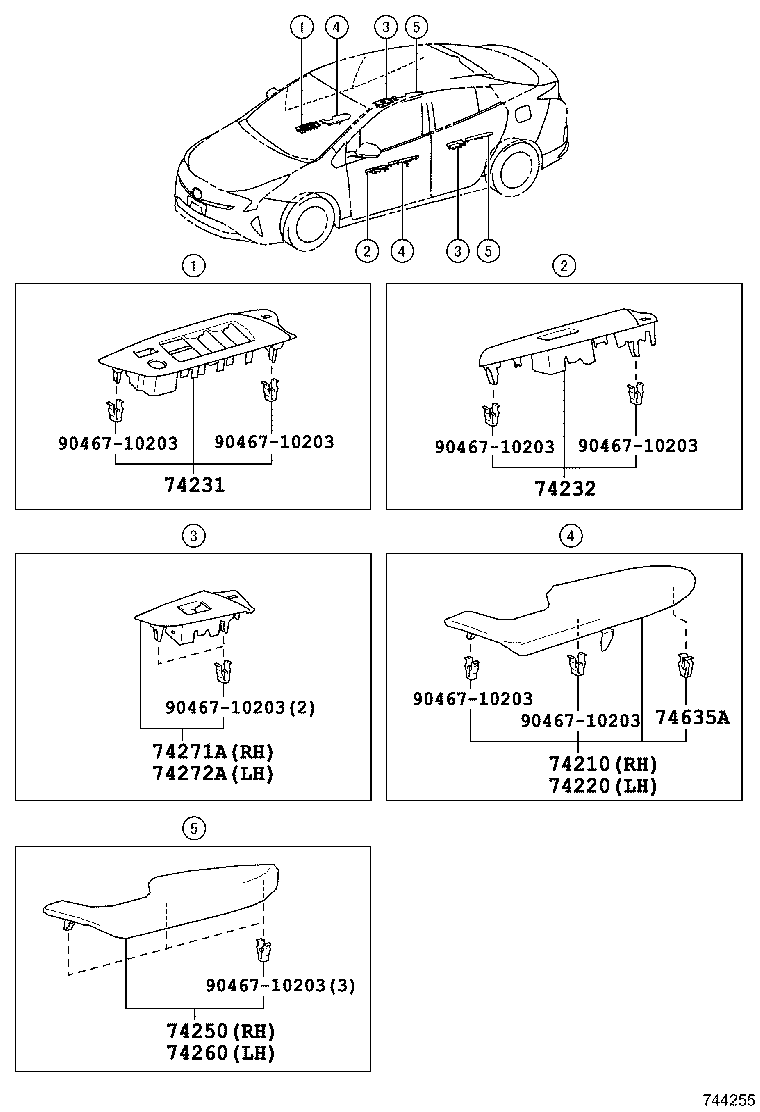

Exploded illustration 744255 74231 — PANEL, FRONT ARMREST BASE, UPPER RH (2 parts) 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 74232 — PANEL, FRONT ARMREST BASE, UPPER LH (2 parts) 74272A — PANEL, REAR DOOR ARMREST BASE, UPPER LH (2 parts) 74271A — PANEL, REAR DOOR ARMREST BASE, UPPER RH (2 parts) 74260 — ARMREST ASSY, REAR LH (3 parts) 74250 — ARMREST ASSY, REAR RH (3 parts) 74220 — ARMREST ASSY, FRONT, LH (3 parts) 74210 — ARMREST ASSY, FRONT, RH (3 parts) 74635A — CLIP (2 parts)
744255 · 9 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
74210 — Armrest Assy, Front, RH
74210-47010-C0 note Armrest Assy, Front, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥2,830
74210-47010-C0 note Armrest Assy, Front, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥2,830
74210-47010-C0 note Armrest Assy, Front, RH
2018-12 → —
ZVW5# CBU ¥2,830
74220 — Armrest Assy, Front, LH
74220-47010-C0 note Armrest Assy, Front, LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥2,830
74220-47010-C0 note Armrest Assy, Front, LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥2,830
74220-47010-C0 note Armrest Assy, Front, LH
2018-12 → —
ZVW5# CBU ¥2,830
74231 — Panel, Front Armrest Base, Upper RH
74231-47220 Panel, Front Armrest Base, Upper RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,410
74231-47220 Panel, Front Armrest Base, Upper RH
2018-12 → —
ZVW5# CBU ¥1,410
74232 — Panel, Front Armrest Base, Upper LH
74232-47180 Panel, Front Armrest Base, Upper LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,430
74232-47180 Panel, Front Armrest Base, Upper LH
2018-12 → —
ZVW5# CBU ¥1,430
74250 — Armrest Assy, Rear RH
74250-47010-C0 note Armrest Assy, Rear RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥2,500
74250-47010-C0 note Armrest Assy, Rear RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥2,500
74250-47010-C0 note Armrest Assy, Rear RH
2018-12 → —
ZVW5# CBU ¥2,500
74260 — Armrest Assy, Rear LH
74260-47010-C0 note Armrest Assy, Rear LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥2,500
74260-47010-C0 note Armrest Assy, Rear LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥2,500
74260-47010-C0 note Armrest Assy, Rear LH
2018-12 → —
ZVW5# CBU ¥2,500
74271A — Panel, Rear Door Armrest Base, Upper RH
74271-47120 Panel, Rear Door Armrest Base, Upper RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,140
74271-47120 Panel, Rear Door Armrest Base, Upper RH
2018-12 → —
ZVW5# CBU ¥1,140
74272A — Panel, Rear Door Armrest Base, Upper LH
74272-47120 Panel, Rear Door Armrest Base, Upper LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,140
74272-47120 Panel, Rear Door Armrest Base, Upper LH
2018-12 → —
ZVW5# CBU ¥1,140
74635A — Clip
90467-08227 Clip
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90467-08227 Clip
2018-12 → —
ZVW5# CBU ¥80
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
