Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

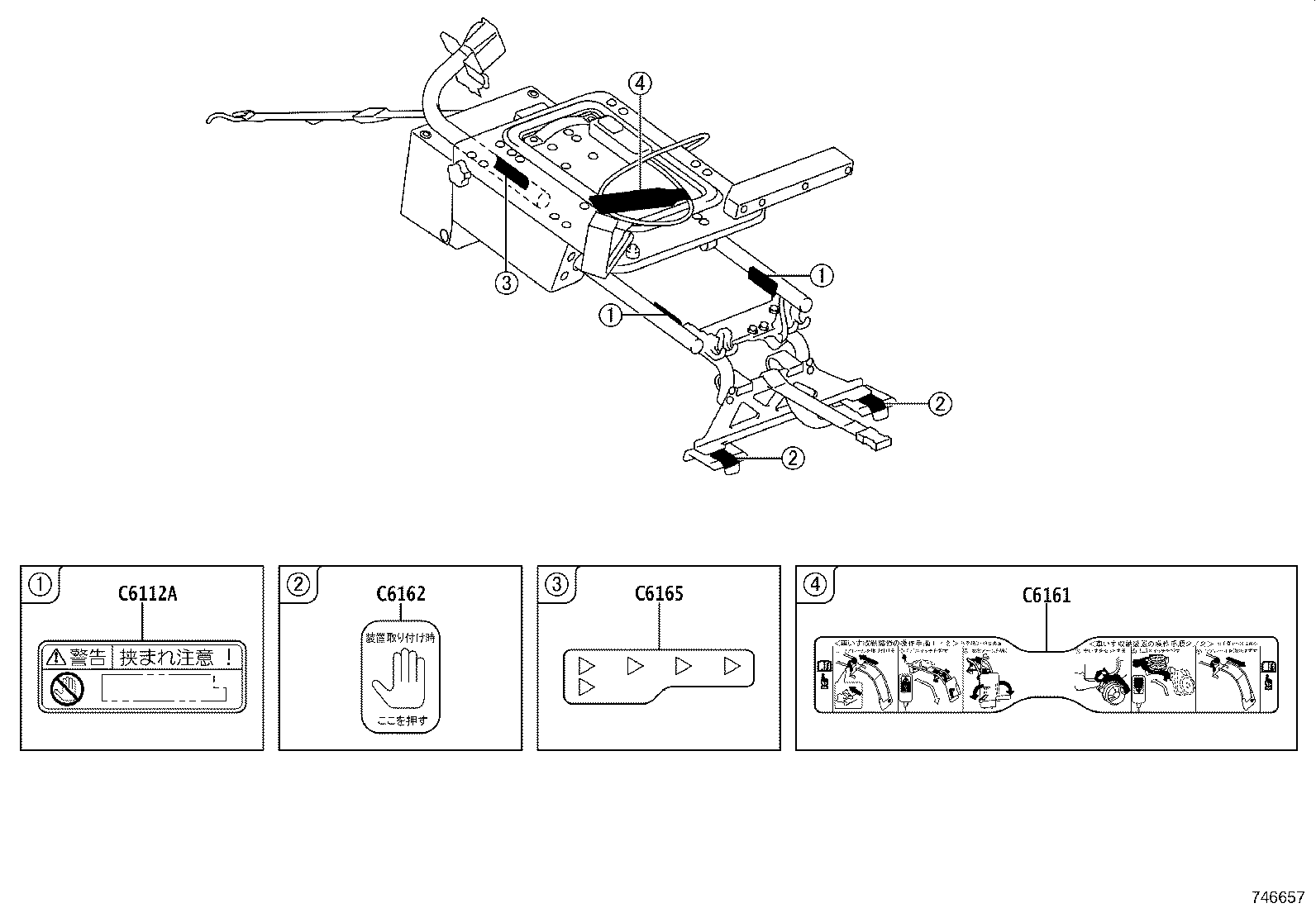

Exploded illustration 746657 C6112A — LABEL, SAFETY INFORMATION (2 parts) C6162 — LABEL, POWER LIFT CAUTION, NO.2 (2 parts) C6165 — LABEL, POWER LIFT NOTICE (2 parts) C6161 — LABEL, POWER LIFT CAUTION (2 parts)
746657 · 4 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
C6112A — Label, Safety Information
C6112-52090 note Label, Safety Information
2015-11 → 2018-12 ended
ZVW5# CBU ¥90
C6112-52090 note Label, Safety Information
2018-12 → —
ZVW5# CBU ¥90
C6161 — Label, Power Lift Caution
C6161-52070 note Label, Power Lift Caution
2015-11 → 2018-12 ended
ZVW5# CBU ¥260
C6161-52070 note Label, Power Lift Caution
2018-12 → —
ZVW5# CBU ¥260
C6162 — Label, Power Lift Caution, NO.2
C6162-52020 note Label, Power Lift Caution, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥90
C6162-52020 note Label, Power Lift Caution, NO.2
2018-12 → —
ZVW5# CBU ¥90
C6165 — Label, Power Lift Notice
C6167-52011 note Label, Power Lift Notice
2015-11 → 2018-12 ended
ZVW5# CBU ¥130
C6167-52011 note Label, Power Lift Notice
2018-12 → —
ZVW5# CBU ¥130
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
