Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

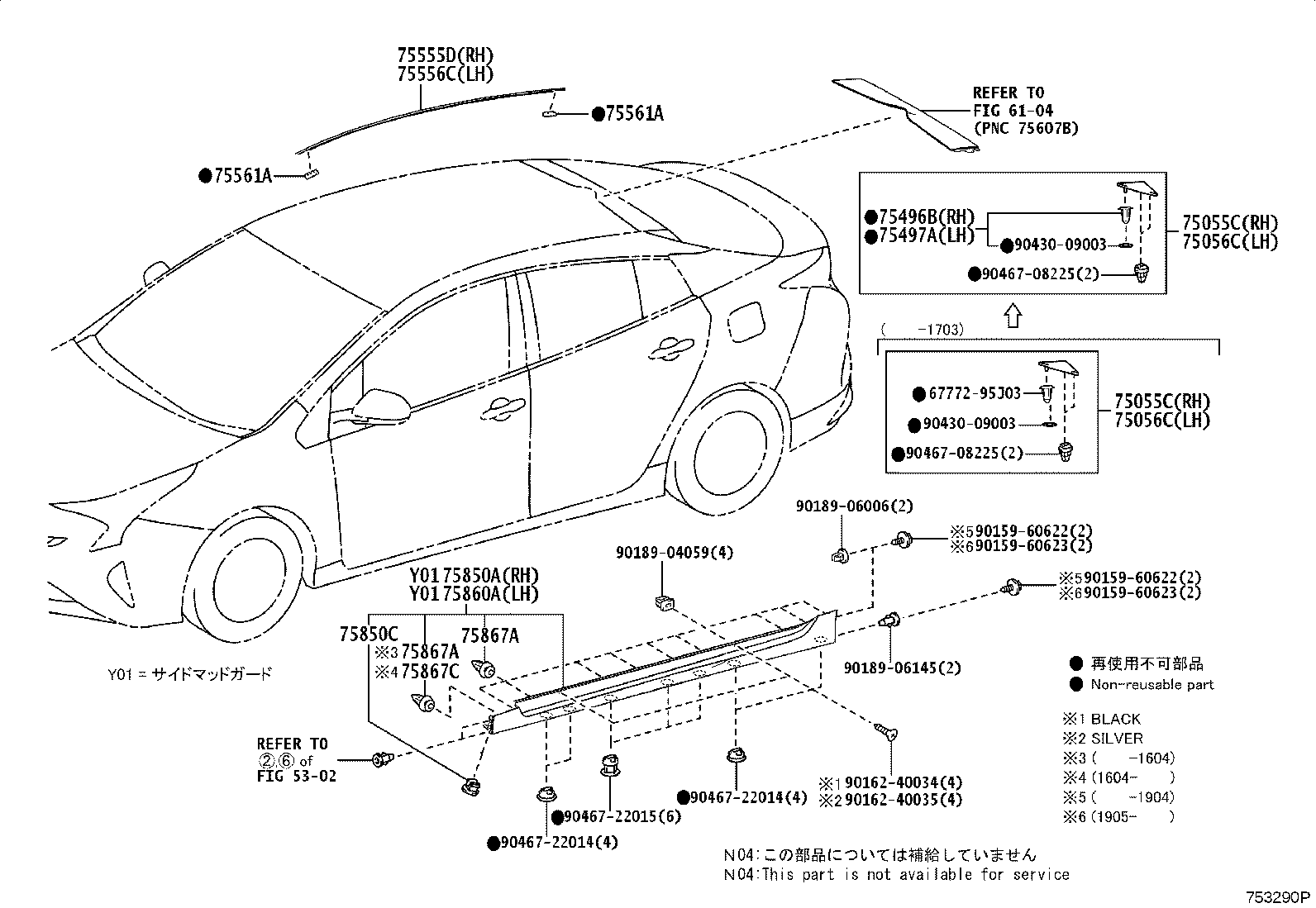

Exploded illustration 753290P 75555D — MOULDING, ROOF DRIP SIDE FINISH, CENTER RH (2 parts) 75556C — MOULDING, ROOF DRIP SIDE FINISH, CENTER LH (2 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (2 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (2 parts) 75850A — MOULDING ASSY, BODY ROCKER PANEL, RH (27 parts) 75867A — CLIP, ROCKER PANEL MOULDING (3 parts) 75850C — GROMMET, NO.1 (2 parts) 75860A — MOULDING ASSY, BODY ROCKER PANEL, LH (27 parts) 9016240035 — not listed in this catalogue 9016240034 — not listed in this catalogue 9018904059 — not listed in this catalogue 9046722014 — not listed in this catalogue 9046722014 — not listed in this catalogue 9046722015 — not listed in this catalogue 9018906006 — not listed in this catalogue 9018906145 — not listed in this catalogue 6104 — not listed in this catalogue 75867C — CLIP, ROCKER PANEL MOULDING (2 parts) 75867A — CLIP, ROCKER PANEL MOULDING (3 parts) 75055C — MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR RH (2 parts) 75056C — MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR LH (2 parts) 75496B — CLIP, ROOF DRIP SIDE FINISH MOULDING, RH (2 parts) 75497A — CLIP, ROOF DRIP SIDE FINISH MOULDING, LH (2 parts) 9043009003 — not listed in this catalogue 9046708225 — not listed in this catalogue 5302 — not listed in this catalogue 75055C — MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR RH (2 parts) 75056C — MOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR LH (2 parts) 9043009003 — not listed in this catalogue 6777295J03 — not listed in this catalogue 9046708225 — not listed in this catalogue 9015960622 — not listed in this catalogue 9015960623 — not listed in this catalogue 9015960622 — not listed in this catalogue 9015960623 — not listed in this catalogue
753290P · 16 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
75055C — Moulding Sub-assy, Roof Drip Side Finish, Rear RH
75055-47010 Moulding Sub-assy, Roof Drip Side Finish, Rear RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,840
75055-47010 Moulding Sub-assy, Roof Drip Side Finish, Rear RH
2018-12 → —
ZVW5# CBU ¥1,840
75056C — Moulding Sub-assy, Roof Drip Side Finish, Rear LH
75056-47010 Moulding Sub-assy, Roof Drip Side Finish, Rear LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,840
75056-47010 Moulding Sub-assy, Roof Drip Side Finish, Rear LH
2018-12 → —
ZVW5# CBU ¥1,840
75496B — Clip, Roof Drip Side Finish Moulding, RH
67772-47020 Clip, Roof Drip Side Finish Moulding, RH
2017-03 → 2018-12 ended
ZVW5# CBU ¥120
67772-47020 Clip, Roof Drip Side Finish Moulding, RH
2018-12 → —
ZVW5# CBU ¥120
75497A — Clip, Roof Drip Side Finish Moulding, LH
67772-47020 Clip, Roof Drip Side Finish Moulding, LH
2017-03 → 2018-12 ended
ZVW5# CBU ¥120
67772-47020 Clip, Roof Drip Side Finish Moulding, LH
2018-12 → —
ZVW5# CBU ¥120
75555D — Moulding, Roof Drip Side Finish, Center RH
75555-47070 Moulding, Roof Drip Side Finish, Center RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,830
75555-47070 Moulding, Roof Drip Side Finish, Center RH
2018-12 → —
ZVW5# CBU ¥1,830
75556C — Moulding, Roof Drip Side Finish, Center LH
75556-47070 Moulding, Roof Drip Side Finish, Center LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,830
75556-47070 Moulding, Roof Drip Side Finish, Center LH
2018-12 → —
ZVW5# CBU ¥1,830
75561A — Clip, Roof Drip Side Finish Moulding
75561-33030 Clip, Roof Drip Side Finish Moulding
2015-11 → 2018-12 ended
ZVW5# CBU ¥140
75561-33030 Clip, Roof Drip Side Finish Moulding
2018-12 → —
ZVW5# CBU ¥140
75850A — Moulding Assy, Body Rocker Panel, RH
75850-47030-A0 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥28,800
75850-47030-A1 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,E) CBU ¥34,600
75850-47030-A1 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW5# (PREM,S) CBU ¥34,600
75850-47030-B0 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥28,800
75850-47030-B1 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥28,800
75850-47030-C0 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥28,800
75850-47030-D0 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥34,600
75850-47030-D0 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥34,600
75850-47030-E0 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥28,800
75850-47030-E0 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥28,800
75850-47030-G0 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥34,600
75850-47030-J0 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥34,600
75850-47030-J0 note Moulding Assy, Body Rocker Panel, RH
2015-11 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥34,600
75850-47030-A0 note Moulding Assy, Body Rocker Panel, RH
2018-12 → 2022-11 ended
ZVW5# CBU ¥28,800
75850-47030-A1 note Moulding Assy, Body Rocker Panel, RH
2018-12 → 2020-07 ended
ZVW5# CBU ¥34,600
75850-47030-A2 note Moulding Assy, Body Rocker Panel, RH
2020-07 → 2022-11 ended
ZVW5# E,PREM ¥28,800
75850-47030-A2 note Moulding Assy, Body Rocker Panel, RH
2020-07 → 2022-11 ended
ZVW5# (A,S) CBU ¥28,800
75850-47030-B0 note Moulding Assy, Body Rocker Panel, RH
2018-12 → 2022-11 ended
ZVW5# CBU ¥28,800
75850-47030-B1 note Moulding Assy, Body Rocker Panel, RH
2018-12 → 2022-11 ended
ZVW5# (A,S) CBU ¥28,800
75850-47030-B1 note Moulding Assy, Body Rocker Panel, RH
2018-12 → 2022-11 ended
ZVW5# E,PREM ¥28,800
75850-47030-C0 note Moulding Assy, Body Rocker Panel, RH
2018-12 → 2022-11 ended
ZVW5# CBU ¥28,800
75850-47030-C1 note Moulding Assy, Body Rocker Panel, RH
2021-06 → 2022-11 ended
ZVW5# (A,S) CBU ¥28,800
75850-47030-C2 note Moulding Assy, Body Rocker Panel, RH
2021-06 → 2022-11 ended
ZVW5# CBU ¥28,800
75850-47030-D1 note Moulding Assy, Body Rocker Panel, RH
2018-12 → 2022-11 ended
ZVW5# CBU ¥28,800
75850-47030-E0 note Moulding Assy, Body Rocker Panel, RH
2018-12 → 2022-08 ended
ZVW5# CBU ¥28,800
75850-47030-G0 note Moulding Assy, Body Rocker Panel, RH
2018-12 → 2020-07 ended
ZVW5# CBU ¥34,600
75850-47030-J2 note Moulding Assy, Body Rocker Panel, RH
2018-12 → 2022-11 ended
ZVW5# CBU ¥28,800
75850C — Grommet, NO.1
90189-06193 Grommet, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90189-06193 Grommet, NO.1
2018-12 → 2022-11 ended
ZVW5# CBU ¥80
75860A — Moulding Assy, Body Rocker Panel, LH
75860-47080-A0 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥28,800
75860-47080-A1 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,E) CBU ¥34,600
75860-47080-A1 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW5# (PREM,S) CBU ¥34,600
75860-47080-B0 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥28,800
75860-47080-B1 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥28,800
75860-47080-C0 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥28,800
75860-47080-D0 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥34,600
75860-47080-D0 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥34,600
75860-47080-E0 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥28,800
75860-47080-E0 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥28,800
75860-47080-G0 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥34,600
75860-47080-J0 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥34,600
75860-47080-J0 note Moulding Assy, Body Rocker Panel, LH
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥34,600
75860-47080-A0 note Moulding Assy, Body Rocker Panel, LH
2018-12 → 2022-11 ended
ZVW5# CBU ¥28,800
75860-47080-A1 note Moulding Assy, Body Rocker Panel, LH
2018-12 → 2020-07 ended
ZVW5# CBU ¥34,600
75860-47080-A2 note Moulding Assy, Body Rocker Panel, LH
2020-07 → 2022-11 ended
ZVW5# E,PREM ¥28,800
75860-47080-A2 note Moulding Assy, Body Rocker Panel, LH
2020-07 → 2022-11 ended
ZVW5# (A,S) CBU ¥28,800
75860-47080-B0 note Moulding Assy, Body Rocker Panel, LH
2018-12 → 2022-11 ended
ZVW5# CBU ¥28,800
75860-47080-B1 note Moulding Assy, Body Rocker Panel, LH
2018-12 → 2022-11 ended
ZVW5# (A,S) CBU ¥28,800
75860-47080-B1 note Moulding Assy, Body Rocker Panel, LH
2018-12 → 2022-11 ended
ZVW5# E,PREM ¥28,800
75860-47080-C0 note Moulding Assy, Body Rocker Panel, LH
2018-12 → 2022-11 ended
ZVW5# CBU ¥28,800
75860-47080-C1 note Moulding Assy, Body Rocker Panel, LH
2021-06 → 2022-11 ended
ZVW5# (A,S) CBU ¥28,800
75860-47080-C2 note Moulding Assy, Body Rocker Panel, LH
2021-06 → 2022-11 ended
ZVW5# CBU ¥28,800
75860-47080-D1 note Moulding Assy, Body Rocker Panel, LH
2018-12 → 2022-11 ended
ZVW5# CBU ¥28,800
75860-47080-E0 note Moulding Assy, Body Rocker Panel, LH
2018-12 → 2022-08 ended
ZVW5# CBU ¥28,800
75860-47080-G0 note Moulding Assy, Body Rocker Panel, LH
2018-12 → 2020-07 ended
ZVW5# CBU ¥34,600
75860-47080-J2 note Moulding Assy, Body Rocker Panel, LH
2018-12 → 2022-11 ended
ZVW5# CBU ¥28,800
75867A — Clip, Rocker Panel Moulding
75867-52020 Clip, Rocker Panel Moulding
2015-11 → 2016-04 ended
ZVW5# CBU ¥210
75867-52020 Clip, Rocker Panel Moulding
2016-04 → 2018-12 ended
ZVW5# CBU ¥210
75867-52020 Clip, Rocker Panel Moulding
2018-12 → —
ZVW5# CBU ¥210
75867C — Clip, Rocker Panel Moulding
75867-68010 Clip, Rocker Panel Moulding
2016-04 → 2018-12 ended
ZVW5# CBU ¥190
75867-68010 Clip, Rocker Panel Moulding
2018-12 → —
ZVW5# CBU ¥190
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
