Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

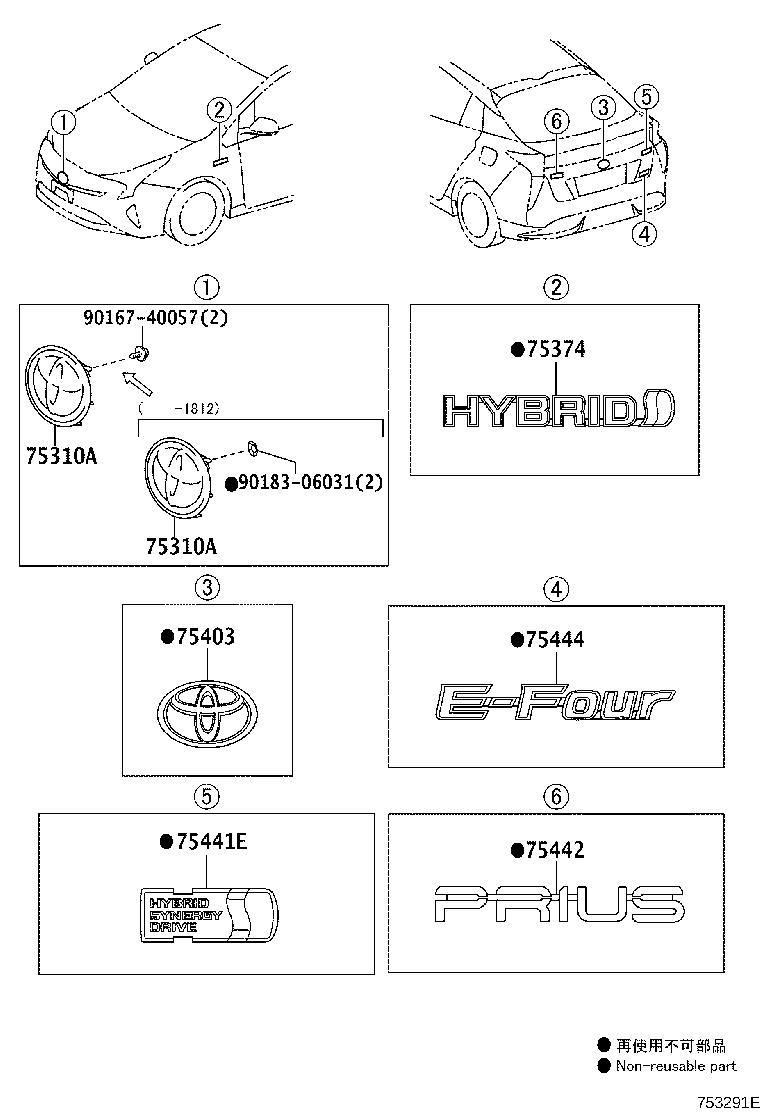

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75310A — Emblem Assy, Radiator Grille | ||||
| 53141-47030 note |
Emblem Assy, Radiator Grille
2015-11 → 2018-12
ended
|
ZVW5# (E,S) CBU | ¥17,500 | |
| 53141-47030 note |
Emblem Assy, Radiator Grille
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥17,500 | |
| 53141-47030 note |
Emblem Assy, Radiator Grille
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥17,500 | |
| 53141-47030 note |
Emblem Assy, Radiator Grille
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥17,500 | |
| 53141-47030 |
Emblem Assy, Radiator Grille
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥17,500 | |
| 75310-47060 |
Emblem Assy, Radiator Grille
2015-11 → 2018-12
ended
|
ZVW5# (E,S) CBU | ¥4,390 | |
| 53141-33140 |
Emblem Assy, Radiator Grille
2018-12 → —
|
ZVW5# CBU | ¥15,900 | |
| 75374 — Emblem, Side Panel | ||||
| 75374-47140 note |
Emblem, Side Panel
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,200 | |
| 75374-47150 note |
Emblem, Side Panel
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,200 | |
| 75374-47140 note |
Emblem, Side Panel
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥2,200 | |
| 75374-47150 note |
Emblem, Side Panel
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥2,200 | |
| 75403 — Ornament Sub-assy, Back Door | ||||
| 75403-48010 |
Ornament Sub-assy, Back Door
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,900 | |
| 75403-48010 |
Ornament Sub-assy, Back Door
2018-12 → —
|
ZVW5# CBU | ¥2,900 | |
| 75441E — Plate, Back Door Name, NO.1 | ||||
| 75441-47120 note |
Plate, Back Door Name, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,770 | |
| 75441-47210 note |
Plate, Back Door Name, NO.1
2018-12 → —
|
ZVW5# CBU | ¥2,300 | |
| 75442 — Plate, Luggage Compartment Door Name, NO.2 | ||||
| 75442-47130 note |
Plate, Luggage Compartment Door Name, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,640 | |
| 75442-47200 note |
Plate, Luggage Compartment Door Name, NO.2
2018-12 → —
|
ZVW5# CBU | ¥2,200 | |
| 75444 — Plate, Luggage Compartment Door, NO.4 | ||||
| 75444-47030 note |
Plate, Luggage Compartment Door, NO.4
2015-11 → 2018-12
ended
|
ZVW55 CBU | ¥2,000 | |
| 75444-47050 note |
Plate, Luggage Compartment Door, NO.4
2018-12 → —
|
ZVW55 CBU | ¥1,980 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
