Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

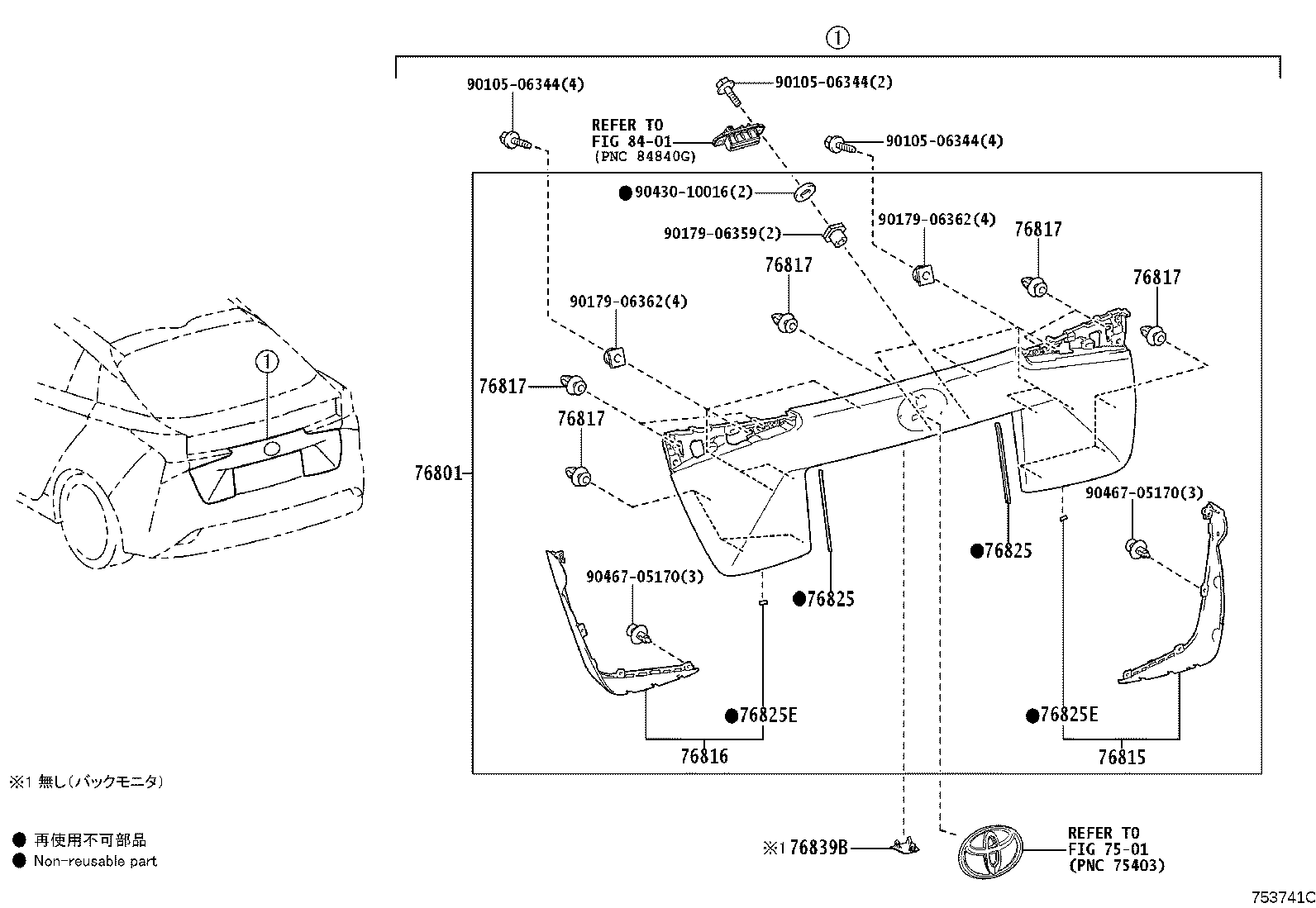

Exploded illustration 753741C 76801 — GARNISH SUB-ASSY, BACK DOOR, OUTSIDE (49 parts) 7501 — not listed in this catalogue 76817 — CLIP, BACK DOOR OUTSIDE GARNISH (2 parts) 76817 — CLIP, BACK DOOR OUTSIDE GARNISH (2 parts) 76817 — CLIP, BACK DOOR OUTSIDE GARNISH (2 parts) 76817 — CLIP, BACK DOOR OUTSIDE GARNISH (2 parts) 76817 — CLIP, BACK DOOR OUTSIDE GARNISH (2 parts) 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (2 parts) 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (2 parts) 76815 — MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER RH (2 parts) 76825E — PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 (3 parts) 76816 — MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER LH (2 parts) 76825E — PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 (3 parts) 76839B — COVER, BACK DOOR GARNISH (4 parts) 9017906362 — not listed in this catalogue 9010506344 — not listed in this catalogue 9010506344 — not listed in this catalogue 9017906362 — not listed in this catalogue 9010506344 — not listed in this catalogue 9017906359 — not listed in this catalogue 9043010016 — not listed in this catalogue 9046705170 — not listed in this catalogue 9046705170 — not listed in this catalogue 8401 — not listed in this catalogue
753741C · 13 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
76801 — Garnish Sub-assy, Back Door, Outside
76801-47110-A0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥37,500
76801-47110-A0 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥37,500
76801-47110-A0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# CBU ¥37,500
76801-47110-A1 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW51,55 A CBU ¥37,500
76801-47110-A1 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# (PREM,S) CBU ¥37,500
76801-47110-A1 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥37,500
76801-47110-A1 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 A CBU ¥37,500
76801-47110-A1 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥37,500
76801-47110-A1 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥37,500
76801-47110-B0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# CBU ¥37,500
76801-47110-B0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥37,500
76801-47110-B0 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥37,500
76801-47110-B1 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# CBU ¥37,500
76801-47110-B1 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥37,500
76801-47110-B1 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥37,500
76801-47110-C0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# CBU ¥37,500
76801-47110-C0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥37,500
76801-47110-C0 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥37,500
76801-47110-D0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥37,500
76801-47110-D0 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 PREM ¥37,500
76801-47110-D0 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 A CBU ¥37,500
76801-47110-D0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥37,500
76801-47110-D0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥37,500
76801-47110-D0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥37,500
76801-47110-E0 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥37,500
76801-47110-E0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥37,500
76801-47110-E0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥37,500
76801-47110-E0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# CBU ¥37,500
76801-47110-G0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥37,500
76801-47110-G0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# CBU ¥37,500
76801-47110-G0 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥37,500
76801-47110-J0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥37,500
76801-47110-J0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥37,500
76801-47110-J0 note Garnish Sub-assy, Back Door, Outside
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥37,500
76801-47110-J0 note Garnish Sub-assy, Back Door, Outside
2015-11 → 2018-12 ended
ZVW5# CBU ¥37,500
76801-47170-A0 note Garnish Sub-assy, Back Door, Outside
2018-12 → —
ZVW5# CBU ¥32,300
76801-47170-A1 note Garnish Sub-assy, Back Door, Outside
2018-12 → 2020-07 ended
ZVW5# CBU ¥38,800
76801-47170-A2 note Garnish Sub-assy, Back Door, Outside
2020-07 → —
ZVW5# E,PREM ¥32,300
76801-47170-A2 note Garnish Sub-assy, Back Door, Outside
2020-07 → —
ZVW5# (A,S) CBU ¥32,300
76801-47170-B0 note Garnish Sub-assy, Back Door, Outside
2018-12 → —
ZVW5# CBU ¥32,300
76801-47170-B1 note Garnish Sub-assy, Back Door, Outside
2018-12 → —
ZVW5# (A,S) CBU ¥32,300
76801-47170-B1 note Garnish Sub-assy, Back Door, Outside
2018-12 → —
ZVW5# E,PREM ¥32,300
76801-47170-C0 note Garnish Sub-assy, Back Door, Outside
2018-12 → —
ZVW5# CBU ¥32,300
76801-47170-C1 note Garnish Sub-assy, Back Door, Outside
2021-06 → —
ZVW5# (A,S) CBU ¥32,300
76801-47170-C2 note Garnish Sub-assy, Back Door, Outside
2021-06 → —
ZVW5# CBU ¥32,300
76801-47170-D0 note Garnish Sub-assy, Back Door, Outside
2018-12 → —
ZVW5# CBU ¥32,300
76801-47170-E0 note Garnish Sub-assy, Back Door, Outside
2018-12 → 2022-08 ended
ZVW5# CBU ¥32,300
76801-47170-G0 note Garnish Sub-assy, Back Door, Outside
2018-12 → 2020-07 ended
ZVW5# CBU ¥38,800
76801-47170-J0 note Garnish Sub-assy, Back Door, Outside
2018-12 → —
ZVW5# CBU ¥32,300
76815 — Moulding, Back Door Outside Garnish, Lower RH
76815-47010 Moulding, Back Door Outside Garnish, Lower RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,950
76815-47030 Moulding, Back Door Outside Garnish, Lower RH
2018-12 → —
ZVW5# CBU ¥1,630
76816 — Moulding, Back Door Outside Garnish, Lower LH
76816-47010 Moulding, Back Door Outside Garnish, Lower LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,950
76816-47030 Moulding, Back Door Outside Garnish, Lower LH
2018-12 → —
ZVW5# CBU ¥1,630
76817 — Clip, Back Door Outside Garnish
75867-33040 Clip, Back Door Outside Garnish
2015-11 → 2018-12 ended
ZVW5# CBU ¥210
90467-09206 Clip, Back Door Outside Garnish
2018-12 → —
ZVW5# CBU ¥80
76825 — Protector, Back Door Outside Garnish
76825-47010 Protector, Back Door Outside Garnish
2015-11 → 2018-12 ended
ZVW5# CBU ¥470
76825-47010 Protector, Back Door Outside Garnish
2018-12 → —
ZVW5# CBU ¥470
76825E — Protector, Back Door Outside Garnish, NO.2
76822-47010 Protector, Back Door Outside Garnish, NO.2
2015-11 → 2017-04 ended
ZVW5# CBU ¥570
76822-47011 Protector, Back Door Outside Garnish, NO.2
2017-05 → 2018-12 ended
ZVW5# CBU ¥470
76822-47011 Protector, Back Door Outside Garnish, NO.2
2018-12 → —
ZVW5# CBU ¥470
76839B — Cover, Back Door Garnish
76839-47010 Cover, Back Door Garnish
2015-11 → 2018-12 ended
ZVW5# CBU ¥320
76839-47030 Cover, Back Door Garnish
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU ¥240
76839-47030 Cover, Back Door Garnish
2018-12 → —
ZVW51 E ¥240
76839-47030 note Cover, Back Door Garnish
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥240
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
