Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

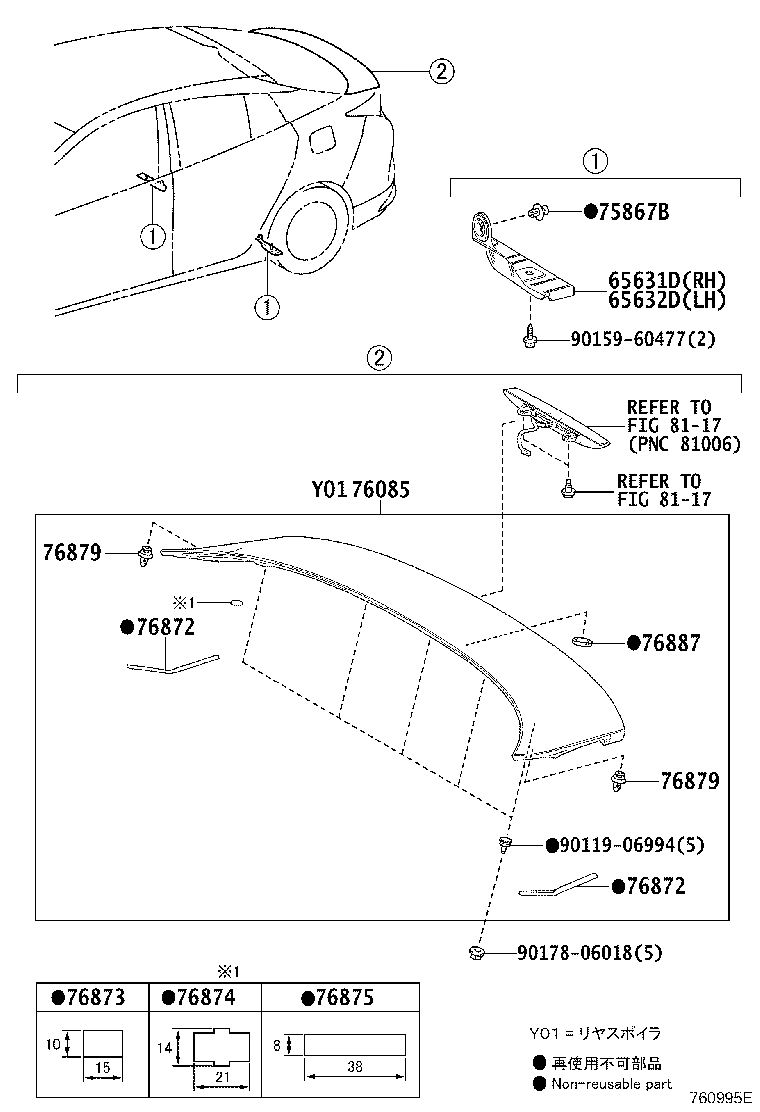

Exploded illustration 760995E 8117 — not listed in this catalogue 8117 — not listed in this catalogue 65631D — PLATE, REAR WHEEL HOUSE, FRONT RH (2 parts) 65632D — PLATE, REAR WHEEL HOUSE, FRONT LH (2 parts) 75867B — CLIP, ROCKER PANEL MOULDING (2 parts) 76085 — SPOILER SUB-ASSY, REAR (40 parts) 76872 — PROTECTOR, REAR SPOILER, NO.1 (2 parts) 76872 — PROTECTOR, REAR SPOILER, NO.1 (2 parts) 76873 — PROTECTOR, REAR SPOILER, NO.2 (1 parts) 76874 — PROTECTOR, REAR SPOILER, NO.3 (2 parts) 76875 — PROTECTOR, REAR SPOILER, NO.4 (3 parts) 76879 — CLIP, REAR SPOILER, NO.1 (2 parts) 76879 — CLIP, REAR SPOILER, NO.1 (2 parts) 76887 — SEAL, REAR SPOILER (2 parts) 9011906994 — not listed in this catalogue 9015960477 — not listed in this catalogue 9017806018 — not listed in this catalogue
760995E · 12 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
58 parts on this figure
Part number Description Fitment Price
65631D — Plate, Rear Wheel House, Front RH
65631-47080 Plate, Rear Wheel House, Front RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥760
65631-47080 Plate, Rear Wheel House, Front RH
2018-12 → —
ZVW5# CBU ¥760
65632D — Plate, Rear Wheel House, Front LH
65632-47080 Plate, Rear Wheel House, Front LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥760
65632-47080 Plate, Rear Wheel House, Front LH
2018-12 → —
ZVW5# CBU ¥760
75867B — Clip, Rocker Panel Moulding
90467-07222 Clip, Rocker Panel Moulding
2015-11 → 2018-12 ended
ZVW5# CBU ¥100
90467-07222 Clip, Rocker Panel Moulding
2018-12 → —
ZVW5# CBU ¥100
76085 — Spoiler Sub-assy, Rear
76085-47913-A0 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW5# CBU ¥59,800
76085-47913-A1 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW51,55 (A,E) CBU ¥59,800
76085-47913-A1 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW5# (PREM,S) CBU ¥59,800
76085-47913-B0 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW5# CBU ¥59,800
76085-47913-B1 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW5# CBU ¥59,800
76085-47913-C1 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW5# CBU ¥59,800
76085-47913-D3 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW51,55 PREM ¥59,800
76085-47913-D3 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW5# (A,E,S) CBU ¥59,800
76085-47913-E2 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW50,55 S CBU ¥59,800
76085-47913-E2 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW51,55 (A,E,PREM) CBU ¥59,800
76085-47913-G0 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW5# CBU ¥59,800
76085-47913-J1 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW50,55 S CBU ¥59,800
76085-47913-J1 note Spoiler Sub-assy, Rear
2015-11 → 2017-04 ended
ZVW51,55 (A,E,PREM) CBU ¥59,800
76085-47915-A0 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW5# CBU ¥49,900
76085-47915-A1 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW51,55 (A,E) CBU ¥59,900
76085-47915-A1 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW5# (PREM,S) CBU ¥59,900
76085-47915-B0 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW5# CBU ¥49,900
76085-47915-B1 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW5# CBU ¥49,900
76085-47915-C1 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW5# CBU ¥49,900
76085-47915-D3 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW51,55 PREM ¥59,800
76085-47915-D3 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥59,800
76085-47915-E2 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW50,55 S CBU ¥49,900
76085-47915-E2 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥49,900
76085-47915-G0 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW5# CBU ¥59,900
76085-47915-J1 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW51,55 (A,E,PREM) CBU ¥59,800
76085-47915-J1 note Spoiler Sub-assy, Rear
2017-04 → 2018-12 ended
ZVW50,55 S CBU ¥59,800
76085-47915-A0 note Spoiler Sub-assy, Rear
2018-12 → —
ZVW5# CBU ¥49,900
76085-47915-A1 note Spoiler Sub-assy, Rear
2018-12 → 2020-07 ended
ZVW5# CBU ¥59,900
76085-47915-A2 note Spoiler Sub-assy, Rear
2020-07 → —
ZVW5# E,PREM ¥49,900
76085-47915-A2 note Spoiler Sub-assy, Rear
2020-07 → —
ZVW5# (A,S) CBU ¥49,900
76085-47915-B0 note Spoiler Sub-assy, Rear
2018-12 → —
ZVW5# CBU ¥49,900
76085-47915-B1 note Spoiler Sub-assy, Rear
2018-12 → —
ZVW5# (A,S) CBU ¥49,900
76085-47915-B1 note Spoiler Sub-assy, Rear
2018-12 → —
ZVW5# E,PREM ¥49,900
76085-47915-C1 note Spoiler Sub-assy, Rear
2018-12 → —
ZVW5# CBU ¥49,900
76085-47915-C2 note Spoiler Sub-assy, Rear
2021-06 → —
ZVW5# CBU ¥49,900
76085-47915-C3 note Spoiler Sub-assy, Rear
2021-06 → —
ZVW5# (A,S) CBU ¥49,900
76085-47915-D5 note Spoiler Sub-assy, Rear
2018-12 → —
ZVW5# CBU ¥49,900
76085-47915-E2 note Spoiler Sub-assy, Rear
2018-12 → 2021-06 ended
ZVW5# CBU ¥49,900
76085-47915-G0 note Spoiler Sub-assy, Rear
2018-12 → 2020-07 ended
ZVW5# CBU ¥59,900
76085-47915-J2 note Spoiler Sub-assy, Rear
2018-12 → —
ZVW5# CBU ¥49,900
76872 — Protector, Rear Spoiler, NO.1
76872-47060 Protector, Rear Spoiler, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥470
76872-47060 Protector, Rear Spoiler, NO.1
2018-12 → —
ZVW5# CBU ¥470
76873 — Protector, Rear Spoiler, NO.2
76873-47040 Protector, Rear Spoiler, NO.2
2015-11 → 2017-04 ended
ZVW5# CBU ¥570
76874 — Protector, Rear Spoiler, NO.3
76874-47020 Protector, Rear Spoiler, NO.3
2015-11 → 2018-12 ended
ZVW5# CBU ¥430
76874-47020 Protector, Rear Spoiler, NO.3
2018-12 → —
ZVW5# CBU ¥430
76875 — Protector, Rear Spoiler, NO.4
76875-47010 Protector, Rear Spoiler, NO.4
2015-11 → 2017-04 ended
ZVW5# CBU ¥470
76875-47010 Protector, Rear Spoiler, NO.4
2017-04 → 2018-12 ended
ZVW5# CBU ¥470
76875-47010 Protector, Rear Spoiler, NO.4
2018-12 → —
ZVW5# CBU ¥470
76879 — Clip, Rear Spoiler, NO.1
90467-09206 Clip, Rear Spoiler, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90467-09206 Clip, Rear Spoiler, NO.1
2018-12 → —
ZVW5# CBU ¥80
76887 — Seal, Rear Spoiler
76887-47010 Seal, Rear Spoiler
2015-11 → 2018-12 ended
ZVW5# CBU ¥470
76887-47010 Seal, Rear Spoiler
2018-12 → —
ZVW5# CBU ¥470
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
