Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

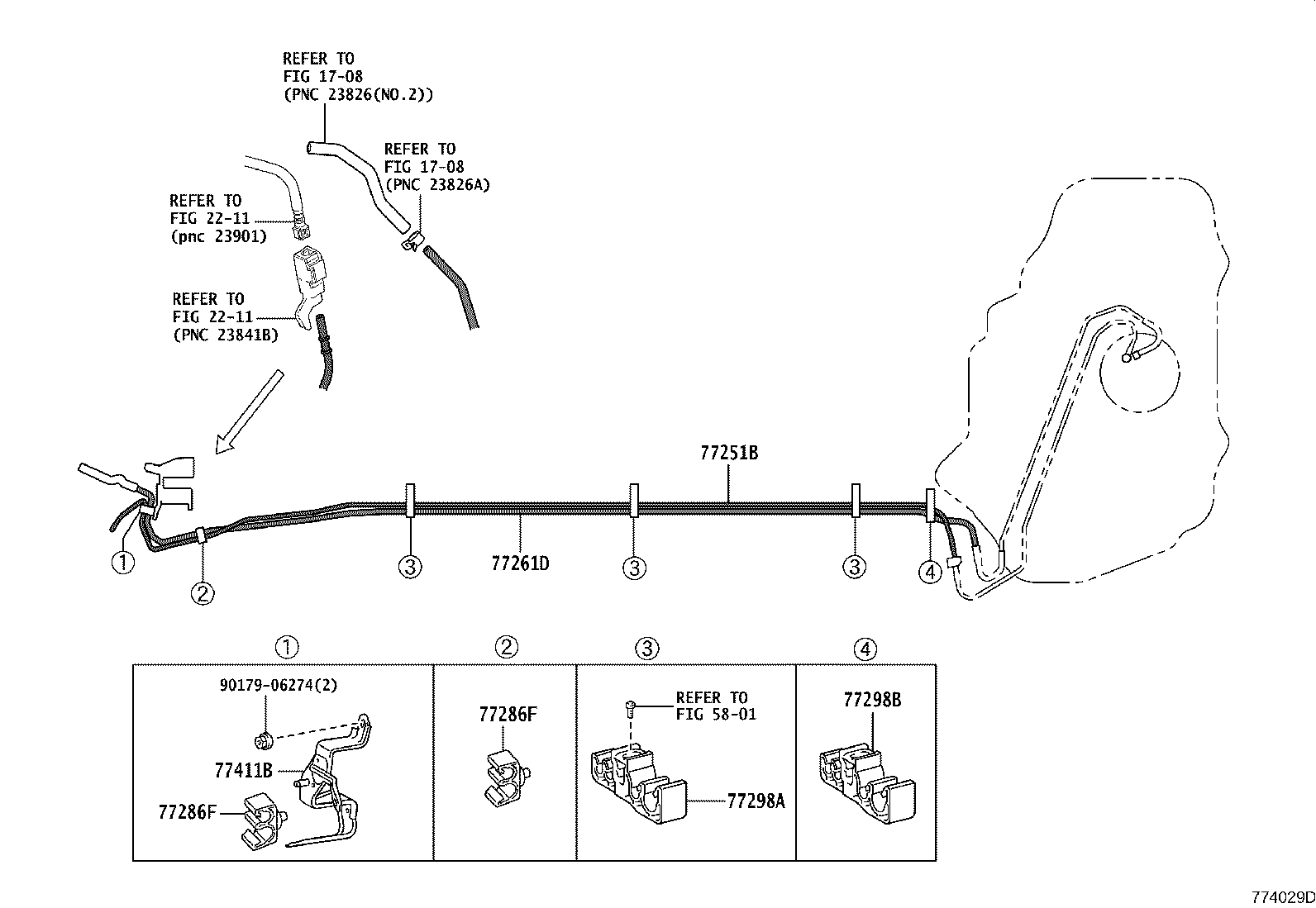

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77251B — Tube, Fuel Main | ||||
| 77251-47110 |
Tube, Fuel Main
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,610 | |
| 77251-47110 |
Tube, Fuel Main
2018-12 → —
|
ZVW5# CBU | ¥2,610 | |
| 77261D — Tube, Fuel Tank TO Canister | ||||
| 77261-47120 |
Tube, Fuel Tank TO Canister
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥6,000 | |
| 77261-47120 |
Tube, Fuel Tank TO Canister
2018-12 → —
|
ZVW5# CBU | ¥6,000 | |
| 77286F — Clamp, Fuel Tube, NO.2 | ||||
| 77286-78040 |
Clamp, Fuel Tube, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥250 | |
| 77286-78040 |
Clamp, Fuel Tube, NO.2
2018-12 → —
|
ZVW5# CBU | ¥250 | |
| 77298A — Clamp, Fuel Tube, NO.4 | ||||
| 77298-78040 |
Clamp, Fuel Tube, NO.4
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥450 | |
| 77298-78040 |
Clamp, Fuel Tube, NO.4
2018-12 → —
|
ZVW5# CBU | ¥450 | |
| 77298B — Clamp, Fuel Tube, NO.4 | ||||
| 77298-78050 |
Clamp, Fuel Tube, NO.4
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥470 | |
| 77298-78050 |
Clamp, Fuel Tube, NO.4
2018-12 → —
|
ZVW5# CBU | ¥470 | |
| 77411B — Support, Fuel Tube Grommet, NO.1 | ||||
| 77411-47020 |
Support, Fuel Tube Grommet, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,460 | |
| 77411-47020 |
Support, Fuel Tube Grommet, NO.1
2018-12 → —
|
ZVW5# CBU | ¥1,460 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
