Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

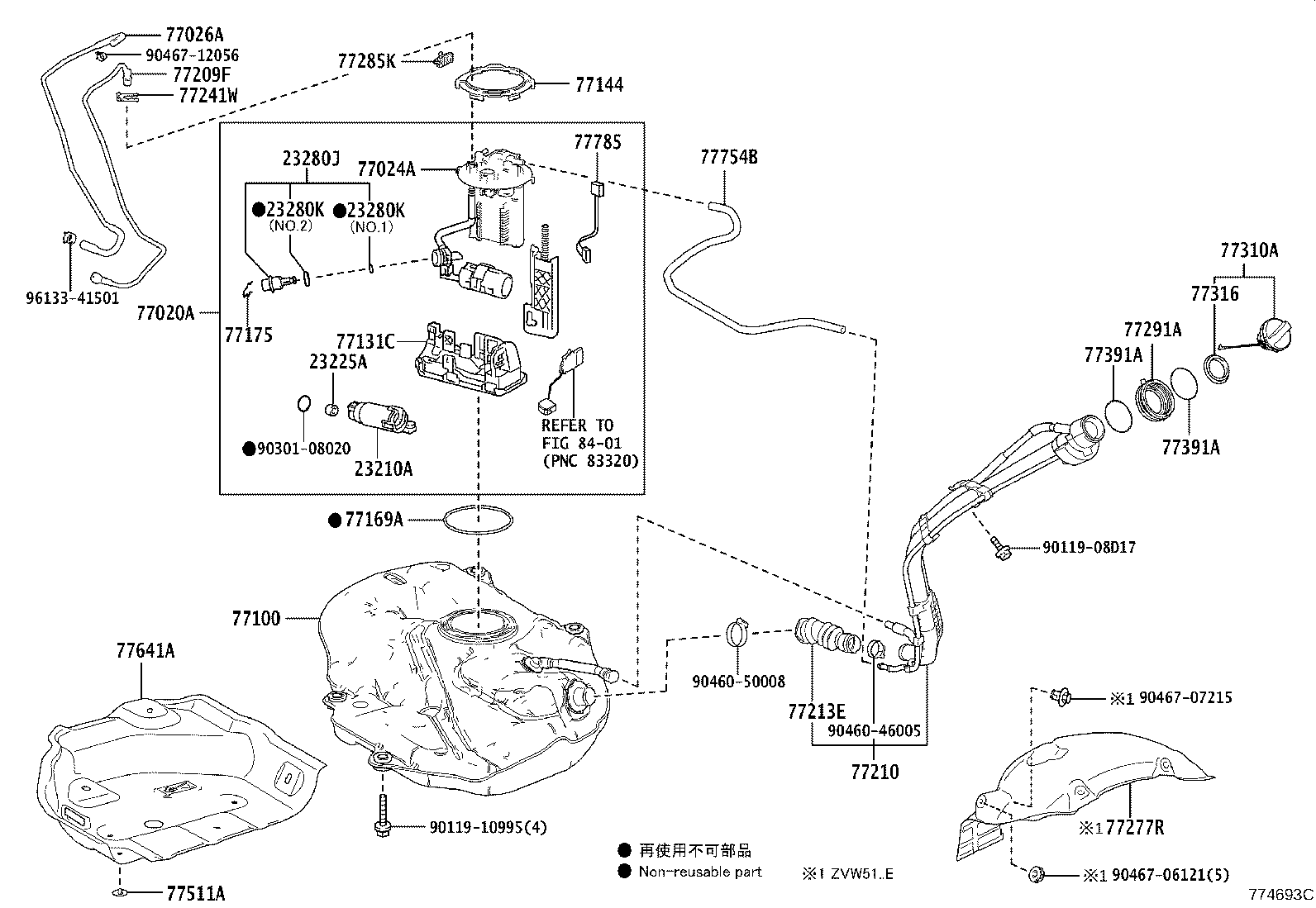

Exploded illustration 774693C 77020A — TUBE ASSY, FUEL SUCTION W/PUMP & GAGE (3 parts) 77026A — TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 (2 parts) 77100 — TANK ASSY, FUEL (4 parts) 77144 — RETAINER, FUEL PUMP GAUGE (2 parts) 77169A — GASKET, FUEL SUCTION TUBE SET (2 parts) 77210 — PIPE ASSY, FUEL TANK FILLER (1 parts) 77209F — TUBE SUB-ASSY, FUEL TANK MAIN (2 parts) 77213E — HOSE, FUEL TANK TO FILLER PIPE (2 parts) 77241W — CLIP, TUBE JOINT (3 parts) 77285K — CLAMP, FUEL TUBE, NO.1 (2 parts) 77291A — SHIELD, FUEL TANK FILLER PIPE (2 parts) 77310A — CAP ASSY, FUEL TANK (2 parts) 77277R — PROTECTOR, FUEL TANK FILLER PIPE (2 parts) 77316 — GASKET, FUEL TANK CAP (2 parts) 77391A — RING, FUEL INLET BOX (2 parts) 77391A — RING, FUEL INLET BOX (2 parts) 77511A — BRACKET, FUEL TANK (2 parts) 77641A — PROTECTOR, FUEL TANK, NO.1 (2 parts) 77754B — HOSE, CHARCOAL CANISTER OUTLET (2 parts) 9011908D17 — not listed in this catalogue 9011910995 — not listed in this catalogue 9046046005 — not listed in this catalogue 9046050008 — not listed in this catalogue 9046706121 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046712056 — not listed in this catalogue 9613341501 — not listed in this catalogue 23210A — PUMP ASSY, FUEL W/MOTOR & BRACKET (1 parts) 77131C — SUB-TANK, FUEL, NO.1 (1 parts) 23225A — SPACER, FUEL PUMP (2 parts) 23280J — REGULATOR ASSY, FUEL PRESSURE (2 parts) 77024A — PLATE SUB-ASSY, FUEL SUCTION (4 parts) 77785 — HARNESS, FUEL PUMP (2 parts) 23280K — RING, O(FOR FUEL PRESSURE REGULATOR) (4 parts) 23280K — RING, O(FOR FUEL PRESSURE REGULATOR) (4 parts) 9030108020 — not listed in this catalogue 8401 — not listed in this catalogue 77175 — SUPPORT, FUEL SUCTION, NO.2 (1 parts)
774693C · 28 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
23210A — Pump Assy, Fuel W/Motor & Bracket
23210-37020 Pump Assy, Fuel W/Motor & Bracket
2018-12 → —
2ZRFXE ZVW5# CBU ¥23,400
23225A — Spacer, Fuel Pump
23225-21020 Spacer, Fuel Pump
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥120
23225-21020 Spacer, Fuel Pump
2018-12 → —
2ZRFXE ZVW5# CBU ¥120
23280J — Regulator Assy, Fuel Pressure
23280-21010 Regulator Assy, Fuel Pressure
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥6,000
23280-21010 Regulator Assy, Fuel Pressure
2018-12 → —
2ZRFXE ZVW5# CBU ¥6,000
23280K — Ring, O(FOR FUEL PRESSURE REGULATOR)
90301-04013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥140
90301-15024 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥140
90301-04013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2018-12 → —
2ZRFXE ZVW5# CBU ¥140
90301-15024 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2018-12 → —
2ZRFXE ZVW5# CBU ¥140
77020A — Tube Assy, Fuel Suction W/Pump & Gage
77020-47140 Tube Assy, Fuel Suction W/Pump & Gage
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥62,100
77020-47170 Tube Assy, Fuel Suction W/Pump & Gage
2015-11 → 2018-12 ended
ZVW51 E ¥62,100
77020-12A60 Tube Assy, Fuel Suction W/Pump & Gage
2018-12 → —
ZVW5# CBU ¥42,900
77024A — Plate Sub-assy, Fuel Suction
77024-10030 Plate Sub-assy, Fuel Suction
2017-09 → 2018-11 ended
ZVW5# CBU ¥11,100
77024-47080 Plate Sub-assy, Fuel Suction
2015-11 → 2017-08 ended
ZVW5# CBU ¥8,400
77024-47080 Plate Sub-assy, Fuel Suction
2018-11 → 2018-12 ended
ZVW5# CBU ¥8,400
77024-10020 Plate Sub-assy, Fuel Suction
2018-12 → —
ZVW5# CBU ¥6,500
77026A — Tube Sub-assy, Fuel Evaporation, NO.1
77026-47040 Tube Sub-assy, Fuel Evaporation, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,540
77026-47040 Tube Sub-assy, Fuel Evaporation, NO.1
2018-12 → —
ZVW5# CBU ¥1,540
77100 — Tank Assy, Fuel
77001-47200 Tank Assy, Fuel
2015-11 → 2018-12 ended
ZVW51 E ¥30,900
77001-47220 Tank Assy, Fuel
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥30,900
77001-47200 Tank Assy, Fuel
2018-12 → —
ZVW51 E ¥30,900
77001-47220 Tank Assy, Fuel
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥30,900
77131C — Sub-tank, Fuel, NO.1
77103-12130 Sub-tank, Fuel, NO.1
2018-12 → —
ZVW5# CBU ¥2,920
77144 — Retainer, Fuel Pump Gauge
77144-30030 Retainer, Fuel Pump Gauge
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,270
77144-30030 Retainer, Fuel Pump Gauge
2018-12 → —
ZVW5# CBU ¥1,270
77169A — Gasket, Fuel Suction Tube Set
77169-47030 Gasket, Fuel Suction Tube Set
2015-11 → 2018-12 ended
ZVW5# CBU ¥220
77169-47030 Gasket, Fuel Suction Tube Set
2018-12 → —
ZVW5# CBU ¥220
77175 — Support, Fuel Suction, NO.2
77175-78010 Support, Fuel Suction, NO.2
2018-12 → —
ZVW5# CBU ¥570
77209F — Tube Sub-assy, Fuel Tank Main
77209-47100 Tube Sub-assy, Fuel Tank Main
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,180
77209-47100 Tube Sub-assy, Fuel Tank Main
2018-12 → —
ZVW5# CBU ¥1,180
77210 — Pipe Assy, Fuel Tank Filler
77210-47360 Pipe Assy, Fuel Tank Filler
2018-12 → —
ZVW5# CBU ¥10,200
77213E — Hose, Fuel Tank TO Filler Pipe
77213-47120 Hose, Fuel Tank TO Filler Pipe
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,410
77213-12360 Hose, Fuel Tank TO Filler Pipe
2018-12 → —
ZVW5# CBU ¥1,090
77241W — Clip, Tube Joint
77241-33011 Clip, Tube Joint
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
77241-33011 Clip, Tube Joint
2018-12 → 2021-08 ended
ZVW5# CBU ¥80
77241-60550 Clip, Tube Joint
2021-09 → —
ZVW5# CBU ¥50
77277R — Protector, Fuel Tank Filler Pipe
77277-47070 Protector, Fuel Tank Filler Pipe
2017-11 → 2018-12 ended
ZVW51 E ¥1,550
77277-47070 Protector, Fuel Tank Filler Pipe
2018-12 → —
ZVW51 E ¥1,550
77285K — Clamp, Fuel Tube, NO.1
77285-30350 Clamp, Fuel Tube, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
77285-30350 Clamp, Fuel Tube, NO.1
2018-12 → —
ZVW5# CBU ¥200
77291A — Shield, Fuel Tank Filler Pipe
77291-47040 Shield, Fuel Tank Filler Pipe
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,020
77291-47040 Shield, Fuel Tank Filler Pipe
2018-12 → —
ZVW5# CBU ¥1,020
77310A — Cap Assy, Fuel Tank
77300-12020 Cap Assy, Fuel Tank
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,660
77300-12020 Cap Assy, Fuel Tank
2018-12 → —
ZVW5# CBU ¥1,660
77316 — Gasket, Fuel Tank Cap
77316-52040 Gasket, Fuel Tank Cap
2015-11 → 2018-12 ended
ZVW5# CBU ¥230
77316-52040 Gasket, Fuel Tank Cap
2018-12 → —
ZVW5# CBU ¥230
77391A — Ring, Fuel Inlet Box
77391-12020 Ring, Fuel Inlet Box
2015-11 → 2018-12 ended
ZVW5# CBU ¥180
77391-12020 Ring, Fuel Inlet Box
2018-12 → —
ZVW5# CBU ¥180
77511A — Bracket, Fuel Tank
77512-35140 Bracket, Fuel Tank
2015-11 → 2018-12 ended
ZVW5# CBU ¥230
77512-35140 Bracket, Fuel Tank
2018-12 → —
ZVW5# CBU ¥230
77641A — Protector, Fuel Tank, NO.1
77641-47070 Protector, Fuel Tank, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥4,860
77641-47070 Protector, Fuel Tank, NO.1
2018-12 → —
ZVW5# CBU ¥4,860
77754B — Hose, Charcoal Canister Outlet
77754-47090 Hose, Charcoal Canister Outlet
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,760
77754-47090 Hose, Charcoal Canister Outlet
2018-12 → —
ZVW5# CBU ¥1,760
77785 — Harness, Fuel Pump
77785-12010 Harness, Fuel Pump
2015-11 → 2018-12 ended
ZVW5# CBU ¥870
77785-12010 Harness, Fuel Pump
2018-12 → —
ZVW5# CBU ¥870
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
