Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

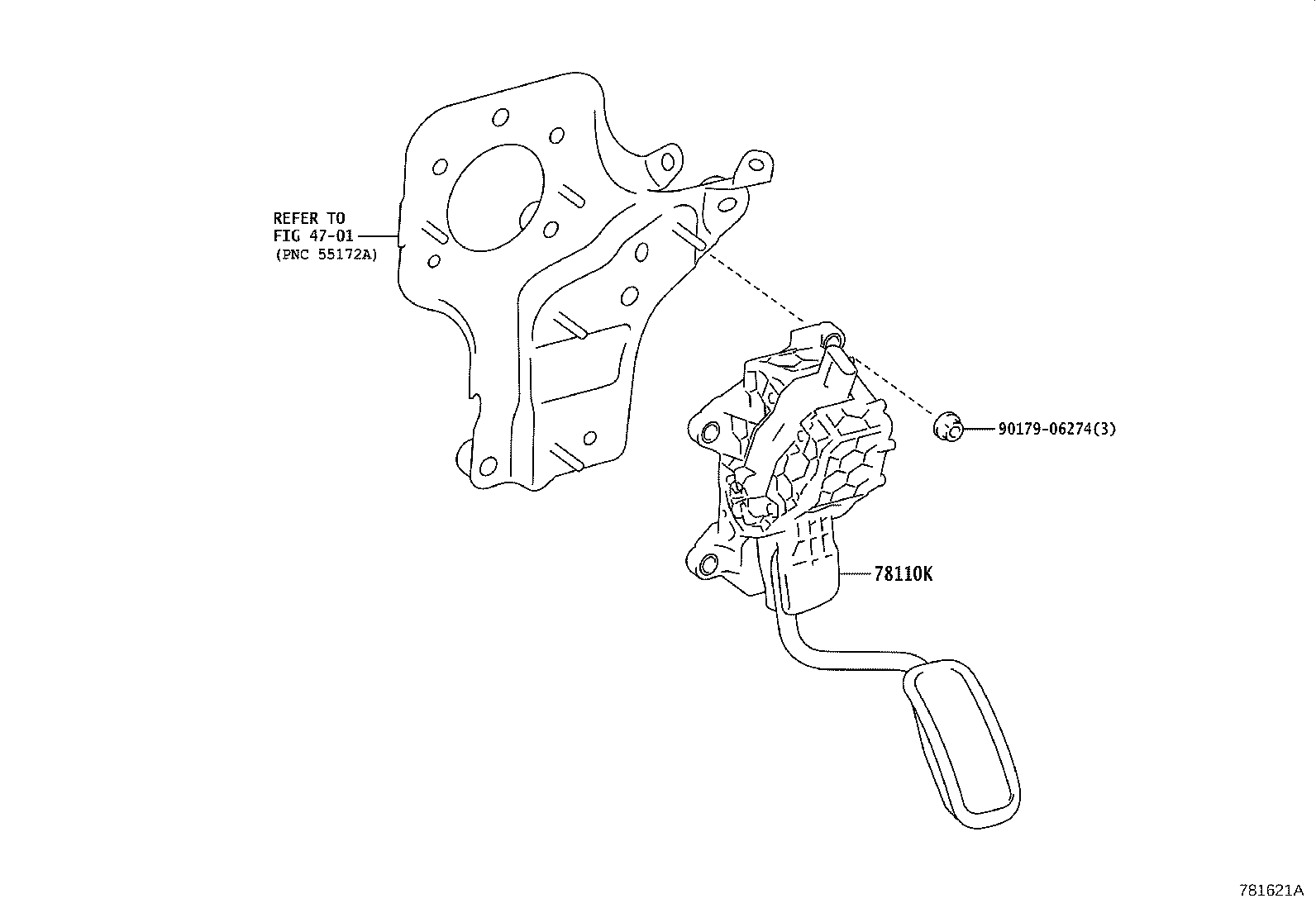

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78110K — Rod Assy, Accelerator Pedal(W/SENSOR) | ||||
| 78110-47040 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-11 → 2016-01
ended
|
ZVW5# | ¥10,900 | |
| 78110-47060 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2016-02 → 2018-12
ended
|
ZVW5# CBU | ¥9,100 | |
| 78110-12090 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2018-12 → 2020-10
ended
|
ZVW5# CBU | ¥10,700 | |
| 78110-12091 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2020-11 → —
|
ZVW5# CBU | ¥8,000 | |
| 78110-47071 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2021-06 → —
|
ZVW5# (A,S) CBU | ¥22,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
