Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

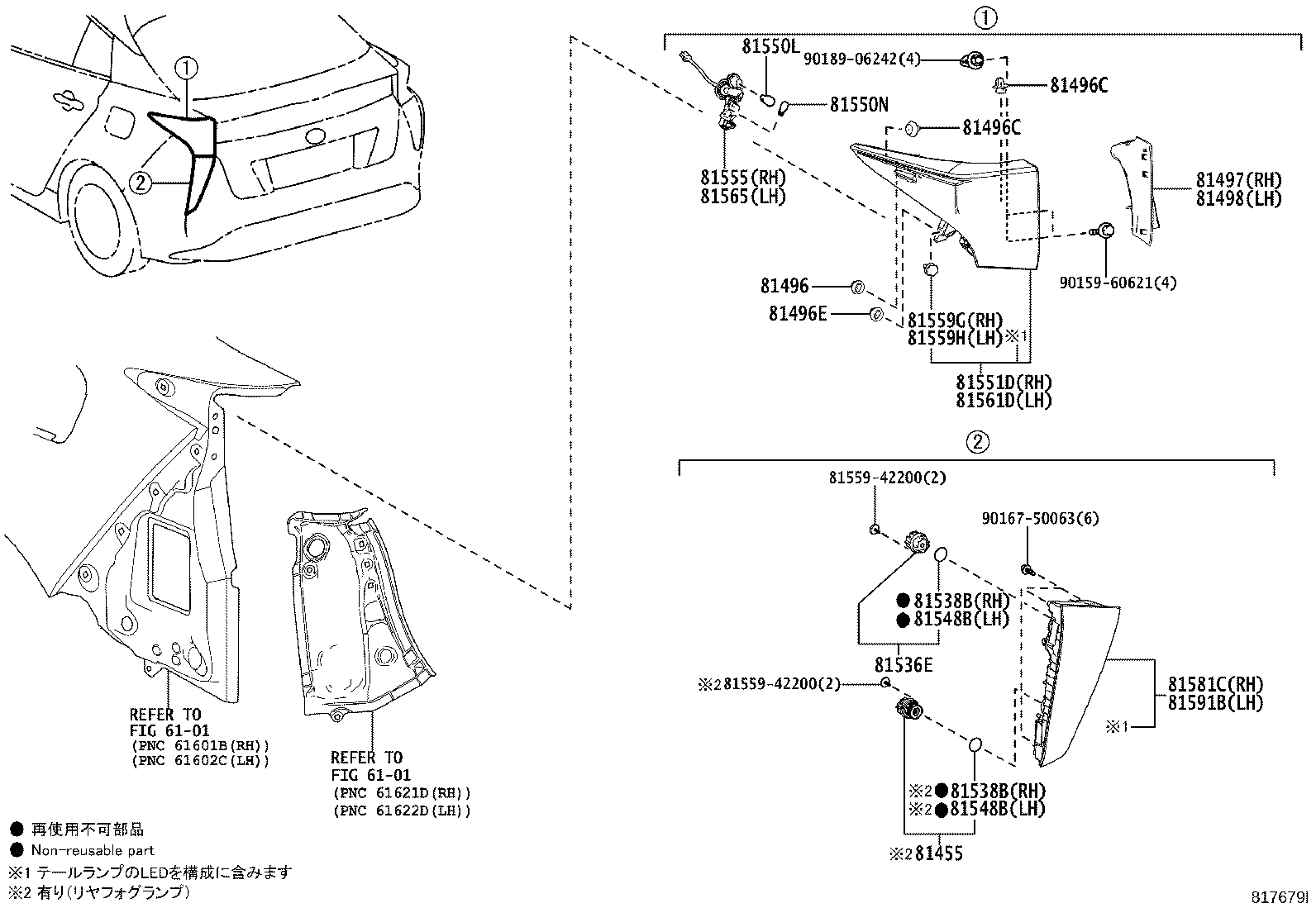

Exploded illustration 817679I 6101 — not listed in this catalogue 81455 — LED, REAR FOG LAMP (2 parts) 81536E — LED, STOP LAMP (2 parts) 8155942200 — not listed in this catalogue 8155942200 — not listed in this catalogue 9018906242 — not listed in this catalogue 9015960621 — not listed in this catalogue 81497 — COVER, REAR COMBINATION LAMP, RH (2 parts) 81498 — COVER, REAR COMBINATION LAMP, LH (2 parts) 81555 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH (3 parts) 81565 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH (2 parts) 81559G — CLIP, RR COMBINATION LAMP, RH (3 parts) 81559H — CLIP, RR COMBINATION LAMP, LH (3 parts) 9016750063 — not listed in this catalogue 81496 — GUIDE, REAR COMBINATION LAMP (2 parts) 81496C — GUIDE, REAR COMBINATION LAMP, NO.2 (5 parts) 81496C — GUIDE, REAR COMBINATION LAMP, NO.2 (5 parts) 81550L — BULB, REAR TURN SIGNAL LAMP (2 parts) 81550N — BULB, BACK UP LAMP (3 parts) 81551D — LENS & BODY, REAR COMBINATION LAMP, RH (10 parts) 81561D — LENS & BODY, REAR COMBINATION LAMP, LH (7 parts) 81538B — GASKET, REAR COMBINATION LAMP, NO.3 RH (3 parts) 81548B — GASKET, REAR COMBINATION LAMP, NO.3 LH (3 parts) 81538B — GASKET, REAR COMBINATION LAMP, NO.3 RH (3 parts) 81548B — GASKET, REAR COMBINATION LAMP, NO.3 LH (3 parts) 81496E — GUIDE, REAR COMBINATION LAMP, NO.3 (3 parts) 6101 — not listed in this catalogue 81581C — LENS AND BODY, REAR LAMP, RH (4 parts) 81591B — LENS AND BODY, REAR LAMP, LH (4 parts)
817679I · 22 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
65 parts on this figure
Part number Description Fitment Price
81455 — Led, Rear Fog Lamp
81455-42060 note Led, Rear Fog Lamp
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,540
81455-42060 note Led, Rear Fog Lamp
2018-12 → —
ZVW5# CBU ¥3,540
81496 — Guide, Rear Combination Lamp
81496-52020 Guide, Rear Combination Lamp
2015-11 → 2018-12 ended
ZVW5# CBU ¥70
81496-52020 Guide, Rear Combination Lamp
2018-12 → —
ZVW5# CBU ¥70
81496C — Guide, Rear Combination Lamp, NO.2
81496-48010 note Guide, Rear Combination Lamp, NO.2
2017-08 → 2018-12 ended
ZVW5# CBU ¥100
81496-60010 Guide, Rear Combination Lamp, NO.2
2015-11 → 2017-08 ended
ZVW5# CBU ¥100
81496-60010 note Guide, Rear Combination Lamp, NO.2
2017-08 → 2018-12 ended
ZVW5# CBU ¥100
81496-48010 note Guide, Rear Combination Lamp, NO.2
2018-12 → —
ZVW5# CBU ¥100
81496-60010 note Guide, Rear Combination Lamp, NO.2
2018-12 → —
ZVW5# CBU ¥100
81496E — Guide, Rear Combination Lamp, NO.3
76817-26040 Guide, Rear Combination Lamp, NO.3
2016-08 → 2018-12 ended
ZVW5# CBU ¥110
81496-52020 Guide, Rear Combination Lamp, NO.3
2015-11 → 2016-08 ended
ZVW5# CBU ¥70
76817-26040 Guide, Rear Combination Lamp, NO.3
2018-12 → —
ZVW5# CBU ¥110
81497 — Cover, Rear Combination Lamp, RH
81497-47020 Cover, Rear Combination Lamp, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,840
81497-47040 Cover, Rear Combination Lamp, RH
2018-12 → —
ZVW5# CBU ¥1,660
81498 — Cover, Rear Combination Lamp, LH
81498-47020 Cover, Rear Combination Lamp, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,840
81498-47040 Cover, Rear Combination Lamp, LH
2018-12 → —
ZVW5# CBU ¥1,660
81536E — Led, Stop Lamp
81536-42200 Led, Stop Lamp
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,870
81536-42200 Led, Stop Lamp
2018-12 → —
ZVW5# CBU ¥2,870
81538B — Gasket, Rear Combination Lamp, NO.3 RH
81538-42200 Gasket, Rear Combination Lamp, NO.3 RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥670
81538-42200 note Gasket, Rear Combination Lamp, NO.3 RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥670
81538-42200 Gasket, Rear Combination Lamp, NO.3 RH
2018-12 → —
ZVW5# CBU ¥670
81548B — Gasket, Rear Combination Lamp, NO.3 LH
81538-42200 Gasket, Rear Combination Lamp, NO.3 LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥670
81538-42200 note Gasket, Rear Combination Lamp, NO.3 LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥670
81538-42200 Gasket, Rear Combination Lamp, NO.3 LH
2018-12 → —
ZVW5# CBU ¥670
81550L — Bulb, Rear Turn Signal Lamp
90981-15011 note Bulb, Rear Turn Signal Lamp
2015-11 → 2018-12 ended
ZVW5# CBU ¥300
90981-15011 note Bulb, Rear Turn Signal Lamp
2018-12 → —
ZVW5# CBU ¥300
81550N — Bulb, Back UP Lamp
90981-11059 note Bulb, Back UP Lamp
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
90981-11059 note Bulb, Back UP Lamp
2018-12 → —
ZVW5# CBU ¥200
90981-11059 note Bulb, Back UP Lamp
2018-12 → —
ZVW5# CBU ¥200
81551D — Lens & Body, Rear Combination Lamp, RH
81551-47280 Lens & Body, Rear Combination Lamp, RH
2015-11 → 2016-08 ended
ZVW5# CBU ¥34,000
81551-47281 Lens & Body, Rear Combination Lamp, RH
2016-08 → 2017-08 ended
ZVW5# CBU ¥28,300
81551-47282 Lens & Body, Rear Combination Lamp, RH
2017-08 → 2018-05 ended
ZVW5# CBU ¥28,300
81551-47283 Lens & Body, Rear Combination Lamp, RH
2018-05 → 2018-12 ended
ZVW5# CBU ¥28,300
81551-47470 Lens & Body, Rear Combination Lamp, RH
2018-12 → 2019-08 ended
ZVW5# CBU ¥19,100
81551-47471 Lens & Body, Rear Combination Lamp, RH
2019-08 → 2020-09 ended
ZVW5# CBU ¥19,100
81551-47472 Lens & Body, Rear Combination Lamp, RH
2020-09 → —
ZVW5# CBU ¥15,900
81551-47480 note Lens & Body, Rear Combination Lamp, RH
2018-12 → 2019-08 ended
ZVW5# CBU ¥17,600
81551-47481 note Lens & Body, Rear Combination Lamp, RH
2019-08 → 2020-09 ended
ZVW5# CBU ¥17,700
81551-47482 note Lens & Body, Rear Combination Lamp, RH
2020-09 → —
ZVW5# CBU ¥14,700
81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555-47290 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,050
81555-47470 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2018-12 → —
ZVW5# CBU ¥1,400
81555-47480 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2018-12 → —
ZVW5# CBU ¥1,400
81559G — Clip, RR Combination Lamp, RH
81559-47290 Clip, RR Combination Lamp, RH
2015-11 → 2016-08 ended
ZVW5# CBU ¥470
81559-47291 Clip, RR Combination Lamp, RH
2016-08 → 2018-12 ended
ZVW5# CBU ¥330
81559-47291 Clip, RR Combination Lamp, RH
2018-12 → —
ZVW5# CBU ¥330
81559H — Clip, RR Combination Lamp, LH
81559-47290 Clip, RR Combination Lamp, LH
2015-11 → 2016-08 ended
ZVW5# CBU ¥470
81559-47291 Clip, RR Combination Lamp, LH
2016-08 → 2018-12 ended
ZVW5# CBU ¥330
81559-47291 Clip, RR Combination Lamp, LH
2018-12 → —
ZVW5# CBU ¥330
81561D — Lens & Body, Rear Combination Lamp, LH
81561-47150 Lens & Body, Rear Combination Lamp, LH
2015-11 → 2016-08 ended
ZVW5# CBU ¥34,000
81561-47151 Lens & Body, Rear Combination Lamp, LH
2016-08 → 2017-08 ended
ZVW5# CBU ¥28,300
81561-47152 Lens & Body, Rear Combination Lamp, LH
2017-08 → 2018-05 ended
ZVW5# CBU ¥28,300
81561-47153 Lens & Body, Rear Combination Lamp, LH
2018-05 → 2018-12 ended
ZVW5# CBU ¥28,300
81561-47470 Lens & Body, Rear Combination Lamp, LH
2018-12 → 2019-08 ended
ZVW5# CBU ¥19,100
81561-47471 Lens & Body, Rear Combination Lamp, LH
2019-08 → 2020-09 ended
ZVW5# CBU ¥19,100
81561-47472 Lens & Body, Rear Combination Lamp, LH
2020-09 → —
ZVW5# CBU ¥15,900
81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81555-47290 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,050
81555-47470 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-12 → —
ZVW5# CBU ¥1,400
81581C — Lens And Body, Rear Lamp, RH
81581-47010 note Lens And Body, Rear Lamp, RH
2015-11 → 2018-05 ended
ZVW5# CBU ¥20,900
81581-47011 note Lens And Body, Rear Lamp, RH
2018-05 → 2018-12 ended
ZVW5# CBU ¥20,900
81581-47020 Lens And Body, Rear Lamp, RH
2015-11 → 2018-05 ended
ZVW5# CBU ¥20,600
81581-47021 Lens And Body, Rear Lamp, RH
2018-05 → 2018-12 ended
ZVW5# CBU ¥20,600
81591B — Lens And Body, Rear Lamp, LH
81591-47010 note Lens And Body, Rear Lamp, LH
2015-11 → 2018-05 ended
ZVW5# CBU ¥20,900
81591-47011 note Lens And Body, Rear Lamp, LH
2018-05 → 2018-12 ended
ZVW5# CBU ¥20,900
81591-47020 Lens And Body, Rear Lamp, LH
2015-11 → 2018-05 ended
ZVW5# CBU ¥20,600
81591-47021 Lens And Body, Rear Lamp, LH
2018-05 → 2018-12 ended
ZVW5# CBU ¥20,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
