Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

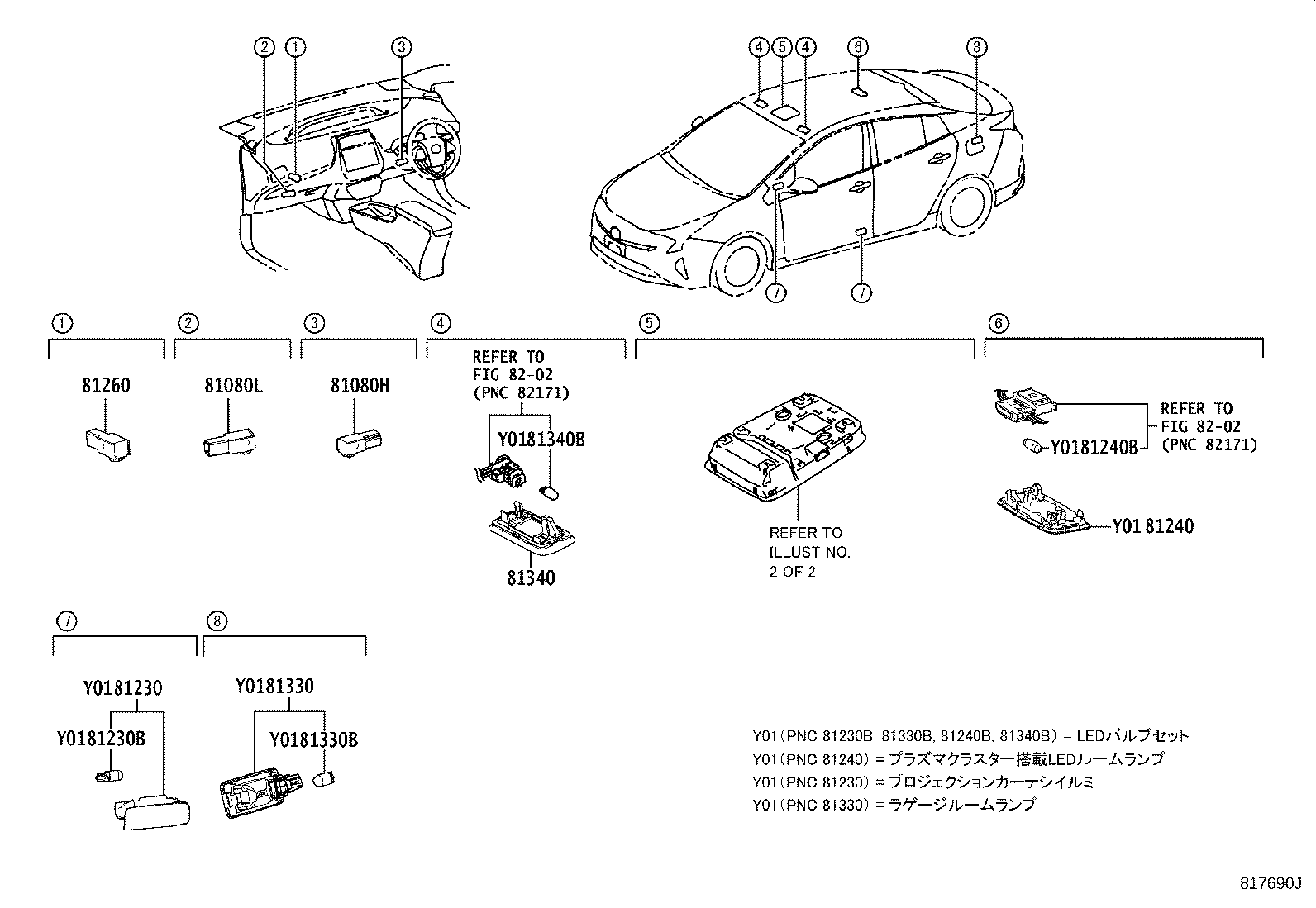

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81080H — Lamp Assy, Interior Illumination, NO.1 RH | ||||
| 81080-33290 note |
Lamp Assy, Interior Illumination, NO.1 RH
2017-07 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥920 | |
| 81080-48010 note |
Lamp Assy, Interior Illumination, NO.1 RH
2015-11 → 2017-07
ended
|
ZVW51,55 (A,PREM) CBU | ¥860 | |
| 81080-33290 note |
Lamp Assy, Interior Illumination, NO.1 RH
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥920 | |
| 81080L — Lamp Assy, Interior Illumination, NO.1 LH | ||||
| 81080-33290 note |
Lamp Assy, Interior Illumination, NO.1 LH
2017-07 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥920 | |
| 81080-48010 note |
Lamp Assy, Interior Illumination, NO.1 LH
2015-11 → 2017-07
ended
|
ZVW51,55 (A,PREM) CBU | ¥860 | |
| 81080-33290 note |
Lamp Assy, Interior Illumination, NO.1 LH
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥920 | |
| 81230 — Lamp Assy, Courtesy | ||||
| 81230-30200 |
Lamp Assy, Courtesy
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥990 | |
| 81230-30200 |
Lamp Assy, Courtesy
2018-12 → —
|
ZVW5# CBU | ¥990 | |
| 81230B — Bulb(FOR COURTESY LAMP) | ||||
| 90981-12010 note |
Bulb(FOR COURTESY LAMP)
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥110 | |
| 90981-12010 note |
Bulb(FOR COURTESY LAMP)
2018-12 → —
|
ZVW5# CBU | ¥110 | |
| 81240 — Lamp Assy, Room, NO.1 | ||||
| 81240-47010-B0 note |
Lamp Assy, Room, NO.1
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥3,500 | |
| 81240-47010-B0 note |
Lamp Assy, Room, NO.1
2015-11 → 2018-12
ended
|
ZVW5# (A,E,S) CBU | ¥3,500 | |
| 81240-47010-B0 note |
Lamp Assy, Room, NO.1
2018-12 → —
|
ZVW5# CBU | ¥3,500 | |
| 81240B — Bulb, Room Lamp, NO.1 | ||||
| 90981-14011 note |
Bulb, Room Lamp, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥180 | |
| 90981-14011 note |
Bulb, Room Lamp, NO.1
2018-12 → —
|
ZVW5# CBU | ¥180 | |
| 81260 — Lamp Assy, Glove Box | ||||
| 81080-33290 note |
Lamp Assy, Glove Box
2017-07 → 2018-12
ended
|
ZVW5# CBU | ¥920 | |
| 81080-48010 note |
Lamp Assy, Glove Box
2015-11 → 2017-07
ended
|
ZVW5# CBU | ¥860 | |
| 81080-33290 note |
Lamp Assy, Glove Box
2018-12 → —
|
ZVW5# CBU | ¥920 | |
| 81330 — Lamp Assy, Luggage Compartment, NO.1 | ||||
| 81330-58010 |
Lamp Assy, Luggage Compartment, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥460 | |
| 81330-58010 |
Lamp Assy, Luggage Compartment, NO.1
2018-12 → —
|
ZVW5# CBU | ¥460 | |
| 81330B — Bulb, Luggage Compartment Lamp | ||||
| 99132-12050 note |
Bulb, Luggage Compartment Lamp
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥110 | |
| 99132-12050 note |
Bulb, Luggage Compartment Lamp
2018-12 → —
|
ZVW5# CBU | ¥110 | |
| 81340 — Lamp Assy, Vanity | ||||
| 81340-30110 |
Lamp Assy, Vanity
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,670 | |
| 81340-30110 |
Lamp Assy, Vanity
2018-12 → —
|
ZVW5# CBU | ¥1,670 | |
| 81340B — Bulb (FOR VANITY LAMP) | ||||
| 90981-11062 note |
Bulb (FOR VANITY LAMP)
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥340 | |
| 90981-11062 note |
Bulb (FOR VANITY LAMP)
2018-12 → —
|
ZVW5# CBU | ¥340 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
