Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

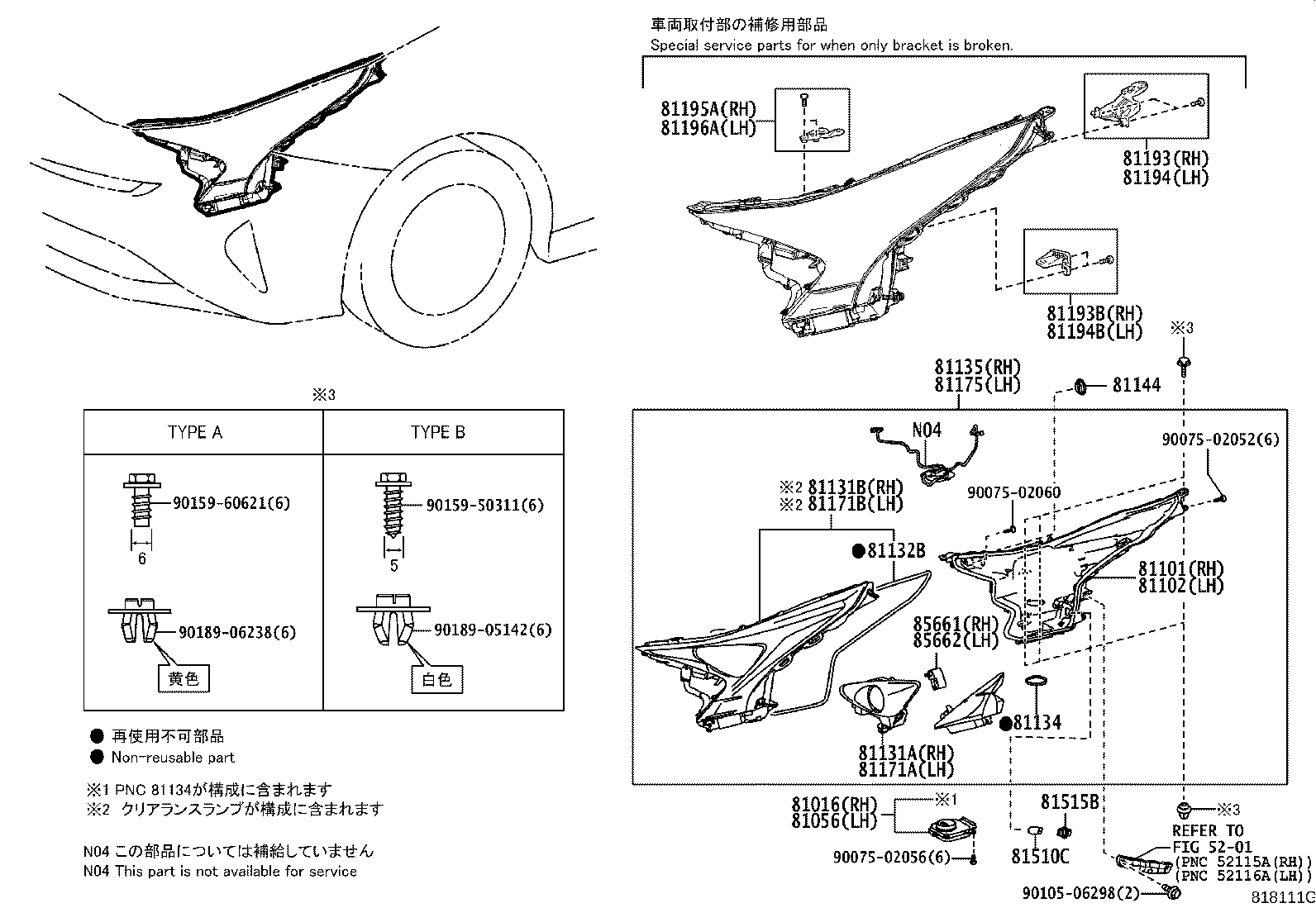

Exploded illustration 818111G 9010506298 — not listed in this catalogue 9007502056 — not listed in this catalogue 9007502052 — not listed in this catalogue 9007502060 — not listed in this catalogue 85661 — MOTOR, HEADLAMP LEVELING, RH (2 parts) 85662 — MOTOR, HEADLAMP LEVELING, LH (2 parts) 81101 — HOUSING SUB-ASSY, HEADLAMP, RH (2 parts) 81102 — HOUSING SUB-ASSY, HEADLAMP, LH (2 parts) 81131B — HEAD LAMP LENS, RH (5 parts) 81132B — GASKET, HEADLAMP LENS (2 parts) 81134 — GASKET, HEADLAMP (3 parts) 81171B — HEAD LAMP LENS, LH (5 parts) 81131A — UNIT, HEADLAMP, RH (4 parts) 81515B — SOCKET, FRONT TURN SIGNAL LAMP (1 parts) 81510C — BULB (FOR FRONT TURN SIGNAL LAMP) (1 parts) 81171A — UNIT, HEADLAMP, LH (4 parts) 81016 — COMPUTER SUB-ASSY, HEADLAMP, RH NO.1 (2 parts) 81056 — COMPUTER SUB-ASSY, HEADLAMP, LH NO.1 (2 parts) 81193 — RETAINER, HEADLAMP PROTECTOR, UPPER RH (2 parts) 81194 — RETAINER, HEADLAMP PROTECTOR, UPPER LH (2 parts) 81195A — RETAINER, HEADLAMP PROTECTOR, LOWER RH (2 parts) 81196A — RETAINER, HEADLAMP PROTECTOR, LOWER LH (2 parts) 81193B — RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 (2 parts) 81194B — RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 (2 parts) 9018906238 — not listed in this catalogue 9015960621 — not listed in this catalogue 9018905142 — not listed in this catalogue 9015950311 — not listed in this catalogue 81144 — COVER, HEADLAMP, NO.1 (2 parts) 5201 — not listed in this catalogue 81135 — UNIT ASSY, HEADLAMP, RH (5 parts) 81175 — UNIT ASSY, HEADLAMP, LH (5 parts)
818111G · 23 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
81016 — Computer Sub-assy, Headlamp, RH NO.1
81016-47690 Computer Sub-assy, Headlamp, RH NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥22,300
81016-47850 Computer Sub-assy, Headlamp, RH NO.1
2018-12 → —
ZVW5# CBU ¥18,500
81056 — Computer Sub-assy, Headlamp, LH NO.1
81056-47690 Computer Sub-assy, Headlamp, LH NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥22,300
81056-47850 Computer Sub-assy, Headlamp, LH NO.1
2018-12 → —
ZVW5# CBU ¥18,500
81101 — Housing Sub-assy, Headlamp, RH
8111B-47690 Housing Sub-assy, Headlamp, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥10,200
8111B-47850 Housing Sub-assy, Headlamp, RH
2018-12 → —
ZVW5# CBU ¥9,200
81102 — Housing Sub-assy, Headlamp, LH
8115B-47690 Housing Sub-assy, Headlamp, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥10,200
8115B-47850 Housing Sub-assy, Headlamp, LH
2018-12 → —
ZVW5# CBU ¥9,200
81131A — Unit, Headlamp, RH
81130-47690 Unit, Headlamp, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥51,200
81130-47840 note Unit, Headlamp, RH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥52,600
81130-47850 Unit, Headlamp, RH
2018-12 → —
ZVW5# CBU ¥33,900
81130-47A10 note Unit, Headlamp, RH
2021-06 → —
ZVW5# (A,S) CBU ¥33,900
81131B — Head Lamp Lens, RH
81131-47690 Head Lamp Lens, RH
2015-11 → 2016-02 ended
ZVW5# ¥34,400
81131-47691 Head Lamp Lens, RH
2016-02 → 2018-12 ended
ZVW5# CBU ¥28,700
81131-47840 note Head Lamp Lens, RH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥30,100
81131-47850 Head Lamp Lens, RH
2018-12 → —
ZVW5# CBU ¥27,700
81131-47A10 note Head Lamp Lens, RH
2021-06 → —
ZVW5# (A,S) CBU ¥27,700
81132B — Gasket, Headlamp Lens
81132-48C30 Gasket, Headlamp Lens
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,230
81132-48C30 Gasket, Headlamp Lens
2018-12 → —
ZVW5# CBU ¥2,230
81134 — Gasket, Headlamp
90075-23003 Gasket, Headlamp
2015-11 → 2018-12 ended
ZVW5# CBU ¥200
90075-23003 Gasket, Headlamp
2018-12 → —
ZVW5# CBU ¥200
90075-23003 note Gasket, Headlamp
2021-06 → —
ZVW5# (A,S) CBU ¥200
81135 — Unit Assy, Headlamp, RH
81145-47690 Unit Assy, Headlamp, RH
2015-11 → 2016-02 ended
ZVW5# ¥130,000
81145-47691 Unit Assy, Headlamp, RH
2016-02 → 2018-12 ended
ZVW5# CBU ¥107,000
81145-47840 note Unit Assy, Headlamp, RH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥111,000
81145-47850 Unit Assy, Headlamp, RH
2018-12 → —
ZVW5# CBU ¥87,300
81145-47A10 note Unit Assy, Headlamp, RH
2021-06 → —
ZVW5# (A,S) CBU ¥87,300
81144 — Cover, Headlamp, NO.1
81135-22B70 Cover, Headlamp, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥740
90075-66016 Cover, Headlamp, NO.1
2018-12 → —
ZVW5# CBU ¥610
81171A — Unit, Headlamp, LH
81170-47690 Unit, Headlamp, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥51,200
81170-47840 note Unit, Headlamp, LH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥52,600
81170-47850 Unit, Headlamp, LH
2018-12 → —
ZVW5# CBU ¥33,900
81170-47A10 note Unit, Headlamp, LH
2021-06 → —
ZVW5# (A,S) CBU ¥33,900
81171B — Head Lamp Lens, LH
81171-47690 Head Lamp Lens, LH
2015-11 → 2016-02 ended
ZVW5# ¥34,400
81171-47691 Head Lamp Lens, LH
2016-02 → 2018-12 ended
ZVW5# CBU ¥28,700
81171-47840 note Head Lamp Lens, LH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥30,100
81171-47850 Head Lamp Lens, LH
2018-12 → —
ZVW5# CBU ¥27,700
81171-47A10 note Head Lamp Lens, LH
2021-06 → —
ZVW5# (A,S) CBU ¥27,700
81175 — Unit Assy, Headlamp, LH
81185-47690 Unit Assy, Headlamp, LH
2015-11 → 2016-02 ended
ZVW5# ¥130,000
81185-47691 Unit Assy, Headlamp, LH
2016-02 → 2018-12 ended
ZVW5# CBU ¥107,000
81185-47840 note Unit Assy, Headlamp, LH
2017-11 → 2018-01 ended
ZVW51,55 PREM ¥111,000
81185-47850 Unit Assy, Headlamp, LH
2018-12 → —
ZVW5# CBU ¥87,300
81185-47A10 note Unit Assy, Headlamp, LH
2021-06 → —
ZVW5# (A,S) CBU ¥87,300
81193 — Retainer, Headlamp Protector, Upper RH
81193-47110 Retainer, Headlamp Protector, Upper RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥770
81193-47110 Retainer, Headlamp Protector, Upper RH
2018-12 → —
ZVW5# CBU ¥770
81193B — Retainer, Headlamp Protector, Upper RH NO.2
81193-47120 Retainer, Headlamp Protector, Upper RH NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥570
81193-47120 Retainer, Headlamp Protector, Upper RH NO.2
2018-12 → —
ZVW5# CBU ¥570
81194 — Retainer, Headlamp Protector, Upper LH
81194-47110 Retainer, Headlamp Protector, Upper LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥770
81194-47110 Retainer, Headlamp Protector, Upper LH
2018-12 → —
ZVW5# CBU ¥770
81194B — Retainer, Headlamp Protector, Upper LH NO.2
81194-47120 Retainer, Headlamp Protector, Upper LH NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥570
81194-47120 Retainer, Headlamp Protector, Upper LH NO.2
2018-12 → —
ZVW5# CBU ¥570
81195A — Retainer, Headlamp Protector, Lower RH
81193-47140 Retainer, Headlamp Protector, Lower RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥320
81193-47140 Retainer, Headlamp Protector, Lower RH
2018-12 → —
ZVW5# CBU ¥320
81196A — Retainer, Headlamp Protector, Lower LH
81194-47130 Retainer, Headlamp Protector, Lower LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥320
81194-47130 Retainer, Headlamp Protector, Lower LH
2018-12 → —
ZVW5# CBU ¥320
81510C — Bulb (FOR FRONT TURN SIGNAL LAMP)
90981-15021 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2015-11 → 2018-12 ended
ZVW5# CBU ¥300
81515B — Socket, Front Turn Signal Lamp
90075-60028 Socket, Front Turn Signal Lamp
2015-11 → 2018-12 ended
ZVW5# CBU ¥610
85661 — Motor, Headlamp Leveling, RH
85661-48050 Motor, Headlamp Leveling, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,710
85661-48050 Motor, Headlamp Leveling, RH
2018-12 → —
ZVW5# CBU ¥3,710
85662 — Motor, Headlamp Leveling, LH
85661-48050 Motor, Headlamp Leveling, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,710
85661-48050 Motor, Headlamp Leveling, LH
2018-12 → —
ZVW5# CBU ¥3,710
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
