Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

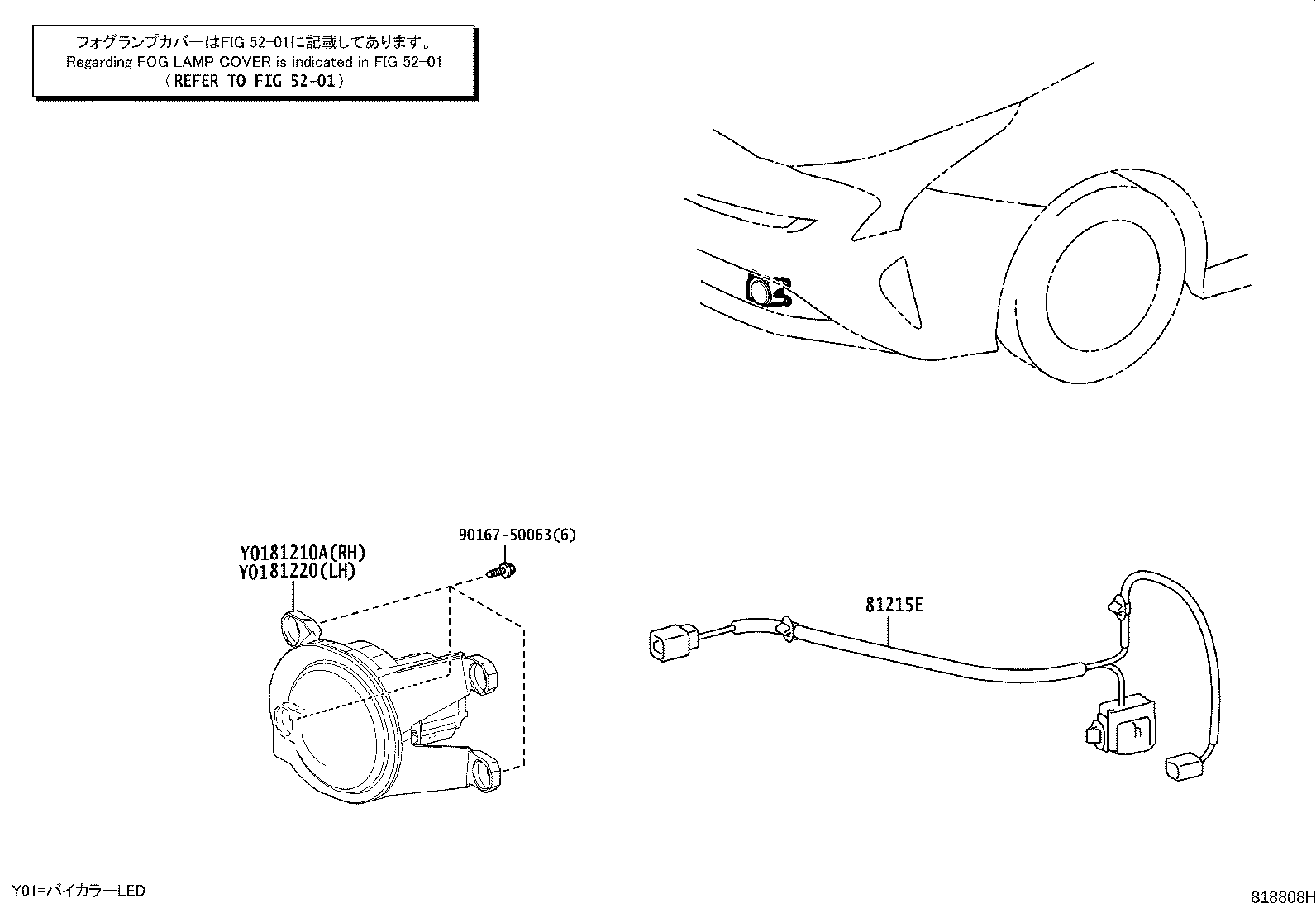

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81210A — Lamp Assy, Fog, RH | ||||
| 81210-47030 note |
Lamp Assy, Fog, RH
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥24,100 | |
| 81210-47030 |
Lamp Assy, Fog, RH
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥24,100 | |
| 81210-12240 note |
Lamp Assy, Fog, RH
2018-12 → 2020-07
ended
|
ZVW5# S CBU | ¥8,000 | |
| 81210-12240 |
Lamp Assy, Fog, RH
2018-12 → 2022-11
ended
|
ZVW5# (A,PREM) CBU | ¥8,000 | |
| 81210-12240 note |
Lamp Assy, Fog, RH
2018-12 → 2022-11
ended
|
ZVW5# S CBU | ¥8,000 | |
| 81210-12240 note |
Lamp Assy, Fog, RH
2020-07 → 2022-11
ended
|
ZVW5# S CBU | ¥8,000 | |
| 81210-12240 note |
Lamp Assy, Fog, RH
2021-06 → 2022-11
ended
|
ZVW5# S CBU | ¥8,000 | |
| 81215E — Cord, Fog Lamp | ||||
| 81935-47060 note |
Cord, Fog Lamp
2018-12 → 2020-07
ended
|
ZVW5# S CBU | ¥1,970 | |
| 81935-47060 note |
Cord, Fog Lamp
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥1,970 | |
| 81935-47060 note |
Cord, Fog Lamp
2021-06 → —
|
ZVW5# S CBU | ¥1,970 | |
| 81935-47060 note |
Cord, Fog Lamp
2020-07 → —
|
ZVW5# S CBU | ¥1,970 | |
| 81935-47070 note |
Cord, Fog Lamp
2018-12 → —
|
ZVW5# S CBU | ¥1,480 | |
| 81935-47070 |
Cord, Fog Lamp
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥1,480 | |
| 81220 — Lamp Assy, Fog, LH | ||||
| 81220-47030 |
Lamp Assy, Fog, LH
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥24,100 | |
| 81220-47030 note |
Lamp Assy, Fog, LH
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥24,100 | |
| 81220-12240 note |
Lamp Assy, Fog, LH
2018-12 → 2020-07
ended
|
ZVW5# S CBU | ¥8,000 | |
| 81220-12240 |
Lamp Assy, Fog, LH
2018-12 → 2022-11
ended
|
ZVW5# (A,PREM) CBU | ¥8,000 | |
| 81220-12240 note |
Lamp Assy, Fog, LH
2018-12 → 2022-11
ended
|
ZVW5# S CBU | ¥8,000 | |
| 81220-12240 note |
Lamp Assy, Fog, LH
2020-07 → 2022-11
ended
|
ZVW5# S CBU | ¥8,000 | |
| 81220-12240 note |
Lamp Assy, Fog, LH
2021-06 → 2022-11
ended
|
ZVW5# S CBU | ¥8,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
