Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

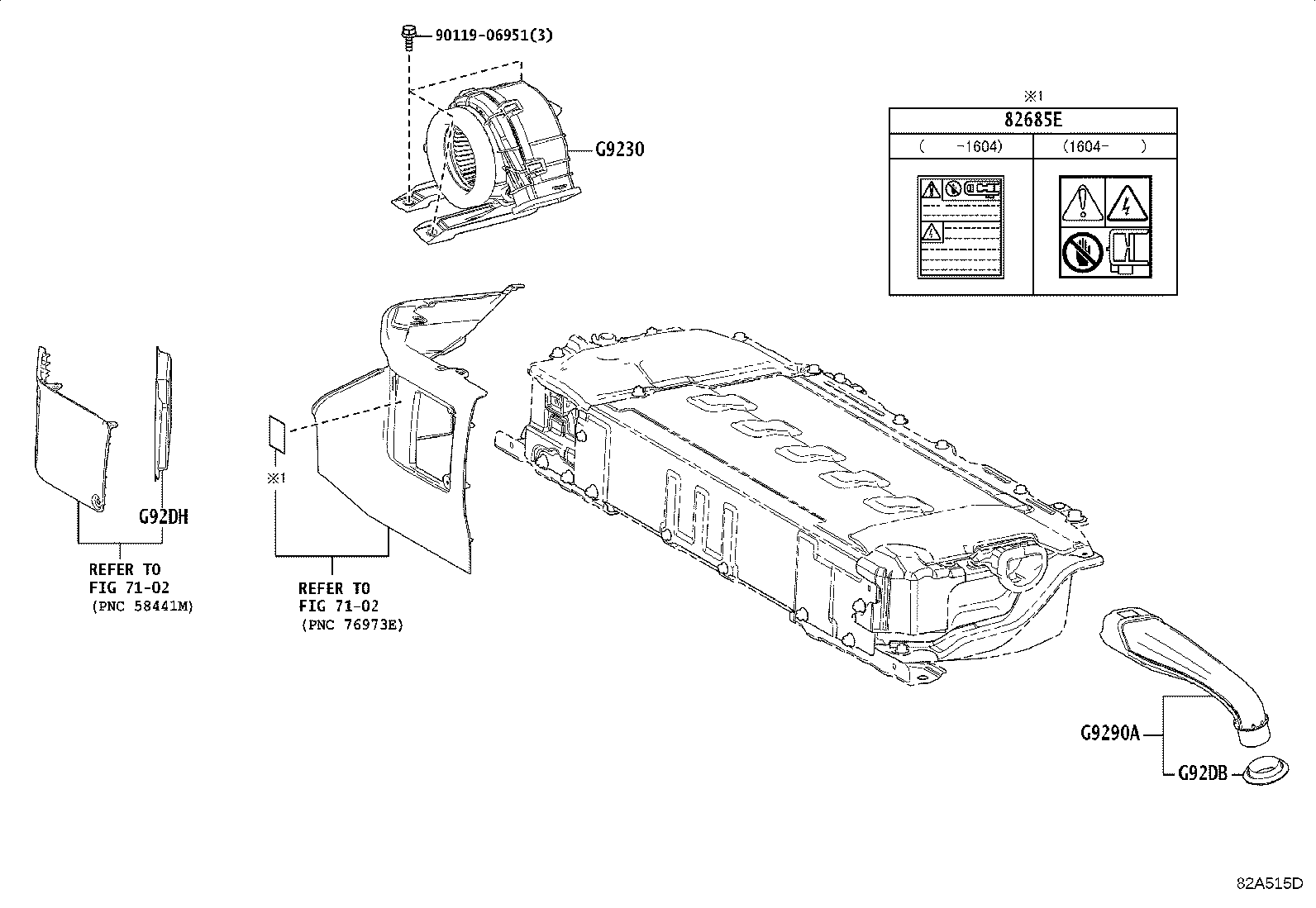

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82685E — Plate, Service Plug Caution | ||||
| 82685-47090 |
Plate, Service Plug Caution
2015-11 → 2016-04
ended
|
ZVW5# CBU | ¥180 | |
| 82685-47110 |
Plate, Service Plug Caution
2016-04 → 2018-12
ended
|
ZVW5# CBU | ¥160 | |
| 82685-47110 |
Plate, Service Plug Caution
2018-12 → 2021-06
ended
|
ZVW5# CBU | ¥160 | |
| 82685-47111 |
Plate, Service Plug Caution
2021-07 → 2022-11
ended
|
ZVW5# CBU | ¥160 | |
| G9230 — Blower Assy, Battery Cooling | ||||
| G9230-47050 |
Blower Assy, Battery Cooling
2015-11 → 2018-12
ended
|
ZVW51 CBU | ¥14,600 | |
| G9230-47080 |
Blower Assy, Battery Cooling
2015-11 → 2018-12
ended
|
ZVW50,55 CBU | ¥21,300 | |
| G9230-47050 |
Blower Assy, Battery Cooling
2018-12 → —
|
ZVW51 CBU | ¥14,600 | |
| G9230-47080 |
Blower Assy, Battery Cooling
2018-12 → —
|
ZVW55 CBU | ¥21,300 | |
| G9290A — Hose Assy, Hybrid Battery | ||||
| G9290-47030 |
Hose Assy, Hybrid Battery
2015-11 → 2018-12
ended
|
ZVW51 CBU | ¥1,270 | |
| G9290-47030 |
Hose Assy, Hybrid Battery
2018-12 → —
|
ZVW51 CBU | ¥1,270 | |
| G92DB — Seal, Hybrid Battery, NO.1 | ||||
| G92DB-47030 |
Seal, Hybrid Battery, NO.1
2015-11 → 2018-12
ended
|
ZVW51 CBU | ¥510 | |
| G92DB-47030 |
Seal, Hybrid Battery, NO.1
2018-12 → —
|
ZVW51 CBU | ¥510 | |
| G92DH — Filter, HV Battery Intake, NO.1 | ||||
| G92DH-47070 |
Filter, HV Battery Intake, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥670 | |
| G92DH-47070 |
Filter, HV Battery Intake, NO.1
2018-12 → 2022-11
ended
|
ZVW5# CBU | ¥670 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
