Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

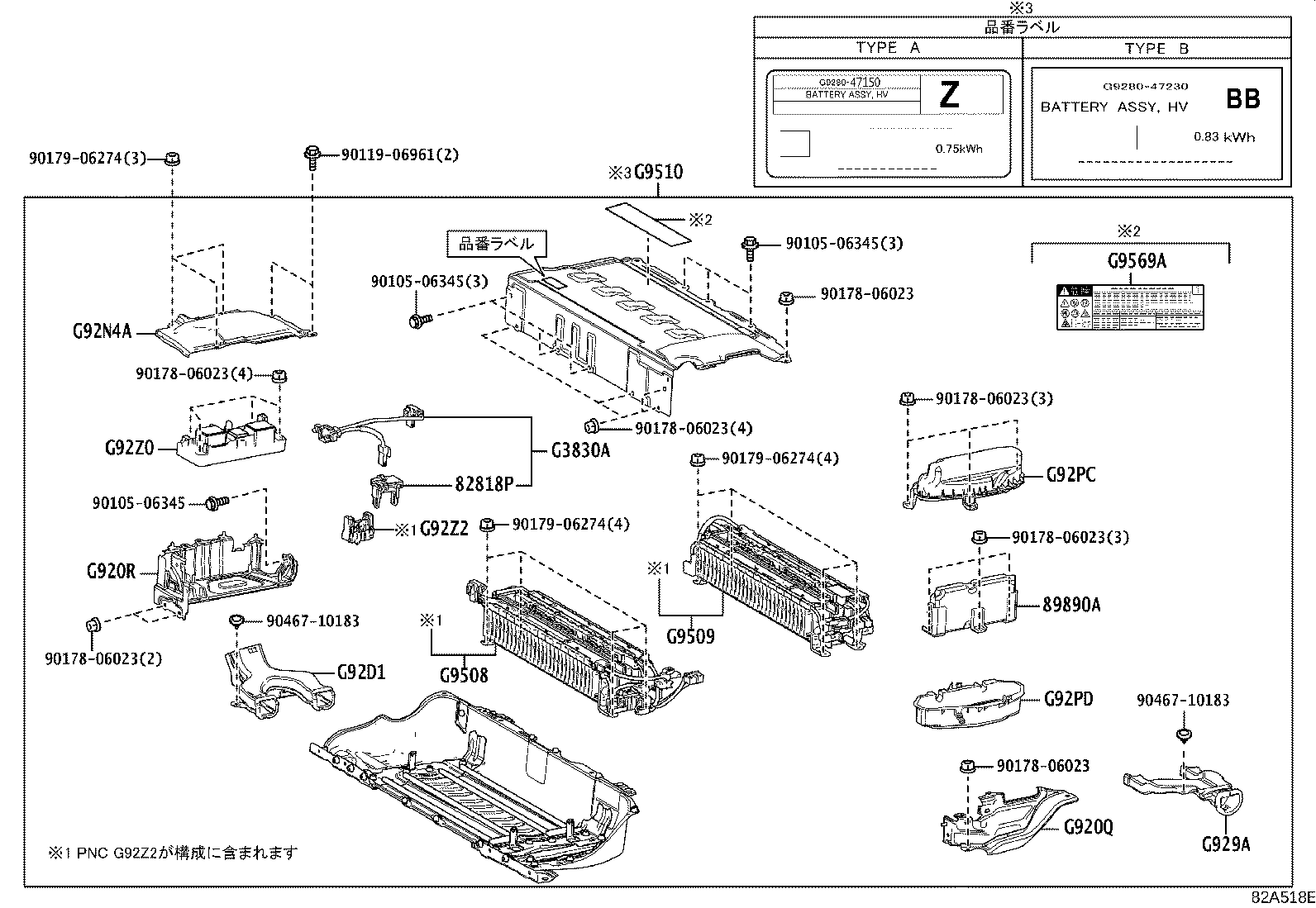

Exploded illustration 82A518E G9569A — LABEL, LITHIUM ION BATTERY CAUTION (3 parts) G9510 — BATTERY ASSY, HV SUPPLY (13 parts) G920Q — SHIELD SUB-ASSY, HYBRID BATTERY, NO.1 (5 parts) G929A — HOSE, HV BATTERY, NO.1 (2 parts) G92PC — PROTECTOR, HV BATTERY, NO.1 (2 parts) 89890A — COMPUTER ASSY, BATTERY (15 parts) G92Z2 — BLOCK, HYBRID BATTERY TERMINAL (2 parts) G9508 — STACK SUB-ASSY, HV SUPPLY, NO.1 (10 parts) G9509 — STACK SUB-ASSY, HV SUPPLY, NO.2 (10 parts) G92PD — PROTECTOR, HV BATTERY, NO.2 (2 parts) G920R — SHIELD SUB-ASSY, HYBRID BATTERY, NO.2 (2 parts) G92Z0 — BLOCK ASSY, HV BATTERY JUNCTION (4 parts) G92N4A — PANEL, HV BATTERY RH COVER, NO.1 (4 parts) G3830A — PLUG ASSY, ELECTRIC VEHICLE BATTERY (2 parts) 82818P — PROTECTOR, WIRING HARNESS (2 parts) G92D1 — DUCT, HYBRID BATTERY INTAKE, NO.1 (5 parts) 9011906961 — not listed in this catalogue 9010506345 — not listed in this catalogue 9010506345 — not listed in this catalogue 9010506345 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9046710183 — not listed in this catalogue 9046710183 — not listed in this catalogue 9017906274 — not listed in this catalogue
82A518E · 16 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
83 parts on this figure
Part number Description Fitment Price
82818P — Protector, Wiring Harness
82817-47Q60 Protector, Wiring Harness
2018-12 → 2021-10 ended
ZVW51 CBU ¥510
G92SK-K0020 Protector, Wiring Harness
2021-11 → —
ZVW51 CBU —
89890A — Computer Assy, Battery
89890-47100 note Computer Assy, Battery
2015-11 → 2016-03 ended
ZVW51 ¥96,500
89890-47101 note Computer Assy, Battery
2016-04 → 2016-08 ended
ZVW51 CBU ¥96,500
89890-47102 note Computer Assy, Battery
2016-09 → 2018-05 ended
ZVW51 CBU ¥80,400
89890-47103 note Computer Assy, Battery
2018-06 → 2018-12 ended
ZVW51 CBU ¥80,400
89890-47103 note Computer Assy, Battery
2018-12 → 2019-10 ended
ZVW51 (A,S) CBU ¥80,400
89890-47103 note Computer Assy, Battery
2018-12 → 2019-11 ended
ZVW51 E,PREM ¥80,400
89890-47103 note Computer Assy, Battery
2019-10 → 2019-11 ended
ZVW51 (A,S) CBU ¥80,400
89890-47104 note Computer Assy, Battery
2019-12 → 2020-02 ended
ZVW51 PREM ¥67,000
89890-47104 note Computer Assy, Battery
2019-12 → 2020-07 ended
ZVW51 (A,S) CBU ¥67,000
89890-47104 note Computer Assy, Battery
2020-02 → 2020-07 ended
ZVW51 PREM ¥67,000
89890-47104 note Computer Assy, Battery
2019-12 → —
ZVW51 E ¥67,000
89890-47104 note Computer Assy, Battery
2020-07 → —
ZVW51 (A,PREM,S) CBU ¥67,000
89890-47130 note Computer Assy, Battery
2020-02 → 2020-07 ended
ZVW51 PREM ¥66,900
89890-47130 note Computer Assy, Battery
2020-07 → —
ZVW51 (A,PREM,S) CBU ¥66,900
89890-47130 note Computer Assy, Battery
2019-10 → 2020-07 ended
ZVW51 (A,S) CBU ¥66,900
G3830A — Plug Assy, Electric Vehicle Battery
G3830-47120 Plug Assy, Electric Vehicle Battery
2015-11 → 2018-12 ended
ZVW51 CBU ¥3,480
G3830-47120 Plug Assy, Electric Vehicle Battery
2018-12 → —
ZVW51 CBU ¥3,480
G920Q — Shield Sub-assy, Hybrid Battery, NO.1
G920Q-47040 Shield Sub-assy, Hybrid Battery, NO.1
2015-11 → 2017-12 ended
ZVW50,55 CBU ¥2,520
G920Q-47041 Shield Sub-assy, Hybrid Battery, NO.1
2018-01 → 2018-12 ended
ZVW50,55 CBU ¥1,900
G920Q-47050 Shield Sub-assy, Hybrid Battery, NO.1
2015-11 → 2018-12 ended
ZVW51 CBU ¥1,010
G920Q-47041 Shield Sub-assy, Hybrid Battery, NO.1
2018-12 → —
ZVW55 CBU ¥1,900
G920Q-47050 Shield Sub-assy, Hybrid Battery, NO.1
2018-12 → —
ZVW51 CBU ¥1,010
G920R — Shield Sub-assy, Hybrid Battery, NO.2
G920R-47020 Shield Sub-assy, Hybrid Battery, NO.2
2015-11 → 2018-12 ended
ZVW51 CBU ¥1,740
G920R-47020 Shield Sub-assy, Hybrid Battery, NO.2
2018-12 → —
ZVW51 CBU ¥1,740
G929A — Hose, HV Battery, NO.1
G929A-47030 Hose, HV Battery, NO.1
2015-11 → 2018-12 ended
ZVW51 CBU ¥1,300
G929A-47030 Hose, HV Battery, NO.1
2018-12 → —
ZVW51 CBU ¥1,300
G92D1 — Duct, Hybrid Battery Intake, NO.1
G92E1-47040 Duct, Hybrid Battery Intake, NO.1
2015-11 → 2018-12 ended
ZVW50,55 CBU ¥1,690
G92E1-47050 Duct, Hybrid Battery Intake, NO.1
2015-11 → 2018-02 ended
ZVW51 CBU ¥2,240
G92E1-47051 Duct, Hybrid Battery Intake, NO.1
2018-03 → 2018-12 ended
ZVW51 CBU ¥1,690
G92E1-47040 Duct, Hybrid Battery Intake, NO.1
2018-12 → —
ZVW55 CBU ¥1,690
G92E1-47051 Duct, Hybrid Battery Intake, NO.1
2018-12 → —
ZVW51 CBU ¥1,690
G92N4A — Panel, HV Battery RH Cover, NO.1
G92N4-47050 Panel, HV Battery RH Cover, NO.1
2015-11 → 2018-12 ended
ZVW51 CBU ¥1,220
G92N4-47060 Panel, HV Battery RH Cover, NO.1
2015-11 → 2018-12 ended
ZVW50,55 CBU ¥2,280
G92N4-47050 Panel, HV Battery RH Cover, NO.1
2018-12 → —
ZVW51 CBU ¥1,220
G92N4-47060 Panel, HV Battery RH Cover, NO.1
2018-12 → —
ZVW55 CBU ¥2,280
G92PC — Protector, HV Battery, NO.1
G92PC-47010 Protector, HV Battery, NO.1
2015-11 → 2018-12 ended
ZVW51 CBU ¥1,750
G92PC-47010 Protector, HV Battery, NO.1
2018-12 → —
ZVW51 CBU ¥1,750
G92PD — Protector, HV Battery, NO.2
G92PD-47010 Protector, HV Battery, NO.2
2015-11 → 2018-12 ended
ZVW51 CBU ¥1,390
G92PD-47010 Protector, HV Battery, NO.2
2018-12 → —
ZVW51 CBU ¥1,390
G92Z0 — Block Assy, HV Battery Junction
G92Z0-47100 Block Assy, HV Battery Junction
2015-11 → 2018-12 ended
ZVW50,55 CBU ¥28,400
G92Z0-47110 Block Assy, HV Battery Junction
2015-11 → 2018-12 ended
ZVW51 CBU ¥28,400
G92Z0-47100 Block Assy, HV Battery Junction
2018-12 → —
ZVW55 CBU ¥28,400
G92Z0-47110 Block Assy, HV Battery Junction
2018-12 → —
ZVW51 CBU ¥28,400
G92Z2 — Block, Hybrid Battery Terminal
G92Z2-47070 Block, Hybrid Battery Terminal
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,510
G92Z2-47070 Block, Hybrid Battery Terminal
2018-12 → —
ZVW5# CBU ¥2,510
G9508 — Stack Sub-assy, HV Supply, NO.1
G9509-47020 Stack Sub-assy, HV Supply, NO.1
2015-11 → 2018-12 ended
ZVW51 CBU ¥154,000
G9509-47020 Stack Sub-assy, HV Supply, NO.1
2018-12 → 2019-10 ended
ZVW51 (A,S) CBU ¥154,000
G9509-47020 Stack Sub-assy, HV Supply, NO.1
2018-12 → 2020-02 ended
ZVW51 PREM ¥154,000
G9509-47020 note Stack Sub-assy, HV Supply, NO.1
2019-10 → 2020-07 ended
ZVW51 (A,S) CBU ¥154,000
G9509-47020 note Stack Sub-assy, HV Supply, NO.1
2020-02 → 2020-07 ended
ZVW51 PREM ¥154,000
G9509-47020 Stack Sub-assy, HV Supply, NO.1
2018-12 → —
ZVW51 E ¥154,000
G9509-47020 Stack Sub-assy, HV Supply, NO.1
2020-07 → —
ZVW51 (A,PREM,S) CBU ¥154,000
G9509-47040 note Stack Sub-assy, HV Supply, NO.1
2019-10 → 2020-07 ended
ZVW51 (A,S) CBU ¥140,000
G9509-47040 note Stack Sub-assy, HV Supply, NO.1
2020-02 → 2020-07 ended
ZVW51 PREM ¥140,000
G9509-47040 note Stack Sub-assy, HV Supply, NO.1
2020-07 → —
ZVW51 (A,PREM,S) CBU ¥140,000
G9509 — Stack Sub-assy, HV Supply, NO.2
G9508-47330 Stack Sub-assy, HV Supply, NO.2
2015-11 → 2018-12 ended
ZVW51 CBU ¥148,000
G9508-47170 note Stack Sub-assy, HV Supply, NO.2
2020-07 → —
ZVW51 (A,PREM,S) CBU ¥134,000
G9508-47170 note Stack Sub-assy, HV Supply, NO.2
2020-02 → 2020-07 ended
ZVW51 PREM ¥134,000
G9508-47170 note Stack Sub-assy, HV Supply, NO.2
2019-10 → 2020-07 ended
ZVW51 (A,S) CBU ¥134,000
G9508-47330 note Stack Sub-assy, HV Supply, NO.2
2019-10 → 2020-07 ended
ZVW51 (A,S) CBU ¥148,000
G9508-47330 Stack Sub-assy, HV Supply, NO.2
2018-12 → 2020-02 ended
ZVW51 PREM ¥148,000
G9508-47330 note Stack Sub-assy, HV Supply, NO.2
2020-02 → 2020-07 ended
ZVW51 PREM ¥148,000
G9508-47330 Stack Sub-assy, HV Supply, NO.2
2018-12 → —
ZVW51 E ¥148,000
G9508-47330 Stack Sub-assy, HV Supply, NO.2
2018-12 → 2019-10 ended
ZVW51 (A,S) CBU ¥148,000
G9508-47330 Stack Sub-assy, HV Supply, NO.2
2020-07 → —
ZVW51 (A,PREM,S) CBU ¥148,000
G9510 — Battery Assy, HV Supply
G9510-47120 Battery Assy, HV Supply
2015-11 → 2018-05 ended
ZVW51 CBU ¥302,000
G9510-47121 Battery Assy, HV Supply
2018-06 → 2018-12 ended
ZVW51 CBU ¥302,000
G9510-47130 Battery Assy, HV Supply
2015-11 → 2018-12 ended
ZVW50,55 CBU ¥153,000
G9510-47121 Battery Assy, HV Supply
2018-12 → 2020-02 ended
ZVW51 PREM ¥302,000
G9510-47121 Battery Assy, HV Supply
2020-07 → —
ZVW51 (A,PREM,S) CBU ¥302,000
G9510-47121 Battery Assy, HV Supply
2018-12 → —
ZVW51 E ¥302,000
G9510-47121 note Battery Assy, HV Supply
2020-02 → 2020-07 ended
ZVW51 PREM ¥302,000
G9510-47121 note Battery Assy, HV Supply
2019-10 → 2020-07 ended
ZVW51 (A,S) CBU ¥302,000
G9510-47121 Battery Assy, HV Supply
2018-12 → 2019-10 ended
ZVW51 (A,S) CBU ¥302,000
G9510-47130 Battery Assy, HV Supply
2018-12 → —
ZVW55 CBU ¥153,000
G9510-47170 note Battery Assy, HV Supply
2019-10 → 2020-07 ended
ZVW51 (A,S) CBU ¥274,000
G9510-47170 note Battery Assy, HV Supply
2020-02 → 2020-07 ended
ZVW51 PREM ¥274,000
G9510-47170 note Battery Assy, HV Supply
2020-07 → —
ZVW51 (A,PREM,S) CBU ¥274,000
G9569A — Label, Lithium Ion Battery Caution
G9569-47100 Label, Lithium Ion Battery Caution
2015-11 → 2018-12 ended
ZVW51 CBU ¥320
G9569-47100 note Label, Lithium Ion Battery Caution
2019-10 → 2020-07 ended
ZVW51 (A,PREM,S) CBU ¥320
G9569-47100 Label, Lithium Ion Battery Caution
2018-12 → —
ZVW51 CBU ¥320
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
