Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

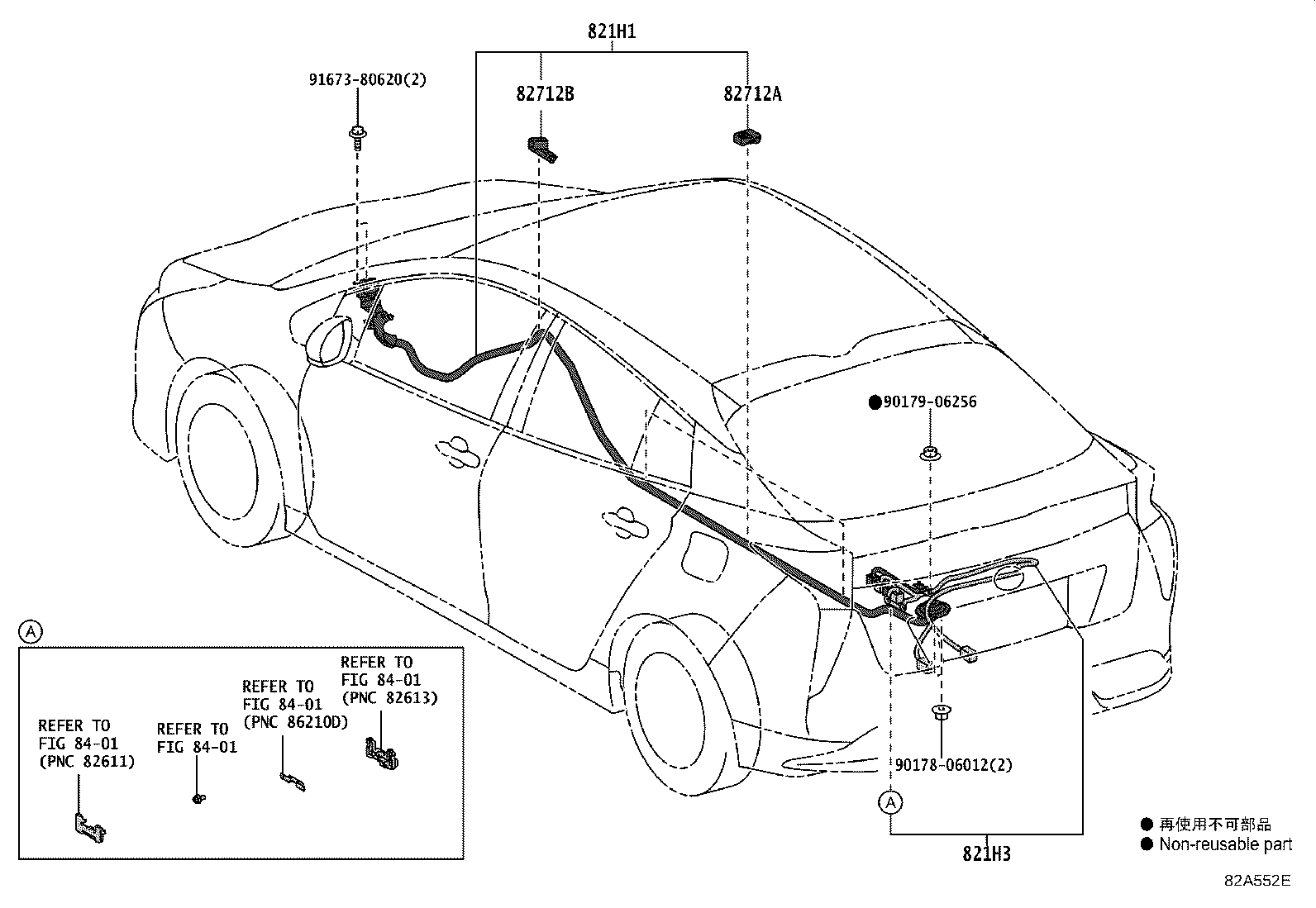

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 821H1 — Wire, Floor Under | ||||
| 821H1-47020 |
Wire, Floor Under
2015-11 → 2018-12
ended
|
ZVW50,51 CBU | ¥44,000 | |
| 821H1-47030 |
Wire, Floor Under
2015-11 → 2018-12
ended
|
ZVW55 CBU | ¥50,800 | |
| 821H1-47021 |
Wire, Floor Under
2018-12 → —
|
ZVW51 CBU | ¥36,700 | |
| 821H1-47031 |
Wire, Floor Under
2018-12 → —
|
ZVW55 CBU | ¥42,300 | |
| 821H3 — Wire, HV Battery Pack | ||||
| 821H3-47010 |
Wire, HV Battery Pack
2015-11 → 2018-12
ended
|
ZVW55 (A,S) CBU | ¥14,800 | |
| 821H3-47020 |
Wire, HV Battery Pack
2015-11 → 2018-12
ended
|
ZVW55 PREM | ¥18,400 | |
| 821H3-47020 note |
Wire, HV Battery Pack
2015-11 → 2018-12
ended
|
ZVW55 (A,S) CBU | ¥18,400 | |
| 821H4-47010 |
Wire, HV Battery Pack
2015-11 → 2018-12
ended
|
ZVW51 PREM | ¥7,200 | |
| 821H4-47010 note |
Wire, HV Battery Pack
2015-11 → 2018-12
ended
|
ZVW50,51 (A,S) CBU | ¥7,200 | |
| 821H4-47010 note |
Wire, HV Battery Pack
2015-11 → 2018-12
ended
|
ZVW51 PREM | ¥7,200 | |
| 821H3-47010 |
Wire, HV Battery Pack
2018-12 → 2020-07
ended
|
ZVW55 (A,S) CBU | ¥14,800 | |
| 821H3-47020 |
Wire, HV Battery Pack
2020-07 → —
|
ZVW55 (A,S) CBU | ¥18,400 | |
| 821H3-47020 note |
Wire, HV Battery Pack
2018-12 → 2020-07
ended
|
ZVW55 (A,S) CBU | ¥18,400 | |
| 821H3-47020 |
Wire, HV Battery Pack
2018-12 → —
|
ZVW55 PREM | ¥18,400 | |
| 821H4-47010 |
Wire, HV Battery Pack
2018-12 → 2020-07
ended
|
ZVW51 PREM | ¥7,200 | |
| 821H4-47010 note |
Wire, HV Battery Pack
2018-12 → 2020-07
ended
|
ZVW51 PREM | ¥7,200 | |
| 821H4-47010 note |
Wire, HV Battery Pack
2018-12 → 2020-07
ended
|
ZVW51 (A,S) CBU | ¥7,200 | |
| 821H4-47010 note |
Wire, HV Battery Pack
2018-12 → 2020-01
ended
|
ZVW51 PREM | ¥7,200 | |
| 821H4-47020 note |
Wire, HV Battery Pack
2020-07 → 2021-06
ended
|
ZVW51 E | ¥8,600 | |
| 821H4-47020 note |
Wire, HV Battery Pack
2020-07 → —
|
ZVW51 (A,PREM,S) CBU | ¥8,600 | |
| 821H4-47030 |
Wire, HV Battery Pack
2020-07 → —
|
ZVW51 CBU | ¥8,600 | |
| 821H4-47030 note |
Wire, HV Battery Pack
2020-07 → —
|
ZVW51 PREM | ¥8,600 | |
| 82712A — Support, Wiring Harness | ||||
| 82712-47530 |
Support, Wiring Harness
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,070 | |
| 82712-47530 |
Support, Wiring Harness
2018-12 → —
|
ZVW5# CBU | ¥1,070 | |
| 82712B — Support, Wiring Harness | ||||
| 82712-47410 |
Support, Wiring Harness
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥750 | |
| 82712-47410 |
Support, Wiring Harness
2018-12 → —
|
ZVW5# CBU | ¥750 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
