Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

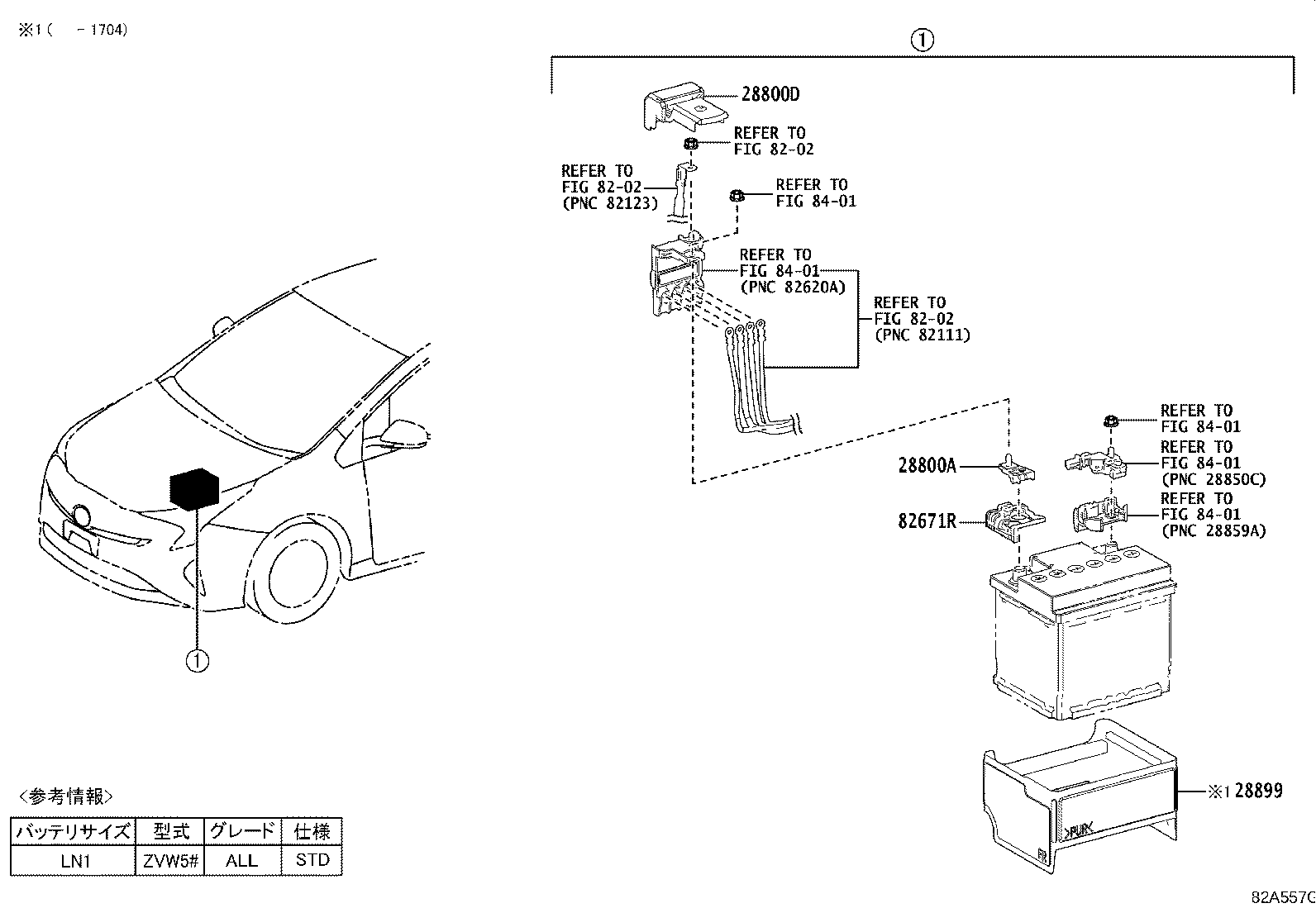

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800A — Terminal, Battery Positive | ||||
| 90982-05061 |
Terminal, Battery Positive
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥850 | |
| 90982-05061 |
Terminal, Battery Positive
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥850 | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82621-47020 |
Cover, Connector(FOR BATTERY TERMINAL)
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# CBU | ¥730 | |
| 82621-47020 |
Cover, Connector(FOR BATTERY TERMINAL)
2018-12 → —
|
2ZRFXE ZVW5# CBU | ¥730 | |
| 28899 — Insulator, Battery | ||||
| 28899-37060 |
Insulator, Battery
2015-11 → 2017-04
ended
|
2ZRFXE ZVW5# CBU | ¥2,230 | |
| 82671R — Stopper, Battery Terminal | ||||
| 82671-47040 |
Stopper, Battery Terminal
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥490 | |
| 82671-47040 |
Stopper, Battery Terminal
2018-12 → —
|
ZVW5# CBU | ¥490 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
