Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

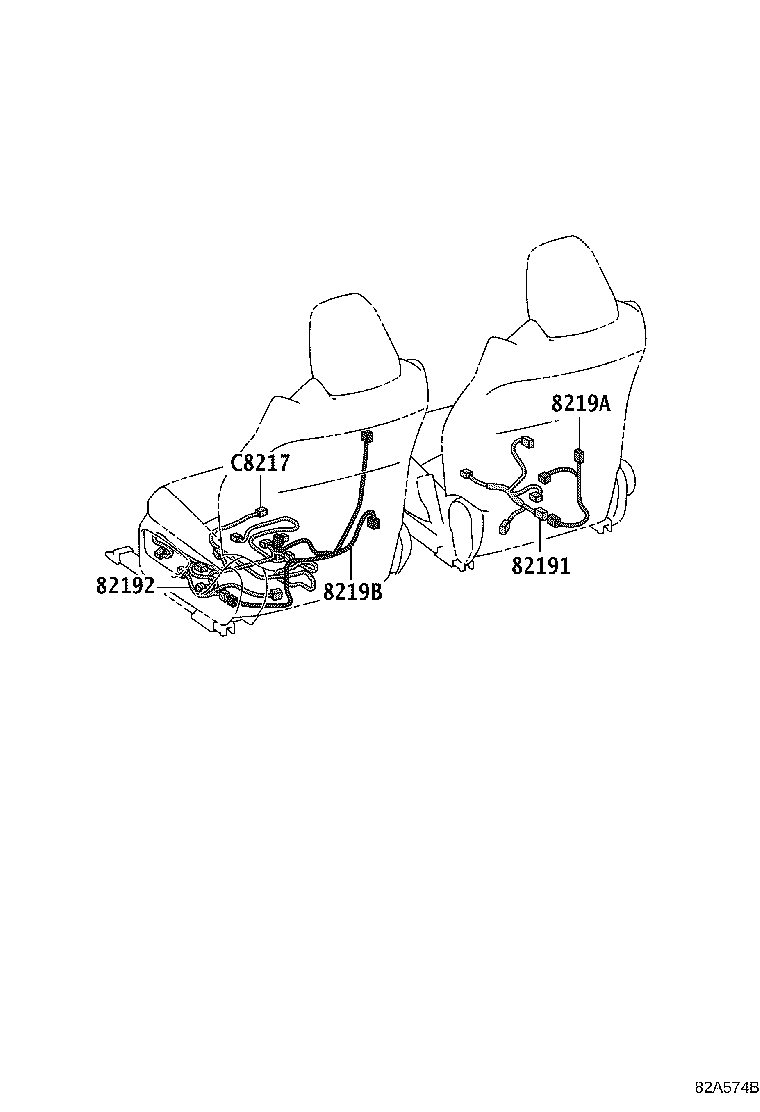

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82191 — Wire, Front Seat, RH | ||||
| 82191-47130 |
Wire, Front Seat, RH
2015-11 → 2017-03
ended
|
ZVW51,55 PREM | ¥7,600 | |
| 82191-47131 |
Wire, Front Seat, RH
2017-03 → 2018-12
ended
|
ZVW51,55 PREM | ¥6,300 | |
| 82191-47131 note |
Wire, Front Seat, RH
2018-12 → —
|
ZVW5# A CBU | ¥6,300 | |
| 82191-47170 |
Wire, Front Seat, RH
2018-12 → —
|
ZVW5# PREM | ¥5,100 | |
| 82191-47180 |
Wire, Front Seat, RH
2018-12 → —
|
ZVW5# A CBU | ¥7,200 | |
| 82192 — Wire, Front Seat, LH | ||||
| 82192-42100 |
Wire, Front Seat, LH
2018-12 → —
|
ZVW5# PREM | ¥1,790 | |
| 8219A — Wire, Front Seat, RH NO.2 | ||||
| 8219A-47040 |
Wire, Front Seat, RH NO.2
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥1,970 | |
| 8219A-33160 |
Wire, Front Seat, RH NO.2
2018-12 → —
|
ZVW5# A CBU | ¥2,140 | |
| 8219A-33170 |
Wire, Front Seat, RH NO.2
2018-12 → —
|
ZVW5# PREM | ¥2,680 | |
| 8219B — Wire, Front Seat, LH NO.2 | ||||
| 8219B-42050 |
Wire, Front Seat, LH NO.2
2018-12 → —
|
ZVW5# PREM | ¥720 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
