Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

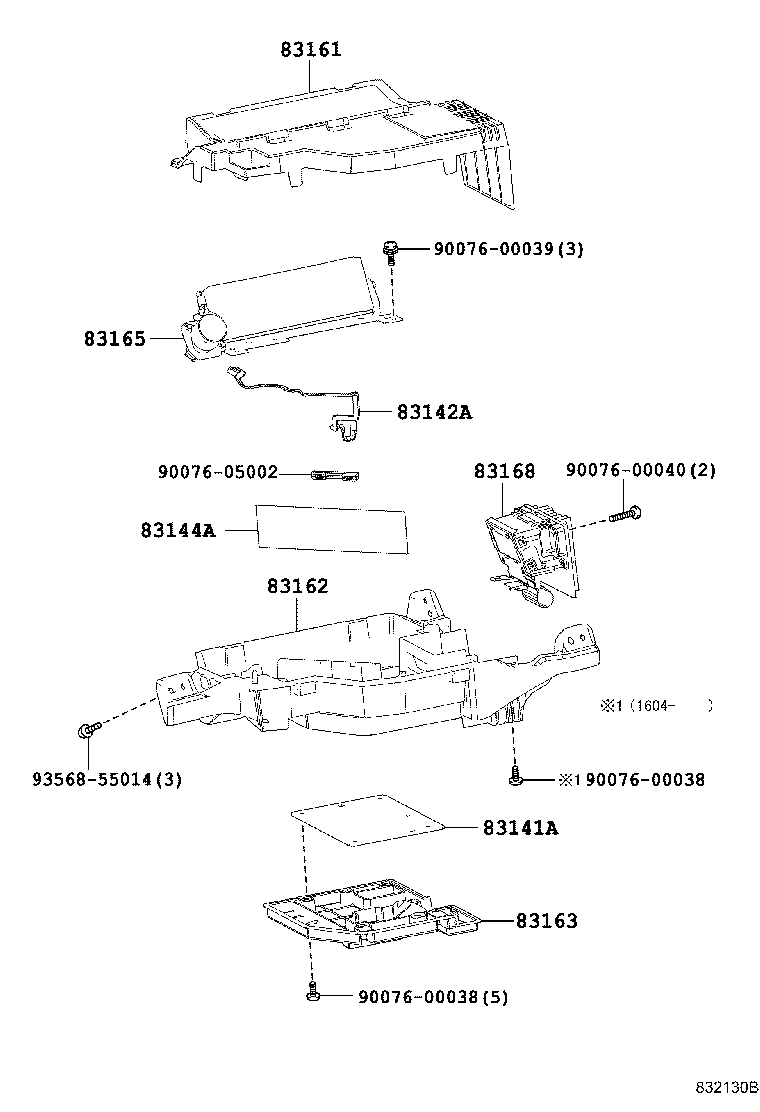

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83141A — Computer, Combination Meter Mirror | ||||
| 83141-47100 |
Computer, Combination Meter Mirror
2015-11 → 2016-04
ended
|
ZVW51,55 (A,PREM) CBU | ¥34,300 | |
| 83141-47101 |
Computer, Combination Meter Mirror
2016-04 → 2017-11
ended
|
ZVW51,55 (A,PREM) CBU | ¥28,600 | |
| 83141-47101 note |
Computer, Combination Meter Mirror
2016-08 → 2017-11
ended
|
ZVW50,55 S CBU | ¥28,600 | |
| 83141-47180 |
Computer, Combination Meter Mirror
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥28,600 | |
| 83141-47140 |
Computer, Combination Meter Mirror
2019-08 → 2020-07
ended
|
ZVW5# (A,PREM) CBU | ¥28,600 | |
| 83141-47180 |
Computer, Combination Meter Mirror
2018-12 → 2019-08
ended
|
ZVW5# (A,PREM) CBU | ¥28,600 | |
| 83141-47320 |
Computer, Combination Meter Mirror
2020-07 → —
|
ZVW5# (A,PREM) CBU | ¥23,800 | |
| 83142A — Wire, Combination Meter | ||||
| 83142-47080 note |
Wire, Combination Meter
2016-08 → 2017-11
ended
|
ZVW50,55 S CBU | ¥210 | |
| 83142-47080 |
Wire, Combination Meter
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥210 | |
| 83142-47080 |
Wire, Combination Meter
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥210 | |
| 83144A — Mirror, Combination Meter | ||||
| 83144-47070 note |
Mirror, Combination Meter
2016-08 → 2017-11
ended
|
ZVW50,55 S CBU | ¥11,900 | |
| 83144-47070 |
Mirror, Combination Meter
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥11,900 | |
| 83144-47070 |
Mirror, Combination Meter
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥11,900 | |
| 83161 — Case, Combination Meter Mirror, NO.1 | ||||
| 83161-47080 |
Case, Combination Meter Mirror, NO.1
2015-11 → 2017-05
ended
|
ZVW51,55 (A,PREM) CBU | ¥3,080 | |
| 83161-47080 note |
Case, Combination Meter Mirror, NO.1
2016-08 → 2017-05
ended
|
ZVW50,55 S CBU | ¥3,080 | |
| 83161-47081 |
Case, Combination Meter Mirror, NO.1
2017-05 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥3,080 | |
| 83161-47081 note |
Case, Combination Meter Mirror, NO.1
2017-05 → 2017-11
ended
|
ZVW50,55 S CBU | ¥3,080 | |
| 83161-47081 |
Case, Combination Meter Mirror, NO.1
2018-12 → 2020-07
ended
|
ZVW5# (A,PREM) CBU | ¥3,080 | |
| 83161-47320 |
Case, Combination Meter Mirror, NO.1
2020-07 → —
|
ZVW5# (A,PREM) CBU | ¥2,560 | |
| 83162 — Case, Combination Meter Mirror, NO.2 | ||||
| 83162-47080 note |
Case, Combination Meter Mirror, NO.2
2016-08 → 2017-11
ended
|
ZVW50,55 S CBU | ¥4,100 | |
| 83162-47080 |
Case, Combination Meter Mirror, NO.2
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥4,100 | |
| 83162-47080 |
Case, Combination Meter Mirror, NO.2
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥4,100 | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83164-47080 note |
Plate, Combination Meter Mirror, NO.1
2016-08 → 2017-11
ended
|
ZVW50,55 S CBU | ¥1,170 | |
| 83164-47080 |
Plate, Combination Meter Mirror, NO.1
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥1,170 | |
| 83164-47080 |
Plate, Combination Meter Mirror, NO.1
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥1,170 | |
| 83165 — Mirror, Combination Meter, NO.2 | ||||
| 83165-47080 note |
Mirror, Combination Meter, NO.2
2016-08 → 2017-11
ended
|
ZVW50,55 S CBU | ¥3,730 | |
| 83165-47080 |
Mirror, Combination Meter, NO.2
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥3,730 | |
| 83165-47080 |
Mirror, Combination Meter, NO.2
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥3,730 | |
| 83168 — Display, Combination | ||||
| 83168-47070 note |
Display, Combination
2016-08 → 2017-11
ended
|
ZVW50,55 S CBU | ¥25,200 | |
| 83168-47070 |
Display, Combination
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥25,200 | |
| 83168-47070 |
Display, Combination
2018-12 → 2019-08
ended
|
ZVW5# (A,PREM) CBU | ¥25,200 | |
| 83168-47130 |
Display, Combination
2019-08 → —
|
ZVW5# (A,PREM) CBU | ¥21,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
