Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

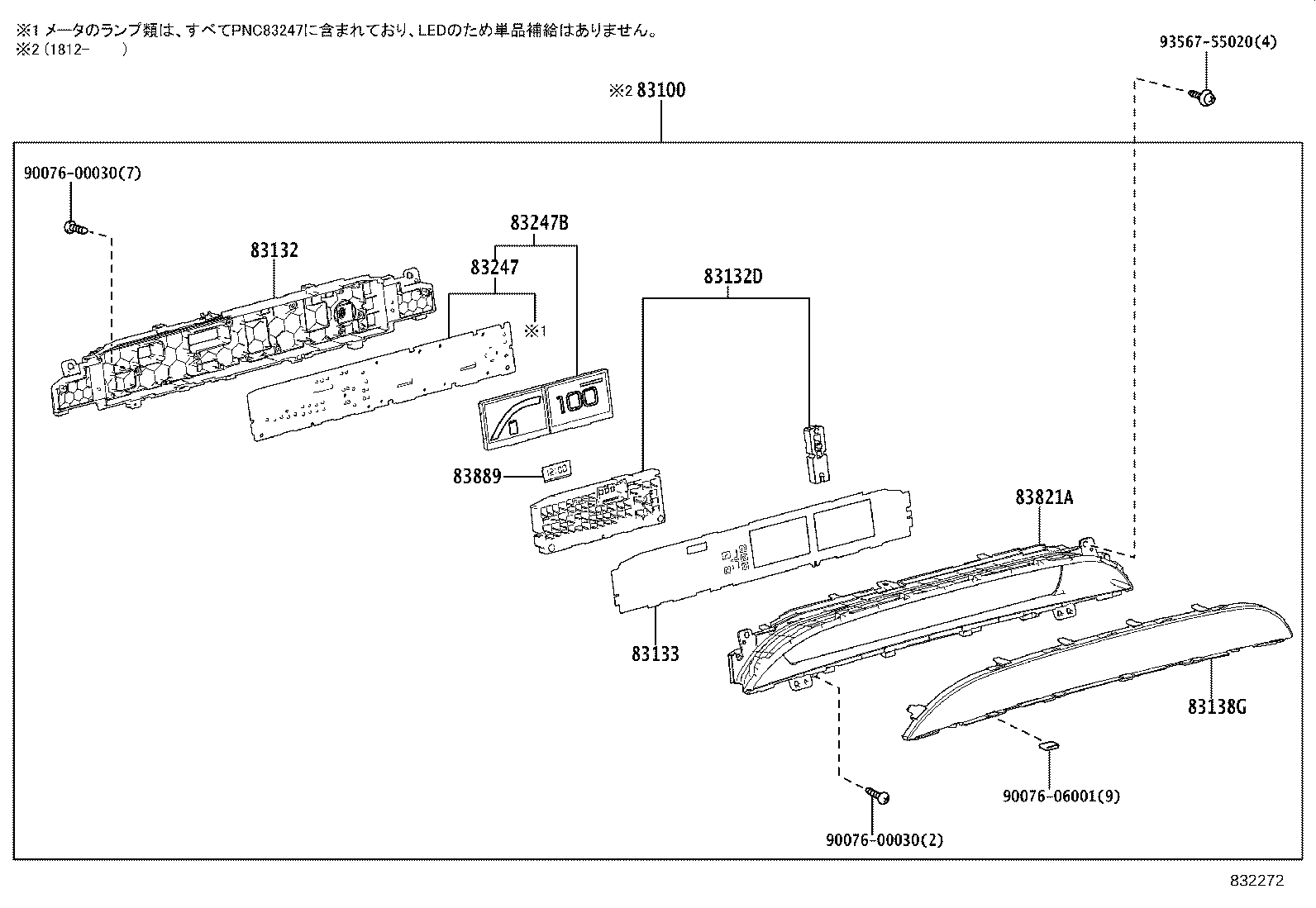

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-47M20 note |
Meter Assy, Combination
2021-06 → 2021-10
ended
|
ZVW5# (A,PREM,S) CBU | ¥62,600 | |
| 83800-47M21 note |
Meter Assy, Combination
2021-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥62,600 | |
| 83800-47M90 note |
Meter Assy, Combination
2018-12 → 2019-08
ended
|
ZVW5# (A,PREM,S) CBU | ¥73,500 | |
| 83800-47U10 note |
Meter Assy, Combination
2018-12 → 2019-08
ended
|
ZVW51 E | ¥73,500 | |
| 83800-47X70 note |
Meter Assy, Combination
2019-08 → 2020-03
ended
|
ZVW5# (A,PREM,S) CBU | ¥73,500 | |
| 83800-47X71 note |
Meter Assy, Combination
2020-04 → 2020-07
ended
|
ZVW5# (A,PREM,S) CBU | ¥73,500 | |
| 83800-47X80 note |
Meter Assy, Combination
2019-08 → 2020-03
ended
|
ZVW51 E | ¥73,500 | |
| 83800-47X81 note |
Meter Assy, Combination
2020-04 → 2020-07
ended
|
ZVW51 E | ¥73,500 | |
| 83800-4E010 note |
Meter Assy, Combination
2020-07 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥61,200 | |
| 83800-4E020 note |
Meter Assy, Combination
2020-07 → 2021-06
ended
|
ZVW51 E | ¥61,200 | |
| 83800-4E200 note |
Meter Assy, Combination
2021-06 → 2021-10
ended
|
ZVW51 E | — | |
| 83800-4E201 note |
Meter Assy, Combination
2021-11 → —
|
ZVW51 E | ¥61,700 | |
| 83132 — Case, Combination Meter | ||||
| 83841-47L00 |
Case, Combination Meter
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,520 | |
| 83841-47L00 |
Case, Combination Meter
2018-12 → —
|
ZVW5# CBU | ¥3,520 | |
| 83132D — Case, Combination Meter, NO.2 | ||||
| 83842-47L00 |
Case, Combination Meter, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,970 | |
| 83842-47L00 |
Case, Combination Meter, NO.2
2018-12 → —
|
ZVW5# CBU | ¥1,970 | |
| 83133 — Plate, Combination Meter, NO.1 | ||||
| 83811-47L00 |
Plate, Combination Meter, NO.1
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥3,410 | |
| 83811-47L70 |
Plate, Combination Meter, NO.1
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,410 | |
| 83811-47L00 |
Plate, Combination Meter, NO.1
2018-12 → 2019-08
ended
|
ZVW5# (A,PREM,S) CBU | ¥3,410 | |
| 83811-47L70 |
Plate, Combination Meter, NO.1
2018-12 → 2019-08
ended
|
ZVW51 E | ¥3,410 | |
| 83811-47M90 |
Plate, Combination Meter, NO.1
2019-08 → 2020-07
ended
|
ZVW5# CBU | ¥3,410 | |
| 83811-4E010 |
Plate, Combination Meter, NO.1
2020-07 → —
|
ZVW5# CBU | ¥2,830 | |
| 83138G — Glass, Combination Meter | ||||
| 83852-47L00 |
Glass, Combination Meter
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥2,440 | |
| 83852-47L70 |
Glass, Combination Meter
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,440 | |
| 83852-47L70 |
Glass, Combination Meter
2018-12 → —
|
ZVW5# CBU | ¥2,440 | |
| 83247 — Plate, Meter Circuit | ||||
| 83861-47540 |
Plate, Meter Circuit
2016-08 → 2017-11
ended
|
ZVW51,55 (A,PREM) CBU | ¥32,800 | |
| 83861-47540 note |
Plate, Meter Circuit
2017-04 → 2017-11
ended
|
ZVW50,55 S CBU | ¥32,800 | |
| 83861-47540 note |
Plate, Meter Circuit
2016-08 → 2017-04
ended
|
ZVW50,55 S CBU | ¥32,800 | |
| 83861-47550 |
Plate, Meter Circuit
2016-08 → 2017-11
ended
|
ZVW50,55 S CBU | ¥32,800 | |
| 83861-47L00 |
Plate, Meter Circuit
2015-11 → 2016-03
ended
|
ZVW51,55 A,PREM | ¥39,400 | |
| 83861-47L01 |
Plate, Meter Circuit
2016-03 → 2016-08
ended
|
ZVW51,55 (A,PREM) CBU | ¥39,400 | |
| 83861-47L10 |
Plate, Meter Circuit
2015-11 → 2016-03
ended
|
ZVW50,55 S | ¥39,400 | |
| 83861-47L11 |
Plate, Meter Circuit
2016-03 → 2016-08
ended
|
ZVW50,55 S CBU | ¥39,400 | |
| 83861-47L70 |
Plate, Meter Circuit
2017-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥32,800 | |
| 83861-47M30 |
Plate, Meter Circuit
2017-11 → 2018-12
ended
|
ZVW51 E | ¥32,800 | |
| 83861-47N10 |
Plate, Meter Circuit
2015-11 → 2016-03
ended
|
ZVW51 E | ¥39,400 | |
| 83861-47N11 |
Plate, Meter Circuit
2016-03 → 2016-08
ended
|
ZVW51 E | ¥39,400 | |
| 83861-47Q10 |
Plate, Meter Circuit
2016-08 → 2017-11
ended
|
ZVW51 E | ¥32,800 | |
| 83861-47M20 |
Plate, Meter Circuit
2021-06 → 2021-10
ended
|
ZVW5# (A,PREM,S) CBU | ¥27,300 | |
| 83861-47M21 |
Plate, Meter Circuit
2021-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥27,300 | |
| 83861-47M90 |
Plate, Meter Circuit
2018-12 → 2019-08
ended
|
ZVW5# (A,PREM,S) CBU | ¥32,800 | |
| 83861-47U10 |
Plate, Meter Circuit
2018-12 → 2019-08
ended
|
ZVW51 E | ¥32,800 | |
| 83861-47X70 |
Plate, Meter Circuit
2019-08 → 2020-04
ended
|
ZVW5# (A,PREM,S) CBU | ¥32,800 | |
| 83861-47X71 |
Plate, Meter Circuit
2020-04 → 2020-07
ended
|
ZVW5# (A,PREM,S) CBU | ¥32,800 | |
| 83861-47X80 |
Plate, Meter Circuit
2019-08 → 2020-04
ended
|
ZVW51 E | ¥32,800 | |
| 83861-47X81 |
Plate, Meter Circuit
2020-04 → 2020-07
ended
|
ZVW51 E | ¥32,800 | |
| 83861-4E010 |
Plate, Meter Circuit
2020-07 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥27,300 | |
| 83861-4E020 |
Plate, Meter Circuit
2020-07 → 2021-06
ended
|
ZVW51 E | ¥27,300 | |
| 83861-4E200 |
Plate, Meter Circuit
2021-06 → 2021-11
ended
|
ZVW51 E | — | |
| 83861-4E201 |
Plate, Meter Circuit
2021-11 → —
|
ZVW51 E | — | |
| 83247B — Plate, Meter Circuit, NO.2 | ||||
| 83862-47540 note |
Plate, Meter Circuit, NO.2
2017-04 → 2017-11
ended
|
ZVW50,55 S CBU | ¥89,400 | |
| 83862-47540 |
Plate, Meter Circuit, NO.2
2016-08 → 2017-11
ended
|
ZVW51,55 (A,PREM) CBU | ¥89,400 | |
| 83862-47540 note |
Plate, Meter Circuit, NO.2
2016-08 → 2017-04
ended
|
ZVW50,55 S CBU | ¥89,400 | |
| 83862-47550 |
Plate, Meter Circuit, NO.2
2016-08 → 2017-11
ended
|
ZVW50,55 S CBU | ¥89,400 | |
| 83862-47L00 |
Plate, Meter Circuit, NO.2
2015-11 → 2016-03
ended
|
ZVW51,55 A,PREM | ¥108,000 | |
| 83862-47L01 |
Plate, Meter Circuit, NO.2
2016-03 → 2016-08
ended
|
ZVW51,55 (A,PREM) CBU | ¥108,000 | |
| 83862-47L10 |
Plate, Meter Circuit, NO.2
2015-11 → 2016-03
ended
|
ZVW50,55 S | ¥108,000 | |
| 83862-47L11 |
Plate, Meter Circuit, NO.2
2016-03 → 2016-08
ended
|
ZVW50,55 S CBU | ¥108,000 | |
| 83862-47L70 |
Plate, Meter Circuit, NO.2
2017-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥89,400 | |
| 83862-47M30 |
Plate, Meter Circuit, NO.2
2017-11 → 2018-12
ended
|
ZVW51 E | ¥89,400 | |
| 83862-47N10 |
Plate, Meter Circuit, NO.2
2015-11 → 2016-03
ended
|
ZVW51 E | ¥108,000 | |
| 83862-47N11 |
Plate, Meter Circuit, NO.2
2016-03 → 2016-08
ended
|
ZVW51 E | ¥108,000 | |
| 83862-47Q10 |
Plate, Meter Circuit, NO.2
2016-08 → 2017-11
ended
|
ZVW51 E | ¥89,400 | |
| 83862-47M20 |
Plate, Meter Circuit, NO.2
2021-06 → 2021-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥74,500 | |
| 83862-47M21 |
Plate, Meter Circuit, NO.2
2021-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥74,500 | |
| 83862-47M90 |
Plate, Meter Circuit, NO.2
2018-12 → 2019-08
ended
|
ZVW5# (A,PREM,S) CBU | ¥89,400 | |
| 83862-47U10 |
Plate, Meter Circuit, NO.2
2018-12 → 2019-08
ended
|
ZVW51 E | ¥89,400 | |
| 83862-47X70 |
Plate, Meter Circuit, NO.2
2019-08 → 2020-04
ended
|
ZVW5# (A,PREM,S) CBU | ¥89,400 | |
| 83862-47X71 |
Plate, Meter Circuit, NO.2
2020-04 → 2020-07
ended
|
ZVW5# (A,PREM,S) CBU | ¥89,400 | |
| 83862-47X80 |
Plate, Meter Circuit, NO.2
2019-08 → 2020-04
ended
|
ZVW51 E | ¥89,400 | |
| 83862-47X81 |
Plate, Meter Circuit, NO.2
2020-04 → 2020-07
ended
|
ZVW51 E | ¥89,400 | |
| 83862-4E010 |
Plate, Meter Circuit, NO.2
2020-07 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥74,500 | |
| 83862-4E020 |
Plate, Meter Circuit, NO.2
2020-07 → 2021-06
ended
|
ZVW51 E | ¥74,500 | |
| 83862-4E200 |
Plate, Meter Circuit, NO.2
2021-06 → 2021-11
ended
|
ZVW51 E | — | |
| 83862-4E201 |
Plate, Meter Circuit, NO.2
2021-11 → —
|
ZVW51 E | — | |
| 83821A — Cover, Combination Meter, NO.1 | ||||
| 83821-47L00 |
Cover, Combination Meter, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,520 | |
| 83821-47L00 |
Cover, Combination Meter, NO.1
2018-12 → —
|
ZVW5# CBU | ¥3,520 | |
| 83889 — Multi-display, Combination Meter | ||||
| 83889-62010 |
Multi-display, Combination Meter
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,900 | |
| 83889-62010 |
Multi-display, Combination Meter
2018-12 → —
|
ZVW5# CBU | ¥1,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
