Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

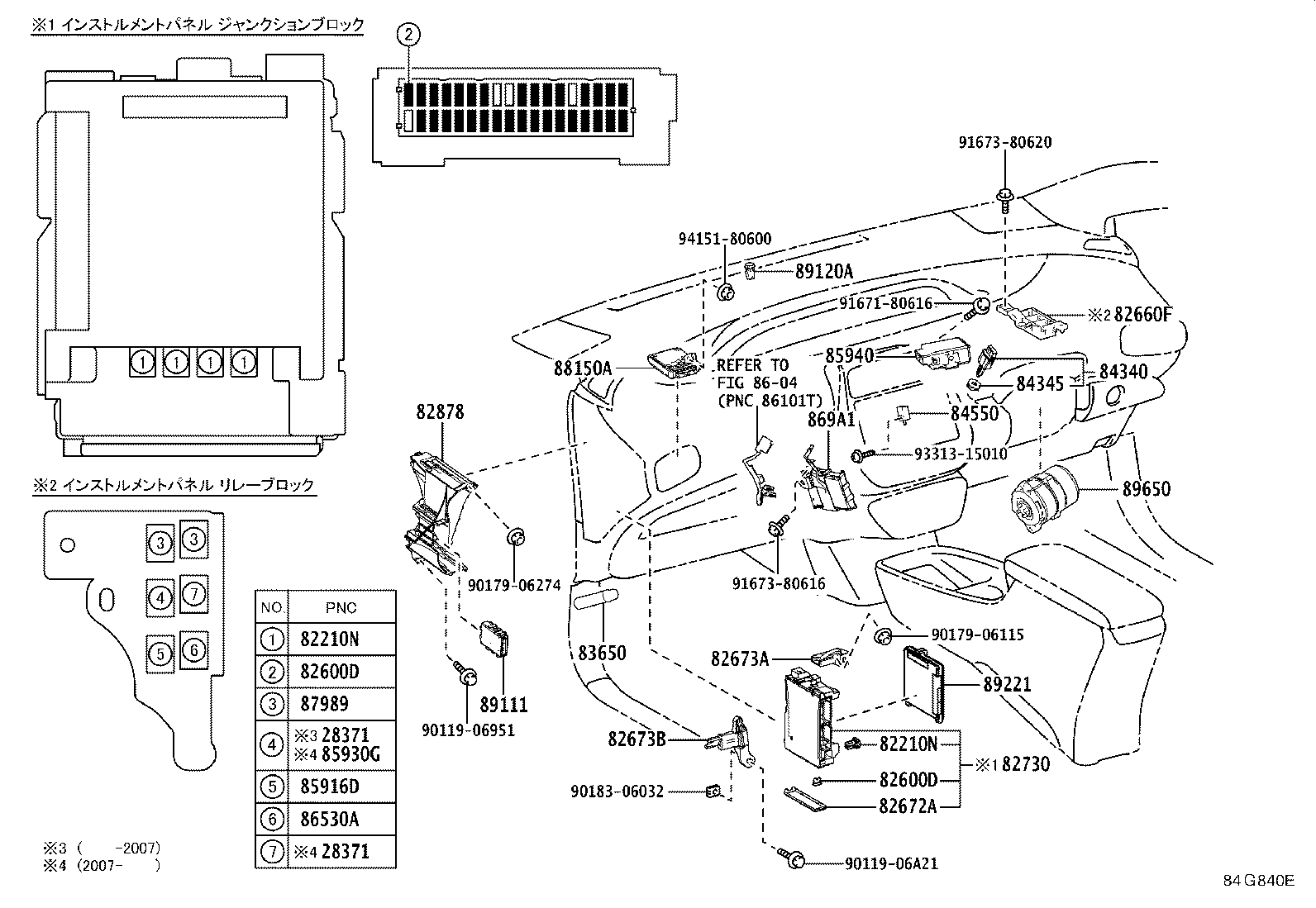

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371 — Relay, Ignition, NO.1 | ||||
| 90987-02027 note |
Relay, Ignition, NO.1
2015-11 → 2018-12
ended
|
2ZRFXE ZVW5# (A,S) CBU | ¥2,930 | |
| 90987-02027 |
Relay, Ignition, NO.1
2015-11 → 2018-12
ended
|
2ZRFXE ZVW51,55 PREM | ¥2,930 | |
| 90987-02027 note |
Relay, Ignition, NO.1
2018-12 → —
|
2ZRFXE ZVW5# (A,S) CBU | ¥2,930 | |
| 90987-02027 |
Relay, Ignition, NO.1
2018-12 → —
|
2ZRFXE ZVW5# PREM | ¥2,930 | |
| 82210N — Instrument Panel Fusible Link | ||||
| 90982-08306 note |
Instrument Panel Fusible Link
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥390 | |
| 90982-08306 note |
Instrument Panel Fusible Link
2018-12 → —
|
ZVW5# CBU | ¥390 | |
| 82600D — Instrument Panel Fuse | ||||
| 90982-09019 note |
Instrument Panel Fuse
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥70 | |
| 90982-09020 note |
Instrument Panel Fuse
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥70 | |
| 90982-09021 note |
Instrument Panel Fuse
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥70 | |
| 90982-09022 note |
Instrument Panel Fuse
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥70 | |
| 90982-09023 note |
Instrument Panel Fuse
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥70 | |
| 90982-09019 note |
Instrument Panel Fuse
2018-12 → —
|
ZVW5# CBU | ¥70 | |
| 90982-09020 note |
Instrument Panel Fuse
2018-12 → —
|
ZVW5# CBU | ¥70 | |
| 90982-09021 note |
Instrument Panel Fuse
2018-12 → —
|
ZVW5# CBU | ¥70 | |
| 90982-09022 note |
Instrument Panel Fuse
2018-12 → —
|
ZVW5# CBU | ¥70 | |
| 90982-09023 note |
Instrument Panel Fuse
2018-12 → —
|
ZVW5# CBU | ¥70 | |
| 82660F — Block Assy, Relay | ||||
| 82660-47060 |
Block Assy, Relay
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,420 | |
| 82660-47060 |
Block Assy, Relay
2018-12 → —
|
ZVW5# CBU | ¥1,420 | |
| 82672A — Cover, Junction Block | ||||
| 82672-47150 |
Cover, Junction Block
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥360 | |
| 82672-47170 |
Cover, Junction Block
2018-12 → —
|
ZVW5# CBU | ¥300 | |
| 82673A — Bracket, Junction Block, NO.1 | ||||
| 82673-47190 |
Bracket, Junction Block, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥550 | |
| 82673-47190 |
Bracket, Junction Block, NO.1
2018-12 → —
|
ZVW5# CBU | ¥550 | |
| 82673B — Bracket, Junction Block, NO.2 | ||||
| 82673-47210 |
Bracket, Junction Block, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥750 | |
| 82673-47210 |
Bracket, Junction Block, NO.2
2018-12 → —
|
ZVW5# CBU | ¥750 | |
| 82730 — Block Assy, Instrument Panel Junction | ||||
| 82730-47530 |
Block Assy, Instrument Panel Junction
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥17,400 | |
| 82730-47560 |
Block Assy, Instrument Panel Junction
2018-12 → —
|
ZVW5# CBU | ¥14,500 | |
| 82878 — Box, Computer Integration, LH | ||||
| 82878-47020 |
Box, Computer Integration, LH
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,780 | |
| 82878-47020 |
Box, Computer Integration, LH
2018-12 → —
|
ZVW5# CBU | ¥2,780 | |
| 83650 — Fusee | ||||
| 90986-01005 |
Fusee
2015-11 → 2018-12
ended
|
ZVW5# CBU | — | |
| 90986-01005 |
Fusee
2018-12 → —
|
ZVW5# CBU | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-49075 |
Switch Assy, Stop Lamp
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,390 | |
| 84340-19085 |
Switch Assy, Stop Lamp
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥1,570 | |
| 84340-19095 |
Switch Assy, Stop Lamp
2020-07 → —
|
ZVW5# CBU | ¥1,620 | |
| 84345 — Adjuster, Stop Lamp Switch Mounting | ||||
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥220 | |
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2018-12 → —
|
ZVW5# CBU | ¥220 | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-30080 |
Switch Assy, Parking Brake
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,210 | |
| 84550-30080 |
Switch Assy, Parking Brake
2018-12 → —
|
ZVW5# CBU | ¥1,210 | |
| 85916D — Relay, Fog Lamp | ||||
| 90987-02027 |
Relay, Fog Lamp
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥2,930 | |
| 90987-02027 note |
Relay, Fog Lamp
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥2,930 | |
| 90987-02027 note |
Relay, Fog Lamp
2018-12 → —
|
ZVW5# S CBU | ¥2,930 | |
| 90987-02027 note |
Relay, Fog Lamp
2021-06 → —
|
ZVW5# S CBU | ¥2,930 | |
| 90987-02027 note |
Relay, Fog Lamp
2018-12 → —
|
ZVW5# S CBU | ¥2,930 | |
| 90987-02027 |
Relay, Fog Lamp
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥2,930 | |
| 85930G — Relay, Acc | ||||
| 90987-02027 |
Relay, Acc
2020-07 → —
|
ZVW5# CBU | ¥2,930 | |
| 85940 — Relay Assy, Windshield Wiper | ||||
| 85940-47060 |
Relay Assy, Windshield Wiper
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥11,500 | |
| 85940-47060 note |
Relay Assy, Windshield Wiper
2016-08 → 2018-12
ended
|
ZVW50,55 S CBU | ¥11,500 | |
| 85940-47060 |
Relay Assy, Windshield Wiper
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥11,500 | |
| 85940-47060 note |
Relay Assy, Windshield Wiper
2020-07 → —
|
ZVW5# (E,S) CBU | ¥11,500 | |
| 85940-47060 note |
Relay Assy, Windshield Wiper
2020-07 → —
|
ZVW5# S CBU | ¥11,500 | |
| 85940-47060 note |
Relay Assy, Windshield Wiper
2020-07 → —
|
ZVW5# S CBU | ¥11,500 | |
| 86530A — Relay, Horn | ||||
| 90987-02027 |
Relay, Horn
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,930 | |
| 90987-02027 |
Relay, Horn
2018-12 → —
|
ZVW5# CBU | ¥2,930 | |
| 869A1 — Computer, Intelligent Transport Systems Communication | ||||
| 869A0-47010 note |
Computer, Intelligent Transport Systems Communication
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥128,000 | |
| 869A0-47010 note |
Computer, Intelligent Transport Systems Communication
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥128,000 | |
| 869A0-47010 note |
Computer, Intelligent Transport Systems Communication
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥128,000 | |
| 869A0-47030 note |
Computer, Intelligent Transport Systems Communication
2018-12 → 2020-07
ended
|
ZVW5# A CBU | ¥59,400 | |
| 869A0-47030 note |
Computer, Intelligent Transport Systems Communication
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥59,400 | |
| 869A0-47030 note |
Computer, Intelligent Transport Systems Communication
2018-12 → 2020-07
ended
|
ZVW5# PREM | ¥59,400 | |
| 869A0-47060 note |
Computer, Intelligent Transport Systems Communication
2020-07 → 2021-06
ended
|
ZVW5# A CBU | ¥49,500 | |
| 869A0-47060 note |
Computer, Intelligent Transport Systems Communication
2020-07 → 2021-06
ended
|
ZVW5# PREM | ¥49,500 | |
| 869A0-47060 note |
Computer, Intelligent Transport Systems Communication
2020-07 → —
|
ZVW5# CBU | ¥49,500 | |
| 869A0-47060 note |
Computer, Intelligent Transport Systems Communication
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥49,500 | |
| 87989 — Relay, Mirror Control | ||||
| 85927-22010 |
Relay, Mirror Control
2015-11 → 2018-10
ended
|
ZVW5# CBU | ¥1,270 | |
| 90987-04004 |
Relay, Mirror Control
2018-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,810 | |
| 90987-04004 |
Relay, Mirror Control
2018-12 → —
|
ZVW5# CBU | ¥2,810 | |
| 88150A — Computer Assy, Driving Support | ||||
| 88150-47110 |
Computer Assy, Driving Support
2015-11 → 2016-08
ended
|
ZVW51,55 (A,PREM) CBU | — | |
| 88150-47110 note |
Computer Assy, Driving Support
2015-11 → 2016-08
ended
|
ZVW5# (E,S) CBU | — | |
| 88150-47140 |
Computer Assy, Driving Support
2016-08 → 2017-11
ended
|
ZVW51,55 (A,PREM) CBU | ¥0 | |
| 88150-47140 note |
Computer Assy, Driving Support
2016-08 → 2017-11
ended
|
ZVW5# (E,S) CBU | ¥0 | |
| 88150-47160 |
Computer Assy, Driving Support
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥0 | |
| 88150-47160 note |
Computer Assy, Driving Support
2017-11 → 2018-12
ended
|
ZVW5# (E,S) CBU | ¥0 | |
| 88150-47190 |
Computer Assy, Driving Support
2018-12 → 2020-07
ended
|
ZVW5# CBU | — | |
| 89111 — Computer, Network Gateway | ||||
| 89111-47062 |
Computer, Network Gateway
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥17,200 | |
| 89111-10060 |
Computer, Network Gateway
2019-08 → 2020-07
ended
|
ZVW5# CBU | ¥6,200 | |
| 89111-12020 |
Computer, Network Gateway
2018-12 → 2019-08
ended
|
ZVW5# CBU | ¥6,200 | |
| 89111-47090 |
Computer, Network Gateway
2020-07 → —
|
ZVW5# CBU | ¥6,200 | |
| 89120A — Sensor, Automatic Light Control | ||||
| 89121-30020 |
Sensor, Automatic Light Control
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥4,010 | |
| 89121-30020 |
Sensor, Automatic Light Control
2018-12 → —
|
ZVW5# CBU | ¥4,010 | |
| 89221 — Computer, Multiplex Network Body | ||||
| 89220-4ED30 |
Computer, Multiplex Network Body
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥35,200 | |
| 89220-4ER00 |
Computer, Multiplex Network Body
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥35,200 | |
| 89220-4EY00 |
Computer, Multiplex Network Body
2020-07 → 2021-06
ended
|
ZVW5# CBU | ¥29,300 | |
| 89220-4EZ20 |
Computer, Multiplex Network Body
2021-06 → 2021-08
ended
|
ZVW5# CBU | ¥29,300 | |
| 89220-4EZ21 |
Computer, Multiplex Network Body
2021-09 → —
|
ZVW5# CBU | ¥29,300 | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-47450 |
Computer Assy, Power Steering
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥56,800 | |
| 89650-47570 note |
Computer Assy, Power Steering
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥56,800 | |
| 89650-47570 note |
Computer Assy, Power Steering
2017-04 → 2018-12
ended
|
ZVW50,55 S CBU | ¥56,800 | |
| 89650-47580 |
Computer Assy, Power Steering
2015-11 → 2018-12
ended
|
ZVW51 E | ¥56,800 | |
| 89650-47590 note |
Computer Assy, Power Steering
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥56,800 | |
| 89650-47590 note |
Computer Assy, Power Steering
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥56,800 | |
| 89650-47590 note |
Computer Assy, Power Steering
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥56,800 | |
| 89650-47590 note |
Computer Assy, Power Steering
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥56,800 | |
| 89650-47710 note |
Computer Assy, Power Steering
2018-12 → 2020-07
ended
|
ZVW51 (A,PREM,S) CBU | ¥56,800 | |
| 89650-47720 note |
Computer Assy, Power Steering
2018-12 → 2020-07
ended
|
ZVW55 CBU | ¥56,800 | |
| 89650-47730 note |
Computer Assy, Power Steering
2018-12 → 2020-07
ended
|
ZVW51 (A,PREM,S) CBU | ¥56,800 | |
| 89650-47740 note |
Computer Assy, Power Steering
2018-12 → 2020-07
ended
|
ZVW51 E | ¥56,800 | |
| 89650-47750 note |
Computer Assy, Power Steering
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥56,800 | |
| 89650-47750 note |
Computer Assy, Power Steering
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥56,800 | |
| 89650-47750 note |
Computer Assy, Power Steering
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥56,800 | |
| 89650-47750 note |
Computer Assy, Power Steering
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥56,800 | |
| 89650-47820 note |
Computer Assy, Power Steering
2020-07 → —
|
ZVW51 (A,PREM,S) CBU | ¥65,200 | |
| 89650-47830 note |
Computer Assy, Power Steering
2020-07 → —
|
ZVW55 CBU | ¥65,200 | |
| 89650-47840 note |
Computer Assy, Power Steering
2020-07 → —
|
ZVW51 (A,PREM,S) CBU | ¥65,200 | |
| 89650-47850 note |
Computer Assy, Power Steering
2020-07 → —
|
ZVW51 E | ¥65,200 | |
| 89650-47860 note |
Computer Assy, Power Steering
2020-07 → —
|
ZVW5# (A,S) CBU | ¥65,200 | |
| 89650-47860 note |
Computer Assy, Power Steering
2020-07 → —
|
ZVW5# (A,S) CBU | ¥65,200 | |
| 89650-47860 note |
Computer Assy, Power Steering
2020-07 → —
|
ZVW5# (A,S) CBU | ¥65,200 | |
| 89650-47860 note |
Computer Assy, Power Steering
2020-07 → —
|
ZVW5# (A,S) CBU | ¥65,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
