Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

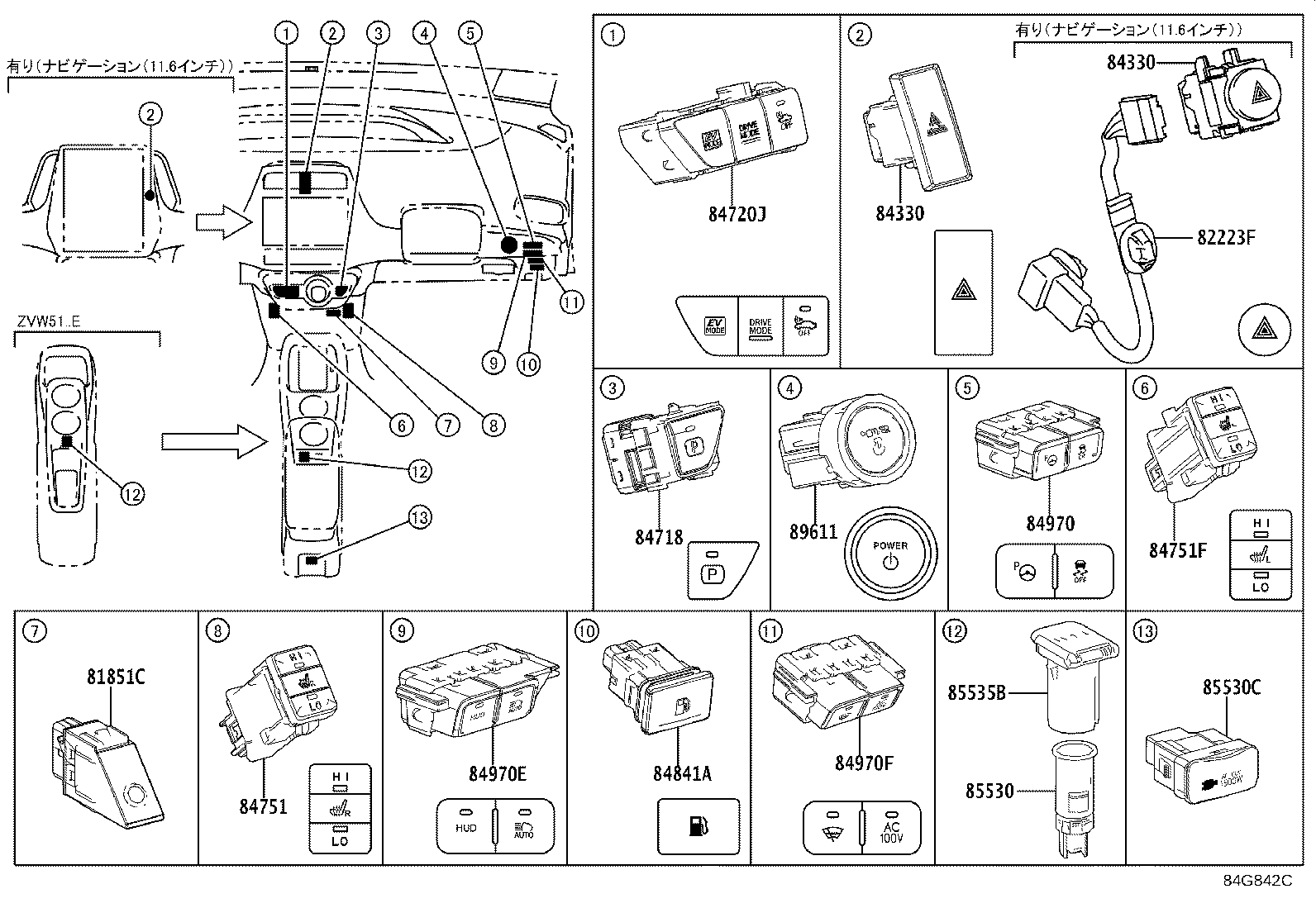

Exploded illustration 84G842C 84330 — SWITCH ASSY, HAZARD WARNING SIGNAL (6 parts) 84330 — SWITCH ASSY, HAZARD WARNING SIGNAL (6 parts) 84970 — SWITCH ASSY, COMBINATION (5 parts) 84970F — SWITCH ASSY, COMBINATION, NO.3 (17 parts) 84841A — SWITCH, FUEL LID OPENER (2 parts) 81851C — LAMP ASSY, INDICATOR (2 parts) 84751 — SWITCH, SEAT HEATER (3 parts) 84720J — SWITCH ASSY, PATTERN SELECT (7 parts) 84718 — SWITCH, TRANSMISSION SHIFT MAIN (2 parts) 84970E — SWITCH ASSY, COMBINATION NO.2 (5 parts) 85530 — SOCKET ASSY, POWER OUTLET, NO.1 (2 parts) 85535B — COVER, POWER OUTLET SOCKET, NO.1 (2 parts) 89611 — SWITCH, PUSH START (5 parts) 85530C — SOCKET ASSY, POWER OUTLET, CENTER (8 parts) 84751F — SWITCH, SEAT HEATER (3 parts) 82223F — WIRE, SWITCH (4 parts)
84G842C · 16 callouts Full size ↗
73 parts on this figure
Part number Description Fitment Price
81851C — Lamp Assy, Indicator
81850-47030 note Lamp Assy, Indicator
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥1,490
81850-47030 Lamp Assy, Indicator
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥1,490
82223F — Wire, Switch
82223-47030 note Wire, Switch
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥400
82223-47030 note Wire, Switch
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥400
82223-47030 note Wire, Switch
2018-12 → 2021-06 ended
ZVW5# A CBU ¥400
82223-47030 note Wire, Switch
2018-12 → 2021-06 ended
ZVW5# PREM ¥400
84330 — Switch Assy, Hazard Warning Signal
84332-47050 Switch Assy, Hazard Warning Signal
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,940
84332-47060 note Switch Assy, Hazard Warning Signal
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥2,940
84332-47060 note Switch Assy, Hazard Warning Signal
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥2,940
84332-47050 Switch Assy, Hazard Warning Signal
2018-12 → —
ZVW5# CBU ¥2,940
84332-47060 note Switch Assy, Hazard Warning Signal
2018-12 → 2021-06 ended
ZVW5# A CBU ¥2,940
84332-47060 note Switch Assy, Hazard Warning Signal
2018-12 → 2021-06 ended
ZVW5# PREM ¥2,940
84718 — Switch, Transmission Shift Main
84718-47090 Switch, Transmission Shift Main
2015-11 → 2018-12 ended
ZVW5# CBU ¥4,000
84718-47120 Switch, Transmission Shift Main
2018-12 → —
ZVW5# CBU ¥3,330
84720J — Switch Assy, Pattern Select
84010-47290 Switch Assy, Pattern Select
2015-11 → 2018-12 ended
ZVW5# CBU ¥8,000
84010-47290 Switch Assy, Pattern Select
2018-12 → 2020-07 ended
ZVW5# CBU ¥8,000
84010-47300 Switch Assy, Pattern Select
2020-07 → —
ZVW5# CBU ¥5,200
84010-47620 note Switch Assy, Pattern Select
2019-08 → —
ZVW5# (A,PREM) CBU ¥6,200
84010-47620 note Switch Assy, Pattern Select
2019-08 → 2021-06 ended
ZVW51 E ¥6,200
84010-47620 note Switch Assy, Pattern Select
2021-06 → —
ZVW5# S CBU ¥6,200
84010-47620 note Switch Assy, Pattern Select
2019-08 → —
ZVW5# (A,PREM,S) CBU ¥6,200
84751 — Switch, Seat Heater
84751-47070 Switch, Seat Heater
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥5,400
84751-47070 note Switch, Seat Heater
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥5,400
84751-47080 note Switch, Seat Heater
2018-12 → —
ZVW5# (A,S) CBU ¥3,910
84751F — Switch, Seat Heater
84751-47060 Switch, Seat Heater
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥5,400
84751-47060 note Switch, Seat Heater
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥5,400
84751-47090 note Switch, Seat Heater
2018-12 → —
ZVW5# (A,S) CBU ¥3,910
84841A — Switch, Fuel Lid Opener
84841-47020 Switch, Fuel Lid Opener
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,320
84841-47020 Switch, Fuel Lid Opener
2018-12 → —
ZVW5# CBU ¥2,320
84970 — Switch Assy, Combination
84010-47270 Switch Assy, Combination
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥5,200
84010-47270 note Switch Assy, Combination
2015-11 → 2018-12 ended
ZVW50,55 S CBU ¥5,200
84010-47280 Switch Assy, Combination
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥3,900
84010-47270 Switch Assy, Combination
2018-12 → —
ZVW5# (A,PREM) CBU ¥5,200
84010-47280 Switch Assy, Combination
2018-12 → —
ZVW5# (E,S) CBU ¥3,900
84970E — Switch Assy, Combination NO.2
84010-47210 note Switch Assy, Combination NO.2
2016-08 → 2017-11 ended
ZVW50,55 S CBU ¥7,700
84010-47210 Switch Assy, Combination NO.2
2015-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU ¥7,700
84010-47250 note Switch Assy, Combination NO.2
2015-11 → 2018-12 ended
ZVW5# (E,S) CBU ¥5,400
84010-47490 Switch Assy, Combination NO.2
2018-12 → —
ZVW5# (A,PREM) CBU ¥6,400
84010-47510 Switch Assy, Combination NO.2
2018-12 → —
ZVW5# (E,S) CBU ¥4,430
84970F — Switch Assy, Combination, NO.3
84010-47330 note Switch Assy, Combination, NO.3
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥6,400
84010-47330 note Switch Assy, Combination, NO.3
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥6,400
84010-47340 note Switch Assy, Combination, NO.3
2015-11 → 2018-12 ended
ZVW5# (A,E,S) CBU ¥5,400
84010-47340 note Switch Assy, Combination, NO.3
2015-11 → 2018-12 ended
ZVW51 PREM ¥5,400
84010-47350 Switch Assy, Combination, NO.3
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥4,430
84010-47350 note Switch Assy, Combination, NO.3
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥4,430
84010-47350 note Switch Assy, Combination, NO.3
2015-11 → 2018-12 ended
ZVW51 PREM ¥4,430
84010-47330 note Switch Assy, Combination, NO.3
2020-07 → —
ZVW5# (A,E,S) CBU ¥6,400
84010-47330 note Switch Assy, Combination, NO.3
2018-12 → 2020-07 ended
ZVW5# (A,S) CBU ¥6,400
84010-47330 note Switch Assy, Combination, NO.3
2018-12 → —
ZVW5# PREM ¥6,400
84010-47340 note Switch Assy, Combination, NO.3
2018-12 → 2020-07 ended
ZVW5# (A,E,S) CBU ¥5,400
84010-47340 note Switch Assy, Combination, NO.3
2018-12 → 2020-07 ended
ZVW51 PREM ¥5,400
84010-47350 Switch Assy, Combination, NO.3
2020-07 → —
ZVW5# (A,E,S) CBU ¥4,430
84010-47350 Switch Assy, Combination, NO.3
2018-12 → —
ZVW5# PREM ¥4,430
84010-47350 note Switch Assy, Combination, NO.3
2018-12 → 2020-01 ended
ZVW51 PREM ¥4,430
84010-47350 note Switch Assy, Combination, NO.3
2018-12 → 2020-01 ended
ZVW51 PREM ¥4,430
84010-47350 note Switch Assy, Combination, NO.3
2018-12 → 2020-07 ended
ZVW5# (A,S) CBU ¥4,430
85530 — Socket Assy, Power Outlet, NO.1
85530-42010 Socket Assy, Power Outlet, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,750
85530-42010 Socket Assy, Power Outlet, NO.1
2018-12 → —
ZVW5# CBU ¥1,750
85530C — Socket Assy, Power Outlet, Center
85530-75010-C0 note Socket Assy, Power Outlet, Center
2015-11 → 2018-12 ended
ZVW51,55 PREM ¥1,750
85530-75010-C0 note Socket Assy, Power Outlet, Center
2015-11 → 2018-12 ended
ZVW5# (A,S) CBU ¥1,750
85530-75010-C0 note Socket Assy, Power Outlet, Center
2015-11 → 2018-12 ended
ZVW51 PREM ¥1,750
85530-47020 Socket Assy, Power Outlet, Center
2020-07 → —
ZVW5# (A,PREM,S) CBU ¥1,940
85530-75010-C0 note Socket Assy, Power Outlet, Center
2018-12 → 2020-06 ended
ZVW5# PREM ¥1,750
85530-75010-C0 note Socket Assy, Power Outlet, Center
2018-12 → 2020-06 ended
ZVW5# (A,S) CBU ¥1,750
85530-75010-C0 note Socket Assy, Power Outlet, Center
2018-12 → 2020-01 ended
ZVW51 PREM ¥1,750
85530-75010-C0 note Socket Assy, Power Outlet, Center
2018-12 → 2020-01 ended
ZVW51 PREM ¥1,750
85535B — Cover, Power Outlet Socket, NO.1
85535-47030 Cover, Power Outlet Socket, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥470
85535-47030 Cover, Power Outlet Socket, NO.1
2018-12 → —
ZVW5# CBU ¥470
89611 — Switch, Push Start
89611-30141 Switch, Push Start
2015-11 → 2016-05 ended
ZVW5# CBU ¥14,600
89611-30142 Switch, Push Start
2016-06 → 2018-12 ended
ZVW5# CBU ¥10,100
89611-30142 Switch, Push Start
2018-12 → 2021-12 ended
ZVW5# CBU ¥10,100
89611-30143 Switch, Push Start
2022-01 → 2022-06 ended
ZVW5# CBU ¥10,100
89611-30144 Switch, Push Start
2022-07 → —
ZVW5# CBU ¥10,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
