Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

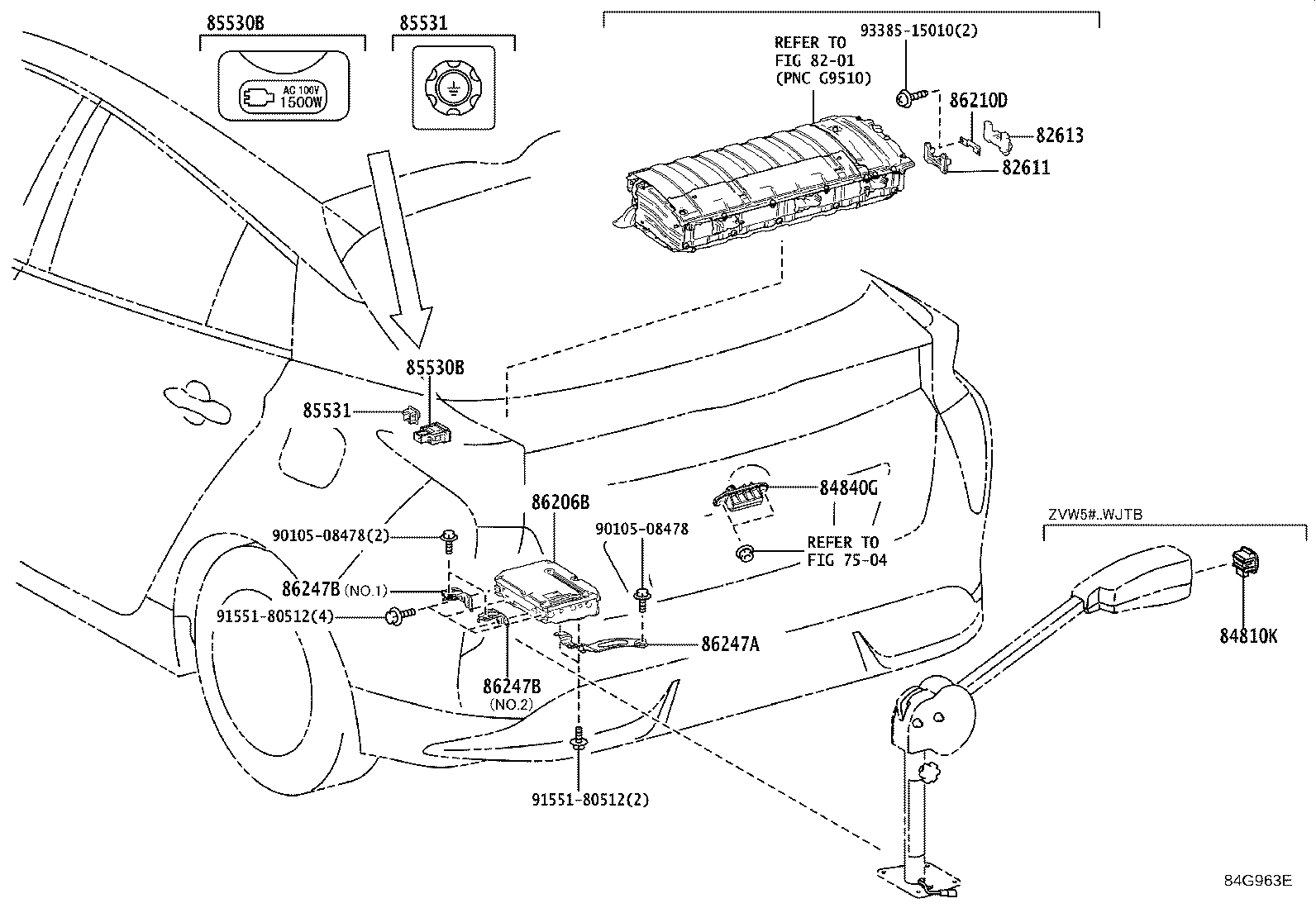

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82611 — Cover, Fuse Block | ||||
| 82611-47060 note |
Cover, Fuse Block
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥310 | |
| 82611-47060 |
Cover, Fuse Block
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥310 | |
| 82611-47060 note |
Cover, Fuse Block
2015-11 → 2018-12
ended
|
ZVW51 PREM | ¥310 | |
| 82611-47060 note |
Cover, Fuse Block
2018-12 → 2020-01
ended
|
ZVW51 PREM | ¥310 | |
| 82611-47060 note |
Cover, Fuse Block
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥310 | |
| 82611-47060 |
Cover, Fuse Block
2018-12 → —
|
ZVW5# PREM | ¥310 | |
| 82611-47060 note |
Cover, Fuse Block
2018-12 → —
|
ZVW51 PREM | ¥310 | |
| 82611-47060 |
Cover, Fuse Block
2020-07 → —
|
ZVW5# (A,E,S) CBU | ¥310 | |
| 82613 — Cover, Fuse Block | ||||
| 82613-47020 note |
Cover, Fuse Block
2015-11 → 2018-12
ended
|
ZVW51 PREM | ¥520 | |
| 82613-47020 note |
Cover, Fuse Block
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥520 | |
| 82613-47020 |
Cover, Fuse Block
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥520 | |
| 82613-47020 note |
Cover, Fuse Block
2018-12 → 2020-01
ended
|
ZVW51 PREM | ¥520 | |
| 82613-47020 note |
Cover, Fuse Block
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥520 | |
| 82613-47020 |
Cover, Fuse Block
2018-12 → —
|
ZVW5# PREM | ¥520 | |
| 82613-47020 note |
Cover, Fuse Block
2018-12 → —
|
ZVW51 PREM | ¥520 | |
| 82613-47020 |
Cover, Fuse Block
2020-07 → —
|
ZVW5# (A,E,S) CBU | ¥520 | |
| 84840G — Switch Assy, Back Door Opener | ||||
| 84840-47040 |
Switch Assy, Back Door Opener
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,210 | |
| 84840-47040 |
Switch Assy, Back Door Opener
2018-12 → —
|
ZVW5# CBU | ¥3,210 | |
| 85530B — Socket Assy, Power Outlet, Rear NO.1 | ||||
| 85530-75010-C0 note |
Socket Assy, Power Outlet, Rear NO.1
2015-11 → 2018-12
ended
|
ZVW51 PREM | ¥1,750 | |
| 85530-75010-C0 note |
Socket Assy, Power Outlet, Rear NO.1
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥1,750 | |
| 85530-75010-C0 note |
Socket Assy, Power Outlet, Rear NO.1
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥1,750 | |
| 85530-47020 |
Socket Assy, Power Outlet, Rear NO.1
2020-07 → —
|
ZVW5# CBU | ¥1,940 | |
| 85530-75010-C0 note |
Socket Assy, Power Outlet, Rear NO.1
2018-12 → 2020-01
ended
|
ZVW51 PREM | ¥1,750 | |
| 85530-75010-C0 note |
Socket Assy, Power Outlet, Rear NO.1
2018-12 → 2020-06
ended
|
ZVW5# PREM | ¥1,750 | |
| 85530-75010-C0 note |
Socket Assy, Power Outlet, Rear NO.1
2018-12 → 2020-06
ended
|
ZVW5# (A,S) CBU | ¥1,750 | |
| 85530-75010-C0 note |
Socket Assy, Power Outlet, Rear NO.1
2018-12 → 2020-01
ended
|
ZVW51 PREM | ¥1,750 | |
| 85531 — Socket, Power Outlet | ||||
| 85530-28050-C0 note |
Socket, Power Outlet
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥1,750 | |
| 85530-28050-C0 note |
Socket, Power Outlet
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥1,750 | |
| 85530-28050-C0 note |
Socket, Power Outlet
2015-11 → 2018-12
ended
|
ZVW51 PREM | ¥1,750 | |
| 85530-28050-C0 note |
Socket, Power Outlet
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥1,750 | |
| 85530-28050-C0 note |
Socket, Power Outlet
2020-07 → —
|
ZVW5# (A,S) CBU | ¥1,750 | |
| 85530-28050-C0 note |
Socket, Power Outlet
2020-07 → —
|
ZVW51 E | ¥1,750 | |
| 85530-28050-C0 note |
Socket, Power Outlet
2018-12 → —
|
ZVW51 PREM | ¥1,750 | |
| 85530-28050-C0 note |
Socket, Power Outlet
2018-12 → —
|
ZVW5# PREM | ¥1,750 | |
| 85530-28050-C0 note |
Socket, Power Outlet
2018-12 → 2020-01
ended
|
ZVW51 PREM | ¥1,750 | |
| 86206B — Inverter Sub-assy, Voltage | ||||
| 8624A-47020 |
Inverter Sub-assy, Voltage
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥93,500 | |
| 8624A-47020 note |
Inverter Sub-assy, Voltage
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥93,500 | |
| 8624A-47020 note |
Inverter Sub-assy, Voltage
2015-11 → 2018-12
ended
|
ZVW51 PREM | ¥93,500 | |
| 8624A-47020 note |
Inverter Sub-assy, Voltage
2018-12 → 2020-07
ended
|
ZVW51 PREM | ¥93,500 | |
| 8624A-47020 |
Inverter Sub-assy, Voltage
2018-12 → —
|
ZVW55 PREM | ¥93,500 | |
| 8624A-47020 |
Inverter Sub-assy, Voltage
2020-07 → —
|
ZVW55 (A,S) CBU | ¥93,500 | |
| 8624A-47020 |
Inverter Sub-assy, Voltage
2018-12 → 2020-07
ended
|
ZVW51 PREM | ¥93,500 | |
| 8624A-47020 note |
Inverter Sub-assy, Voltage
2018-12 → 2020-01
ended
|
ZVW51 PREM | ¥93,500 | |
| 8624A-47020 note |
Inverter Sub-assy, Voltage
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥93,500 | |
| 8624A-47040 |
Inverter Sub-assy, Voltage
2020-07 → —
|
ZVW51 CBU | ¥93,500 | |
| 8624A-47040 note |
Inverter Sub-assy, Voltage
2020-07 → —
|
ZVW51 PREM | ¥93,500 | |
| 86210D — Fuse, High Voltage | ||||
| 90982-11053 |
Fuse, High Voltage
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥1,710 | |
| 90982-11053 note |
Fuse, High Voltage
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥1,710 | |
| 90982-11053 note |
Fuse, High Voltage
2015-11 → 2018-12
ended
|
ZVW51 PREM | ¥1,710 | |
| 90982-11053 note |
Fuse, High Voltage
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥1,710 | |
| 90982-11053 |
Fuse, High Voltage
2020-07 → —
|
ZVW5# (A,E,S) CBU | ¥1,710 | |
| 90982-11053 note |
Fuse, High Voltage
2018-12 → —
|
ZVW51 PREM | ¥1,710 | |
| 90982-11053 |
Fuse, High Voltage
2018-12 → —
|
ZVW5# PREM | ¥1,710 | |
| 90982-11053 note |
Fuse, High Voltage
2018-12 → 2020-01
ended
|
ZVW51 PREM | ¥1,710 | |
| 86247A — Bracket, Voltage Inverter | ||||
| 86247-47170 |
Bracket, Voltage Inverter
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥1,360 | |
| 86247-47170 note |
Bracket, Voltage Inverter
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥1,360 | |
| 86247-47170 note |
Bracket, Voltage Inverter
2015-11 → 2018-12
ended
|
ZVW51 PREM | ¥1,360 | |
| 86247-47070 note |
Bracket, Voltage Inverter
2020-07 → —
|
ZVW51 (A,PREM,S) CBU | ¥1,600 | |
| 86247-47070 note |
Bracket, Voltage Inverter
2020-07 → 2021-06
ended
|
ZVW51 E | ¥1,600 | |
| 86247-47100 |
Bracket, Voltage Inverter
2020-07 → —
|
ZVW51 CBU | ¥1,150 | |
| 86247-47100 note |
Bracket, Voltage Inverter
2020-07 → —
|
ZVW51 PREM | ¥1,150 | |
| 86247-47170 note |
Bracket, Voltage Inverter
2018-12 → 2020-07
ended
|
ZVW51 PREM | ¥1,360 | |
| 86247-47170 |
Bracket, Voltage Inverter
2018-12 → 2020-07
ended
|
ZVW51 PREM | ¥1,360 | |
| 86247-47170 |
Bracket, Voltage Inverter
2018-12 → —
|
ZVW55 PREM | ¥1,360 | |
| 86247-47170 note |
Bracket, Voltage Inverter
2018-12 → 2020-01
ended
|
ZVW51 PREM | ¥1,360 | |
| 86247-47170 |
Bracket, Voltage Inverter
2020-07 → —
|
ZVW55 (A,S) CBU | ¥1,360 | |
| 86247-47170 note |
Bracket, Voltage Inverter
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥1,360 | |
| 86247B — Bracket, Voltage Inverter | ||||
| 86247-47180 note |
Bracket, Voltage Inverter
2015-11 → 2018-12
ended
|
ZVW51 PREM | ¥780 | |
| 86247-47180 note |
Bracket, Voltage Inverter
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥780 | |
| 86247-47180 note |
Bracket, Voltage Inverter
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥780 | |
| 86247-47190 note |
Bracket, Voltage Inverter
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥550 | |
| 86247-47190 note |
Bracket, Voltage Inverter
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥550 | |
| 86247-47080 note |
Bracket, Voltage Inverter
2020-07 → —
|
ZVW51 (A,PREM,S) CBU | ¥480 | |
| 86247-47080 note |
Bracket, Voltage Inverter
2020-07 → 2021-06
ended
|
ZVW51 E | ¥480 | |
| 86247-47090 note |
Bracket, Voltage Inverter
2020-07 → —
|
ZVW51 PREM | ¥1,010 | |
| 86247-47090 |
Bracket, Voltage Inverter
2020-07 → —
|
ZVW51 CBU | ¥1,010 | |
| 86247-47180 note |
Bracket, Voltage Inverter
2018-12 → 2020-01
ended
|
ZVW51 PREM | ¥780 | |
| 86247-47180 note |
Bracket, Voltage Inverter
2020-07 → —
|
ZVW55 (A,S) CBU | ¥780 | |
| 86247-47180 note |
Bracket, Voltage Inverter
2018-12 → —
|
ZVW55 PREM | ¥780 | |
| 86247-47180 note |
Bracket, Voltage Inverter
2018-12 → 2020-07
ended
|
ZVW51 PREM | ¥780 | |
| 86247-47180 note |
Bracket, Voltage Inverter
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥780 | |
| 86247-47180 note |
Bracket, Voltage Inverter
2018-12 → 2020-07
ended
|
ZVW51 PREM | ¥780 | |
| 86247-47190 note |
Bracket, Voltage Inverter
2018-12 → 2020-07
ended
|
ZVW5# (A,S) CBU | ¥550 | |
| 86247-47190 note |
Bracket, Voltage Inverter
2018-12 → —
|
ZVW55 PREM | ¥550 | |
| 86247-47190 note |
Bracket, Voltage Inverter
2018-12 → 2020-07
ended
|
ZVW51 PREM | ¥550 | |
| 86247-47190 note |
Bracket, Voltage Inverter
2020-07 → —
|
ZVW55 (A,S) CBU | ¥550 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
