Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

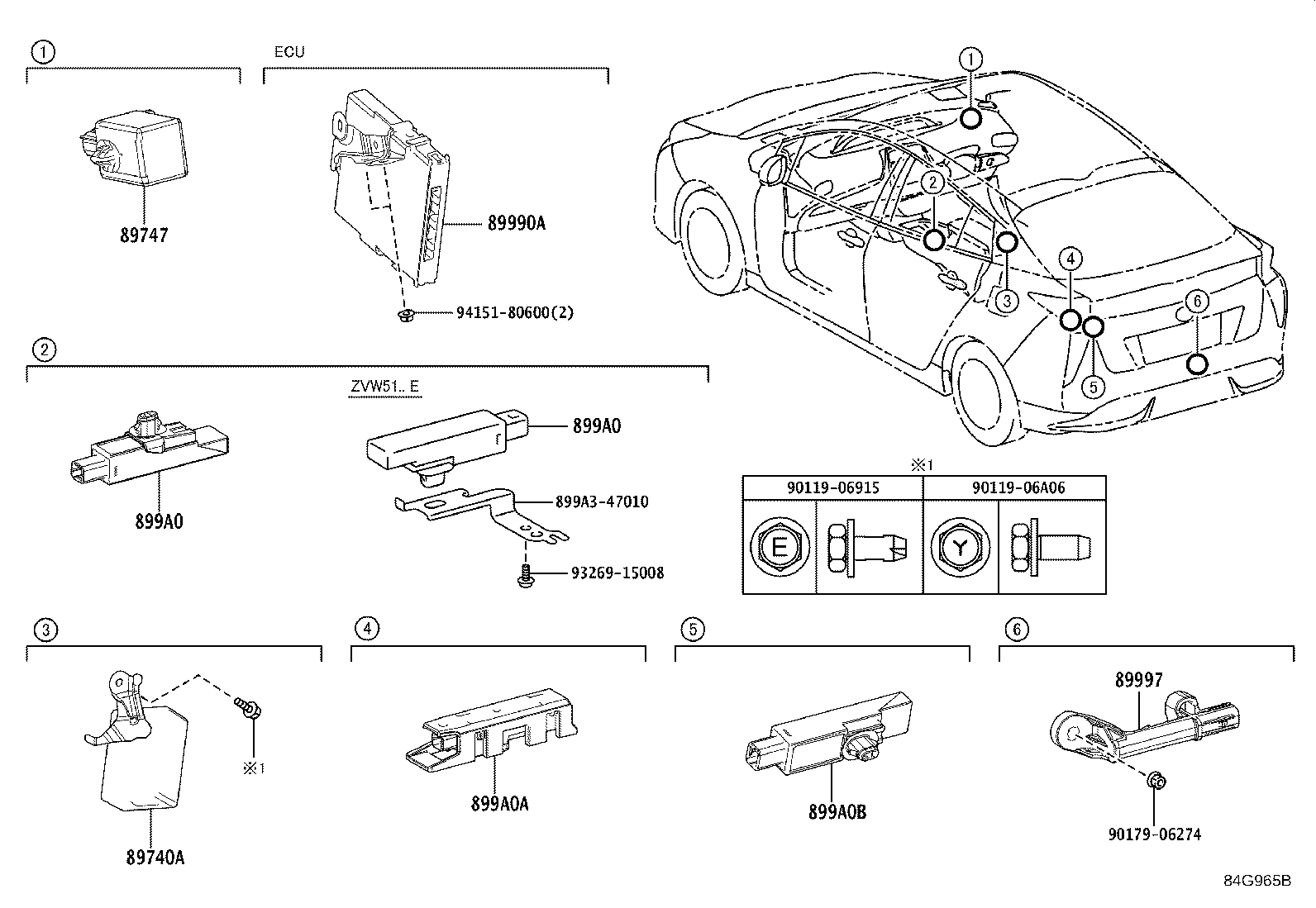

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89740A — Receiver Assy, Smart Door Control | ||||
| 89740-47010 |
Receiver Assy, Smart Door Control
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥15,500 | |
| 89740-47010 |
Receiver Assy, Smart Door Control
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥15,500 | |
| 89740-47280 |
Receiver Assy, Smart Door Control
2020-07 → —
|
ZVW5# CBU | ¥12,900 | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-30040 |
Buzzer, Wireless Door Lock
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,900 | |
| 89747-30040 |
Buzzer, Wireless Door Lock
2018-12 → —
|
ZVW5# CBU | ¥2,900 | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-47130 |
Computer Assy, Smart Key
2015-11 → 2017-03
ended
|
ZVW5# CBU | ¥49,000 | |
| 89990-47131 |
Computer Assy, Smart Key
2017-03 → 2018-01
ended
|
ZVW5# CBU | ¥49,000 | |
| 89990-47132 |
Computer Assy, Smart Key
2018-02 → 2018-12
ended
|
ZVW5# CBU | ¥49,000 | |
| 89990-47132 |
Computer Assy, Smart Key
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥49,000 | |
| 89990-47350 |
Computer Assy, Smart Key
2020-07 → 2021-06
ended
|
ZVW5# CBU | ¥40,800 | |
| 89990-47420 |
Computer Assy, Smart Key
2021-06 → 2022-08
ended
|
ZVW5# CBU | ¥40,800 | |
| 89990-47421 |
Computer Assy, Smart Key
2022-09 → —
|
ZVW5# CBU | ¥40,800 | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-30100 |
Antenna, Electrical Key
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,800 | |
| 89997-30100 |
Antenna, Electrical Key
2018-12 → —
|
ZVW5# CBU | ¥1,800 | |
| 899A0 — Antenna Assy, Indoor Electrical Key, NO.1 | ||||
| 899A0-47010 |
Antenna Assy, Indoor Electrical Key, NO.1
2015-11 → 2018-12
ended
|
ZVW51 E | ¥1,410 | |
| 899A0-60010 |
Antenna Assy, Indoor Electrical Key, NO.1
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,410 | |
| 899A0-47010 |
Antenna Assy, Indoor Electrical Key, NO.1
2018-12 → —
|
ZVW51 E | ¥1,410 | |
| 899A0-60010 |
Antenna Assy, Indoor Electrical Key, NO.1
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,410 | |
| 899A0A — Antenna Assy, Indoor Electrical Key, NO.2 | ||||
| 899A0-47050 |
Antenna Assy, Indoor Electrical Key, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,550 | |
| 899A0-47050 |
Antenna Assy, Indoor Electrical Key, NO.2
2018-12 → —
|
ZVW5# CBU | ¥1,550 | |
| 899A0B — Antenna Assy, Indoor Electrical Key, NO.3 | ||||
| 899A0-47010 |
Antenna Assy, Indoor Electrical Key, NO.3
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,410 | |
| 899A0-47010 |
Antenna Assy, Indoor Electrical Key, NO.3
2018-12 → —
|
ZVW5# CBU | ¥1,410 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
