Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

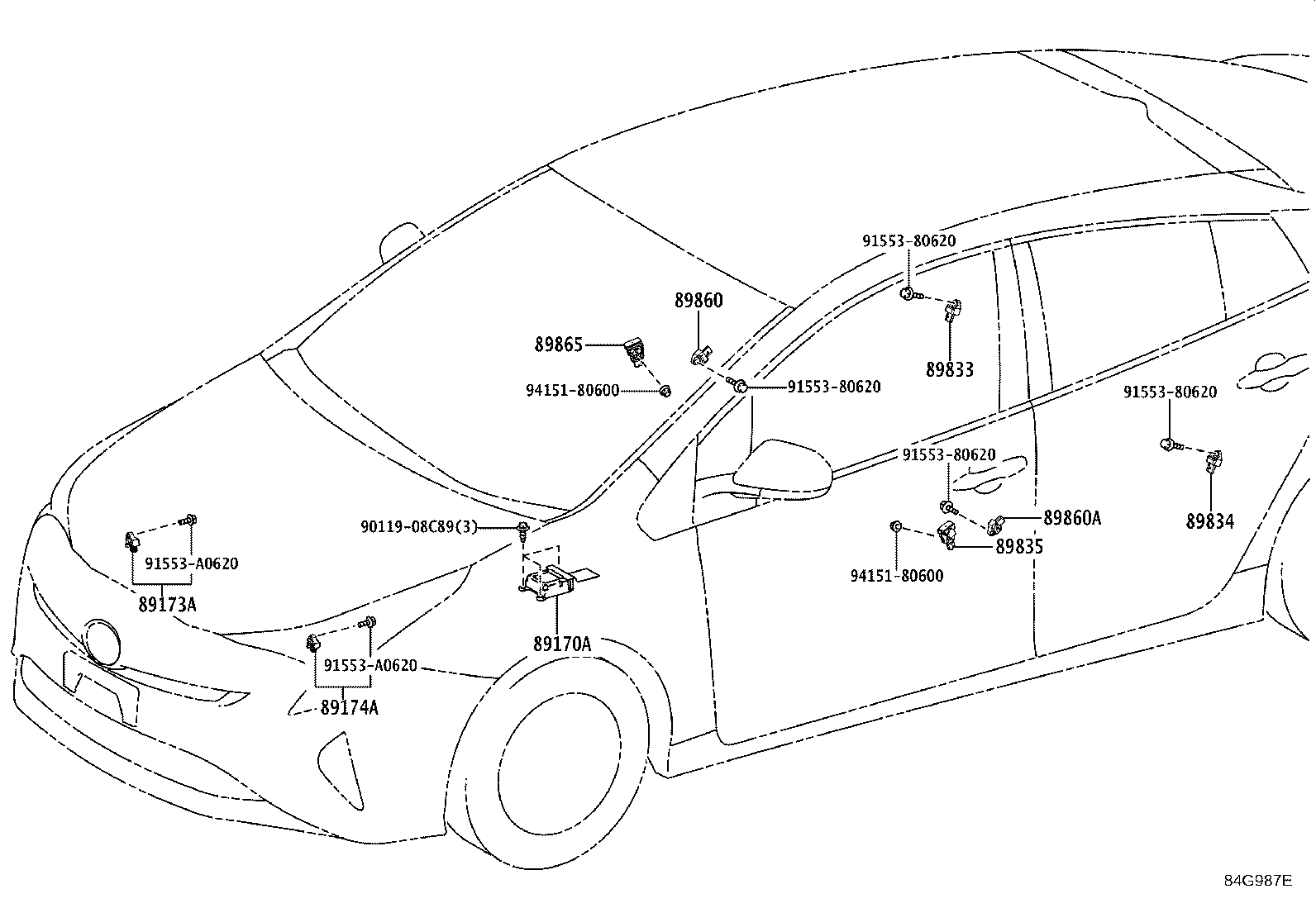

Exploded illustration 84G987E 89173A — SENSOR, AIRBAG, FRONT RH (2 parts) 91553A0620 — not listed in this catalogue 89174A — SENSOR, AIRBAG, FRONT LH (2 parts) 91553A0620 — not listed in this catalogue 89170A — COMPUTER ASSY, AIRBAG (5 parts) 89860 — SENSOR ASSY, SIDE AIRBAG, RH (2 parts) 89865 — SENSOR, DOOR SIDE AIRBAG, RH (2 parts) 89835 — SENSOR, DOOR SIDE AIRBAG, LH (2 parts) 89860A — SENSOR ASSY, SIDE AIRBAG, LH (2 parts) 89834 — SENSOR, AIRBAG, REAR LH (2 parts) 89833 — SENSOR, AIRBAG, REAR RH (2 parts) 9011908C89 — not listed in this catalogue 9155380620 — not listed in this catalogue 9155380620 — not listed in this catalogue 9155380620 — not listed in this catalogue 9155380620 — not listed in this catalogue 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue
84G987E · 9 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
89170A — Computer Assy, Airbag
89170-47610 Computer Assy, Airbag
2015-11 → 2017-10 ended
ZVW5# CBU ¥54,700
89170-47611 Computer Assy, Airbag
2017-11 → 2018-12 ended
ZVW5# CBU ¥54,700
89170-47820 Computer Assy, Airbag
2019-08 → 2020-07 ended
ZVW5# CBU ¥44,800
89170-47870 Computer Assy, Airbag
2018-12 → 2019-08 ended
ZVW5# CBU ¥44,800
89170-47B40 Computer Assy, Airbag
2020-07 → —
ZVW5# CBU ¥37,300
89173A — Sensor, Airbag, Front RH
89173-49495 Sensor, Airbag, Front RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥8,200
89173-49495 Sensor, Airbag, Front RH
2018-12 → —
ZVW5# CBU ¥8,200
89174A — Sensor, Airbag, Front LH
89173-49495 Sensor, Airbag, Front LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥8,200
89173-49495 Sensor, Airbag, Front LH
2018-12 → —
ZVW5# CBU ¥8,200
89833 — Sensor, Airbag, Rear RH
89831-28040 Sensor, Airbag, Rear RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥8,200
89831-28040 Sensor, Airbag, Rear RH
2018-12 → —
ZVW5# CBU ¥8,200
89834 — Sensor, Airbag, Rear LH
89831-28040 Sensor, Airbag, Rear LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥8,200
89831-28040 Sensor, Airbag, Rear LH
2018-12 → —
ZVW5# CBU ¥8,200
89835 — Sensor, Door Side Airbag, LH
8983A-47010 Sensor, Door Side Airbag, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥9,100
8983A-47010 Sensor, Door Side Airbag, LH
2018-12 → —
ZVW5# CBU ¥9,100
89860 — Sensor Assy, Side Airbag, RH
89831-28030 Sensor Assy, Side Airbag, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥8,200
89831-28030 Sensor Assy, Side Airbag, RH
2018-12 → 2019-08 ended
ZVW5# CBU ¥8,200
89860A — Sensor Assy, Side Airbag, LH
89831-28030 Sensor Assy, Side Airbag, LH
2015-11 → 2018-12 ended
ZVW5# CBU ¥8,200
89831-28030 Sensor Assy, Side Airbag, LH
2018-12 → 2019-08 ended
ZVW5# CBU ¥8,200
89865 — Sensor, Door Side Airbag, RH
8983A-47010 Sensor, Door Side Airbag, RH
2015-11 → 2018-12 ended
ZVW5# CBU ¥9,100
8983A-47010 Sensor, Door Side Airbag, RH
2018-12 → —
ZVW5# CBU ¥9,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
