Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

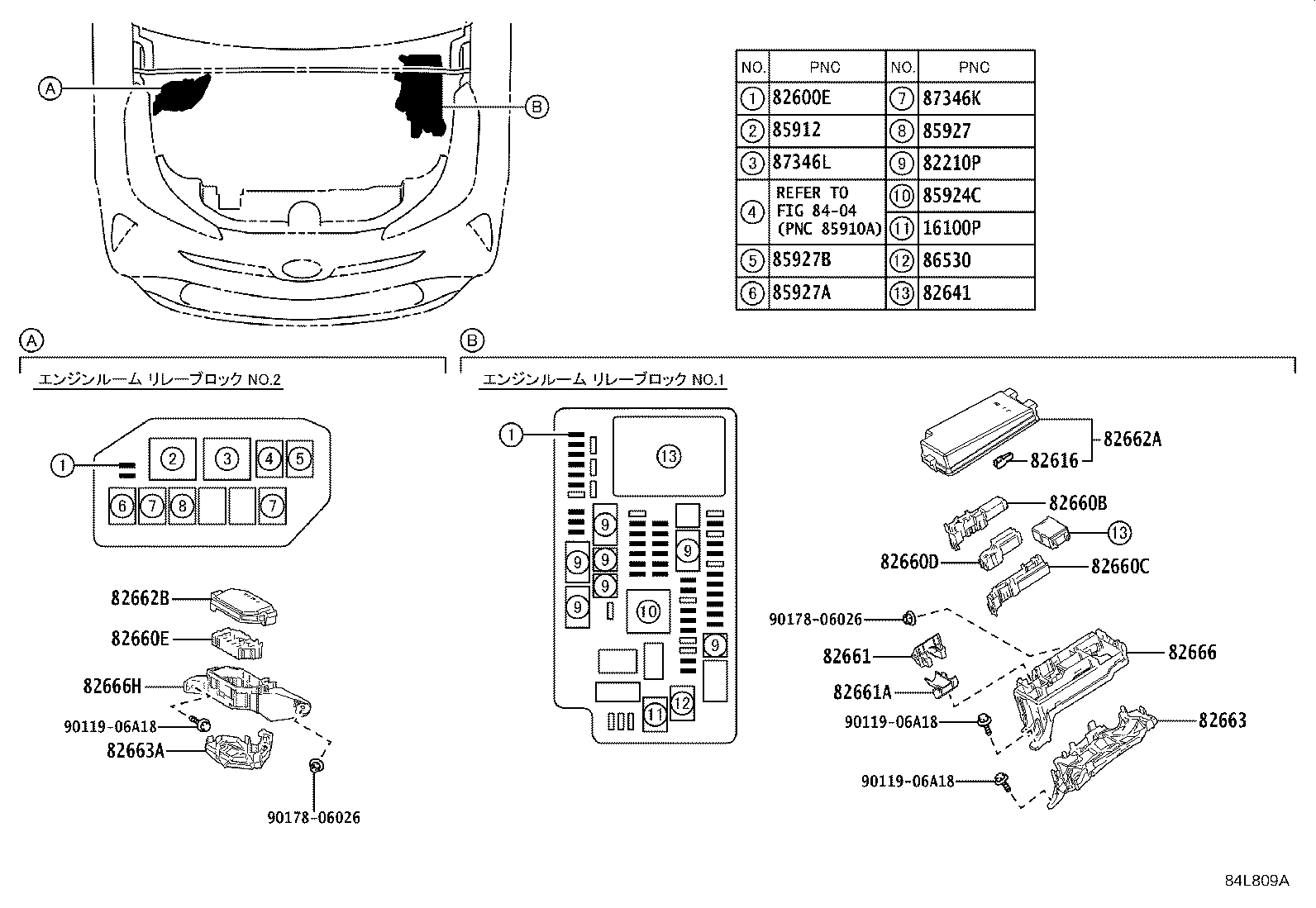

Exploded illustration 84L809A 85927B — RELAY, COOLING FAN, NO.3 (2 parts) 85927A — RELAY, COOLING FAN, NO.2 (2 parts) 87346K — RELAY, PTC HEATER (2 parts) 85927 — RELAY, COOLING FAN (2 parts) 82641 — RELAY, INTEGRATION NO.1 (2 parts) 82600E — ENGINE ROOM FUSE (12 parts) 82210P — ENGINE ROOM FUSIBLE LINK (10 parts) 85924C — RELAY, IGCT (2 parts) 16100P — RELAY, WATER PUMP (2 parts) 85912 — RELAY, DEFOGGER (2 parts) 86530 — RELAY ASSY, HORN (2 parts) 87346L — RELAY, PTC HEATER (2 parts) 8404 — not listed in this catalogue 82660B — BLOCK ASSY, RELAY (2 parts) 82660C — BLOCK ASSY, RELAY (2 parts) 82660D — BLOCK ASSY, RELAY (2 parts) 82660E — BLOCK ASSY, RELAY (2 parts) 82661 — COVER, RELAY BLOCK, NO.1 (2 parts) 82661A — COVER, RELAY BLOCK, NO.2 (2 parts) 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (2 parts) 82663 — COVER, RELAY BLOCK, LOWER (2 parts) 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (2 parts) 82666 — HOLDER, CONNECTOR (2 parts) 82666H — HOLDER, CONNECTOR, NO.2 (2 parts) 9011906A18 — not listed in this catalogue 9011906A18 — not listed in this catalogue 9017806026 — not listed in this catalogue 9011906A18 — not listed in this catalogue 9017806026 — not listed in this catalogue 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (2 parts) 82616 — PULLER, FUSE (2 parts)
84L809A · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
16100P — Relay, Water Pump
90987-02027 Relay, Water Pump
2015-11 → 2018-12 ended
2ZRFXE ZVW5# CBU ¥2,930
90987-02027 Relay, Water Pump
2018-12 → —
2ZRFXE ZVW5# CBU ¥2,930
82210P — Engine Room Fusible Link
90982-08295 note Engine Room Fusible Link
2015-11 → 2018-12 ended
ZVW5# CBU ¥390
90982-08296 note Engine Room Fusible Link
2015-11 → 2018-12 ended
ZVW5# CBU ¥390
90982-08300 note Engine Room Fusible Link
2015-11 → 2018-12 ended
ZVW5# CBU ¥390
90982-08302 note Engine Room Fusible Link
2015-11 → 2018-12 ended
ZVW5# CBU ¥390
90982-08308 note Engine Room Fusible Link
2015-11 → 2018-12 ended
ZVW5# CBU ¥410
90982-08295 note Engine Room Fusible Link
2018-12 → —
ZVW5# CBU ¥390
90982-08296 note Engine Room Fusible Link
2018-12 → —
ZVW5# CBU ¥390
90982-08300 note Engine Room Fusible Link
2018-12 → —
ZVW5# CBU ¥390
90982-08302 note Engine Room Fusible Link
2018-12 → —
ZVW5# CBU ¥390
90982-08308 note Engine Room Fusible Link
2018-12 → —
ZVW5# CBU ¥410
82600E — Engine Room Fuse
90982-09019 note Engine Room Fuse
2015-11 → 2018-12 ended
ZVW5# CBU ¥70
90982-09021 note Engine Room Fuse
2015-11 → 2018-12 ended
ZVW5# CBU ¥70
90982-09022 note Engine Room Fuse
2015-11 → 2018-12 ended
ZVW5# CBU ¥70
90982-09023 note Engine Room Fuse
2015-11 → 2018-12 ended
ZVW5# CBU ¥70
90982-09024 note Engine Room Fuse
2015-11 → 2018-12 ended
ZVW5# CBU ¥70
90982-09025 note Engine Room Fuse
2015-11 → 2018-12 ended
ZVW5# CBU ¥80
90982-09019 note Engine Room Fuse
2018-12 → —
ZVW5# CBU ¥70
90982-09021 note Engine Room Fuse
2018-12 → —
ZVW5# CBU ¥70
90982-09022 note Engine Room Fuse
2018-12 → —
ZVW5# CBU ¥70
90982-09023 note Engine Room Fuse
2018-12 → —
ZVW5# CBU ¥70
90982-09024 note Engine Room Fuse
2018-12 → —
ZVW5# CBU ¥70
90982-09025 note Engine Room Fuse
2018-12 → —
ZVW5# CBU ¥80
82616 — Puller, Fuse
82616-58010 Puller, Fuse
2015-11 → 2018-12 ended
ZVW5# CBU ¥210
82616-58010 Puller, Fuse
2018-12 → —
ZVW5# CBU ¥210
82641 — Relay, Integration NO.1
82641-47050 Relay, Integration NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥5,400
82641-47050 Relay, Integration NO.1
2018-12 → —
ZVW5# CBU ¥5,400
82660B — Block Assy, Relay
82660-47070 Block Assy, Relay
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,970
82660-47070 Block Assy, Relay
2018-12 → —
ZVW5# CBU ¥1,970
82660C — Block Assy, Relay
82660-47080 Block Assy, Relay
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,140
82660-47080 Block Assy, Relay
2018-12 → —
ZVW5# CBU ¥2,140
82660D — Block Assy, Relay
82660-47090 Block Assy, Relay
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,030
82660-47090 Block Assy, Relay
2018-12 → —
ZVW5# CBU ¥1,030
82660E — Block Assy, Relay
82660-47100 Block Assy, Relay
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,970
82660-47100 Block Assy, Relay
2018-12 → —
ZVW5# CBU ¥1,970
82661 — Cover, Relay Block, NO.1
82661-47020 Cover, Relay Block, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥240
82661-47020 Cover, Relay Block, NO.1
2018-12 → —
ZVW5# CBU ¥240
82661A — Cover, Relay Block, NO.2
82661-47030 Cover, Relay Block, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥140
82661-47030 Cover, Relay Block, NO.2
2018-12 → —
ZVW5# CBU ¥140
82662A — Cover, Relay Block, Upper, NO.1
82662-47200 Cover, Relay Block, Upper, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,830
82662-47260 Cover, Relay Block, Upper, NO.1
2018-12 → —
ZVW5# CBU ¥2,350
82662B — Cover, Relay Block, Upper, NO.2
82662-47190 Cover, Relay Block, Upper, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥990
82662-47190 Cover, Relay Block, Upper, NO.2
2018-12 → —
ZVW5# CBU ¥990
82663 — Cover, Relay Block, Lower
82663-47070 Cover, Relay Block, Lower
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,840
82663-47070 Cover, Relay Block, Lower
2018-12 → —
ZVW5# CBU ¥1,840
82663A — Cover, Relay Block, Lower, NO.2
82663-47090 Cover, Relay Block, Lower, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥800
82663-47090 Cover, Relay Block, Lower, NO.2
2018-12 → —
ZVW5# CBU ¥800
82666 — Holder, Connector
82666-47610 Holder, Connector
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,760
82666-47610 Holder, Connector
2018-12 → —
ZVW5# CBU ¥3,760
82666H — Holder, Connector, NO.2
82666-47620 Holder, Connector, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥3,100
82666-47620 Holder, Connector, NO.2
2018-12 → —
ZVW5# CBU ¥3,100
85912 — Relay, Defogger
90987-04010 Relay, Defogger
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,810
90987-04010 Relay, Defogger
2018-12 → —
ZVW5# CBU ¥2,810
85924C — Relay, Igct
90987-02025 Relay, Igct
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,930
90987-02025 Relay, Igct
2018-12 → —
ZVW5# CBU ¥2,930
85927 — Relay, Cooling Fan
90987-02027 Relay, Cooling Fan
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,930
90987-02027 Relay, Cooling Fan
2018-12 → —
ZVW5# CBU ¥2,930
85927A — Relay, Cooling Fan, NO.2
90987-04004 Relay, Cooling Fan, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,810
90987-04004 Relay, Cooling Fan, NO.2
2018-12 → —
ZVW5# CBU ¥2,810
85927B — Relay, Cooling Fan, NO.3
90987-02027 Relay, Cooling Fan, NO.3
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,930
90987-02027 Relay, Cooling Fan, NO.3
2018-12 → —
ZVW5# CBU ¥2,930
86530 — Relay Assy, Horn
90987-02027 Relay Assy, Horn
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,930
90987-02027 Relay Assy, Horn
2018-12 → —
ZVW5# CBU ¥2,930
87346K — Relay, Ptc Heater
90987-02027 note Relay, Ptc Heater
2020-07 → 2021-06 ended
ZVW5# CBU ¥2,930
90987-02027 Relay, Ptc Heater
2021-06 → —
ZVW5# CBU ¥2,930
87346L — Relay, Ptc Heater
90987-02025 note Relay, Ptc Heater
2020-07 → 2021-06 ended
ZVW5# CBU ¥2,930
90987-02025 Relay, Ptc Heater
2021-06 → —
ZVW5# CBU ¥2,930
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
