Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

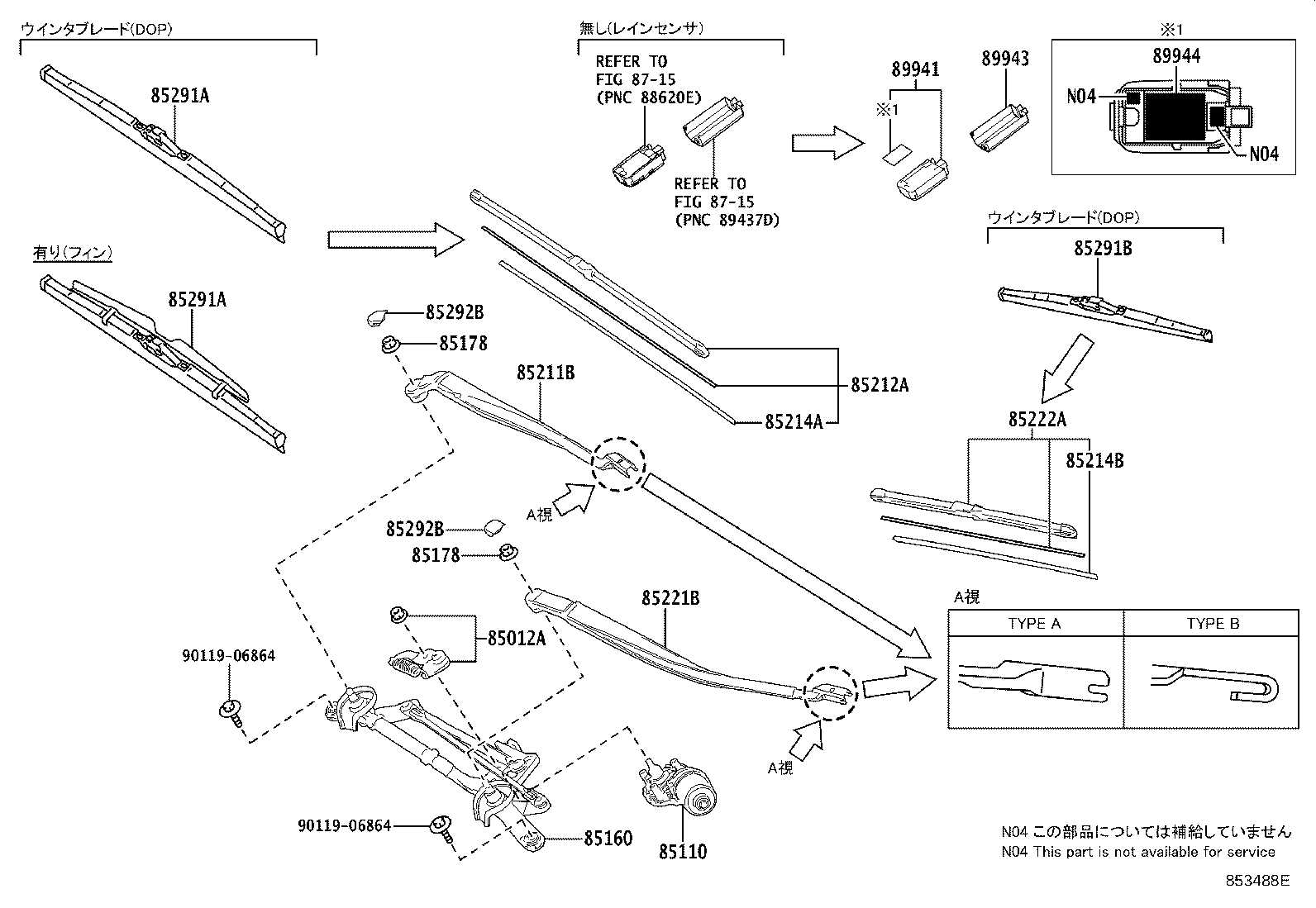

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85012A — Crank Sub-assy, Front Wiper | ||||
| 85012-50010 |
Crank Sub-assy, Front Wiper
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥0 | |
| 85012-50010 |
Crank Sub-assy, Front Wiper
2018-12 → —
|
ZVW5# CBU | ¥0 | |
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-47350 |
Motor Assy, Windshield Wiper
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥20,900 | |
| 85110-47360 note |
Motor Assy, Windshield Wiper
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥21,100 | |
| 85110-47350 |
Motor Assy, Windshield Wiper
2018-12 → —
|
ZVW5# CBU | ¥20,900 | |
| 85110-47360 note |
Motor Assy, Windshield Wiper
2018-12 → —
|
ZVW5# CBU | ¥21,100 | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85150-47190 |
Link Assy, Windshield Wiper
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥7,000 | |
| 85150-47210 note |
Link Assy, Windshield Wiper
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥8,100 | |
| 85150-47190 |
Link Assy, Windshield Wiper
2018-12 → —
|
ZVW5# CBU | ¥7,000 | |
| 85150-47210 note |
Link Assy, Windshield Wiper
2018-12 → —
|
ZVW5# CBU | ¥8,100 | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-10006 |
Nut (FOR FRONT WIPER ARM SETTING)
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥80 | |
| 90182-10006 |
Nut (FOR FRONT WIPER ARM SETTING)
2018-12 → —
|
ZVW5# CBU | ¥80 | |
| 85211B — Arm, Front Wiper, RH | ||||
| 85211-47171 note |
Arm, Front Wiper, RH
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥4,210 | |
| 85211-47220 note |
Arm, Front Wiper, RH
2015-11 → 2017-11
ended
|
ZVW50,55 CBU;ZVW51 (A,E,PREM) CBU | ¥3,500 | |
| 85211-47220 note |
Arm, Front Wiper, RH
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,500 | |
| 85211-47220 note |
Arm, Front Wiper, RH
2018-12 → —
|
ZVW5# CBU | ¥3,500 | |
| 85212A — Blade, FR Wiper, RH | ||||
| 85212-47122 note |
Blade, FR Wiper, RH
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥4,620 | |
| 85212-47210 note |
Blade, FR Wiper, RH
2015-11 → 2017-11
ended
|
ZVW50,55 CBU;ZVW51 (A,E,PREM) CBU | ¥4,620 | |
| 85212-47210 note |
Blade, FR Wiper, RH
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥4,620 | |
| 85212-47210 note |
Blade, FR Wiper, RH
2018-12 → —
|
ZVW5# CBU | ¥4,620 | |
| 85214A — Rubber, Wiper, RH | ||||
| 85214-28100 note |
Rubber, Wiper, RH
2015-11 → 2017-11
ended
|
ZVW50,55 CBU;ZVW51 (A,E,PREM) CBU | ¥900 | |
| 85214-28100 note |
Rubber, Wiper, RH
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥900 | |
| 85214-47170 note |
Rubber, Wiper, RH
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥900 | |
| 85214-28100 note |
Rubber, Wiper, RH
2018-12 → —
|
ZVW5# CBU | ¥900 | |
| 85214B — Rubber, Wiper, LH | ||||
| 85214-10130 note |
Rubber, Wiper, LH
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥800 | |
| 85214-28090 note |
Rubber, Wiper, LH
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥750 | |
| 85214-47210 note |
Rubber, Wiper, LH
2015-11 → 2017-11
ended
|
ZVW50,55 CBU;ZVW51 (A,E,PREM) CBU | ¥800 | |
| 85214-47210 note |
Rubber, Wiper, LH
2018-12 → —
|
ZVW5# CBU | ¥800 | |
| 85221B — Arm, Front Wiper, LH | ||||
| 85221-47150 note |
Arm, Front Wiper, LH
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥5,200 | |
| 85221-47200 note |
Arm, Front Wiper, LH
2015-11 → 2017-11
ended
|
ZVW50,55 CBU;ZVW51 (A,E,PREM) CBU | ¥4,270 | |
| 85221-47200 note |
Arm, Front Wiper, LH
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥4,270 | |
| 85221-47200 note |
Arm, Front Wiper, LH
2018-12 → —
|
ZVW5# CBU | ¥4,270 | |
| 85222A — Blade, FR Wiper, LH | ||||
| 85222-47160 note |
Blade, FR Wiper, LH
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥1,810 | |
| 85222-47190 note |
Blade, FR Wiper, LH
2015-11 → 2017-11
ended
|
ZVW50,55 CBU;ZVW51 (A,E,PREM) CBU | ¥1,810 | |
| 85222-47190 note |
Blade, FR Wiper, LH
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,810 | |
| 85222-47190 note |
Blade, FR Wiper, LH
2018-12 → —
|
ZVW5# CBU | ¥1,810 | |
| 85291A — Blade, Front Wiper, Winter, RH | ||||
| 85291-47100 note |
Blade, Front Wiper, Winter, RH
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥6,300 | |
| 85291-47110 note |
Blade, Front Wiper, Winter, RH
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥7,600 | |
| 85291-52100 note |
Blade, Front Wiper, Winter, RH
2015-11 → 2017-11
ended
|
ZVW50,55 CBU;ZVW51 (A,E,PREM) CBU | ¥6,300 | |
| 85291-52100 note |
Blade, Front Wiper, Winter, RH
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥6,300 | |
| 85291-52110 note |
Blade, Front Wiper, Winter, RH
2015-11 → 2017-11
ended
|
ZVW50,55 CBU;ZVW51 (A,E,PREM) CBU | ¥7,600 | |
| 85291-52110 note |
Blade, Front Wiper, Winter, RH
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥7,600 | |
| 85291-52100 note |
Blade, Front Wiper, Winter, RH
2018-12 → —
|
ZVW5# CBU | ¥6,300 | |
| 85291-52110 note |
Blade, Front Wiper, Winter, RH
2018-12 → —
|
ZVW5# CBU | ¥7,600 | |
| 85291B — Blade, Front Wiper, Winter, LH | ||||
| 85291-28150 note |
Blade, Front Wiper, Winter, LH
2015-11 → 2017-11
ended
|
ZVW50,55 CBU;ZVW51 (A,E,PREM) CBU | ¥3,600 | |
| 85291-28150 note |
Blade, Front Wiper, Winter, LH
2017-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,600 | |
| 85291-78021 note |
Blade, Front Wiper, Winter, LH
2015-11 → 2017-11
ended
|
ZVW5# CBU | ¥3,600 | |
| 85291-28150 note |
Blade, Front Wiper, Winter, LH
2018-12 → —
|
ZVW5# CBU | ¥3,600 | |
| 85292B — Cap, Front Wiper Arm Head | ||||
| 85292-13010 |
Cap, Front Wiper Arm Head
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥250 | |
| 85292-13010 |
Cap, Front Wiper Arm Head
2018-12 → —
|
ZVW5# CBU | ¥250 | |
| 89941 — Sensor, Rain | ||||
| 89941-47020 |
Sensor, Rain
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥16,600 | |
| 89941-47020 note |
Sensor, Rain
2016-08 → 2018-12
ended
|
ZVW50,55 S CBU | ¥16,600 | |
| 89941-47020 |
Sensor, Rain
2018-12 → 2019-10
ended
|
ZVW5# (A,PREM) CBU | ¥16,600 | |
| 89941-47021 |
Sensor, Rain
2019-11 → 2020-07
ended
|
ZVW5# (A,PREM) CBU | ¥13,800 | |
| 89941-48080 note |
Sensor, Rain
2020-07 → —
|
ZVW5# S CBU | ¥12,500 | |
| 89941-48080 note |
Sensor, Rain
2020-07 → —
|
ZVW5# S CBU | ¥12,500 | |
| 89941-48080 |
Sensor, Rain
2020-07 → —
|
ZVW5# (A,PREM) CBU | ¥12,500 | |
| 89941-48080 note |
Sensor, Rain
2020-07 → —
|
ZVW5# (E,S) CBU | ¥12,500 | |
| 89943 — Cover, Rain Sensor | ||||
| 89943-47020 |
Cover, Rain Sensor
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥700 | |
| 89943-47020 note |
Cover, Rain Sensor
2016-08 → 2018-12
ended
|
ZVW50,55 S CBU | ¥700 | |
| 89943-47020 |
Cover, Rain Sensor
2018-12 → 2019-10
ended
|
ZVW5# (A,PREM) CBU | ¥700 | |
| 89943-47021 |
Cover, Rain Sensor
2019-11 → —
|
ZVW5# (A,PREM) CBU | ¥580 | |
| 89943-47021 note |
Cover, Rain Sensor
2020-07 → —
|
ZVW5# (E,S) CBU | ¥580 | |
| 89943-47021 note |
Cover, Rain Sensor
2020-07 → —
|
ZVW5# S CBU | ¥580 | |
| 89943-47021 note |
Cover, Rain Sensor
2020-07 → —
|
ZVW5# S CBU | ¥580 | |
| 89944 — Tape, Rain Sensor | ||||
| 89944-42020 note |
Tape, Rain Sensor
2018-06 → 2018-12
ended
|
ZVW50,55 S CBU | ¥170 | |
| 89944-42020 |
Tape, Rain Sensor
2018-06 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥170 | |
| 89944-48010 note |
Tape, Rain Sensor
2016-08 → 2016-11
ended
|
ZVW50,55 S CBU | ¥230 | |
| 89944-48010 note |
Tape, Rain Sensor
2016-11 → 2018-05
ended
|
ZVW50,55 S CBU | ¥230 | |
| 89944-48010 |
Tape, Rain Sensor
2015-11 → 2018-05
ended
|
ZVW51,55 (A,PREM) CBU | ¥230 | |
| 89944-42020 |
Tape, Rain Sensor
2018-12 → —
|
ZVW5# (A,PREM) CBU | ¥170 | |
| 89944-42020 note |
Tape, Rain Sensor
2020-07 → —
|
ZVW5# (E,S) CBU | ¥170 | |
| 89944-42020 note |
Tape, Rain Sensor
2020-07 → —
|
ZVW5# S CBU | ¥170 | |
| 89944-42020 note |
Tape, Rain Sensor
2020-07 → —
|
ZVW5# S CBU | ¥170 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
