Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

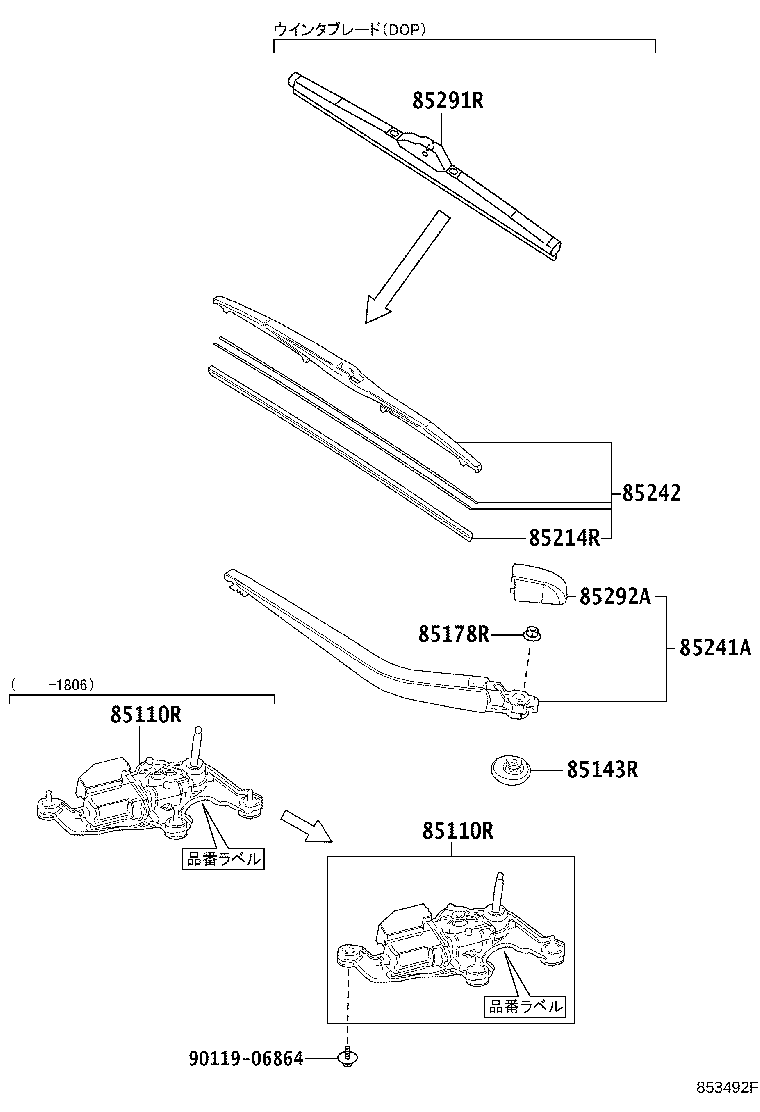

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110R — Motor Assy, Rear Wiper | ||||
| 85130-47030 |
Motor Assy, Rear Wiper
2015-11 → 2016-05
ended
|
ZVW5# (A,PREM,S) CBU | ¥25,500 | |
| 85130-47031 note |
Motor Assy, Rear Wiper
2016-05 → 2018-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥21,200 | |
| 85130-47032 note |
Motor Assy, Rear Wiper
2018-06 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥17,600 | |
| 85130-47032 |
Motor Assy, Rear Wiper
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥17,600 | |
| 85143R — Grommet, Rear Wiper Motor | ||||
| 85143-47020 |
Grommet, Rear Wiper Motor
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥0 | |
| 85143-47020 |
Grommet, Rear Wiper Motor
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥0 | |
| 85178R — Nut (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
Nut (FOR REAR WIPER ARM SETTING)
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥70 | |
| 90179-06158 |
Nut (FOR REAR WIPER ARM SETTING)
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥70 | |
| 85214R — Rubber, Rear Wiper | ||||
| 85214-47010 |
Rubber, Rear Wiper
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥750 | |
| 85214-47010 |
Rubber, Rear Wiper
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥750 | |
| 85241A — Arm, Rear Wiper | ||||
| 85241-47060 |
Arm, Rear Wiper
2015-11 → 2018-05
ended
|
ZVW5# (A,PREM,S) CBU | ¥2,460 | |
| 85241-47061 |
Arm, Rear Wiper
2018-06 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥2,050 | |
| 85241-47061 |
Arm, Rear Wiper
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥2,050 | |
| 85242 — Blade, RR Wiper | ||||
| 85242-47070 |
Blade, RR Wiper
2015-11 → 2016-02
ended
|
ZVW5# A,PREM,S | ¥1,640 | |
| 85242-47071 |
Blade, RR Wiper
2016-03 → 2018-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,640 | |
| 85242-47072 |
Blade, RR Wiper
2018-06 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,640 | |
| 85242-47072 |
Blade, RR Wiper
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,640 | |
| 85291R — Blade,Rear Wiper, Winter | ||||
| 85291-44100 note |
Blade,Rear Wiper, Winter
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥3,600 | |
| 85291-44100 note |
Blade,Rear Wiper, Winter
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥3,600 | |
| 85292A — Cap, Rear Wiper Arm Head | ||||
| 85292-47060 |
Cap, Rear Wiper Arm Head
2015-11 → 2018-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥0 | |
| 85292-47060 |
Cap, Rear Wiper Arm Head
2018-12 → —
|
ZVW5# (A,PREM,S) CBU | ¥0 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
