Toyota Prius

2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

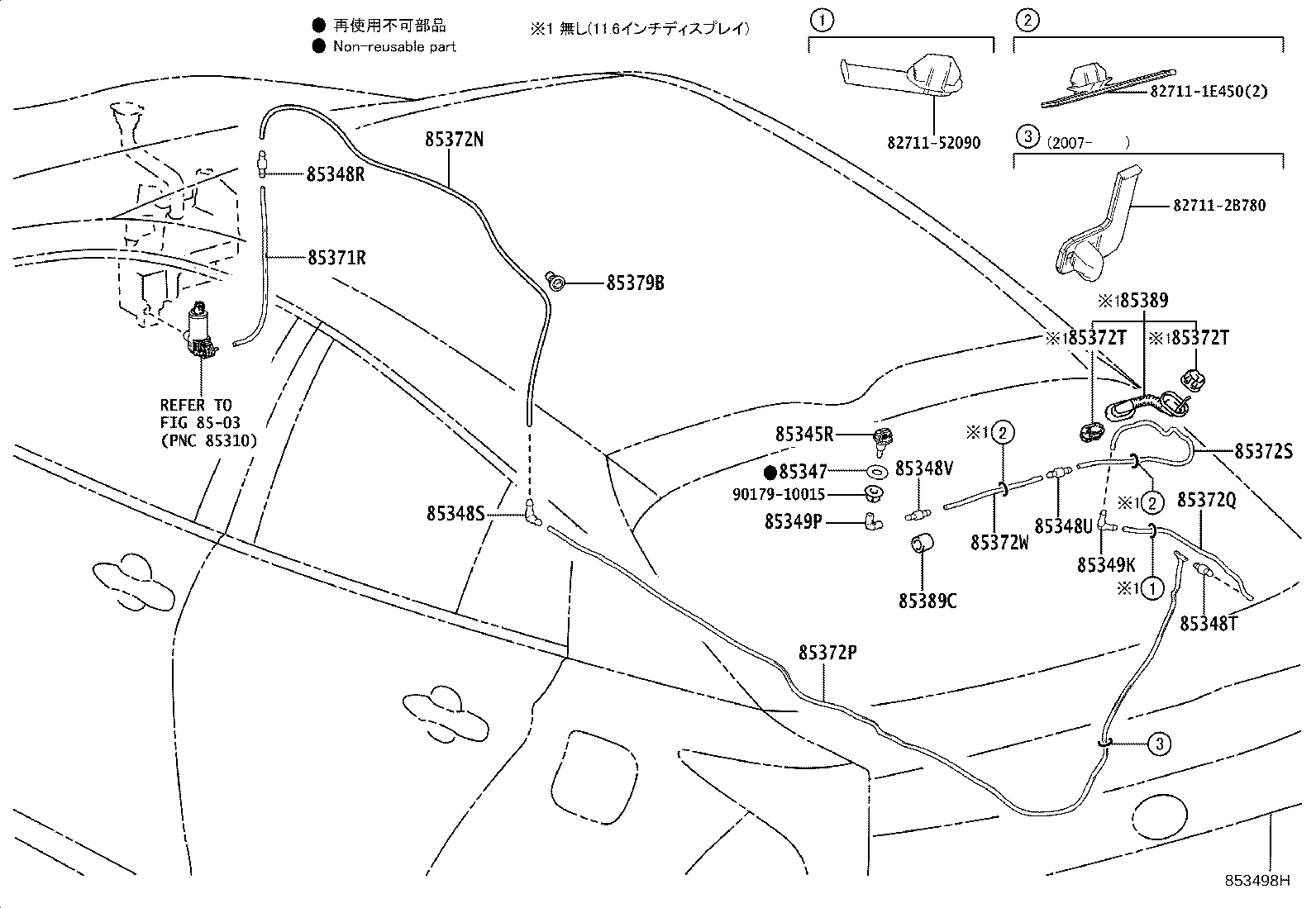

Exploded illustration 853498H 8503 — not listed in this catalogue 9017910015 — not listed in this catalogue 85345R — NOZZLE, REAR WASHER (2 parts) 85347 — PACKING, REAR WASHER (2 parts) 85389 — PACKING, WINDSHIELD WASHER HOSE, NO.1 (3 parts) 85371R — HOSE, REAR WASHER (FROM MOTOR TO JOINT) (2 parts) 85348R — JOINT, REAR WASHER HOSE, NO.1 (2 parts) 85372W — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 (11 parts) 85348V — JOINT, REAR WASHER HOSE, NO.4 (2 parts) 85349P — JOINT, REAR WASHER ELBOW, NO.3 (2 parts) 85348U — JOINT, REAR WASHER HOSE, NO.3 (2 parts) 85372S — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 (11 parts) 85372T — GROMMET, WASHER (3 parts) 85372T — GROMMET, WASHER (3 parts) 85372P — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 (8 parts) 85372N — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 (7 parts) 85379B — GROMMET, WASHER, A (2 parts) 85348S — JOINT, REAR WASHER ELBOW, NO.1 (2 parts) 85349K — JOINT, REAR WASHER ELBOW, NO.2 (2 parts) 85372Q — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 (9 parts) 85348T — JOINT, REAR WASHER HOSE, NO.2 (2 parts) 827111E450 — not listed in this catalogue 8271152090 — not listed in this catalogue 827112B780 — not listed in this catalogue 85389C — PROTECTOR, WASHER (2 parts)
853498H · 20 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
85345R — Nozzle, Rear Washer
85391-47040 Nozzle, Rear Washer
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
85391-47040 Nozzle, Rear Washer
2018-12 → —
ZVW5# (A,PREM,S) CBU —
85347 — Packing, Rear Washer
85347-12010 Packing, Rear Washer
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
85347-12010 Packing, Rear Washer
2018-12 → —
ZVW5# (A,PREM,S) CBU —
85348R — Joint, Rear Washer Hose, NO.1
85349-89122 Joint, Rear Washer Hose, NO.1
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
85349-89122 Joint, Rear Washer Hose, NO.1
2018-12 → —
ZVW5# (A,PREM,S) CBU —
85348S — Joint, Rear Washer Elbow, NO.1
85355-20200 Joint, Rear Washer Elbow, NO.1
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
85355-20200 Joint, Rear Washer Elbow, NO.1
2018-12 → —
ZVW5# (A,PREM,S) CBU —
85348T — Joint, Rear Washer Hose, NO.2
85349-89122 Joint, Rear Washer Hose, NO.2
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
85349-89122 Joint, Rear Washer Hose, NO.2
2018-12 → —
ZVW5# (A,PREM,S) CBU —
85348U — Joint, Rear Washer Hose, NO.3
85349-89122 Joint, Rear Washer Hose, NO.3
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
85349-89122 Joint, Rear Washer Hose, NO.3
2018-12 → —
ZVW5# (A,PREM,S) CBU —
85348V — Joint, Rear Washer Hose, NO.4
85321-26020 Joint, Rear Washer Hose, NO.4
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
85321-26020 Joint, Rear Washer Hose, NO.4
2018-12 → —
ZVW5# (A,PREM,S) CBU —
85349K — Joint, Rear Washer Elbow, NO.2
85355-20200 Joint, Rear Washer Elbow, NO.2
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
85355-20200 Joint, Rear Washer Elbow, NO.2
2018-12 → —
ZVW5# (A,PREM,S) CBU —
85349P — Joint, Rear Washer Elbow, NO.3
85355-14481 Joint, Rear Washer Elbow, NO.3
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥0
85355-14481 Joint, Rear Washer Elbow, NO.3
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥0
85371R — Hose, Rear Washer (FROM MOTOR TO JOINT)
90099-62065 note Hose, Rear Washer (FROM MOTOR TO JOINT)
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥0
90099-62065 note Hose, Rear Washer (FROM MOTOR TO JOINT)
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥0
85372N — Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
90099-62157 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
90099-62157 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
90099-62157 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
90099-62157 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2018-12 → 2021-06 ended
ZVW5# A CBU —
90099-62157 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2018-12 → 2021-06 ended
ZVW5# PREM —
90099-62157 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2018-12 → —
ZVW5# (A,PREM,S) CBU —
90099-62157 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2021-06 → —
ZVW5# (A,PREM,S) CBU —
85372P — Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
90099-62156 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2015-11 → 2016-05 ended
ZVW5# (A,PREM,S) CBU —
90099-62163 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2016-05 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
90099-62163 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
90099-62163 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
90099-62163 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2018-12 → 2021-06 ended
ZVW5# A CBU —
90099-62163 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2018-12 → 2021-06 ended
ZVW5# PREM —
90099-62163 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2018-12 → —
ZVW5# (A,PREM,S) CBU —
90099-62163 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2021-06 → —
ZVW5# (A,PREM,S) CBU —
85372Q — Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
90099-62085 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
90099-62085 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
90099-62085 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2015-11 → 2017-09 ended
ZVW5# (A,PREM,S) CBU —
90446-07001 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2017-09 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
90099-62085 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2018-12 → 2021-06 ended
ZVW5# PREM —
90099-62085 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2021-06 → —
ZVW5# (A,PREM,S) CBU —
90099-62085 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2018-12 → 2021-06 ended
ZVW5# A CBU —
90446-07001 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU —
90446-07001 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2021-06 → —
ZVW5# (A,PREM,S) CBU —
85372S — Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
90099-33080 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2015-11 → 2017-09 ended
ZVW5# (A,PREM,S) CBU —
90099-62145 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2017-09 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
90099-62189 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
90099-62189 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
90099-62094 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2019-03 → 2021-06 ended
ZVW5# A CBU —
90099-62094 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2019-03 → 2021-06 ended
ZVW5# PREM —
90099-62094 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2021-06 → —
ZVW5# (A,PREM,S) CBU —
90099-62145 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2021-06 → —
ZVW5# (A,PREM,S) CBU —
90099-62145 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU —
90099-62189 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2018-12 → 2019-03 ended
ZVW5# A CBU —
90099-62189 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2018-12 → 2019-03 ended
ZVW5# PREM —
85372T — Grommet, Washer
82817-47L50 Grommet, Washer
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥200
82817-47L50 Grommet, Washer
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU ¥200
82817-47L50 note Grommet, Washer
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥200
85372W — Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
90099-62059 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
90099-62059 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2017-11 → 2018-12 ended
ZVW51,55 (A,PREM) CBU —
90099-62129 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥280
90099-62059 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2018-12 → 2019-03 ended
ZVW5# A CBU —
90099-62059 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2018-12 → 2019-03 ended
ZVW5# PREM —
90099-62062 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2019-03 → 2021-06 ended
ZVW5# A CBU —
90099-62062 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2019-03 → 2021-06 ended
ZVW5# PREM —
90099-62062 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2021-06 → —
ZVW5# (A,PREM,S) CBU —
90099-62129 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2018-12 → 2021-04 ended
ZVW5# (A,PREM,S) CBU ¥280
90099-62263 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2021-04 → 2021-06 ended
ZVW5# (A,PREM,S) CBU —
90099-62263 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
2021-06 → —
ZVW5# (A,PREM,S) CBU —
85379B — Grommet, Washer, A
85379-12850 Grommet, Washer, A
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥0
85379-12850 Grommet, Washer, A
2018-12 → —
ZVW5# (A,PREM,S) CBU ¥0
85389 — Packing, Windshield Washer Hose, NO.1
86101-47K20 Packing, Windshield Washer Hose, NO.1
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU ¥2,920
86101-47K20 Packing, Windshield Washer Hose, NO.1
2018-12 → 2021-06 ended
ZVW5# (A,PREM,S) CBU ¥2,920
86101-47K20 note Packing, Windshield Washer Hose, NO.1
2021-06 → —
ZVW5# (A,PREM,S) CBU ¥2,920
85389C — Protector, Washer
85389-26080 Protector, Washer
2015-11 → 2018-12 ended
ZVW5# (A,PREM,S) CBU —
85389-26080 Protector, Washer
2018-12 → —
ZVW5# (A,PREM,S) CBU —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
