Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

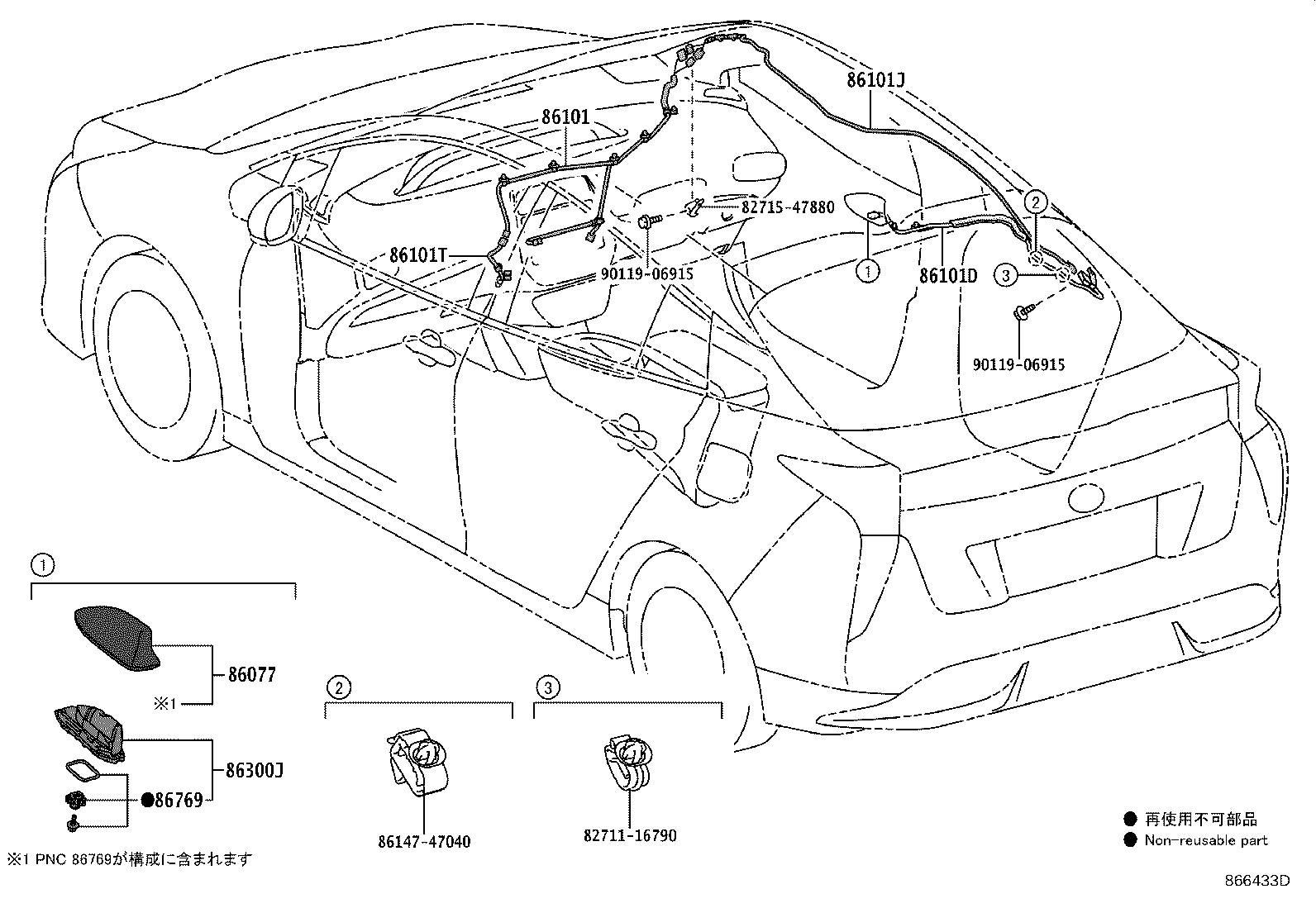

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86077 — Cover Kit, Antenna | ||||
| 86077-47010-A0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,570 | |
| 86077-47010-A1 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 (A,E) CBU | ¥1,730 | |
| 86077-47010-A1 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# (PREM,S) CBU | ¥1,730 | |
| 86077-47010-B0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,730 | |
| 86077-47010-B1 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,570 | |
| 86077-47010-C0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥1,570 | |
| 86077-47010-C0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥1,570 | |
| 86077-47010-C0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 (A,E) CBU | ¥1,570 | |
| 86077-47010-D0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥2,080 | |
| 86077-47010-D0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# (A,E,S) CBU | ¥2,080 | |
| 86077-47010-E0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥1,570 | |
| 86077-47010-E0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 (A,E,PREM) CBU | ¥1,570 | |
| 86077-47010-G0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,080 | |
| 86077-47010-J0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥1,570 | |
| 86077-47010-J0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 (A,E,PREM) CBU | ¥1,570 | |
| 86077-47020-A0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,710 | |
| 86077-47020-A1 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 (A,E) CBU | ¥1,880 | |
| 86077-47020-A1 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# (PREM,S) CBU | ¥1,880 | |
| 86077-47020-B0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,890 | |
| 86077-47020-B1 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,710 | |
| 86077-47020-C0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥1,710 | |
| 86077-47020-C0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥1,710 | |
| 86077-47020-C0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 (A,E) CBU | ¥1,710 | |
| 86077-47020-D0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥2,260 | |
| 86077-47020-D0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# (A,E,S) CBU | ¥2,260 | |
| 86077-47020-E0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥1,880 | |
| 86077-47020-E0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 (A,E,PREM) CBU | ¥1,880 | |
| 86077-47020-G0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,260 | |
| 86077-47020-J0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW50,55 S CBU | ¥1,890 | |
| 86077-47020-J0 note |
Cover Kit, Antenna
2015-11 → 2018-12
ended
|
ZVW51,55 (A,E,PREM) CBU | ¥1,890 | |
| 86077-47010-A0 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,570 | |
| 86077-47010-A0 note |
Cover Kit, Antenna
2018-12 → —
|
ZVW51 E | ¥1,570 | |
| 86077-47010-A0 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,570 | |
| 86077-47010-A1 note |
Cover Kit, Antenna
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥1,730 | |
| 86077-47010-A3 note |
Cover Kit, Antenna
2020-07 → 2022-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,570 | |
| 86077-47010-A3 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,570 | |
| 86077-47010-A3 note |
Cover Kit, Antenna
2020-07 → —
|
ZVW51 E | ¥1,570 | |
| 86077-47010-B0 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,730 | |
| 86077-47010-B0 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,730 | |
| 86077-47010-B0 note |
Cover Kit, Antenna
2018-12 → —
|
ZVW51 E | ¥1,730 | |
| 86077-47010-B1 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,570 | |
| 86077-47010-B1 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,570 | |
| 86077-47010-B1 note |
Cover Kit, Antenna
2018-12 → —
|
ZVW51 E | ¥1,570 | |
| 86077-47010-C0 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,570 | |
| 86077-47010-C0 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,570 | |
| 86077-47010-C0 note |
Cover Kit, Antenna
2018-12 → —
|
ZVW51 E | ¥1,570 | |
| 86077-47010-C3 note |
Cover Kit, Antenna
2021-06 → 2022-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,730 | |
| 86077-47010-C3 note |
Cover Kit, Antenna
2021-06 → —
|
ZVW51 E | ¥1,730 | |
| 86077-47010-C3 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,730 | |
| 86077-47010-C5 note |
Cover Kit, Antenna
2021-06 → 2022-11
ended
|
ZVW5# (A,S) CBU | ¥1,570 | |
| 86077-47010-C5 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,S) CBU | ¥1,570 | |
| 86077-47010-D6 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,730 | |
| 86077-47010-D6 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,730 | |
| 86077-47010-D6 note |
Cover Kit, Antenna
2018-12 → —
|
ZVW51 E | ¥1,730 | |
| 86077-47010-E0 note |
Cover Kit, Antenna
2018-12 → 2022-08
ended
|
ZVW5# CBU | ¥1,570 | |
| 86077-47010-G0 note |
Cover Kit, Antenna
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥2,080 | |
| 86077-47010-J2 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,730 | |
| 86077-47010-J2 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,730 | |
| 86077-47010-J2 note |
Cover Kit, Antenna
2018-12 → —
|
ZVW51 E | ¥1,730 | |
| 86077-47020-A0 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,710 | |
| 86077-47020-A0 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# CBU | ¥1,710 | |
| 86077-47020-A1 note |
Cover Kit, Antenna
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥1,880 | |
| 86077-47020-A3 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,710 | |
| 86077-47020-A3 note |
Cover Kit, Antenna
2020-07 → 2022-11
ended
|
ZVW5# CBU | ¥1,710 | |
| 86077-47020-B0 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# CBU | ¥1,890 | |
| 86077-47020-B0 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,890 | |
| 86077-47020-B1 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# CBU | ¥1,710 | |
| 86077-47020-B1 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,710 | |
| 86077-47020-C0 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥1,710 | |
| 86077-47020-C0 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,710 | |
| 86077-47020-C0 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW51 E | ¥1,710 | |
| 86077-47020-C2 note |
Cover Kit, Antenna
2021-06 → 2022-11
ended
|
ZVW5# CBU | ¥1,880 | |
| 86077-47020-C2 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,880 | |
| 86077-47020-C5 note |
Cover Kit, Antenna
2021-06 → 2022-11
ended
|
ZVW5# (A,S) CBU | ¥1,880 | |
| 86077-47020-C5 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,S) CBU | ¥1,880 | |
| 86077-47020-D8 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# CBU | ¥1,710 | |
| 86077-47020-D8 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,710 | |
| 86077-47020-E0 note |
Cover Kit, Antenna
2018-12 → 2022-08
ended
|
ZVW5# CBU | ¥1,880 | |
| 86077-47020-G0 note |
Cover Kit, Antenna
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥2,260 | |
| 86077-47020-J1 note |
Cover Kit, Antenna
2022-11 → —
|
ZVW5# (A,PREM,S) CBU | ¥1,880 | |
| 86077-47020-J1 note |
Cover Kit, Antenna
2018-12 → 2022-11
ended
|
ZVW5# CBU | ¥1,880 | |
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-47F70 note |
Cord Sub-assy, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥6,100 | |
| 86101-47F80 |
Cord Sub-assy, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥4,760 | |
| 86101-47N70 note |
Cord Sub-assy, Antenna
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥6,200 | |
| 86101-47N70 note |
Cord Sub-assy, Antenna
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥6,200 | |
| 86101-47N80 note |
Cord Sub-assy, Antenna
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥6,600 | |
| 86101-47N80 note |
Cord Sub-assy, Antenna
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥6,600 | |
| 86101-47G90 |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# CBU | ¥5,500 | |
| 86101-47J00 note |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# CBU | ¥6,600 | |
| 86101-47N70 note |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥6,200 | |
| 86101-47N70 note |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥6,200 | |
| 86101-47N80 note |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥6,600 | |
| 86101-47N80 note |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥6,600 | |
| 86101-47U20 |
Cord Sub-assy, Antenna
2021-06 → —
|
ZVW51 E | ¥3,440 | |
| 86101-47U20 note |
Cord Sub-assy, Antenna
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥3,440 | |
| 86101-47U30 note |
Cord Sub-assy, Antenna
2021-06 → —
|
ZVW51 E | ¥4,970 | |
| 86101-47U30 note |
Cord Sub-assy, Antenna
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥4,970 | |
| 86101-47U40 |
Cord Sub-assy, Antenna
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥7,800 | |
| 86101-47U50 note |
Cord Sub-assy, Antenna
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥8,700 | |
| 86101D — Cord Sub-assy, Antenna, NO.3 | ||||
| 86101-47E30 note |
Cord Sub-assy, Antenna, NO.3
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥4,460 | |
| 86101-47E50 |
Cord Sub-assy, Antenna, NO.3
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥4,130 | |
| 86101-47Q10 note |
Cord Sub-assy, Antenna, NO.3
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥4,130 | |
| 86101-47Q10 note |
Cord Sub-assy, Antenna, NO.3
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥4,130 | |
| 86101-47Q10 note |
Cord Sub-assy, Antenna, NO.3
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥4,130 | |
| 86101-47Q10 note |
Cord Sub-assy, Antenna, NO.3
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥4,130 | |
| 86101-47Q30 note |
Cord Sub-assy, Antenna, NO.3
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥4,460 | |
| 86101-47Q30 note |
Cord Sub-assy, Antenna, NO.3
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥4,460 | |
| 86101-47Q30 note |
Cord Sub-assy, Antenna, NO.3
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥4,460 | |
| 86101-47Q30 note |
Cord Sub-assy, Antenna, NO.3
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥4,460 | |
| 86101-47E30 note |
Cord Sub-assy, Antenna, NO.3
2018-12 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥4,460 | |
| 86101-47E30 note |
Cord Sub-assy, Antenna, NO.3
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥4,460 | |
| 86101-47E30 note |
Cord Sub-assy, Antenna, NO.3
2021-06 → —
|
ZVW5# PREM | ¥4,460 | |
| 86101-47E30 note |
Cord Sub-assy, Antenna, NO.3
2018-12 → —
|
ZVW51 E | ¥4,460 | |
| 86101-47E50 |
Cord Sub-assy, Antenna, NO.3
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥4,130 | |
| 86101-47Q10 note |
Cord Sub-assy, Antenna, NO.3
2018-12 → 2020-07
ended
|
ZVW5# PREM | ¥4,130 | |
| 86101-47Q10 note |
Cord Sub-assy, Antenna, NO.3
2018-12 → 2020-07
ended
|
ZVW5# A CBU | ¥4,130 | |
| 86101-47Q10 note |
Cord Sub-assy, Antenna, NO.3
2018-12 → 2020-07
ended
|
ZVW5# A CBU | ¥4,130 | |
| 86101-47Q10 note |
Cord Sub-assy, Antenna, NO.3
2018-12 → 2020-07
ended
|
ZVW5# PREM | ¥4,130 | |
| 86101-47Q30 note |
Cord Sub-assy, Antenna, NO.3
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥4,460 | |
| 86101-47Q30 note |
Cord Sub-assy, Antenna, NO.3
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥4,460 | |
| 86101-47Q30 note |
Cord Sub-assy, Antenna, NO.3
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥4,460 | |
| 86101-47Q30 note |
Cord Sub-assy, Antenna, NO.3
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥4,460 | |
| 86101-47Q30 note |
Cord Sub-assy, Antenna, NO.3
2021-06 → —
|
ZVW5# PREM | ¥4,460 | |
| 86101-47Q30 note |
Cord Sub-assy, Antenna, NO.3
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥4,460 | |
| 86101-47T30 |
Cord Sub-assy, Antenna, NO.3
2020-07 → —
|
ZVW51 E | ¥3,440 | |
| 86101-47T30 note |
Cord Sub-assy, Antenna, NO.3
2021-06 → —
|
ZVW5# PREM | ¥3,440 | |
| 86101-47T30 note |
Cord Sub-assy, Antenna, NO.3
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥3,440 | |
| 86101-47T30 |
Cord Sub-assy, Antenna, NO.3
2020-07 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥3,440 | |
| 86101-47T40 note |
Cord Sub-assy, Antenna, NO.3
2020-07 → 2021-06
ended
|
ZVW5# PREM | ¥3,440 | |
| 86101-47T40 note |
Cord Sub-assy, Antenna, NO.3
2020-07 → 2021-06
ended
|
ZVW5# A CBU | ¥3,440 | |
| 86101-47T40 note |
Cord Sub-assy, Antenna, NO.3
2020-07 → 2021-06
ended
|
ZVW5# PREM | ¥3,440 | |
| 86101-47T40 note |
Cord Sub-assy, Antenna, NO.3
2020-07 → 2021-06
ended
|
ZVW5# A CBU | ¥3,440 | |
| 86101-47T40 |
Cord Sub-assy, Antenna, NO.3
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥3,440 | |
| 86101J — Cord Sub-assy, Antenna, NO.2 | ||||
| 86101-47490 note |
Cord Sub-assy, Antenna, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥6,600 | |
| 86101-47490 note |
Cord Sub-assy, Antenna, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥6,600 | |
| 86101-47C60 note |
Cord Sub-assy, Antenna, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥8,100 | |
| 86101-47C60 note |
Cord Sub-assy, Antenna, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥8,100 | |
| 86101-47E40 note |
Cord Sub-assy, Antenna, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥6,200 | |
| 86101-47E60 |
Cord Sub-assy, Antenna, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,440 | |
| 86101-47Q20 note |
Cord Sub-assy, Antenna, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥6,600 | |
| 86101-47Q20 note |
Cord Sub-assy, Antenna, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥6,600 | |
| 86101-47Q40 note |
Cord Sub-assy, Antenna, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥7,800 | |
| 86101-47Q40 note |
Cord Sub-assy, Antenna, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥7,800 | |
| 86101-47490 note |
Cord Sub-assy, Antenna, NO.2
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥6,600 | |
| 86101-47490 note |
Cord Sub-assy, Antenna, NO.2
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥6,600 | |
| 86101-47490 note |
Cord Sub-assy, Antenna, NO.2
2021-06 → —
|
ZVW5# PREM | ¥6,600 | |
| 86101-47C60 note |
Cord Sub-assy, Antenna, NO.2
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥8,100 | |
| 86101-47C60 note |
Cord Sub-assy, Antenna, NO.2
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥8,100 | |
| 86101-47C60 note |
Cord Sub-assy, Antenna, NO.2
2021-06 → —
|
ZVW5# PREM | ¥8,100 | |
| 86101-47E40 note |
Cord Sub-assy, Antenna, NO.2
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥6,200 | |
| 86101-47E40 note |
Cord Sub-assy, Antenna, NO.2
2021-06 → —
|
ZVW5# PREM | ¥6,200 | |
| 86101-47E40 note |
Cord Sub-assy, Antenna, NO.2
2018-12 → —
|
ZVW51 E | ¥6,200 | |
| 86101-47E40 note |
Cord Sub-assy, Antenna, NO.2
2018-12 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥6,200 | |
| 86101-47E60 |
Cord Sub-assy, Antenna, NO.2
2018-12 → —
|
ZVW51 E | ¥3,440 | |
| 86101-47E60 |
Cord Sub-assy, Antenna, NO.2
2018-12 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥3,440 | |
| 86101-47E60 note |
Cord Sub-assy, Antenna, NO.2
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥3,440 | |
| 86101-47E60 note |
Cord Sub-assy, Antenna, NO.2
2021-06 → —
|
ZVW5# PREM | ¥3,440 | |
| 86101-47Q20 note |
Cord Sub-assy, Antenna, NO.2
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥6,600 | |
| 86101-47Q20 note |
Cord Sub-assy, Antenna, NO.2
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥6,600 | |
| 86101-47Q20 |
Cord Sub-assy, Antenna, NO.2
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥6,600 | |
| 86101-47Q40 note |
Cord Sub-assy, Antenna, NO.2
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥7,800 | |
| 86101-47Q40 note |
Cord Sub-assy, Antenna, NO.2
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥7,800 | |
| 86101-47Q40 note |
Cord Sub-assy, Antenna, NO.2
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥7,800 | |
| 86101T — Cord Sub-assy, Antenna | ||||
| 86101-47C40 note |
Cord Sub-assy, Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,410 | |
| 86101-47K50 note |
Cord Sub-assy, Antenna
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥2,920 | |
| 86101-47K50 note |
Cord Sub-assy, Antenna
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥2,920 | |
| 86101-47C40 note |
Cord Sub-assy, Antenna
2018-12 → —
|
ZVW5# CBU | ¥2,410 | |
| 86101-47C40 note |
Cord Sub-assy, Antenna
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥2,410 | |
| 86101-47K50 note |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥2,920 | |
| 86101-47K50 note |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥2,920 | |
| 86300J — Antenna Assy, Roof | ||||
| 86300-47170 |
Antenna Assy, Roof
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥9,800 | |
| 86760-47080 note |
Antenna Assy, Roof
2015-11 → 2016-01
ended
|
ZVW5# | ¥18,600 | |
| 86760-47081 note |
Antenna Assy, Roof
2016-02 → 2018-12
ended
|
ZVW5# CBU | ¥12,900 | |
| 86300-47170 |
Antenna Assy, Roof
2018-12 → 2020-07
ended
|
ZVW5# CBU | ¥9,800 | |
| 86300-47210 |
Antenna Assy, Roof
2020-07 → —
|
ZVW5# CBU | ¥7,400 | |
| 86760-47081 note |
Antenna Assy, Roof
2018-12 → —
|
ZVW5# CBU | ¥12,900 | |
| 86769 — Housing, Roof Antenna | ||||
| 86769-12010 |
Housing, Roof Antenna
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥500 | |
| 86769-12010 |
Housing, Roof Antenna
2018-12 → —
|
ZVW5# CBU | ¥500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
