Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

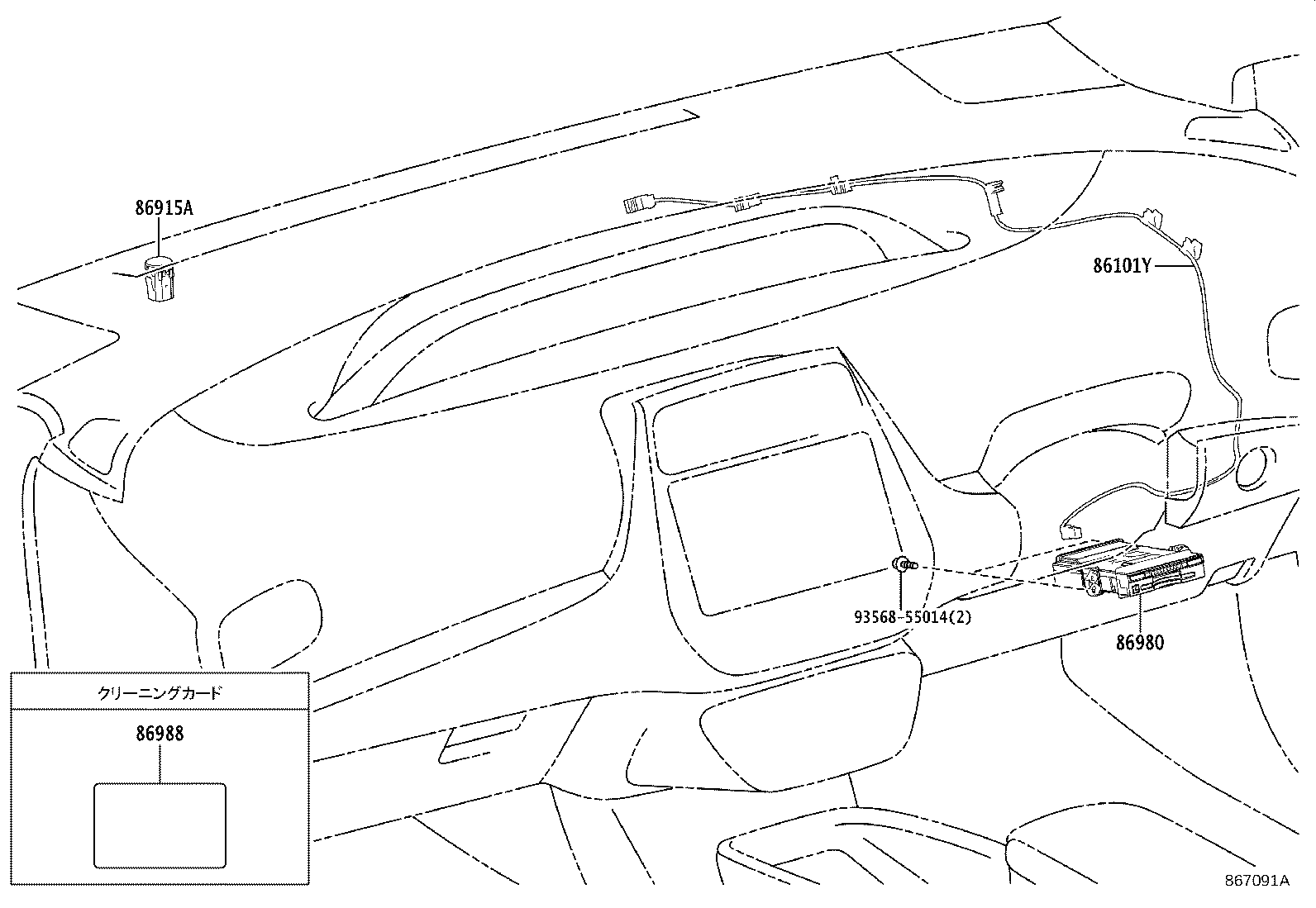

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101Y — Cord Sub-assy, Antenna | ||||
| 86101-47K40 note |
Cord Sub-assy, Antenna
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥2,920 | |
| 86101-47K40 note |
Cord Sub-assy, Antenna
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥2,920 | |
| 86101-47G80 |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# CBU | ¥2,410 | |
| 86101-47G80 note |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥2,410 | |
| 86101-47K40 note |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥2,920 | |
| 86101-47K40 note |
Cord Sub-assy, Antenna
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥2,920 | |
| 86915A — Transceiver, Optical Beacon | ||||
| 86915-60010 note |
Transceiver, Optical Beacon
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥14,200 | |
| 86915-60010 note |
Transceiver, Optical Beacon
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥14,200 | |
| 86915-60010 note |
Transceiver, Optical Beacon
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥14,200 | |
| 86915-60010 note |
Transceiver, Optical Beacon
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥14,200 | |
| 86915-60010 note |
Transceiver, Optical Beacon
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥14,200 | |
| 86980 — Computer Assy, Toll Collection | ||||
| 86980-47040 note |
Computer Assy, Toll Collection
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥54,000 | |
| 86980-47040 note |
Computer Assy, Toll Collection
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥54,000 | |
| 86980-30120 note |
Computer Assy, Toll Collection
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥45,000 | |
| 86980-30120 note |
Computer Assy, Toll Collection
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥45,000 | |
| 86980-K0011 note |
Computer Assy, Toll Collection
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥40,900 | |
| 86988 — Card, Toll Collection Cleaning | ||||
| 86988-11010 note |
Card, Toll Collection Cleaning
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥530 | |
| 86988-11010 note |
Card, Toll Collection Cleaning
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥530 | |
| 86988-11010 note |
Card, Toll Collection Cleaning
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥530 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
