Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

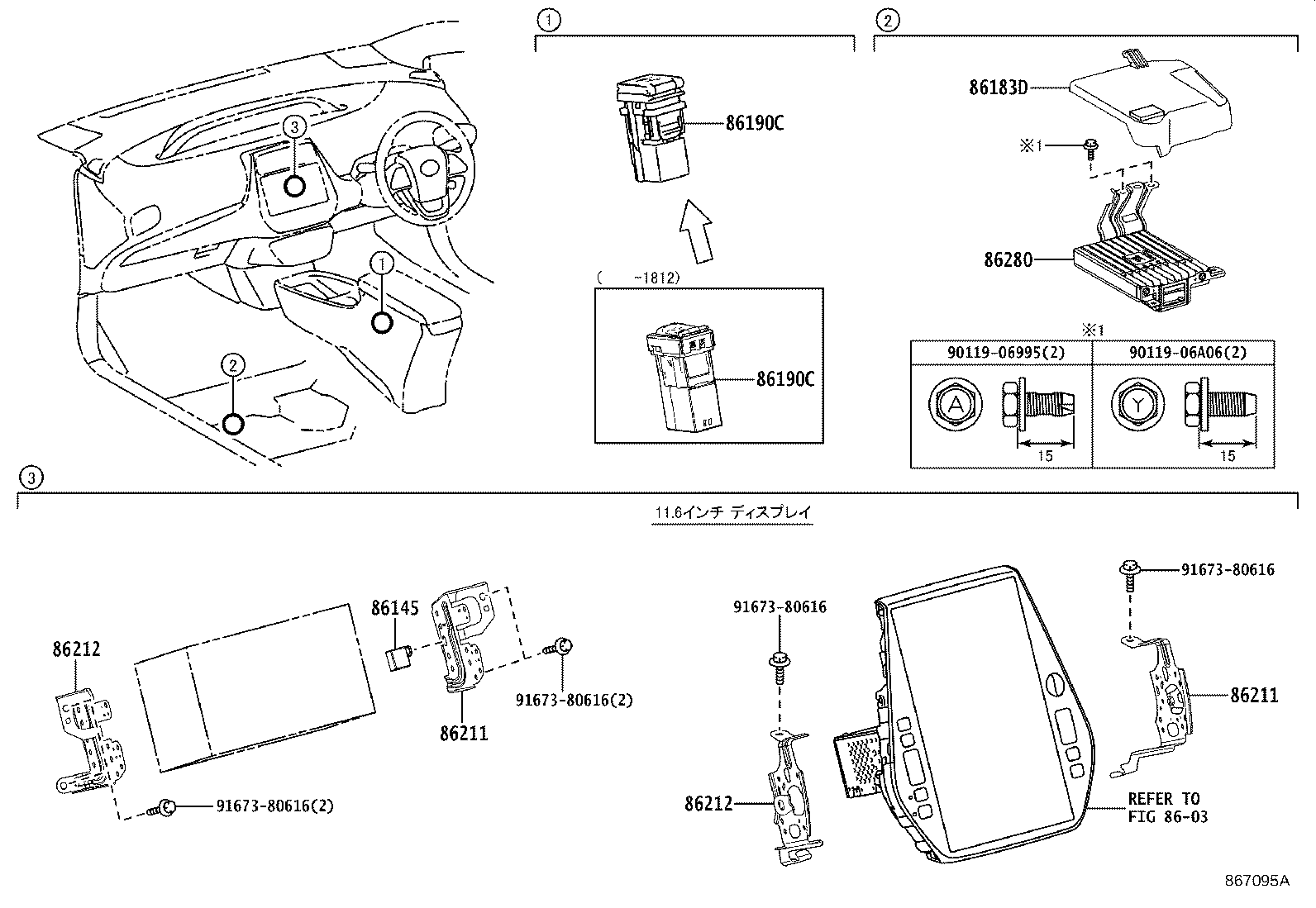

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86145 — Connector, Antenna Male | ||||
| 86145-52010 |
Connector, Antenna Male
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥170 | |
| 86145-52010 |
Connector, Antenna Male
2018-12 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥170 | |
| 86145-52010 |
Connector, Antenna Male
2018-12 → —
|
ZVW51 E | ¥170 | |
| 86145-52010 note |
Connector, Antenna Male
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥170 | |
| 86145-52010 note |
Connector, Antenna Male
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥170 | |
| 86183D — Cover, Audio Amplifier | ||||
| 86183-47120 note |
Cover, Audio Amplifier
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥2,860 | |
| 86183-12020 note |
Cover, Audio Amplifier
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥3,250 | |
| 86190C — Adapter Assy, Stereo Jack, NO.1 | ||||
| 86190-42040 note |
Adapter Assy, Stereo Jack, NO.1
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥8,800 | |
| 86190-42040 note |
Adapter Assy, Stereo Jack, NO.1
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥8,800 | |
| 86190-12040 note |
Adapter Assy, Stereo Jack, NO.1
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥7,200 | |
| 86190-12040 note |
Adapter Assy, Stereo Jack, NO.1
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥7,200 | |
| 86190-42031 note |
Adapter Assy, Stereo Jack, NO.1
2021-06 → 2022-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥4,160 | |
| 86190-42031 |
Adapter Assy, Stereo Jack, NO.1
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥4,160 | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-47140 |
Bracket, Radio, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥470 | |
| 86211-47150 note |
Bracket, Radio, NO.1
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥550 | |
| 86211-47150 note |
Bracket, Radio, NO.1
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥550 | |
| 86211-47130 |
Bracket, Radio, NO.1
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥430 | |
| 86211-47140 |
Bracket, Radio, NO.1
2018-12 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥470 | |
| 86211-47140 note |
Bracket, Radio, NO.1
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥470 | |
| 86211-47140 |
Bracket, Radio, NO.1
2018-12 → —
|
ZVW51 E | ¥470 | |
| 86211-47150 note |
Bracket, Radio, NO.1
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥550 | |
| 86211-47150 note |
Bracket, Radio, NO.1
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥550 | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-47140 |
Bracket, Radio, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥470 | |
| 86212-47150 note |
Bracket, Radio, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥550 | |
| 86212-47150 note |
Bracket, Radio, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥550 | |
| 86212-47130 |
Bracket, Radio, NO.2
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥430 | |
| 86212-47140 |
Bracket, Radio, NO.2
2018-12 → 2021-06
ended
|
ZVW5# (A,PREM,S) CBU | ¥470 | |
| 86212-47140 |
Bracket, Radio, NO.2
2018-12 → —
|
ZVW51 E | ¥470 | |
| 86212-47140 note |
Bracket, Radio, NO.2
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥470 | |
| 86212-47150 note |
Bracket, Radio, NO.2
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥550 | |
| 86212-47150 note |
Bracket, Radio, NO.2
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥550 | |
| 86280 — Amplifier Assy, Stereo Component | ||||
| 86280-47051 note |
Amplifier Assy, Stereo Component
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥239,000 | |
| 86280-47060 note |
Amplifier Assy, Stereo Component
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥199,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
