Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

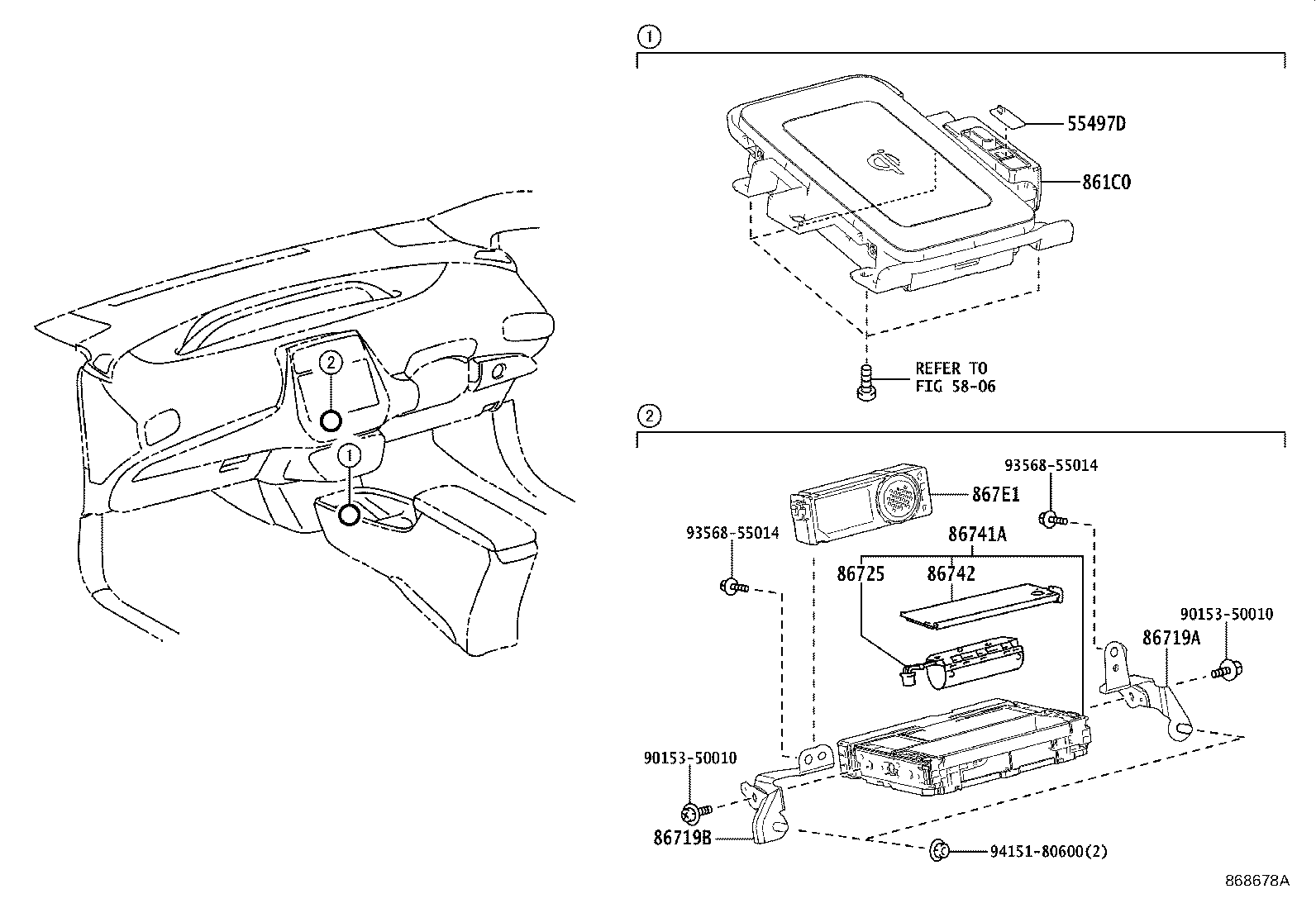

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55497D — Lens, Warning Lamp | ||||
| 55497-47010 note |
Lens, Warning Lamp
2015-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥90 | |
| 55497-47010 note |
Lens, Warning Lamp
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥90 | |
| 55497-47010 note |
Lens, Warning Lamp
2018-12 → —
|
ZVW5# PREM | ¥90 | |
| 861C0 — Cradle Assy, Mobile Wireless Charger | ||||
| 861C0-47010 note |
Cradle Assy, Mobile Wireless Charger
2015-11 → 2016-06
ended
|
ZVW51,55 (A,PREM) CBU | ¥50,200 | |
| 861C0-47010-A0 note |
Cradle Assy, Mobile Wireless Charger
2016-06 → 2016-10
ended
|
ZVW51,55 (A,PREM) CBU | ¥41,800 | |
| 861C0-47010-A0 note |
Cradle Assy, Mobile Wireless Charger
2016-10 → 2018-01
ended
|
ZVW51,55 (A,PREM) CBU | ¥41,800 | |
| 861C0-47010-C0 note |
Cradle Assy, Mobile Wireless Charger
2016-10 → 2018-01
ended
|
ZVW51,55 PREM | ¥41,800 | |
| 861C0-47010-C0 note |
Cradle Assy, Mobile Wireless Charger
2016-10 → 2018-01
ended
|
ZVW51,55 A CBU | ¥41,800 | |
| 861C0-47011-A0 note |
Cradle Assy, Mobile Wireless Charger
2018-02 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥41,800 | |
| 861C0-47011-C0 note |
Cradle Assy, Mobile Wireless Charger
2018-02 → 2018-12
ended
|
ZVW51,55 A CBU | ¥41,800 | |
| 861C0-47011-C0 note |
Cradle Assy, Mobile Wireless Charger
2018-02 → 2018-12
ended
|
ZVW51,55 PREM | ¥41,800 | |
| 861C0-47030-C0 note |
Cradle Assy, Mobile Wireless Charger
2018-12 → 2019-09
ended
|
ZVW5# (A,PREM) CBU | ¥41,800 | |
| 861C0-47031-C0 note |
Cradle Assy, Mobile Wireless Charger
2019-10 → 2021-06
ended
|
ZVW5# A CBU | ¥34,800 | |
| 861C0-47031-C0 note |
Cradle Assy, Mobile Wireless Charger
2019-10 → —
|
ZVW5# PREM | ¥34,800 | |
| 86719A — Bracket, Telephone NO.1 | ||||
| 86719-47290 note |
Bracket, Telephone NO.1
2021-06 → 2022-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥470 | |
| 86719-47290 |
Bracket, Telephone NO.1
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥470 | |
| 86719B — Bracket, Telephone NO.2 | ||||
| 86719-47300 note |
Bracket, Telephone NO.2
2021-06 → 2022-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥450 | |
| 86719-47300 |
Bracket, Telephone NO.2
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥450 | |
| 86725 — Battery, Mobilephone | ||||
| 86725-48010 note |
Battery, Mobilephone
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥8,300 | |
| 86725-48010 note |
Battery, Mobilephone
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥8,300 | |
| 86725-26010 |
Battery, Mobilephone
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥7,500 | |
| 86725-48010 note |
Battery, Mobilephone
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥8,300 | |
| 86725-48010 note |
Battery, Mobilephone
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥8,300 | |
| 86725-58010 |
Battery, Mobilephone
2018-12 → 2021-06
ended
|
ZVW5# CBU | ¥8,400 | |
| 86741A — Transceiver, Telematics | ||||
| 86740-47120 note |
Transceiver, Telematics
2015-11 → 2017-11
ended
|
ZVW5# (A,PREM,S) CBU | ¥44,000 | |
| 86740-47150 note |
Transceiver, Telematics
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥76,600 | |
| 86740-47150 note |
Transceiver, Telematics
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥76,600 | |
| 86740-47210 note |
Transceiver, Telematics
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥76,600 | |
| 86740-47210 note |
Transceiver, Telematics
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥76,600 | |
| 86740-47220 |
Transceiver, Telematics
2018-12 → 2021-06
ended
|
ZVW5# CBU | ¥76,600 | |
| 86741-33121 |
Transceiver, Telematics
2021-06 → 2021-07
ended
|
ZVW5# (A,PREM,S) CBU | ¥37,900 | |
| 86741-33121 note |
Transceiver, Telematics
2021-06 → 2021-07
ended
|
ZVW5# (A,PREM,S) CBU | ¥37,900 | |
| 86741-33122 note |
Transceiver, Telematics
2021-07 → 2022-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥38,000 | |
| 86741-33122 |
Transceiver, Telematics
2021-07 → —
|
ZVW5# (A,PREM,S) CBU | ¥38,000 | |
| 86742 — Cover, Transceiver | ||||
| 86742-26010 |
Cover, Transceiver
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥720 | |
| 86742-58020 |
Cover, Transceiver
2018-12 → 2021-06
ended
|
ZVW5# CBU | ¥790 | |
| 867E1 — Box, Communication Telematics | ||||
| 867E1-33020 note |
Box, Communication Telematics
2021-06 → 2022-12
ended
|
ZVW5# (A,PREM,S) CBU | ¥4,830 | |
| 867E1-33020 |
Box, Communication Telematics
2021-06 → —
|
ZVW5# (A,PREM,S) CBU | ¥4,830 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
