Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

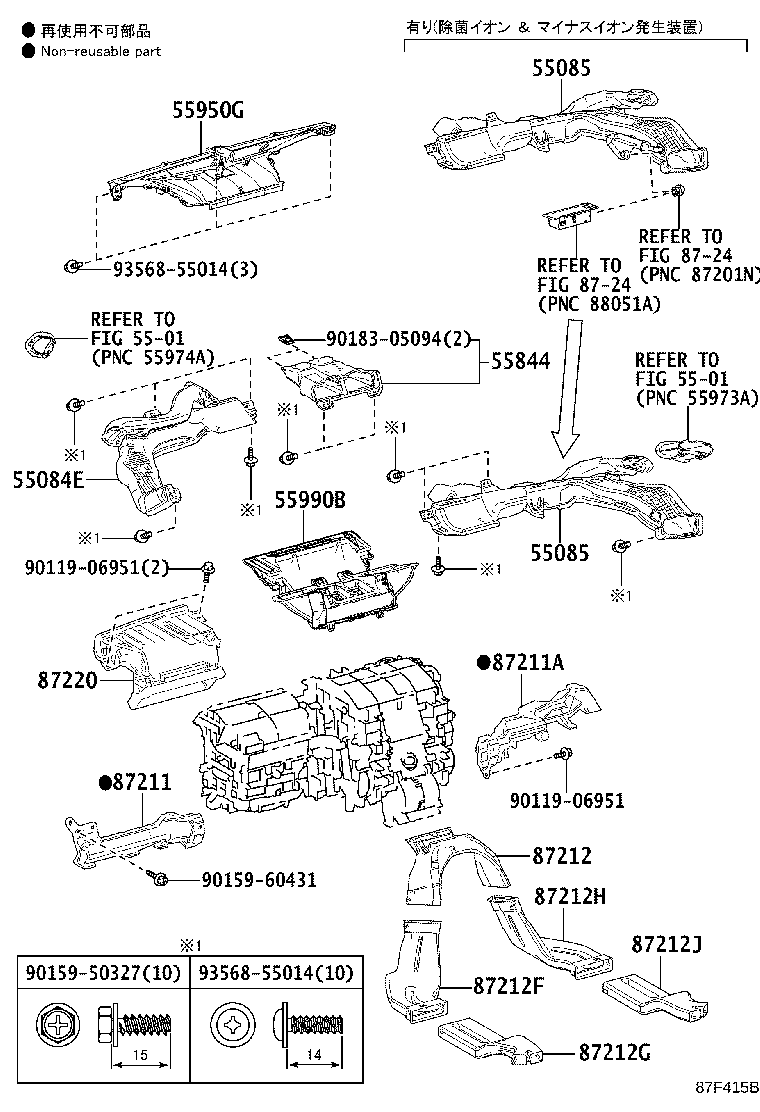

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55084E — Duct Sub-assy, Heater TO Register, NO.1 | ||||
| 55085-47060 |
Duct Sub-assy, Heater TO Register, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,760 | |
| 55085-47060 |
Duct Sub-assy, Heater TO Register, NO.1
2018-12 → —
|
ZVW5# CBU | ¥3,760 | |
| 55085 — Duct Sub-assy, Heater TO Register, NO.2 | ||||
| 55084-47100 |
Duct Sub-assy, Heater TO Register, NO.2
2015-11 → 2018-12
ended
|
ZVW5# (A,E,S) CBU | ¥4,120 | |
| 55084-47110 |
Duct Sub-assy, Heater TO Register, NO.2
2015-11 → 2018-12
ended
|
ZVW51,55 PREM | ¥4,400 | |
| 55084-47110 note |
Duct Sub-assy, Heater TO Register, NO.2
2015-11 → 2018-12
ended
|
ZVW5# (A,S) CBU | ¥4,400 | |
| 55084-47110 note |
Duct Sub-assy, Heater TO Register, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 A CBU | ¥4,400 | |
| 55084-47110 note |
Duct Sub-assy, Heater TO Register, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 A CBU | ¥4,400 | |
| 55084-47100 |
Duct Sub-assy, Heater TO Register, NO.2
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥4,120 | |
| 55084-47100 |
Duct Sub-assy, Heater TO Register, NO.2
2018-12 → —
|
ZVW5# (E,S) CBU | ¥4,120 | |
| 55084-47110 note |
Duct Sub-assy, Heater TO Register, NO.2
2021-06 → —
|
ZVW5# S CBU | ¥4,400 | |
| 55084-47110 |
Duct Sub-assy, Heater TO Register, NO.2
2021-06 → —
|
ZVW5# A CBU | ¥4,400 | |
| 55084-47110 note |
Duct Sub-assy, Heater TO Register, NO.2
2020-07 → —
|
ZVW5# S CBU | ¥4,400 | |
| 55084-47110 |
Duct Sub-assy, Heater TO Register, NO.2
2018-12 → —
|
ZVW5# PREM | ¥4,400 | |
| 55844 — Duct, Heater TO Register, NO.2 | ||||
| 55844-47100 |
Duct, Heater TO Register, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,550 | |
| 55844-47140 note |
Duct, Heater TO Register, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥2,480 | |
| 55844-47140 note |
Duct, Heater TO Register, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 (A,PREM) CBU | ¥2,480 | |
| 55844-47140 note |
Duct, Heater TO Register, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 A CBU | ¥2,480 | |
| 55844-47140 note |
Duct, Heater TO Register, NO.2
2017-11 → 2018-12
ended
|
ZVW51,55 A CBU | ¥2,480 | |
| 55844-47100 |
Duct, Heater TO Register, NO.2
2018-12 → —
|
ZVW5# CBU | ¥1,550 | |
| 55844-47140 note |
Duct, Heater TO Register, NO.2
2018-12 → 2021-06
ended
|
ZVW5# A CBU | ¥2,480 | |
| 55844-47140 note |
Duct, Heater TO Register, NO.2
2018-12 → 2021-06
ended
|
ZVW5# PREM | ¥2,480 | |
| 55950G — Nozzle Assy, Defroster | ||||
| 55950-47070 |
Nozzle Assy, Defroster
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥3,200 | |
| 55950-47070 |
Nozzle Assy, Defroster
2018-12 → —
|
ZVW5# CBU | ¥3,200 | |
| 55990B — Nozzle Assy, Defroster, Lower | ||||
| 55990-47090 |
Nozzle Assy, Defroster, Lower
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥5,200 | |
| 55990-47090 |
Nozzle Assy, Defroster, Lower
2018-12 → —
|
ZVW5# CBU | ¥5,200 | |
| 87211 — Duct, Air, NO.1 | ||||
| 87211-47180 |
Duct, Air, NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | — | |
| 87211-47180 |
Duct, Air, NO.1
2018-12 → —
|
ZVW5# CBU | — | |
| 87211A — Duct, Air, NO.2 | ||||
| 87211-47170 |
Duct, Air, NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥0 | |
| 87211-47170 |
Duct, Air, NO.2
2018-12 → 2019-01
ended
|
ZVW5# CBU | ¥0 | |
| 87211-47171 |
Duct, Air, NO.2
2019-02 → —
|
ZVW5# CBU | — | |
| 87212 — Duct, Air, Rear NO.1 | ||||
| 87215-47040 |
Duct, Air, Rear NO.1
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,050 | |
| 87215-47040 |
Duct, Air, Rear NO.1
2018-12 → —
|
ZVW5# CBU | ¥2,050 | |
| 87212F — Duct, Air, Rear NO.2 | ||||
| 87213-47050 |
Duct, Air, Rear NO.2
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,470 | |
| 87213-47050 |
Duct, Air, Rear NO.2
2018-12 → —
|
ZVW5# CBU | ¥2,470 | |
| 87212G — Duct, Air, Rear NO.3 | ||||
| 87217-47010 |
Duct, Air, Rear NO.3
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,550 | |
| 87217-47010 |
Duct, Air, Rear NO.3
2018-12 → —
|
ZVW5# CBU | ¥1,550 | |
| 87212H — Duct, Air, Rear NO.4 | ||||
| 87212-47040 |
Duct, Air, Rear NO.4
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥2,470 | |
| 87212-47040 |
Duct, Air, Rear NO.4
2018-12 → —
|
ZVW5# CBU | ¥2,470 | |
| 87212J — Duct, Air, Rear NO.5 | ||||
| 87216-47010 |
Duct, Air, Rear NO.5
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥1,550 | |
| 87216-47010 |
Duct, Air, Rear NO.5
2018-12 → —
|
ZVW5# CBU | ¥1,550 | |
| 87220 — Duct Assy, Air | ||||
| 87220-47030 |
Duct Assy, Air
2015-11 → 2018-12
ended
|
ZVW5# CBU | — | |
| 87220-47030 |
Duct Assy, Air
2018-12 → —
|
ZVW5# CBU | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
