Toyota Prius
2015-11 → 2022-11 · chassis ZVW5# · catalogue 222140 · Japan
Supported model
Data version 2023-11

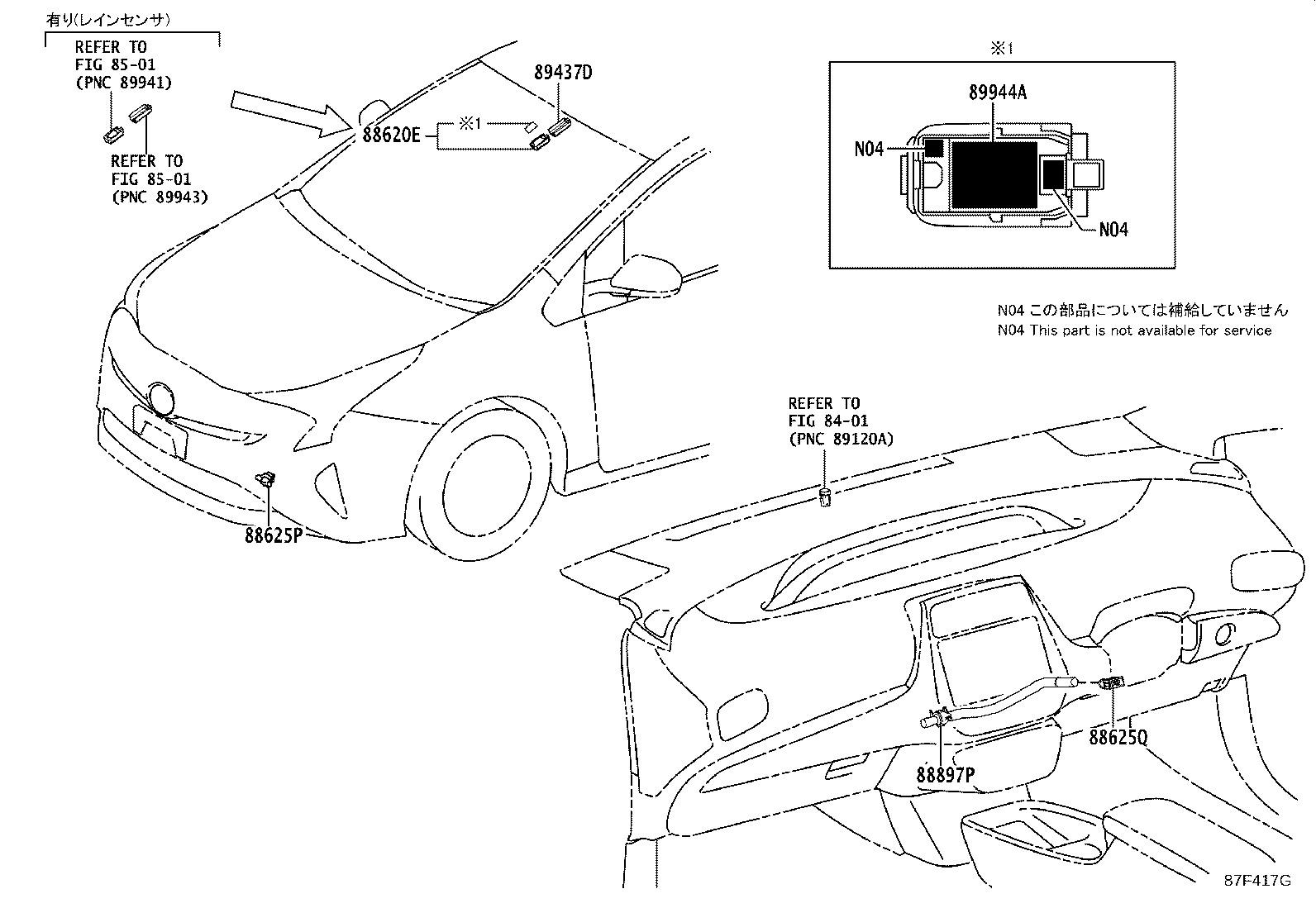

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88620E — Thermistor Assy, Air Conditioner (HUMIDITY SENSOR) | ||||
| 88620-47020 |
Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
2015-11 → 2016-08
ended
|
ZVW5# (E,S) CBU | ¥22,600 | |
| 89941-47040 |
Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
2016-08 → 2018-12
ended
|
ZVW5# (E,S) CBU | ¥16,600 | |
| 89941-47040 |
Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
2018-12 → 2019-10
ended
|
ZVW5# (E,S) CBU | ¥16,600 | |
| 89941-47041 |
Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
2019-11 → 2020-07
ended
|
ZVW5# (E,S) CBU | ¥13,800 | |
| 88625P — Thermistor, Cooler (AMBIENT TEMP. SENSOR) | ||||
| 88790-28100 |
Thermistor, Cooler (AMBIENT TEMP. SENSOR)
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥0 | |
| 88790-28100 |
Thermistor, Cooler (AMBIENT TEMP. SENSOR)
2018-12 → —
|
ZVW5# CBU | ¥0 | |
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2015-11 → 2018-12
ended
|
ZVW5# CBU | — | |
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2018-12 → —
|
ZVW5# CBU | — | |
| 88897P — Aspirator | ||||
| 88505-47060 |
Aspirator
2015-11 → 2018-12
ended
|
ZVW5# CBU | ¥0 | |
| 88505-47060 |
Aspirator
2018-12 → —
|
ZVW5# CBU | ¥0 | |
| 89437D — Cover, Sensor | ||||
| 89943-47020 |
Cover, Sensor
2015-11 → 2018-12
ended
|
ZVW5# (E,S) CBU | ¥700 | |
| 89943-47020 |
Cover, Sensor
2018-12 → 2019-10
ended
|
ZVW5# (E,S) CBU | ¥700 | |
| 89943-47021 |
Cover, Sensor
2019-11 → 2020-07
ended
|
ZVW5# (E,S) CBU | ¥580 | |
| 89944A — Tape(FOR AIR CONDITIONER THERMISTOR) | ||||
| 89944-42020 |
Tape(FOR AIR CONDITIONER THERMISTOR)
2018-06 → 2018-12
ended
|
ZVW5# (E,S) CBU | ¥170 | |
| 89944-42020 note |
Tape(FOR AIR CONDITIONER THERMISTOR)
2018-06 → 2018-12
ended
|
ZVW50,55 S CBU | ¥170 | |
| 89944-48010 |
Tape(FOR AIR CONDITIONER THERMISTOR)
2015-11 → 2018-05
ended
|
ZVW5# (E,S) CBU | ¥230 | |
| 89944-48010 note |
Tape(FOR AIR CONDITIONER THERMISTOR)
2016-10 → 2018-05
ended
|
ZVW50,55 S CBU | ¥230 | |
| 89944-42020 |
Tape(FOR AIR CONDITIONER THERMISTOR)
2018-12 → 2020-07
ended
|
ZVW5# (E,S) CBU | ¥170 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
