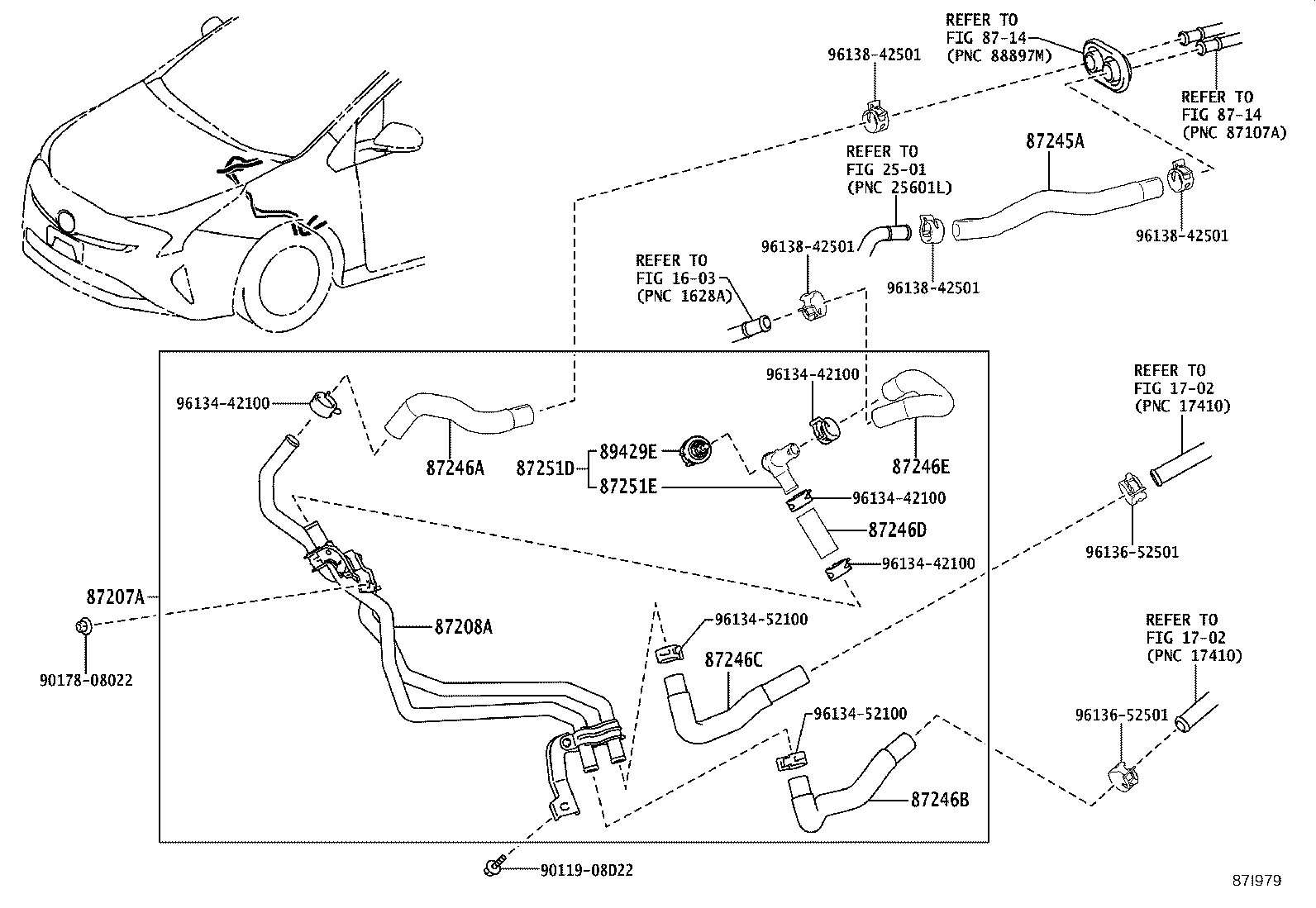

Exploded illustration 87I979 1603 — not listed in this catalogue 87208A — PIPE SUB-ASSY, HEATER WATER, A (3 parts) 87246D — HOSE, HEATER WATER, OUTLET D (2 parts) 87246E — HOSE, HEATER WATER, OUTLET E (2 parts) 87245A — HOSE, HEATER WATER, INLET A (4 parts) 87246C — HOSE, HEATER WATER, OUTLET C (3 parts) 87246B — HOSE, HEATER WATER, OUTLET B (3 parts) 87251D — JOINT, WATER, NO.1 (2 parts) 89429E — SENSOR, WATER TEMPERATURE (3 parts) 87251E — JOINT, WATER, NO.2 (2 parts) 1702 — not listed in this catalogue 8714 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842501 — not listed in this catalogue 9011908D22 — not listed in this catalogue 9017808022 — not listed in this catalogue 9613652501 — not listed in this catalogue 9613652501 — not listed in this catalogue 8714 — not listed in this catalogue 2501 — not listed in this catalogue 9613842501 — not listed in this catalogue 1702 — not listed in this catalogue 87246A — HOSE, HEATER WATER, OUTLET A (4 parts) 87207A — PIPE & HOSE SUB-ASSY, WATER A (3 parts) 9613442100 — not listed in this catalogue 9613442100 — not listed in this catalogue 9613442100 — not listed in this catalogue 9613442100 — not listed in this catalogue 9613452100 — not listed in this catalogue 9613452100 — not listed in this catalogue
87I979 · 11 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
87207A — Pipe & Hose Sub-assy, Water A
87207-47080 Pipe & Hose Sub-assy, Water A
2015-11 → 2018-12 ended
ZVW5# CBU ¥16,600
87207-47080 Pipe & Hose Sub-assy, Water A
2018-12 → 2020-02 ended
ZVW5# CBU ¥16,600
87207-47100 Pipe & Hose Sub-assy, Water A
2020-02 → 2021-06 ended
ZVW5# CBU ¥14,400
87208A — Pipe Sub-assy, Heater Water, A
87208-47030 Pipe Sub-assy, Heater Water, A
2015-11 → 2018-12 ended
ZVW5# CBU ¥0
87208-47030 Pipe Sub-assy, Heater Water, A
2018-12 → 2020-02 ended
ZVW5# CBU ¥0
87208-47070 Pipe Sub-assy, Heater Water, A
2020-02 → 2021-06 ended
ZVW5# CBU —
87245A — Hose, Heater Water, Inlet A
87245-47330 Hose, Heater Water, Inlet A
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,340
87245-47330 Hose, Heater Water, Inlet A
2018-12 → 2021-06 ended
ZVW5# CBU ¥1,340
87245-47370 note Hose, Heater Water, Inlet A
2020-07 → 2021-06 ended
ZVW5# CBU ¥1,690
87245-47370 Hose, Heater Water, Inlet A
2021-06 → —
ZVW5# CBU ¥1,690
87246A — Hose, Heater Water, Outlet A
87245-47430 Hose, Heater Water, Outlet A
2015-11 → 2018-12 ended
ZVW5# CBU ¥990
87245-47340 note Hose, Heater Water, Outlet A
2020-07 → 2021-06 ended
ZVW5# CBU ¥1,150
87245-47340 Hose, Heater Water, Outlet A
2021-06 → —
ZVW5# CBU ¥1,150
87245-47430 Hose, Heater Water, Outlet A
2018-12 → 2021-06 ended
ZVW5# CBU ¥990
87246B — Hose, Heater Water, Outlet B
87245-47420 Hose, Heater Water, Outlet B
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,260
87245-47420 Hose, Heater Water, Outlet B
2018-12 → 2020-02 ended
ZVW5# CBU ¥1,260
87245-47450 Hose, Heater Water, Outlet B
2020-02 → 2021-06 ended
ZVW5# CBU ¥1,130
87246C — Hose, Heater Water, Outlet C
87245-47410 Hose, Heater Water, Outlet C
2015-11 → 2018-12 ended
ZVW5# CBU ¥750
87245-47410 Hose, Heater Water, Outlet C
2018-12 → 2020-02 ended
ZVW5# CBU ¥750
87245-47440 Hose, Heater Water, Outlet C
2020-02 → 2021-06 ended
ZVW5# CBU ¥1,350
87246D — Hose, Heater Water, Outlet D
87245-47400 Hose, Heater Water, Outlet D
2015-11 → 2018-12 ended
ZVW5# CBU ¥110
87245-47400 Hose, Heater Water, Outlet D
2018-12 → 2021-06 ended
ZVW5# CBU ¥110
87246E — Hose, Heater Water, Outlet E
87245-47390 Hose, Heater Water, Outlet E
2015-11 → 2018-12 ended
ZVW5# CBU ¥1,040
87245-47390 Hose, Heater Water, Outlet E
2018-12 → 2021-06 ended
ZVW5# CBU ¥1,040
87251D — Joint, Water, NO.1
87252-47030 Joint, Water, NO.1
2015-11 → 2018-12 ended
ZVW5# CBU ¥0
87252-47030 Joint, Water, NO.1
2018-12 → 2021-06 ended
ZVW5# CBU ¥0
87251E — Joint, Water, NO.2
87251-47030 Joint, Water, NO.2
2015-11 → 2018-12 ended
ZVW5# CBU —
87251-47030 Joint, Water, NO.2
2018-12 → 2021-06 ended
ZVW5# CBU —
89429E — Sensor, Water Temperature
89429-47010 Sensor, Water Temperature
2015-11 → 2018-12 ended
ZVW5# CBU ¥2,410
89429-47010 note Sensor, Water Temperature
2018-12 → 2020-07 ended
ZVW5# CBU ¥2,410
89429-47010 Sensor, Water Temperature
2018-12 → 2021-06 ended
ZVW5# CBU ¥2,410
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
