Toyota Prius
2022-12 → present · chassis MXWH6#,ZVW6# · catalogue 222150 · Japan
Supported model
Data version 2023-03

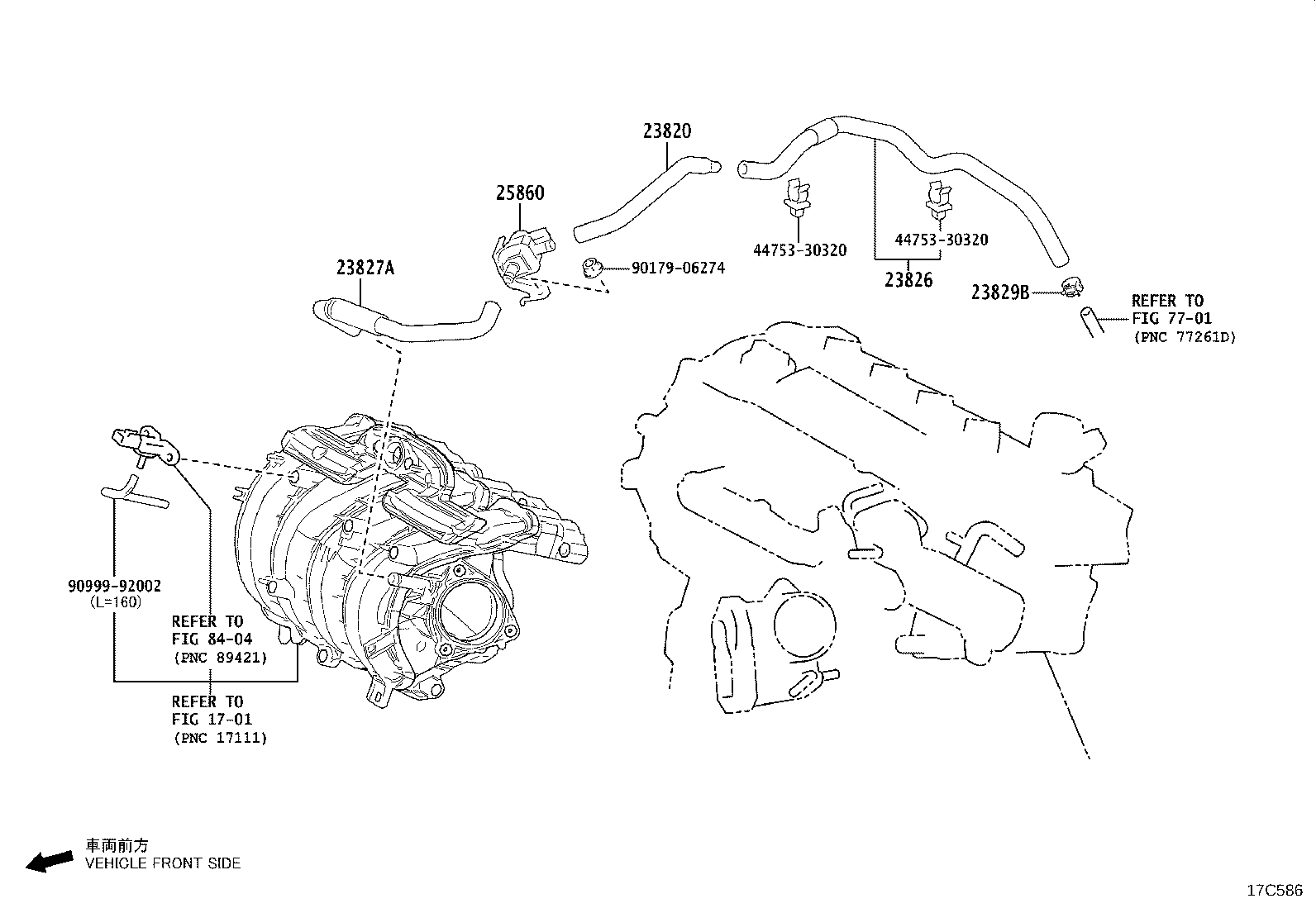

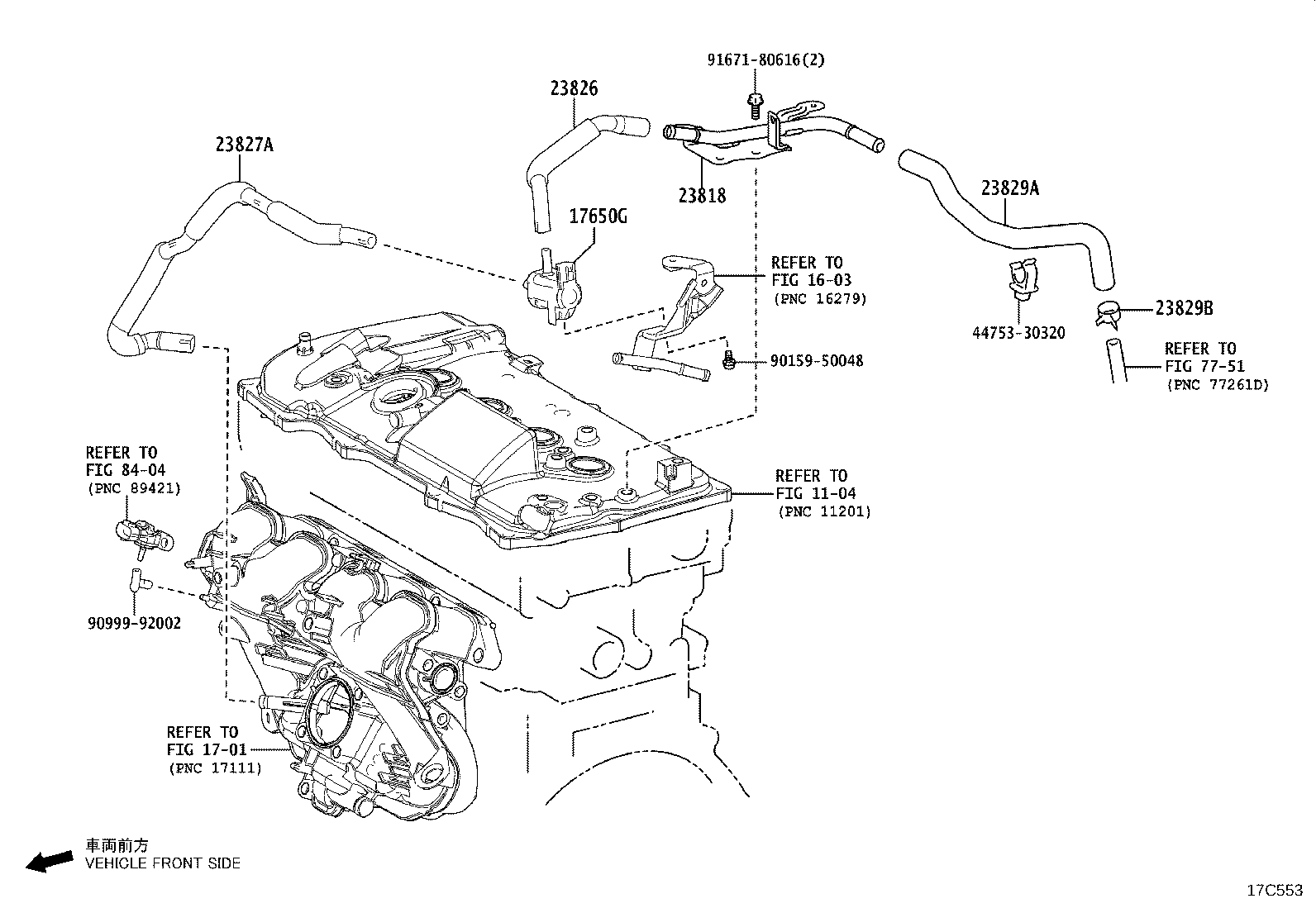

Vacuum Piping
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17650G | Valve, Duty Vacuum Switching |
| 23818 | Pipe, Fuel Vapor Feed |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
