Toyota Prius
2022-12 → present · chassis MXWH6#,ZVW6# · catalogue 222150 · Japan
Supported model
Data version 2023-03

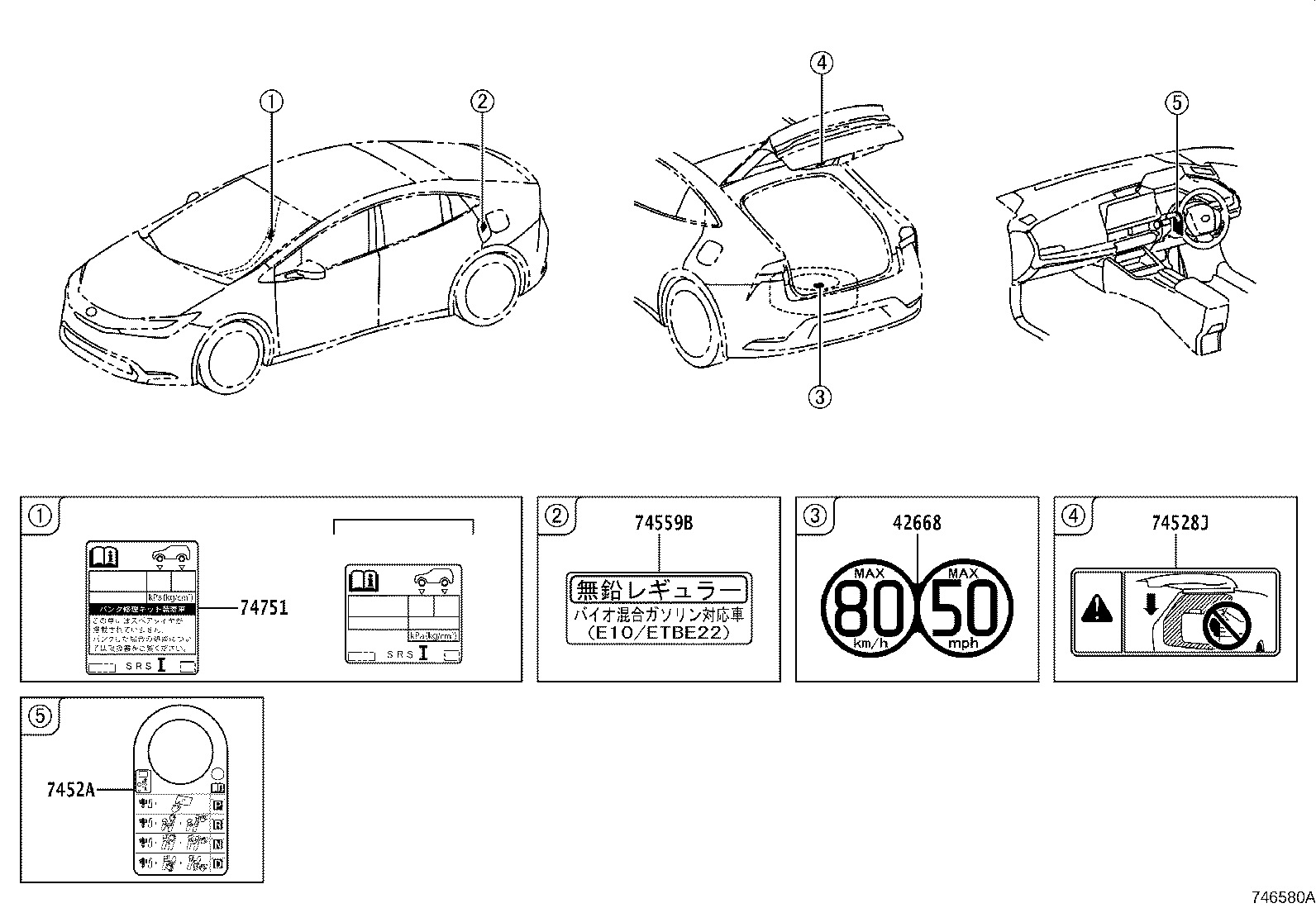

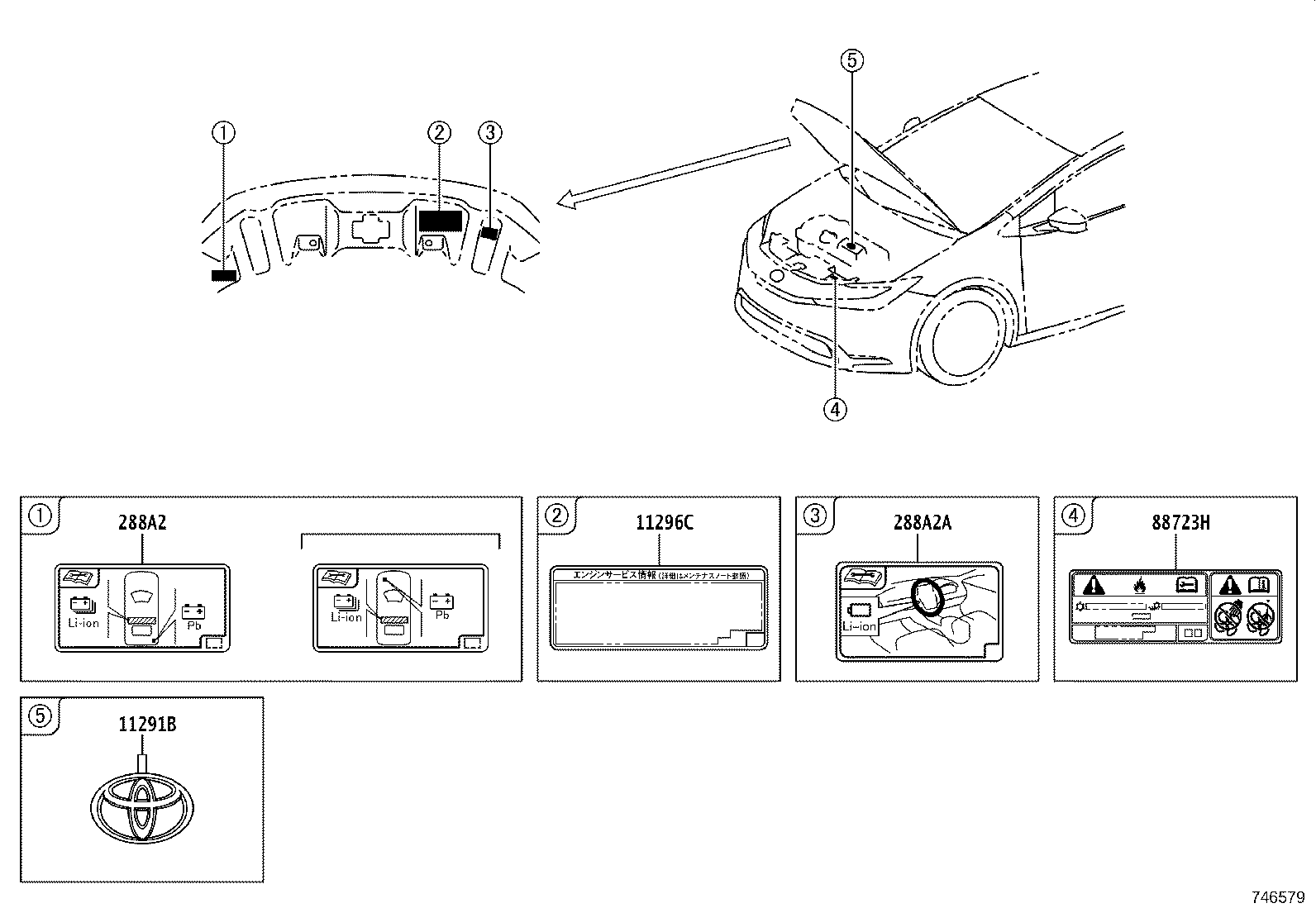

Caution Plate (EXTERIOR & INTERIOR)
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11291B | Plate, Engine Name |
| 11296C | Label, Engine Service Information |
| 288A2 | Label, Battery Location |
| 288A2A | Label, Battery Location, NO.2 |
| 42668 | Label, Compact Spare Tire Caution |
| 74528J | Label, Power Back Door Caution |
| 7452A | Label, Shift Control Information |
| 74559B | Label, Fuel Information |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
