Toyota Prius(PLUG-IN HBD)

2012-01 → 2016-04 · chassis ZVW35 · catalogue 224120 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 2 illustrations

Illustrations

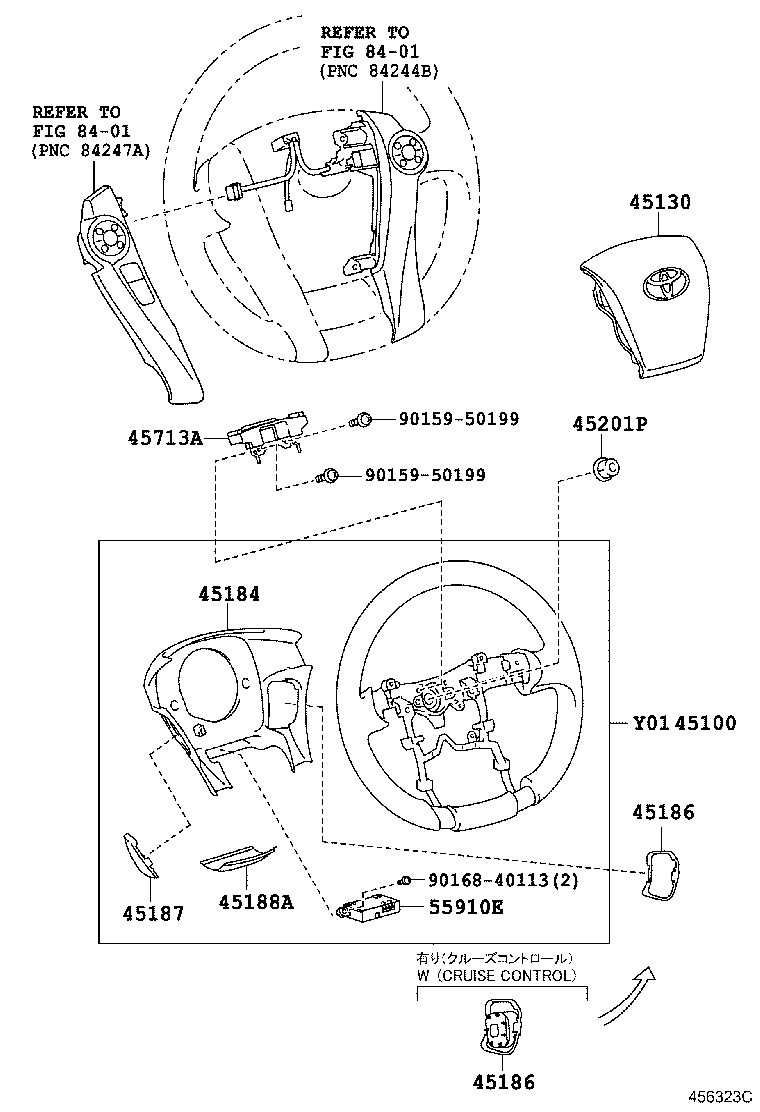

Figure 456292D 456292D 2012-01 → — Figure 456323C 456323C 2012-11 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188A Cover, Steering Wheel, Lower NO.4
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
55910E Control Assy, Steering Wheel Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
