Toyota Prius Phv
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224130 · Japan
Supported model
Data version 2023-12

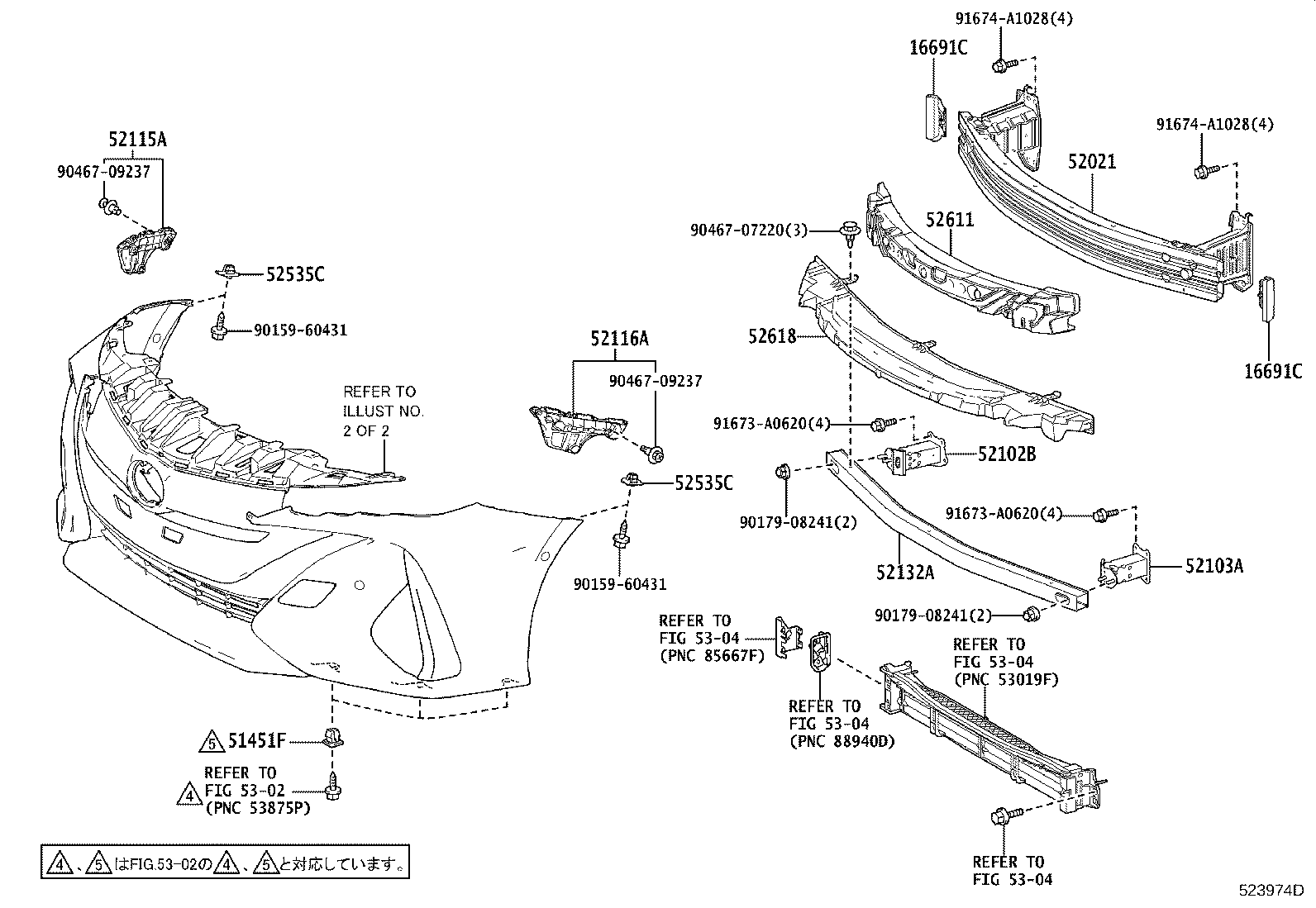

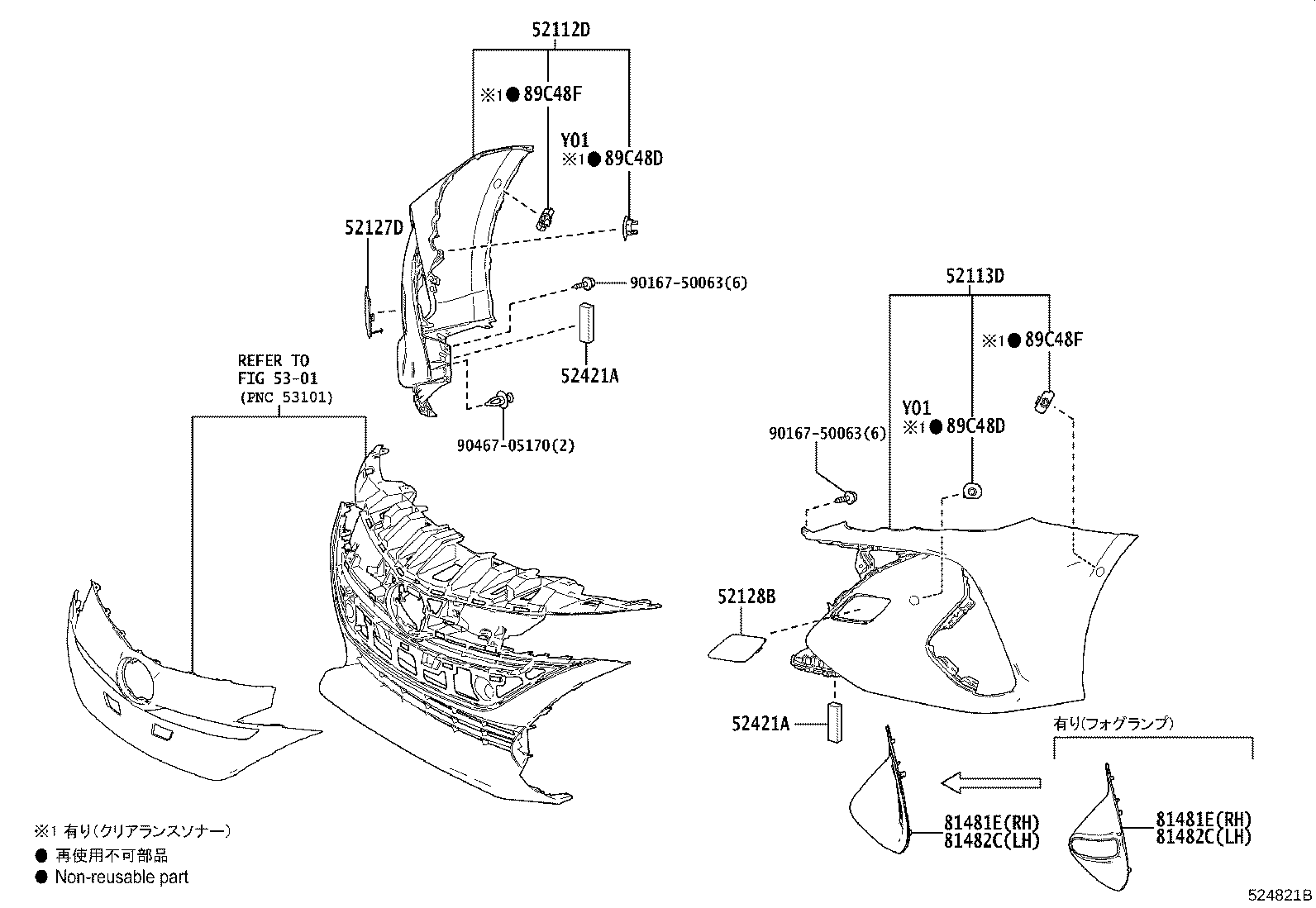

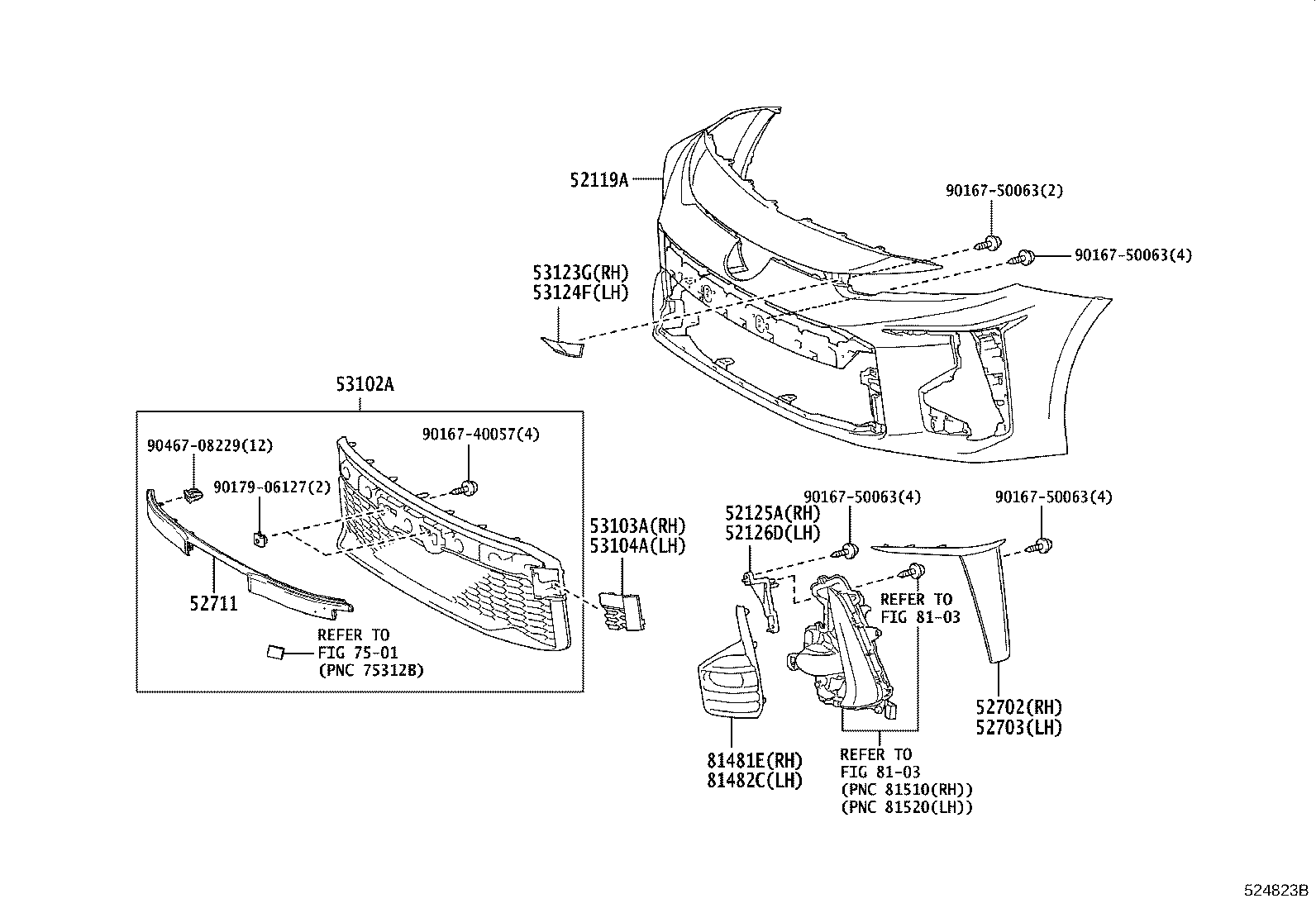

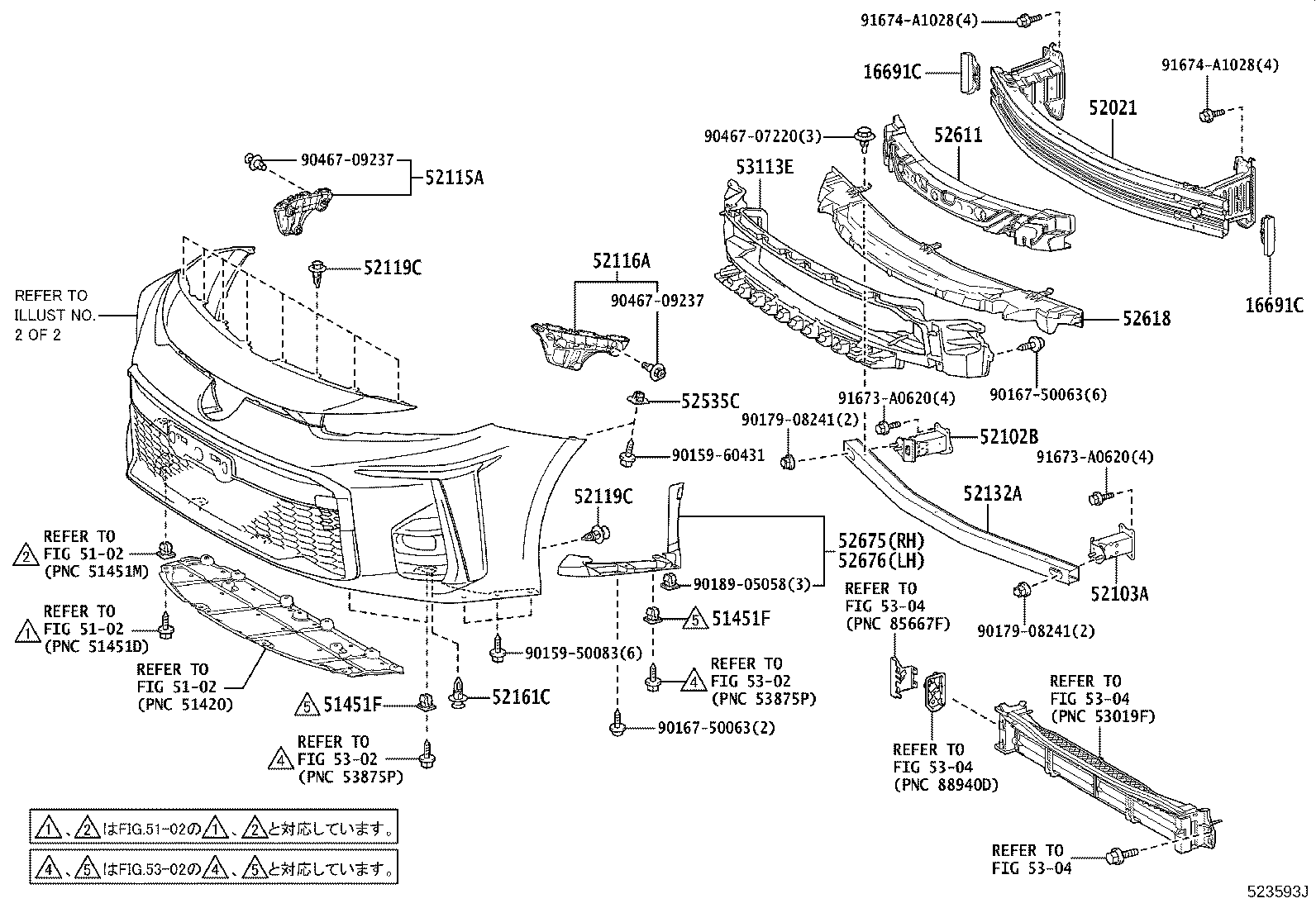

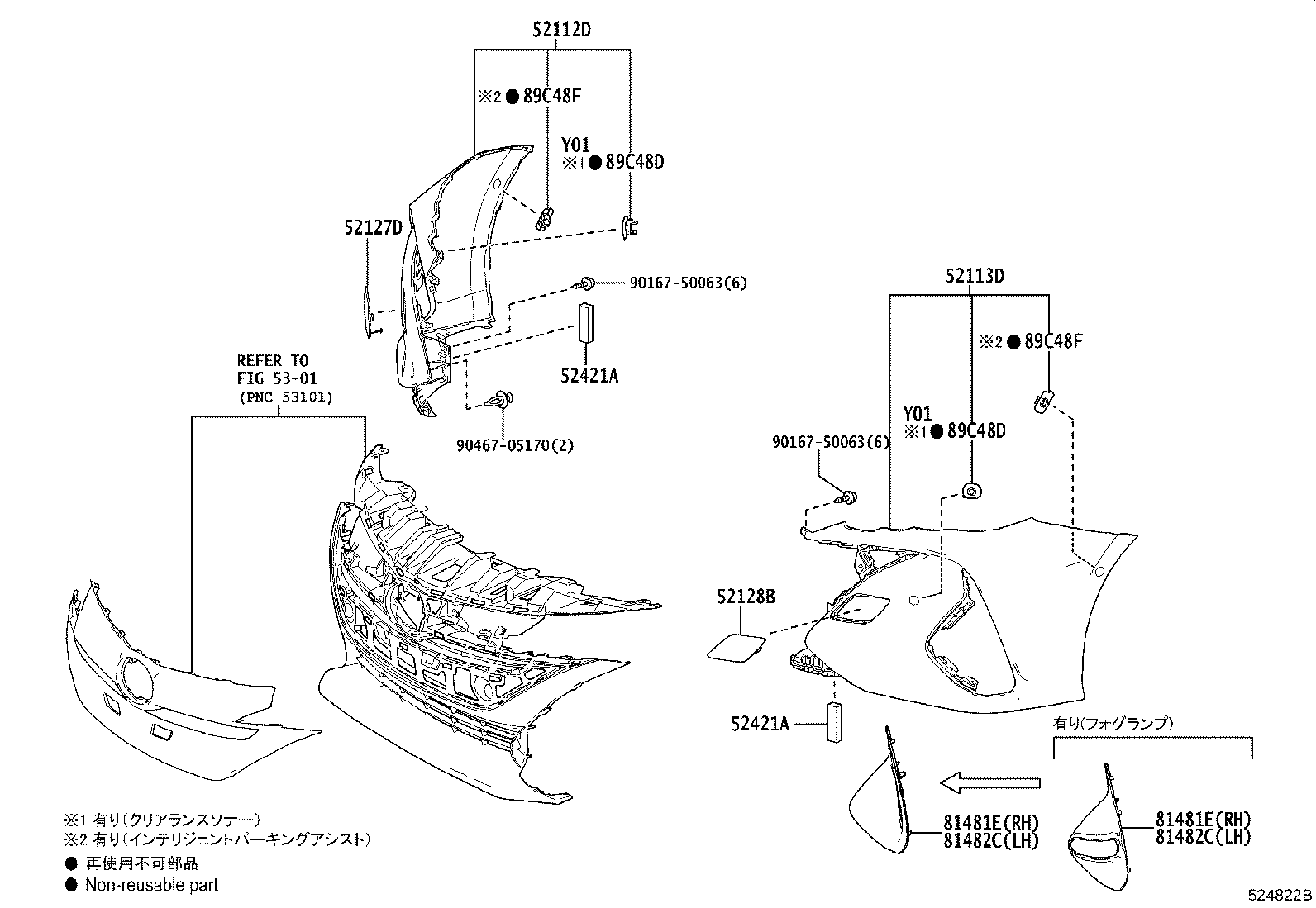

Front Bumper & Bumper Stay
36 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 16691C | Plate, Radiator Side Air Guide, Front |
| 51451F | Grommet, NO.1 |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52102B | Extension Sub-assy, Front Bumper, RH |
| 52103A | Extension Sub-assy, Front Bumper, LH |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52119C | Clip, Front Bumper Cover |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126D | Bracket, Fog Lamp Mounting, LH |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52132A | Reinforcement, Front Bumper, NO.2 |
| 52161C | Piece, Front Bumper |
| 52421A | Pad, Front Bumper |
| 52535C | Retainer, Front Bumper Side |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52675 | Support, Front Bumper Lower Side, RH |
| 52676 | Support, Front Bumper Lower Side, LH |
| 52702 | Moulding Sub-assy, Front Bumper Side, RH |
| 52703 | Moulding Sub-assy, Front Bumper Side, LH |
| 52711 | Moulding, Front Bumper |
| 53102A | Grille Sub-assy, Radiator, Lwr |
| 53103A | Grille Sub-assy, Radiator, Lower RH |
| 53104A | Grille Sub-assy, Radiator, Lower LH |
| 53113E | Grille, Radiator, Lower NO.2 |
| 53123G | Moulding, Radiator Grille Side, RH |
| 53124F | Moulding, Radiator Grille Side, LH |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
| 89C48F | Retainer, Ultrasonic Sensor, Front Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
