Toyota Prius Phv
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224130 · Japan
Supported model
Data version 2023-12

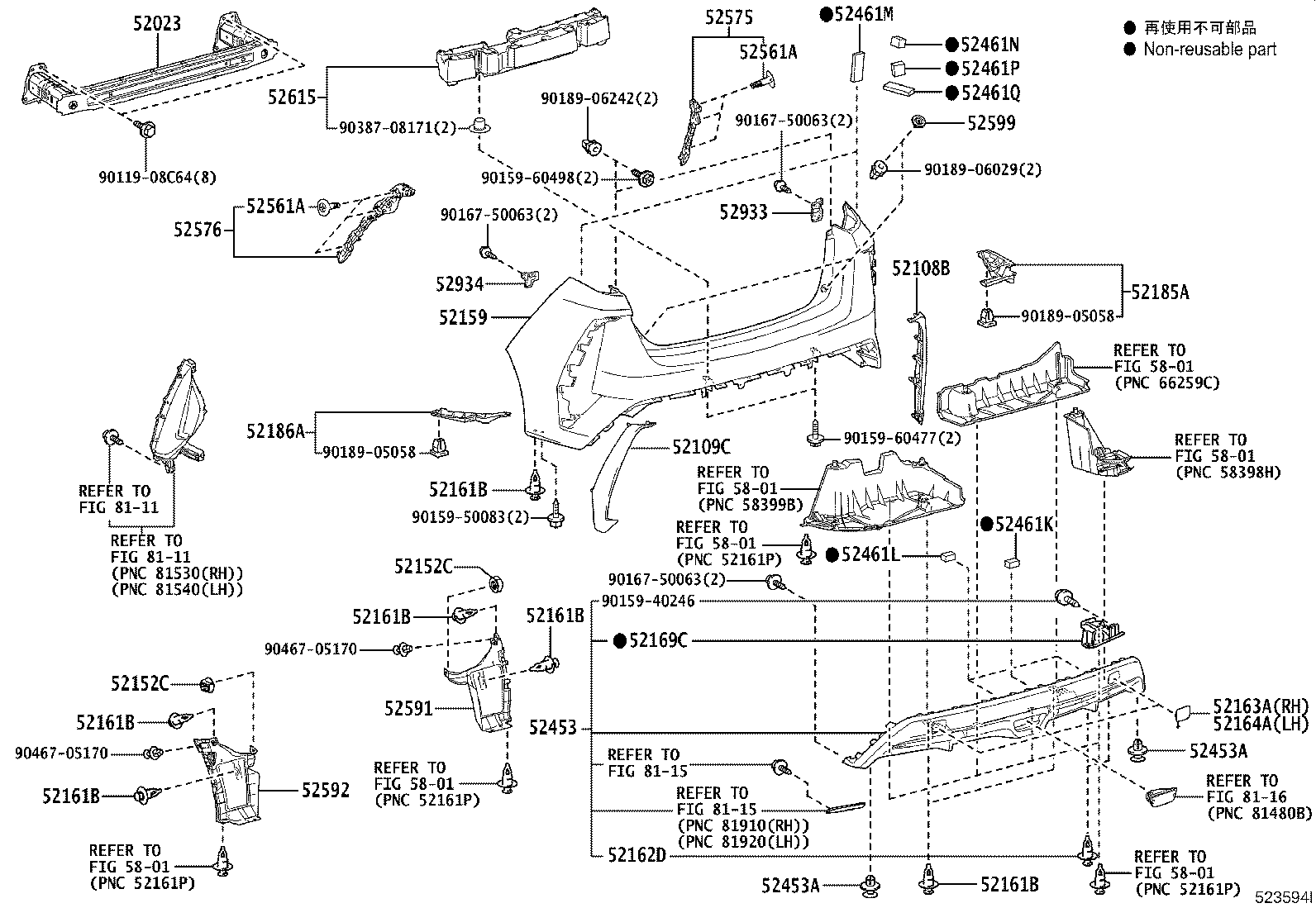

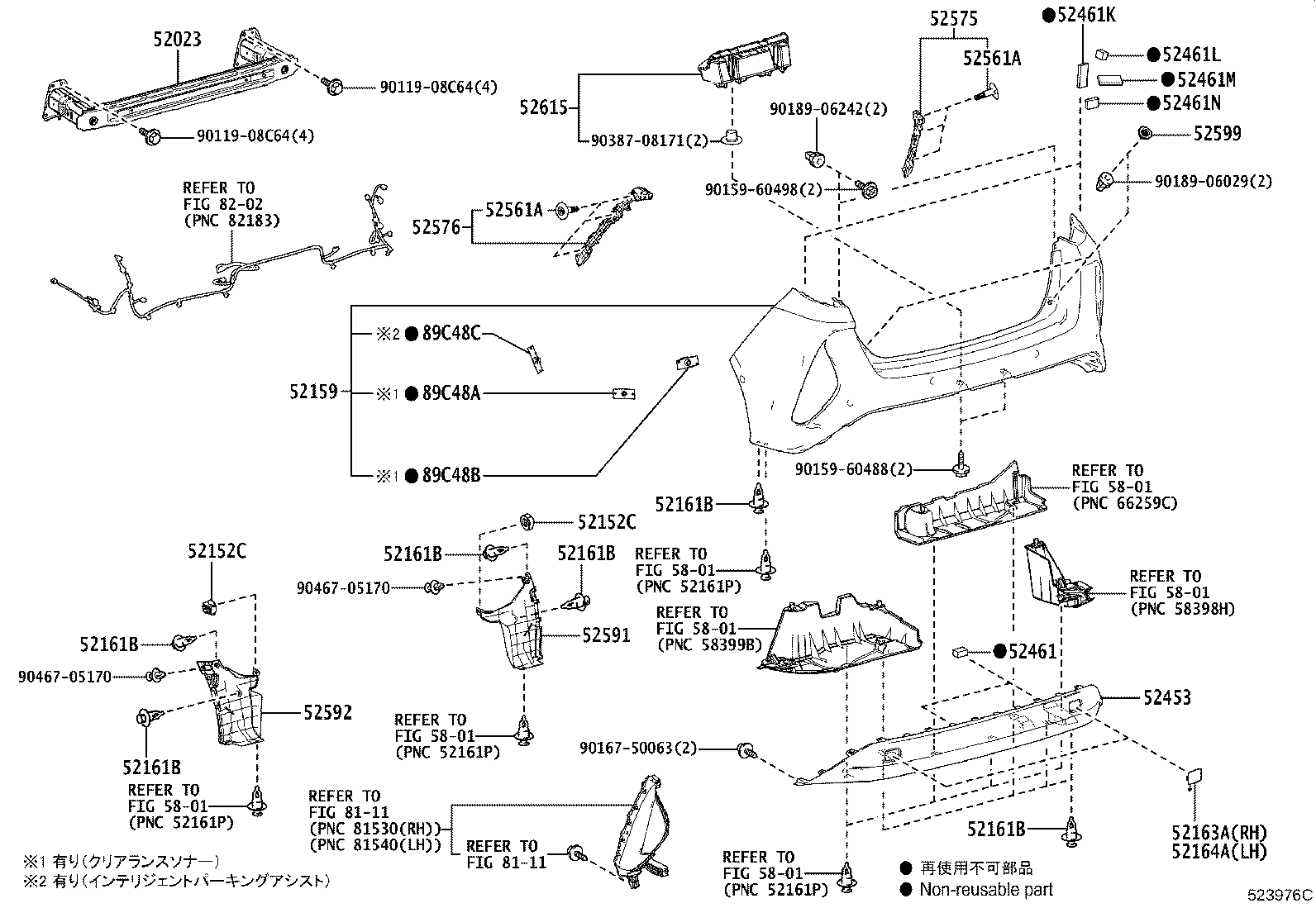

Rear Bumper & Bumper Stay
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52108B | Extension Sub-assy, Rear Bumper Side, RH |
| 52109C | Extension Sub-assy, Rear Bumper Side, LH |
| 52152C | Clip, Rear Bumper Side |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52162D | Piece, Rear Bumper |
| 52163A | Plate, Rear Bumper, RH |
| 52164A | Plate, Rear Bumper, LH |
| 52169C | Cover, Rear Bumper, Lower |
| 52185A | Bracket, Rear Bumper Side, RH |
| 52186A | Bracket, Rear Bumper Side, LH |
| 52453 | Guard, Rear Bumper, Center |
| 52453A | Clip, Rear Bumper Guard |
| 52461 | Pad, Rear Bumper, Center |
| 52461K | Pad, Rear Bumper, NO.1 |
| 52461L | Pad, Rear Bumper, NO.2 |
| 52461M | Pad, Rear Bumper, NO.3 |
| 52461N | Pad, Rear Bumper, NO.4 |
| 52461P | Pad, Rear Bumper, NO.5 |
| 52461Q | Pad, Rear Bumper, NO.6 |
| 52561A | Clip(FOR REAR BUMPER RETAINER) |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52599 | Stopper, Rear Bumper, Upper |
| 52615 | Absorber, Rear Bumper Energy |
| 52933 | Bracket, Side Bumper, Rear RH |
| 52934 | Bracket, Side Bumper, Rear LH |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
| 89C48C | Retainer, Ultrasonic Sensor, Rear Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
