Toyota Prius Phv

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224130 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

136 part groups · 12 illustrations

Illustrations

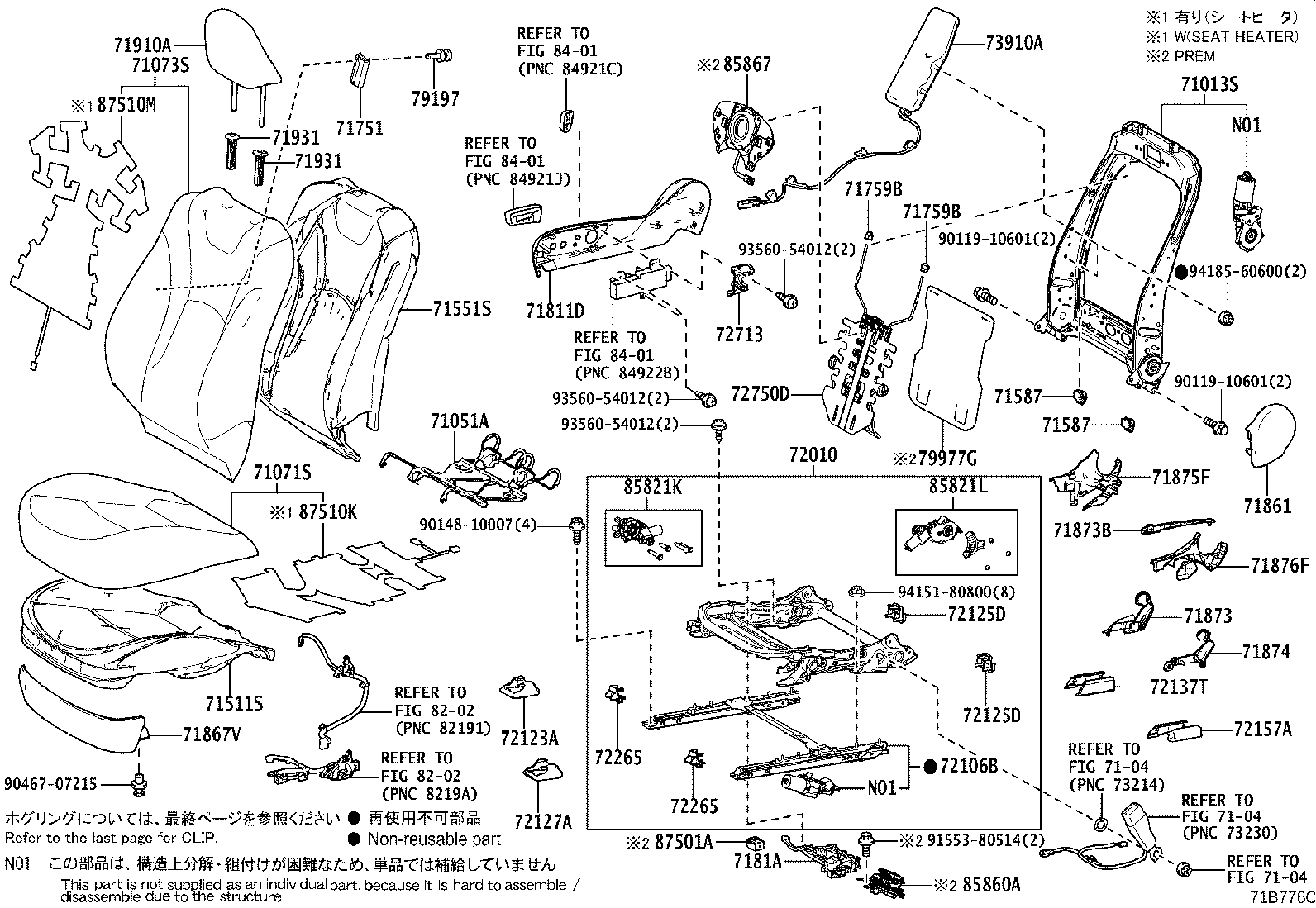

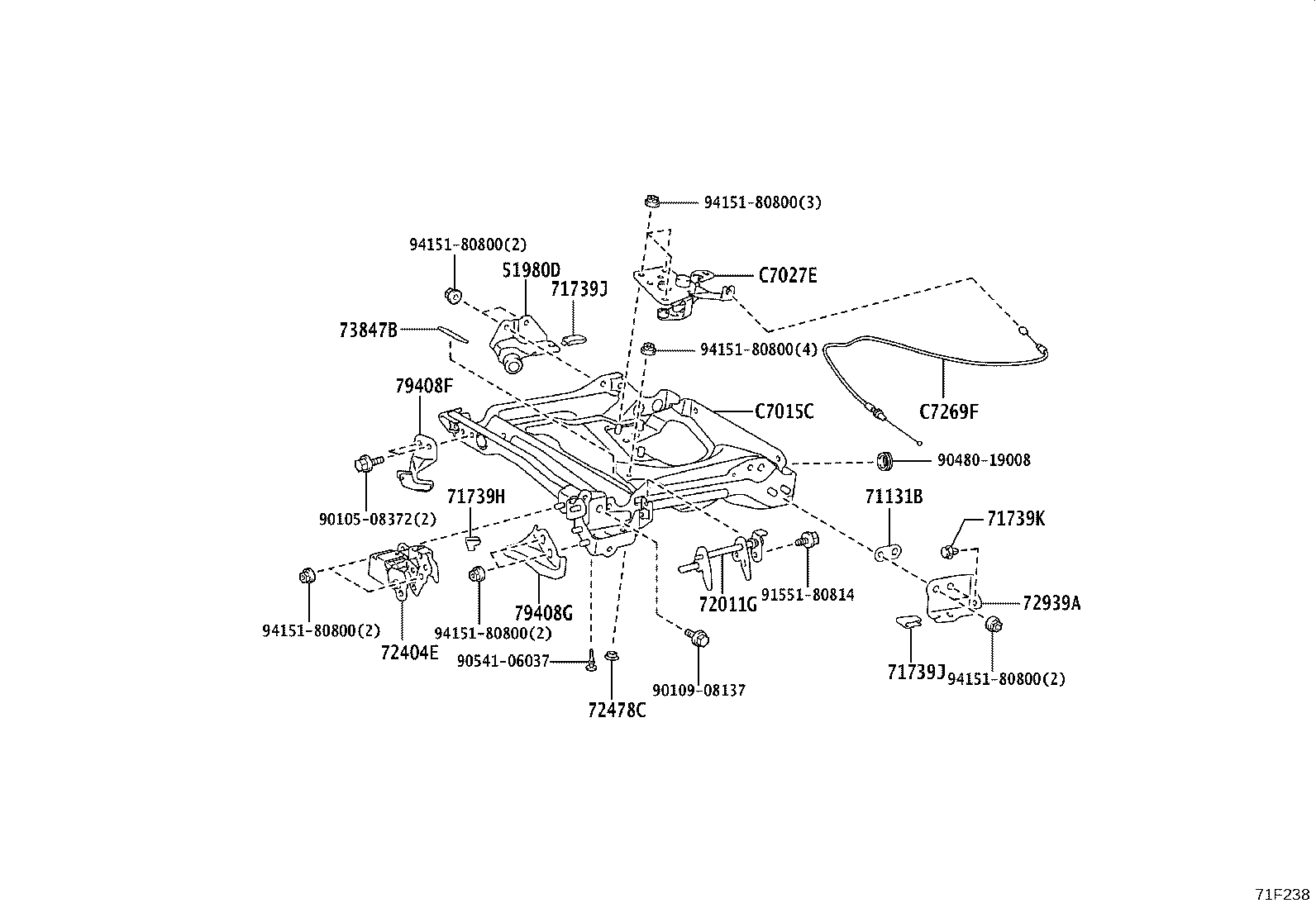

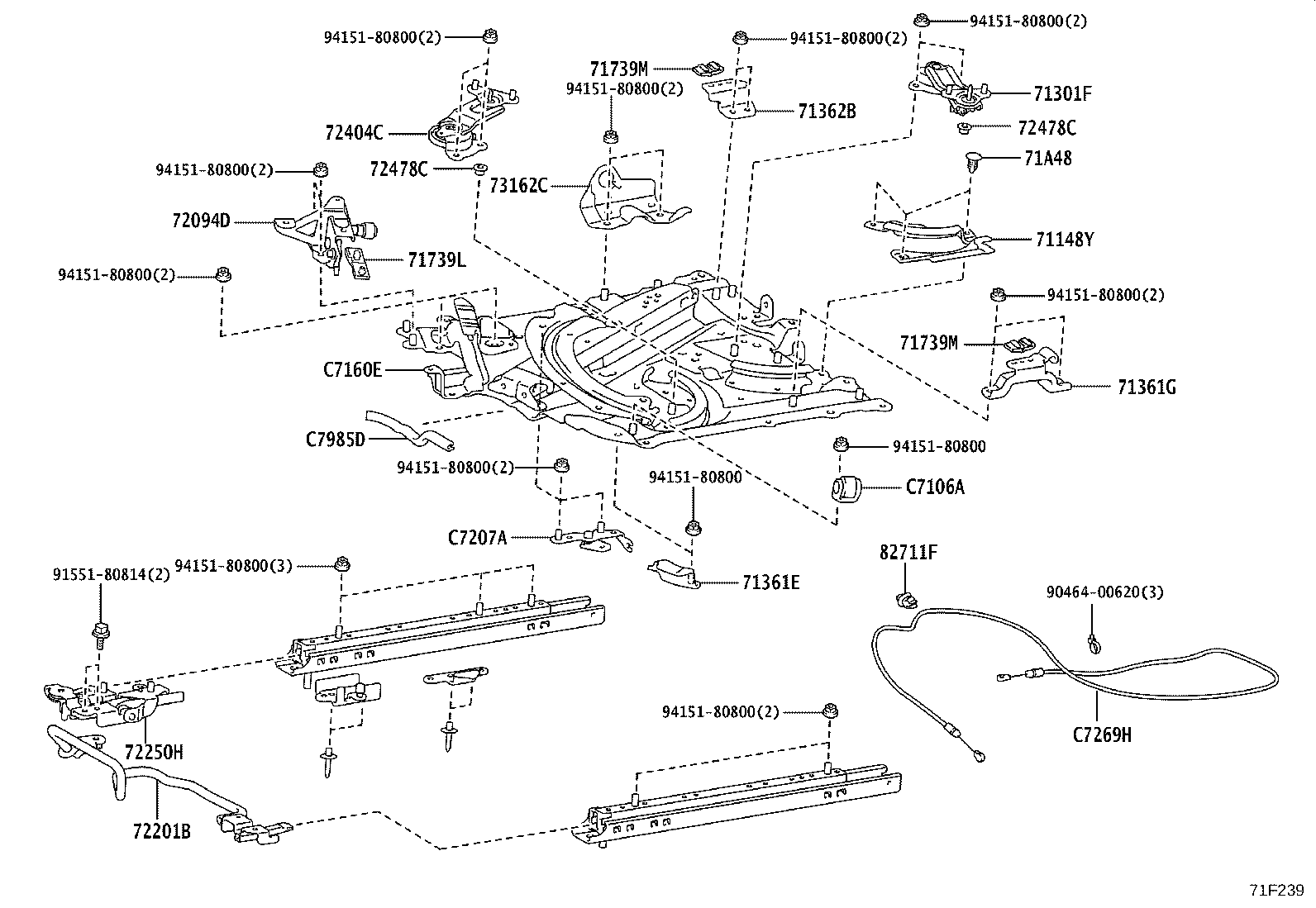

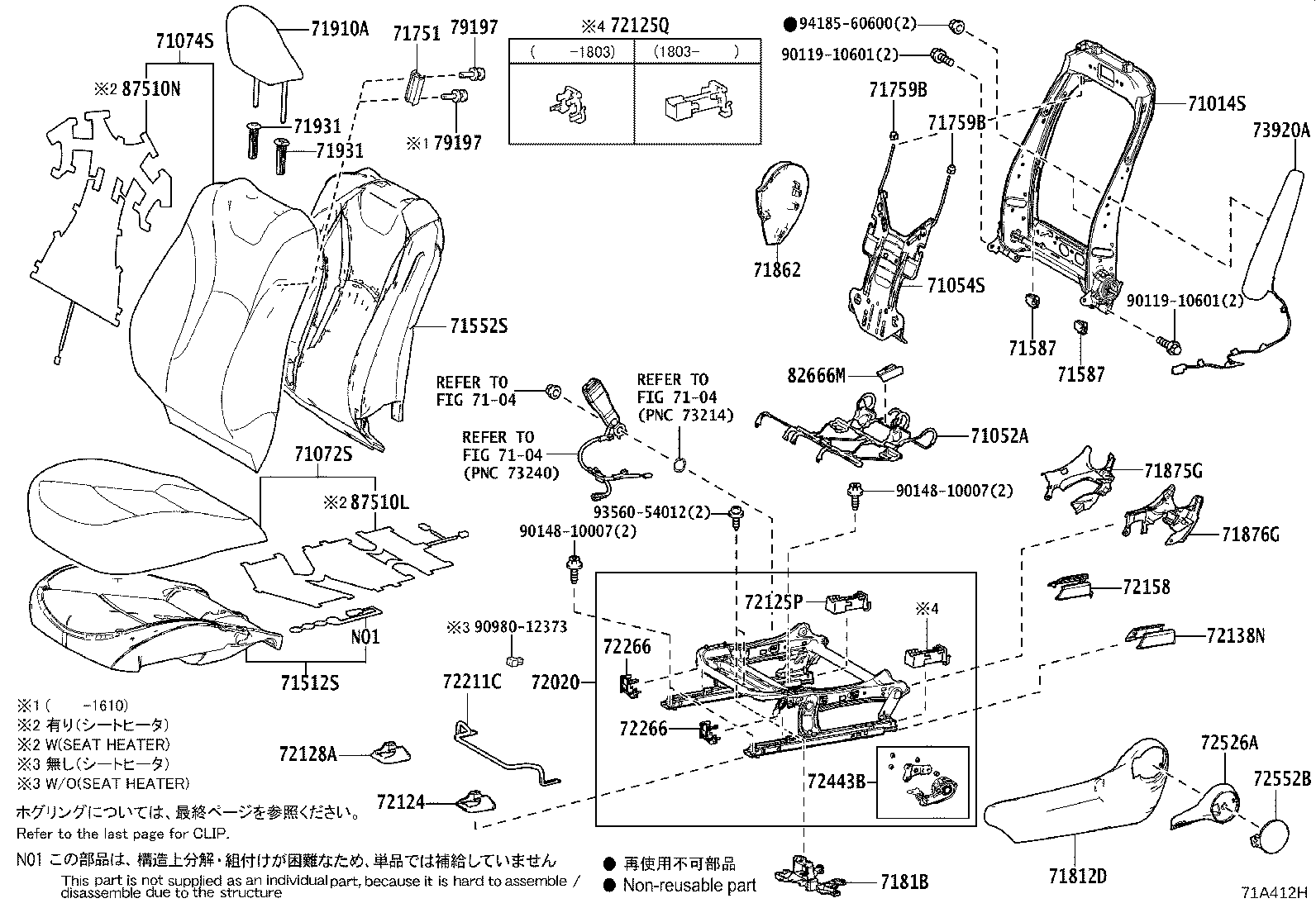

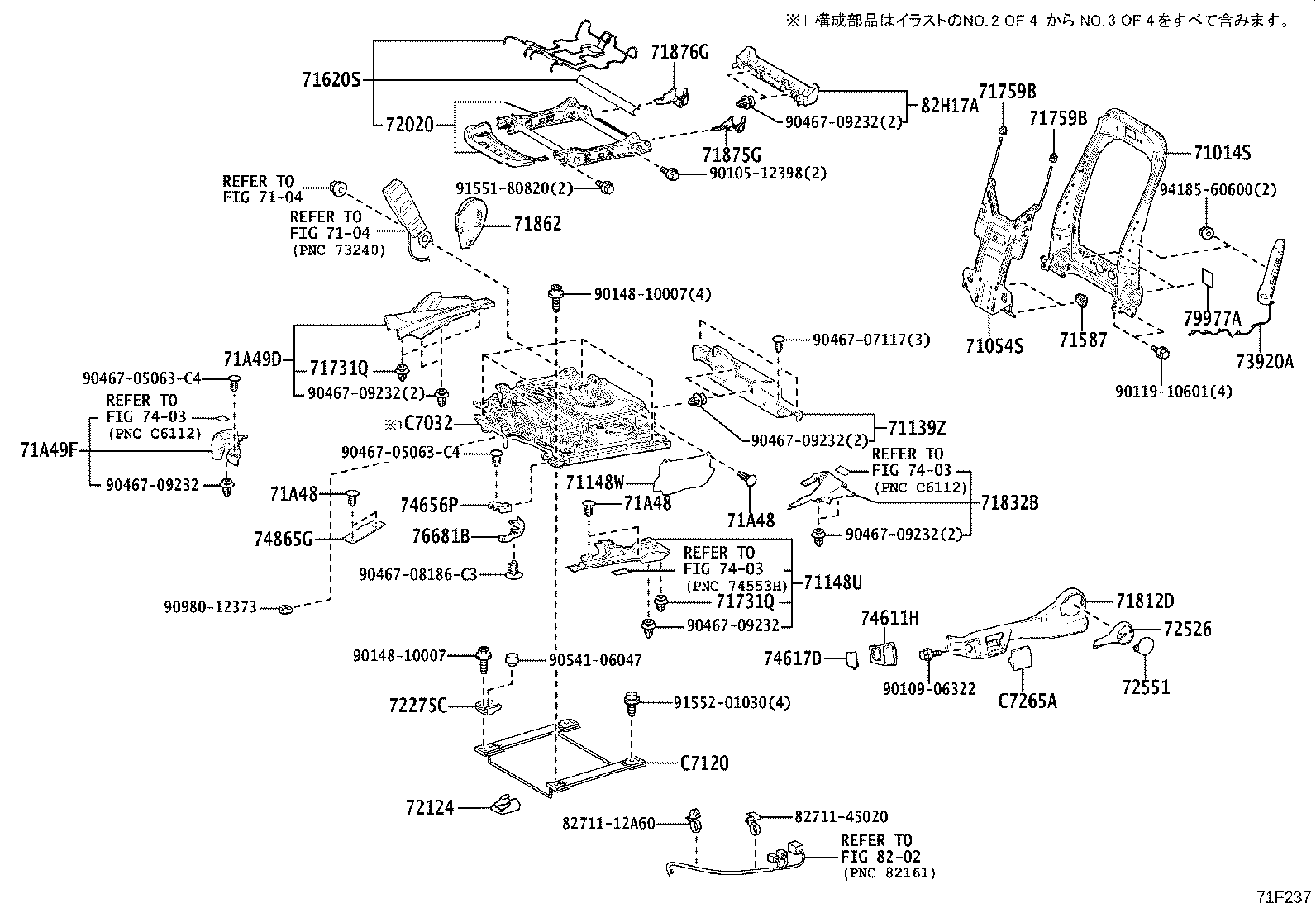

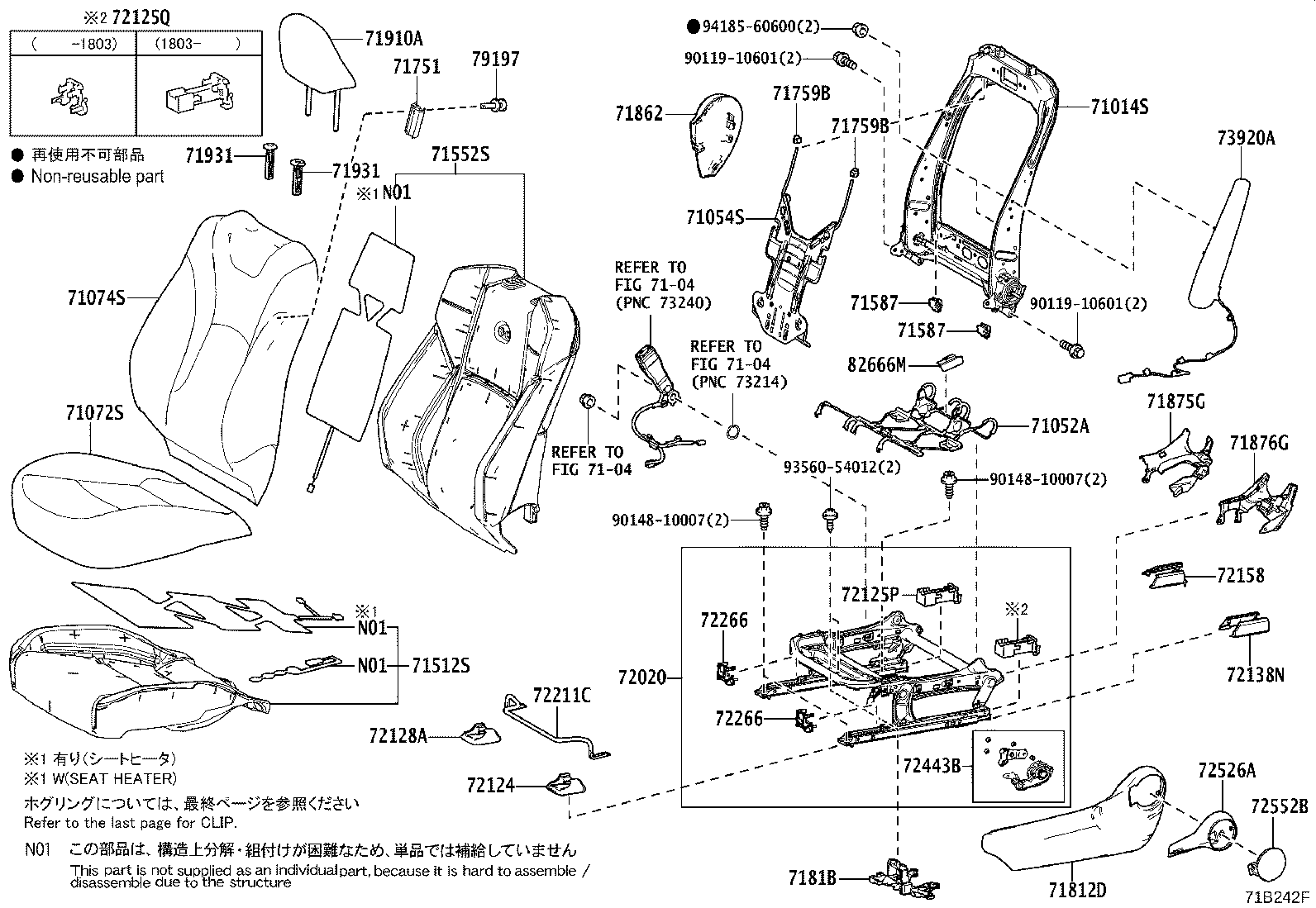

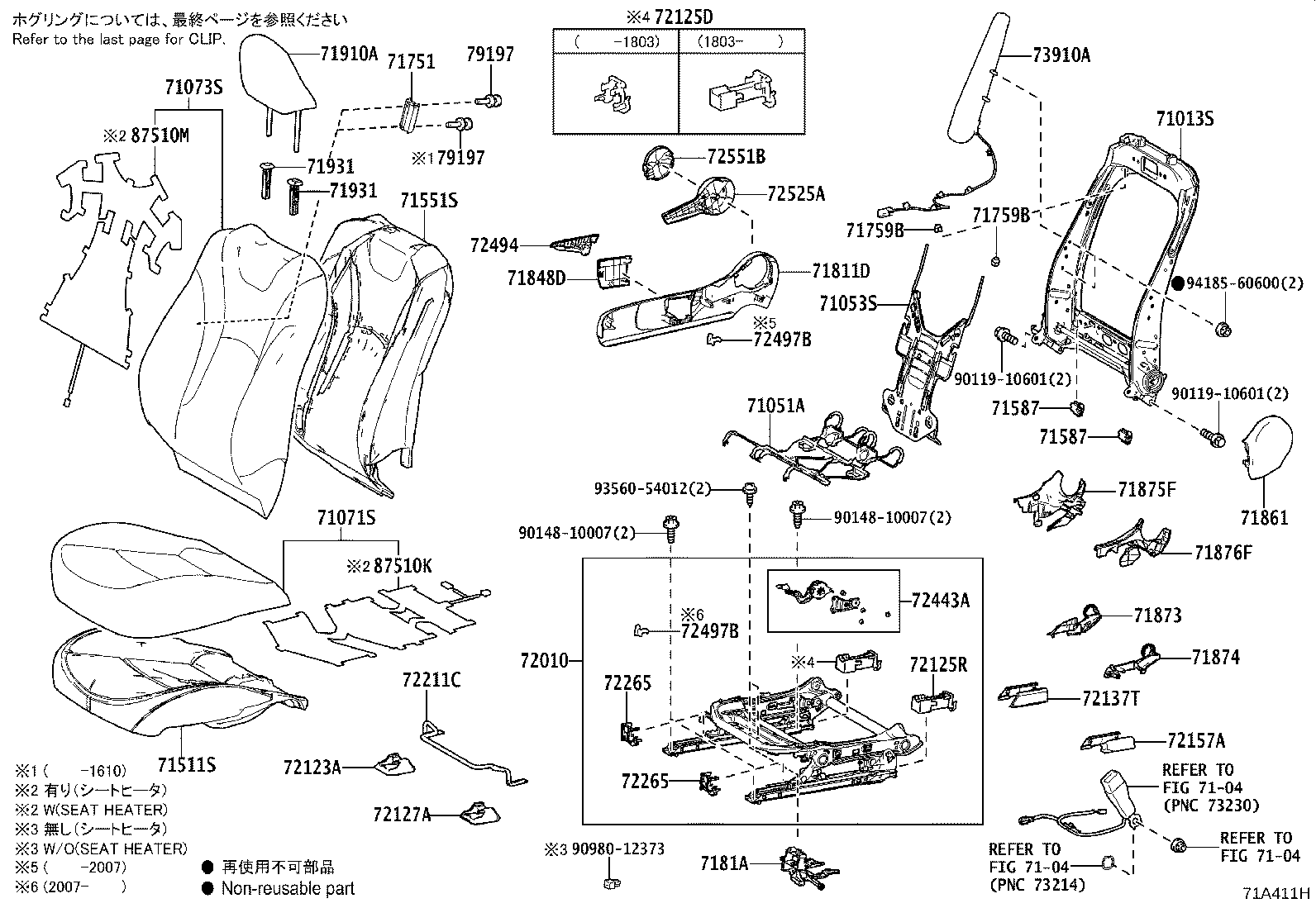

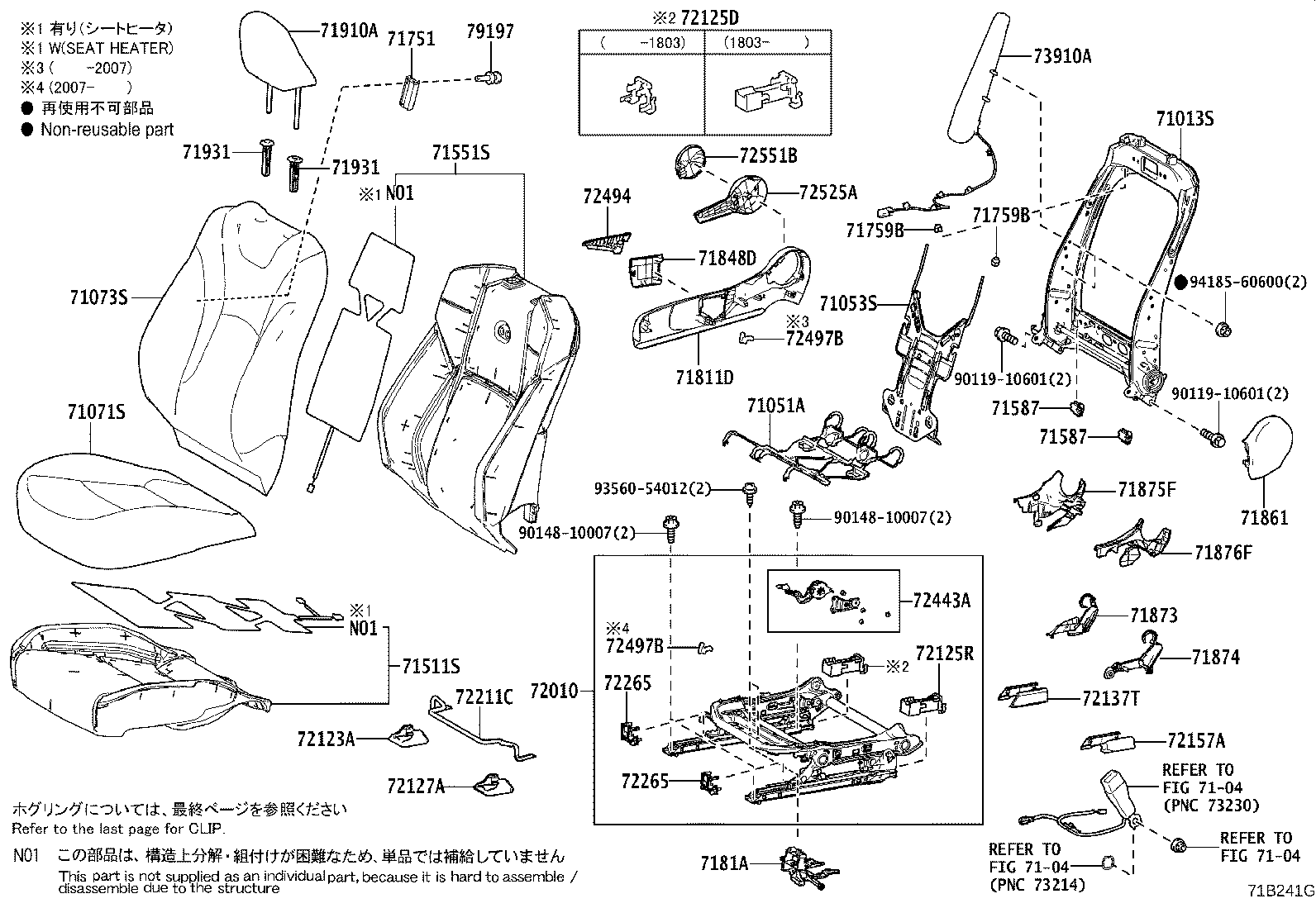

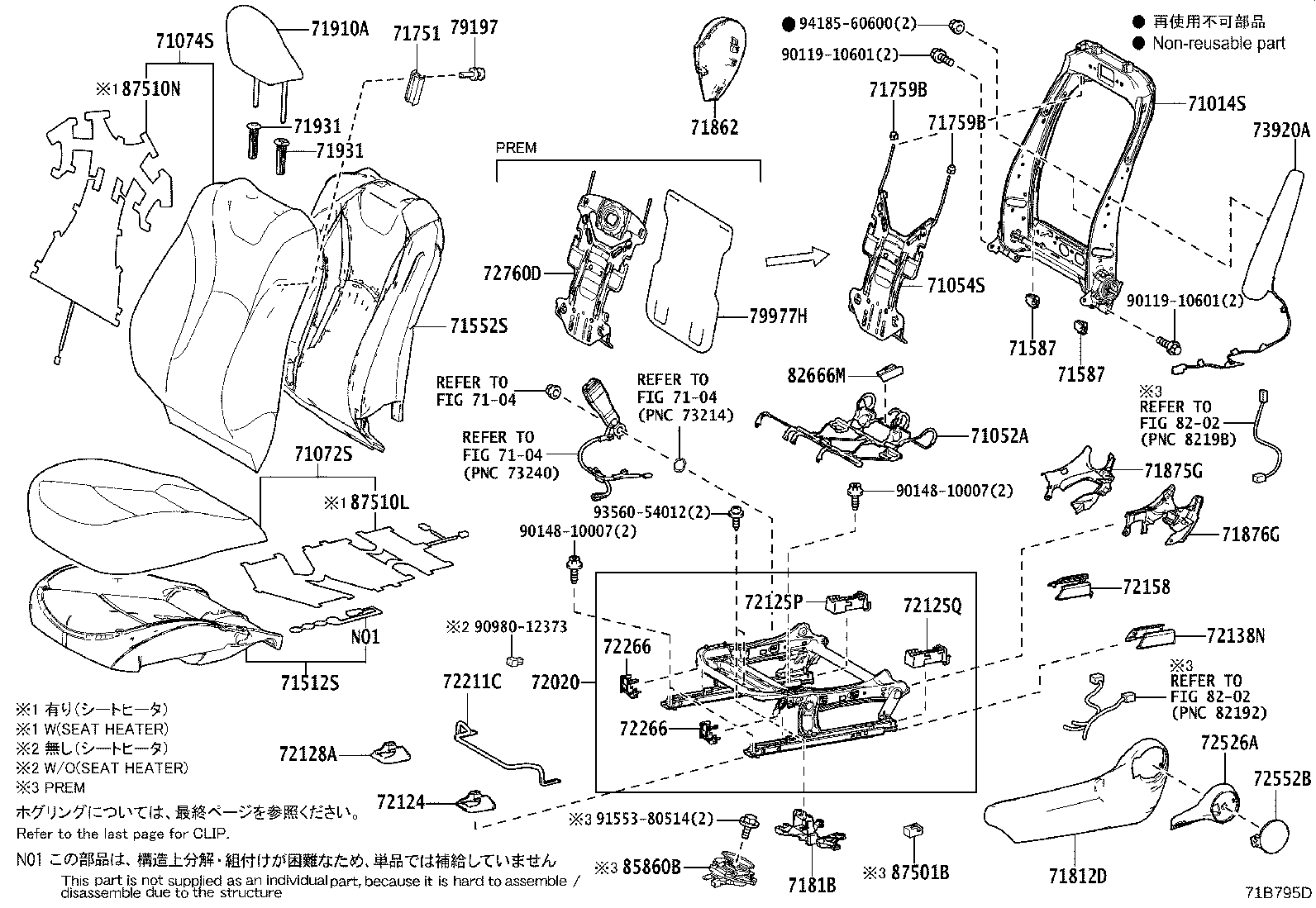

Figure 71A410H 71A410H 2016-09 → 2019-04 Figure 71B776C 71B776C 2019-05 → — Figure 71A411H 71A411H 2016-09 → — Figure 71A412H 71A412H 2016-09 → 2019-04 Figure 71B795D 71B795D 2019-05 → — Figure 71B241G 71B241G 2017-10 → — Figure 71B242F 71B242F 2017-10 → — Figure 71F236 71F236 2016-09 → — Figure 71F237 71F237 2016-09 → — Figure 71F238 71F238 2016-09 → — Figure 71F239 71F239 2016-09 → — Figure 718165A 718165A 2016-09 → —

Part groups

PNCDescription
51980D Hook Assy, Pintle, LH
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71131B Plate, Front Seat Cushion, NO.1
71139Z Cover, Front Seat Leg, LH
71148U Cover, Front Seat Leg, Outer NO.1(FOR LH SEAT)
71148W Cover, Front Seat Leg, Outer NO.2(FOR LH SEAT)
71148Y Cover, Front Seat Leg, Outer LH
71301F Link Sub-assy, Rear Seat Cushion, LH
71361E Bracket, Front Seat Set, NO.1 Front Outer(FOR LH SEAT)
71361G Bracket, Front Seat Set, NO.1 Rear Outer(FOR LH SEAT)
71362B Bracket, Front Seat Set, NO.2 Rear Inner(FOR LH SEAT)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71731Q Fastener, Seat Cover, LH
71739H Cushion, Seat Support, LH NO.1
71739J Cushion, Seat Support, LH NO.2
71739K Cushion, Seat Support, LH NO.3
71739L Cushion, Seat Support, LH NO.4
71739M Cushion, Seat Support, LH NO.5
71751 Hanger, Seat Cover
71759B Hook, Front Seatback
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71832B Cover, Front Seat Hinge, LH
71848D Cap, Seat Adjuster Cover, RH(FOR RH SEAT)
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71867V Shield, Front Seat Cushion, Front RH
71873 Shield, Front Seat Cushion, Lower RH
71873B Shield, Front Seat Cushion, Lower RH, NO.1
71874 Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71A48 Clip, Front Seat Leg Cover, LH
71A49D Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
71A49F Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT)
72010 Adjuster Assy, Front Seat, RH
72011G Hinge Sub-assy, Front Seat, LH
72020 Adjuster Assy, Front Seat, LH
72094D Lock Sub-assy, Front Seat Turn, LH
72106B Rail Sub-assy, Seat Track, Upper RH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125D Cover, Seat Track, Upper Rear NO.2
72125P Cover, Seat Track, Upper Rear NO.3
72125Q Cover, Seat Track, Upper Rear NO.4
72125R Cover, Seat Track, Upper Rear NO.1
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137T Cover, Seat Track Bracket, Outer Rear RH
72138N Cover, Seat Track Bracket, Outer Rear LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72201B Handle Sub-assy, Seat Track LH
72211C Handle, Seat Track Adjusting
72250H Lock Assy, Front Seat, LH
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72275C Stopper, Front Seat Track Slide
72404C Link Sub-assy, Front Seat Adjuster, LH NO.1
72404E Link Sub-assy, Front Seat Adjuster, LH NO.2
72443A Gear, Vertical Adjuster, RH
72443B Gear, Vertical Adjuster, LH
72478C Bush, Vertical Adjuster, LH
72494 Handle, Vertical Adjusting, RH
72497B Cover, Vertical Adjuster Bracket, RH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72551 Cover, Reclining Hinge, NO.1
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72713 Bracket, Seat Adjuster Shield Clamp, RH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72939A Hook, Seat Turn Lock, LH
73162C Bracket, Belt Anchor Bar, Rear LH
73847B Cushion, Seat Suspension Stopper, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
74611H Grip, Assist
74617D Plug, Assist Grip
74656P Cover, Hand Rail Bar, LH
74865G Cover, Center Protector, LH
76681B Cover, Outside Moulding End, NO.1 LH
79197 Hook, Seatback Cover
79408F Hook Sub-assy, NO.4 Seat, Inner LH
79408G Hook Sub-assy, NO.4 Seat, Outer LH
79977A Felt, Seatback
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
82666M Holder, Connector
82711F Clamp, Wiring Harness
82H17A Protector, Wiring Harness, LH
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
C7015C Panel Sub-assy, Turn Table, LH
C7027E Lock Sub-assy, Welcab Seat Turn, LH
C7032 Swivel Sub-assy, Front Seat, LH
C7106A Roller Sub-assy, Slide Table, LH
C7120 Leg, Welcab Seat, NO.1
C7160E Panel Assy, Slide Table, LH
C7207A Bracket Sub-assy, Interlock, Lower LH NO.1
C7265A Handle, Seat Turn Lock, LH
C7269F Cable, Seat Turn Lock Release, LH NO.1
C7269H Cable, Seat Turn Lock Release, LH NO.2
C7985D Guard, Rear Seat Turn, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
